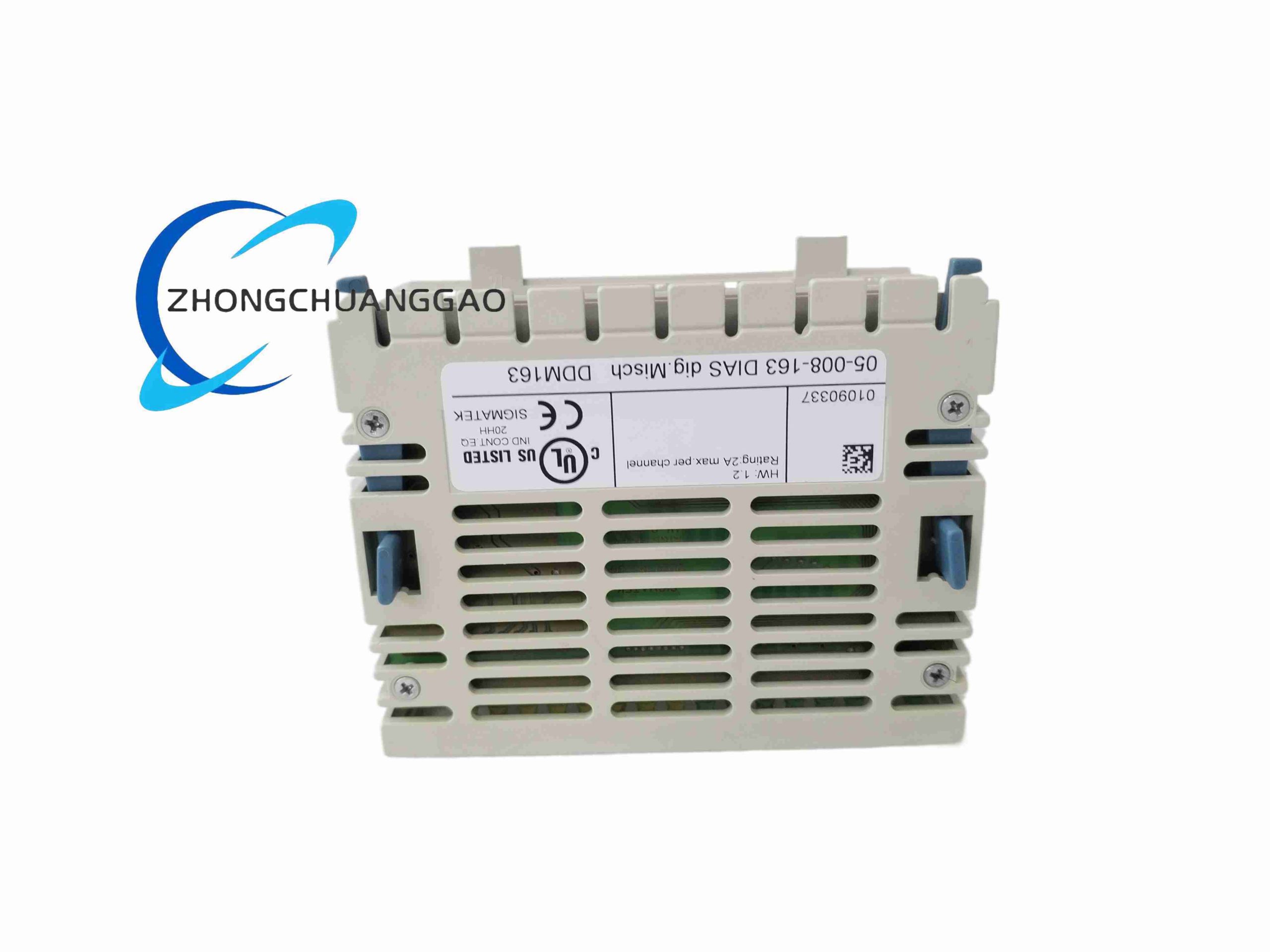

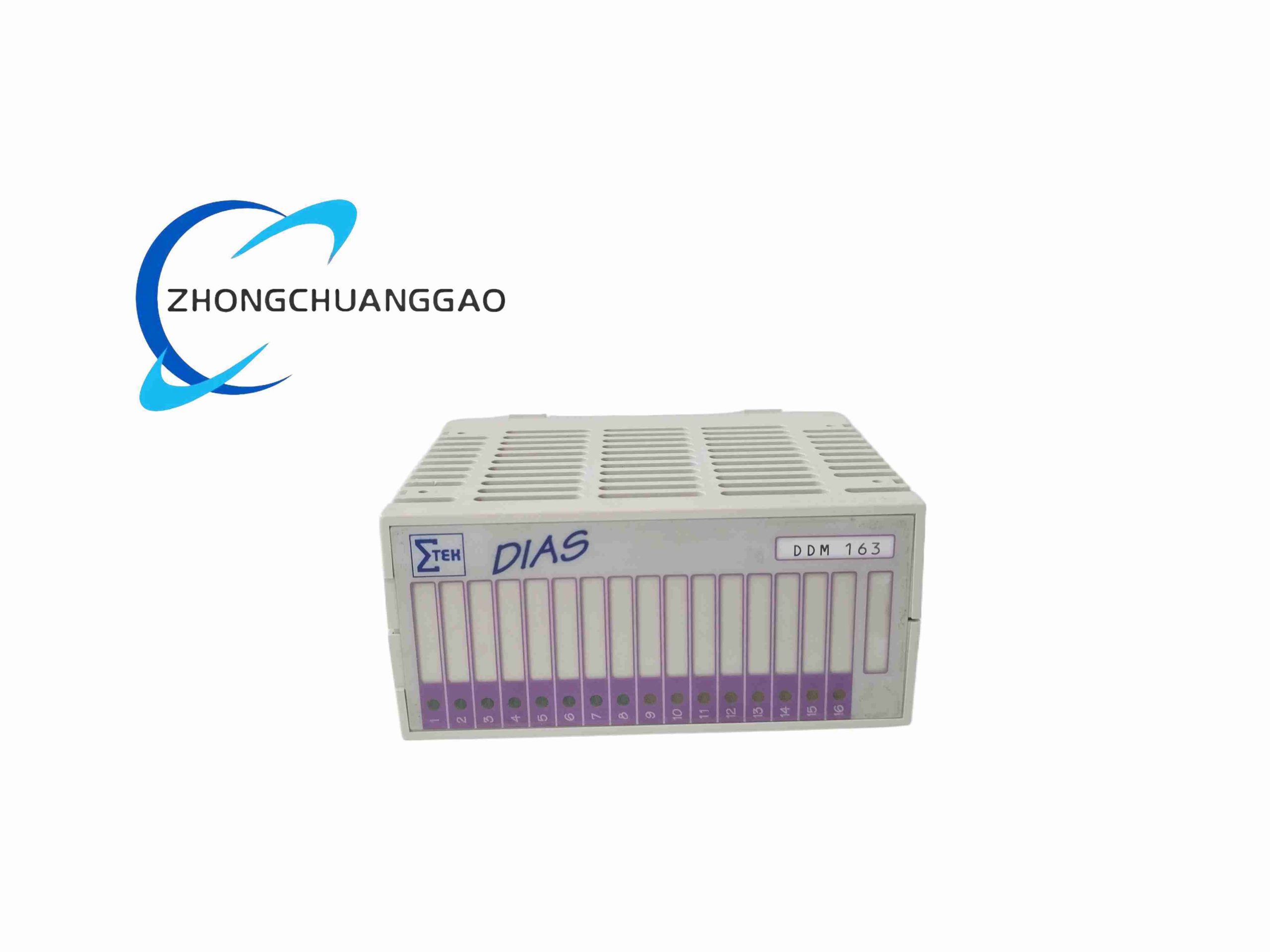

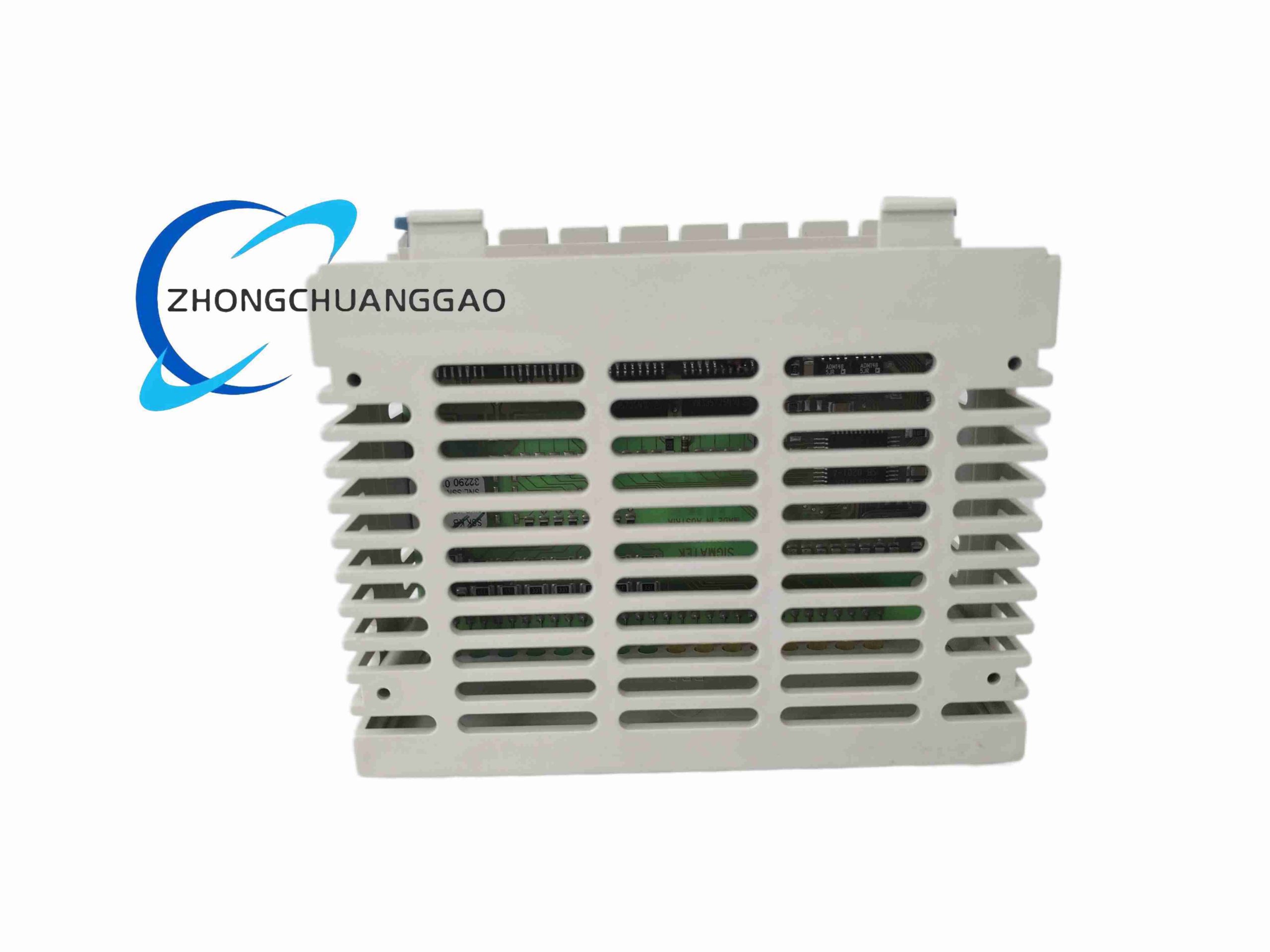

  • Product Name:​ SIGMATEK DIAS DDM 163 — Combined Digital Input / Digital Output Module
  • Product Introduction:​ Part of the SIGMATEK DIAS (Distributed I/O Automation System) modular series. Provides 8 short-circuit-protected digital outputs (high-side switching, 24 V DC) and 8 digital inputs (24 V DC sink/source) in one compact slice. Suitable for decentralized machine control via VARAN or EtherCAT backplane bus.
Category:
Description
  • Technical Specifications:
    • Digital Outputs:​ 8 channels, 24 V DC, 0.5 A or 2 A max per channel (typ. 2 A positive-switching / high-side — check exact variant), total ∑ ≤ 6 A (all outputs)
    • Output Protection:​ Short-circuit & thermal overload protected; auto-reset
    • Voltage Drop (Output ON):​ ≤ 1 V @ rated current
    • Residual Current (OFF):​ < 12 µA
    • Switch-on / Switch-off Delay:​ < 200 µs
    • Digital Inputs:​ 8 channels, 24 V DC (Type 1/3 compliant), filter configurable to suppress signal bounce
    • Input Threshold:​ Typically ON > 15 V, OFF < 5 V
    • Status Indicators:​ Yellow LED per output, Green LED per input
    • Supply Voltage (Module Logic):​ 24 V DC (from DIAS bus or separate terminal depending on backplane)
    • Operating Temp.:​ 0 °C to +55 °C (some sources –25 °C to +60 °C)
    • Mounting:​ Snap onto DIAS DIN rail bus coupler / base module
    • Dimensions:​ Approx. 12 mm width (per DIAS slice standard) × 100 mm depth
  • Functional Features:​ Integrated input filtering; diagnostic LEDs per point; short-circuit proof outputs with individual channel status feedback to PLC; hot-plug capable in DIAS topology.
  • Applications:​ Packaging machinery, assembly lines, CNC peripheral control, material handling — anywhere combined DI/DO in a compact footprint is required.
  • Installation & Notes:​ Ensure total output current does not exceed module’s sum rating (typically 6 A). Use proper ferrules for field wiring. Activate input filter in software if mechanical switch bounce is present. Ground shield of sensor cables to cabinet earth, not to 0 V.
