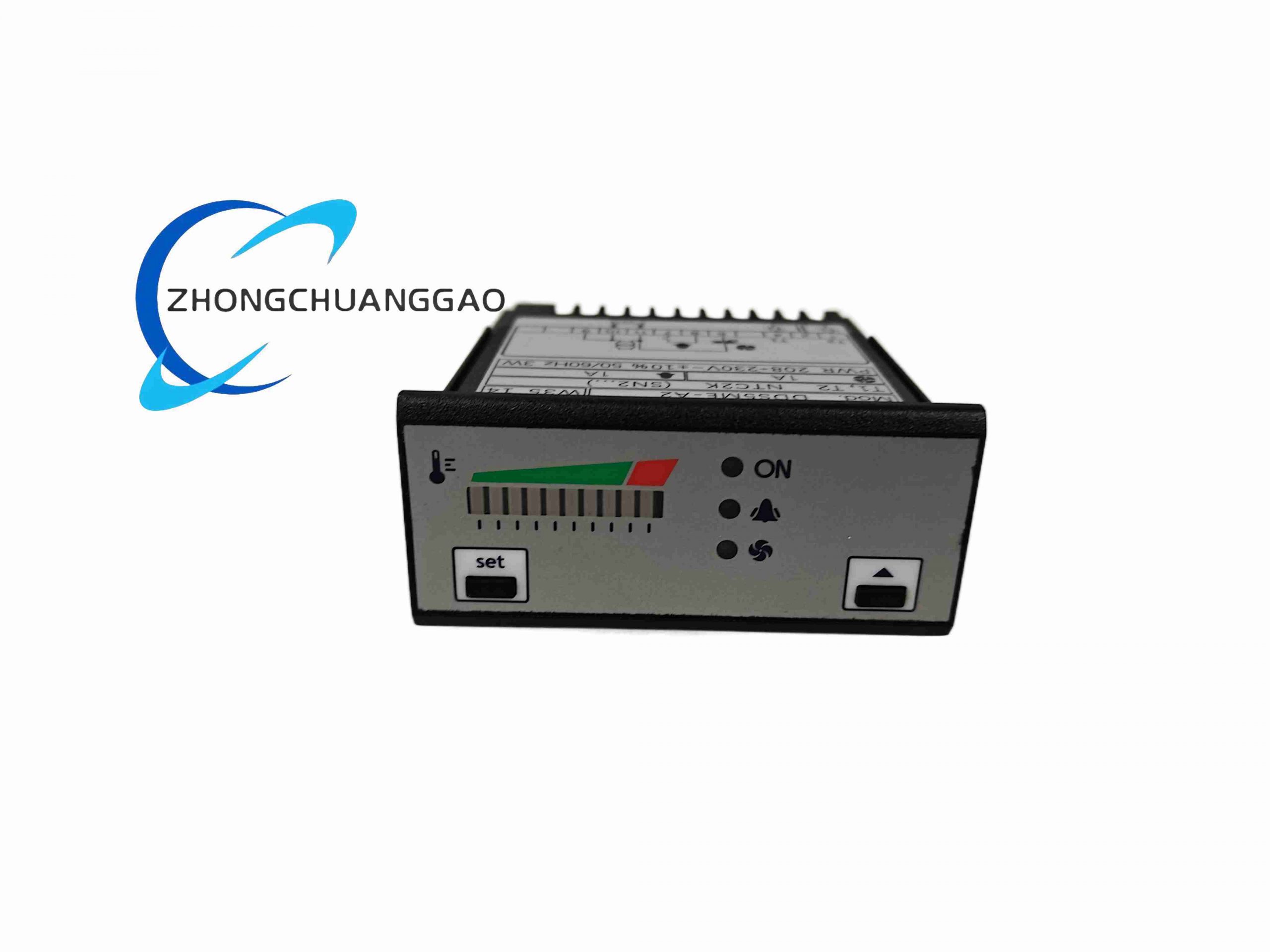

ELECTRONIC REGULATOR DDS5ME-A2 - Image 1

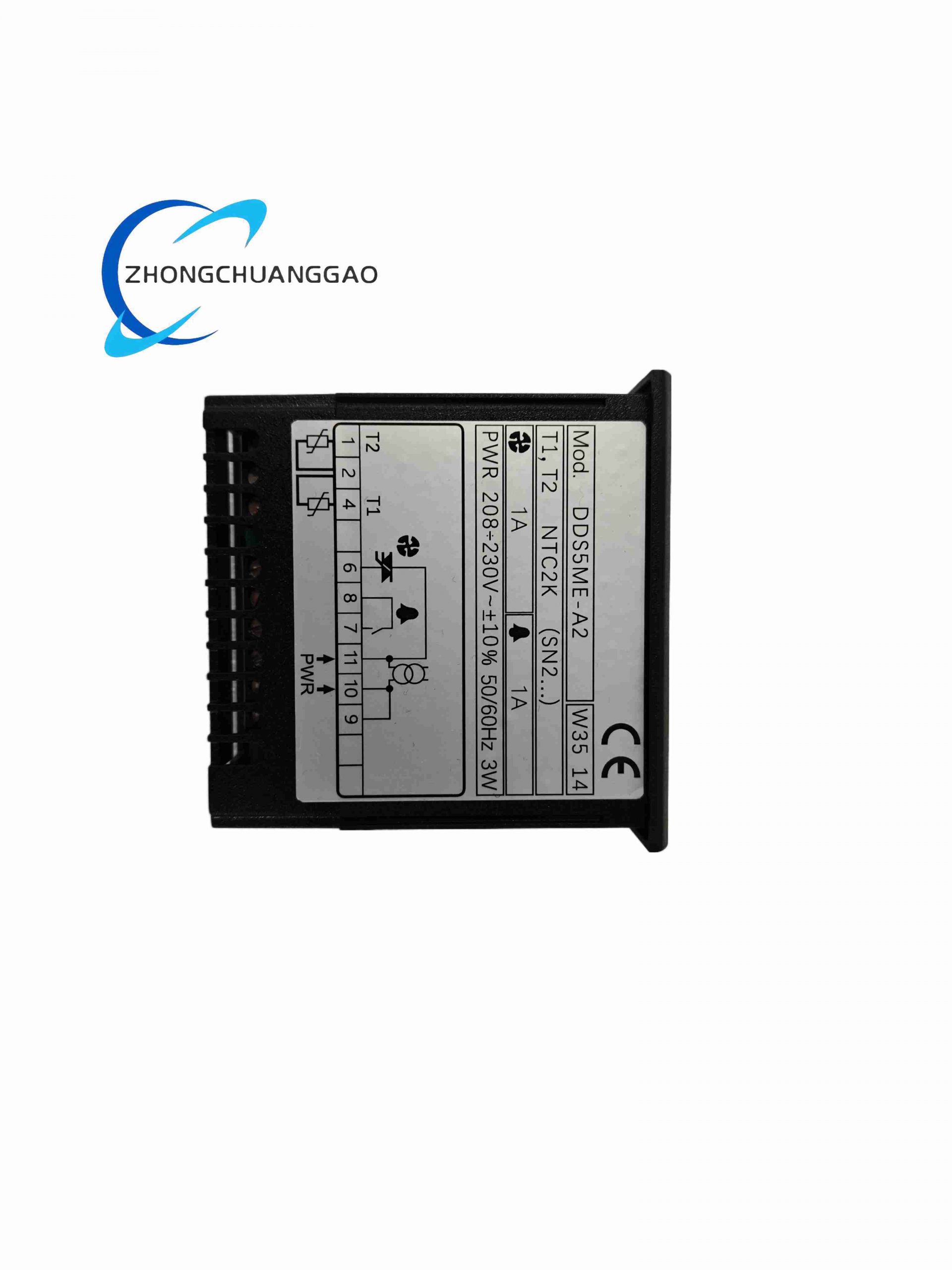

ELECTRONIC REGULATOR DDS5ME-A2 - Image 2

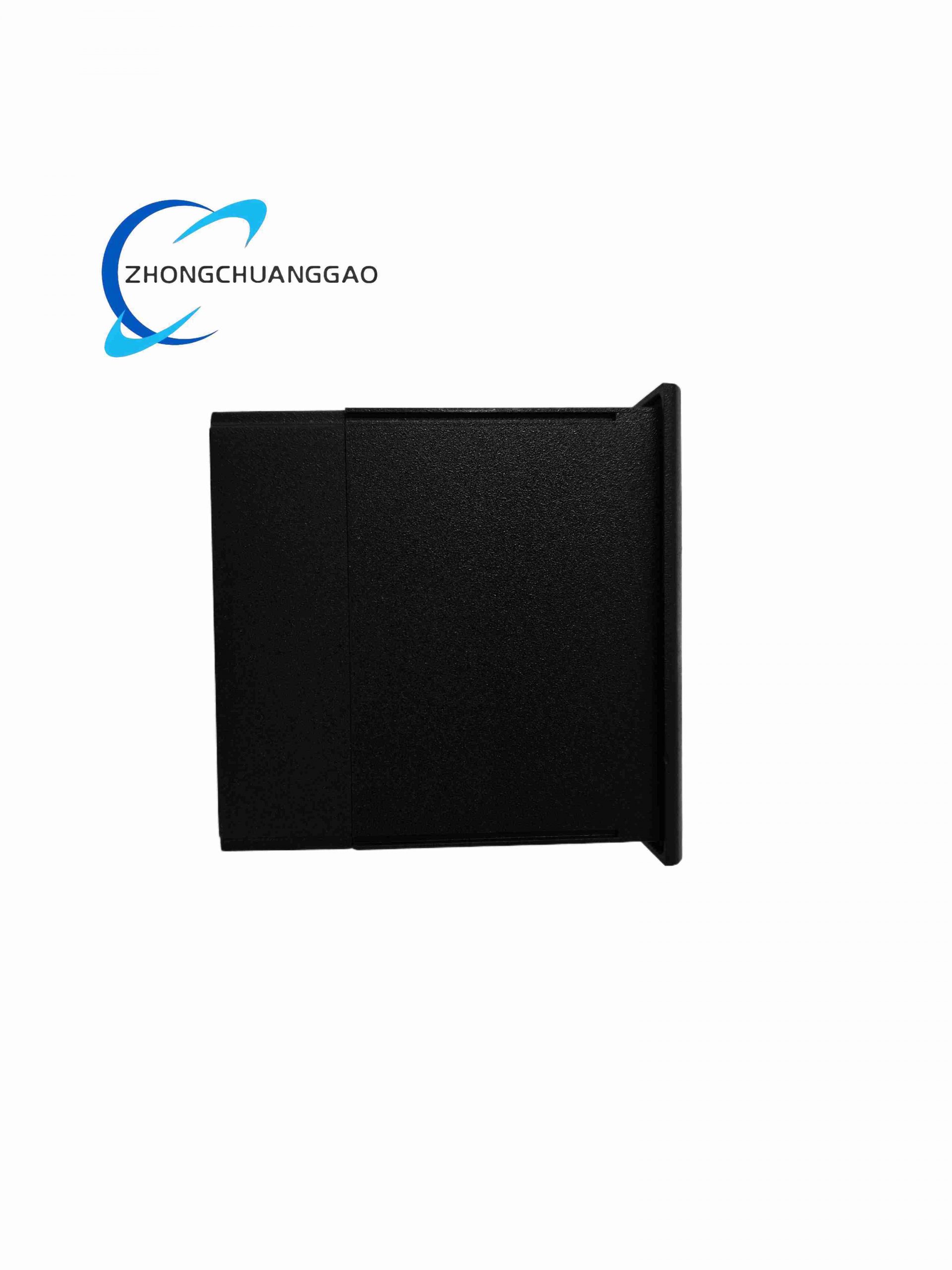

ELECTRONIC REGULATOR DDS5ME-A2 - Image 3
Click to enlarge
ELECTRONIC REGULATOR DDS5ME-A2
ELECTRONIC REGULATOR DDS5ME-A2 - Image 2
ELECTRONIC REGULATOR DDS5ME-A2 - Image 3
SIGMATEK DDM163
SIGMATEK DDM163
Back to products
BASLER ELECTRIC DECS-200
BASLER ELECTRIC DECS-200

ELECTRONIC REGULATOR DDS5ME-A2

  • Product Introduction:​ A microprocessor-based PID engine speed controller for diesel or gas engines driving generators or pumps. Accepts magnetic pickup (MPU) speed signal and modulates actuator (electric fuel pump / proportional solenoid) to maintain set RPM under varying load. Also used in refrigeration/industrial fluid pressure regulation contexts (brand-dependent; DDS5ME is typically a genset governor).
  • Technical Specifications (Typical for engine governor version):
    • Supply Voltage:​ 8–35 V DC (12 V / 24 V battery compatible)
Category:
Description
    • Actuator Output:​ ±10 V DC or PWM (configurable), drives electric governor actuator / stepper
    • Set Speed Adjustment:​ Front-panel potentiometer or external 0–5 V / 4–20 mA command
    • Adjustments:​ Gain (P), Stability (D), Droop / Isochronous, Idle Speed
    • Protection:​ Overspeed detect, start failure detect (when used with gen-set controller)
    • Operating Temp.:​ –20 °C to +70 °C
    • Mounting:​ DIN rail (35 mm) or panel screw mount
    • Enclosure:​ IP20 (for cabinet installation)
    • Compliance:​ CE, ISO 8528-5(genset application)
  • Functional Features:​ PID control with auto-tuning capable in some firmware; LED status for Run / Fault / Overspeed; start-up ramp control; compatibility with Woodward / Bosch / Caterpillar-type actuators.
  • Applications:​ Standby / prime diesel generator sets (5–2500 kVA), marine aux engines, gas compressor drives, industrial pump governors.
  • Installation & Notes:​ MPU gap must be set per engine spec (typically 0.25–0.75 mm). Calibrate gain/stability with no-load then loaded condition. Do NOT operate actuator without connecting MPU signal — may drive full open. Keep MPU wiring away from ignition / alternator cabling.
