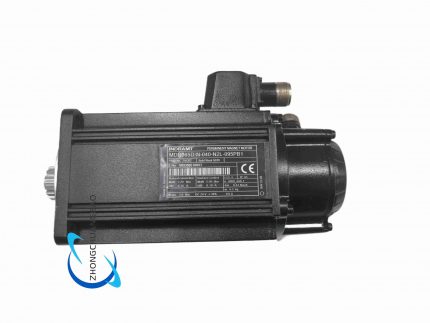

Rexroth MDD065D-N-040-N2L-095PB1
Rexroth MDD065D-N-040-N2L-095PB1
Back to products
ARTESYN LPQ172
ARTESYN LPQ172

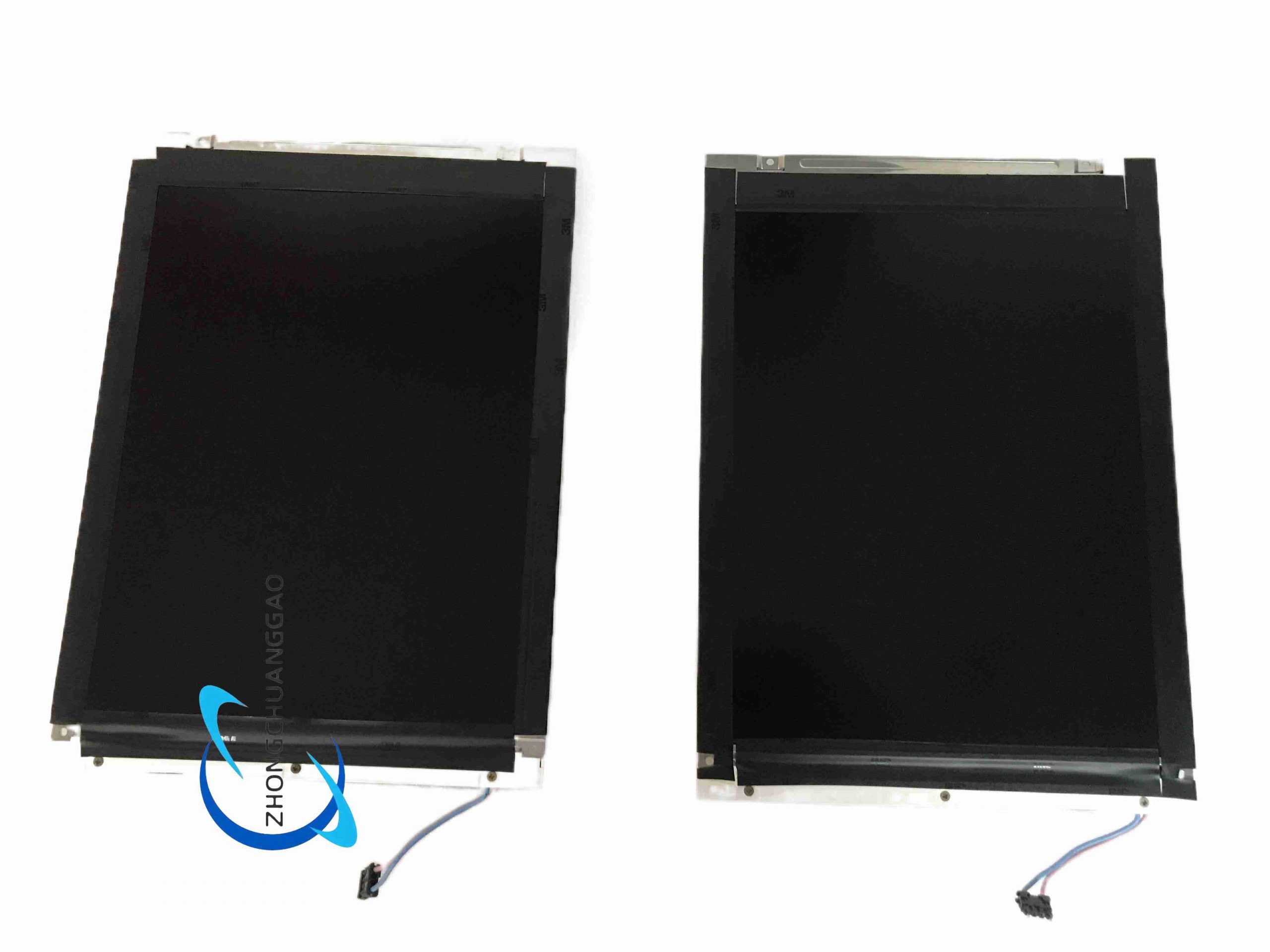

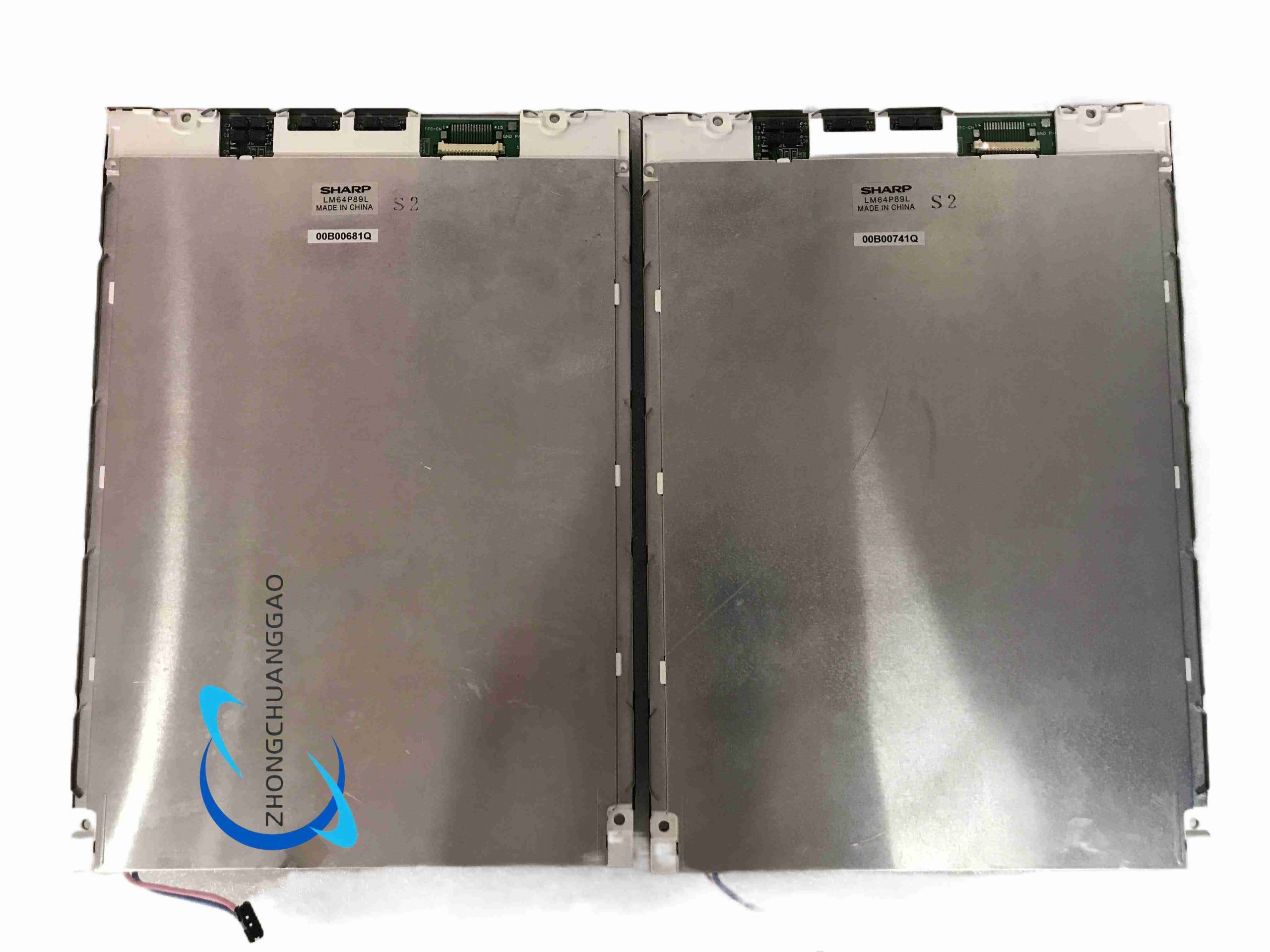

SHARP LM64P89L

Product Name​
Sharp LM64P89L 10.4-inch FSTN monochrome LCD module.
Introduction​
Industrial VGA-grade monochrome liquid crystal module built with FSTN positive transmissive STN technology. It is designed for factory HMI, instrumentation and embedded control panels that require a simple parallel interface and long-service CCFL backlight.
Category:
Description
Technical Specifications​
Diagonal size 10.4 inches, resolution 640 by 480 pixels, aspect 4:3, pixel pitch 0.33 millimeters. Active area 211.17 by 158.37 millimeters, outline 268 by 190 millimeters, depth approximately 7 millimeters. Brightness 75 candela per square meter, contrast ratio 18:1, viewing angles 25/25/20/10 degrees, response time 200 milliseconds rise and 150 milliseconds fall, refresh rate 85 hertz. Backlight one CCFL with 25,000 hours service life, 500 volts typical, 6 milliamps typical, no onboard driver. Logic supply 5.0 volts DC, parallel data interface 15 pins 4-bit, connector Molex 53261-1510 with 1.25 millimeter pitch. Operating temperature 0 to 45 degrees Celsius, storage temperature minus 25 to 60 degrees Celsius, weight 340 grams.
Functional Features​
Monochrome black and white display, transmissive optical mode, 4-bit parallel input, face-mount mechanical format, CCFL edge backlight located on top side, status suitable for fixed industrial screens.
Application Scenarios​
Factory automation panels, test and measurement instruments, medical equipment displays, building control interfaces, retrofitting older 640 by 480 monochrome HMI systems.
Performance Parameters​
Contrast 18:1, luminance 75 nits, data rate sufficient for 85 hertz refresh, power consumption about 0.45 watts for the LCD panel and about 2.1 watts for the CCFL backlight at 500 volts and 6 milliamps.
Material Composition​
FSTN glass liquid crystal cell, polarizers, CCFL lamp with inverter interface, plastic or metal bezel-ready front stack, 15-pin connector assembly.
Structural Characteristics​
Flat rectangular LCM with four face-mounting holes of 3.5 millimeters, top-edge CCFL backlight, 15-pin parallel signal connector on the rear, separate CCFL inverter connection.
Working Principle​
The FSTN cell modulates transmitted light from the CCFL backlight. Row and column drivers receive 4-bit parallel RGB-or-monochrome data, charge the STN pixels and produce a 640 by 480 monochrome image. The backlight inverter supplies high-voltage AC to the CCFL for uniform illumination.
Installation Requirements​
Mount using four front-face 3.5 millimeter holes, provide regulated 5.0 volts DC to the logic connector, connect the 15-pin 1.25 millimeter-pitch Molex signal header, install an external CCFL inverter rated 500 volts and at least 6 milliamps, maintain clearance for the 268 by 190 millimeter outline and verify touch or bezel cutout if used.
Usage Precautions​
Operate only between 0 and 45 degrees Celsius, keep logic supply at 5.0 volts DC within tolerance, avoid direct sunlight because the panel is not sunlight readable, handle the CCFL inverter as high voltage, replace the backlight assembly after the 25,000-hour half-brightness point, and follow ESD procedures when connecting the 15-pin interface.
