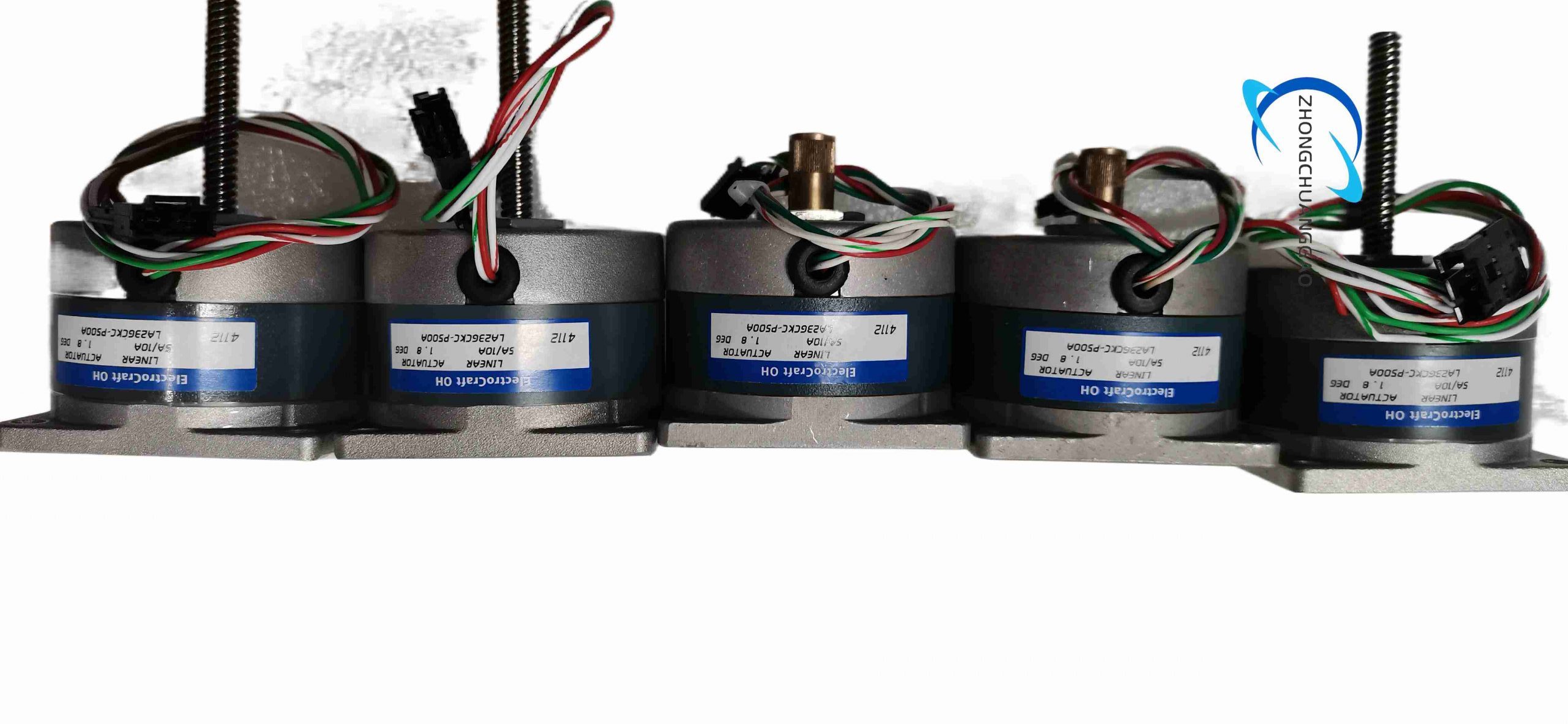

Pacific LA23GCKC-P500A - Image 1
Click to enlarge

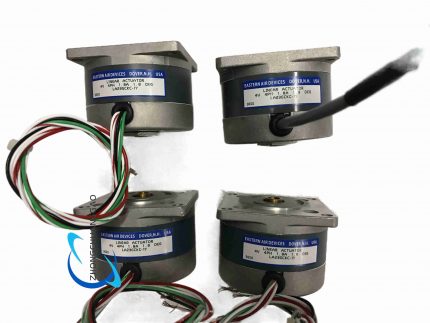

Pacific LA23GCKC-1Y
Pacific LA23GCKC-1Y
Back to products
Yaskawa LASC-100W8
Yaskawa LASC-100W8

Pacific LA23GCKC-P500A

Product Name​
Pacific Scientific LA23GCKC-P500A 500 W servo/ motion system component, LA23 series.
Product Introduction​
LA23GCKC-P500A is a 500 W-class motion control product in the Pacific Scientific LA23 GCKC family. Distributor data present it both as a servo motor/kit and as a servo drive/controller configuration; verify the exact shipped tag because motor, drive and combined kit share the same model suffix in spare-parts catalogs.
Category:
Description
Technical Specifications​
Rated power 500 W. Continuous current around 8 A RMS, peak around 12 A RMS on servo-motor/kit listings. Peak torque around 3.5 Nm. Rated speed 3000 rpm. Control supply/data options 24 V DC on configured motion modules; broader drive listings use 220 V AC or 230 V class input depending on variant. Position-loop accuracy around ±0.1°, speed-loop accuracy around ±0.01 rpm on configured servo listings. Communications RS-232, RS-485 and CANopen on configured versions; some drive listings add Modbus/Profibus/Ethernet options. Control modes position, speed and torque.
Function Features​
Closed-loop servo positioning with encoder/resolver feedback option. Electronic gearing, auto gain tuning, fault diagnostics, multi-axis command through CANopen/RS network on configured versions. High torque-to-size ratio for NEMA 23/LA23 mechanical envelope.
Structure Characteristics​
Precision ball-bearing motor section with laminated stator and permanent-magnet rotor, optional brake/encoder, aluminum housing, integrated drive heat sink on drive configuration, DIN/panel mounting on controller configuration, industrial signal connectors.
Working Principle​
The drive amplifies command signals and regulates phase current based on feedback from encoder or resolver. Current loop controls torque, speed loop controls rotation rate, position loop controls final angle. Deviations are corrected continuously to maintain ±0.1° class positioning on configured systems.
Installation Requirements​
Mount motor with correct shaft alignment and coupling torque. For drive/controller version, use grounded metal enclosure, separated signal/power routing and specified DC/AC supply. Configure CANopen/RS node address before network start. Validate encoder/resolver polarity and direction under no-load test.
Usage Precautions​
Do not exceed 500 W rated duty or 12 A peak current cycle limits. Verify voltage class because 24 V logic/supply, 220 V AC and 230 V drive variants are not interchangeable. Protect against overload, over-temperature and feedback loss. Perform auto-tuning only with the machine in safe limited-travel mode.
