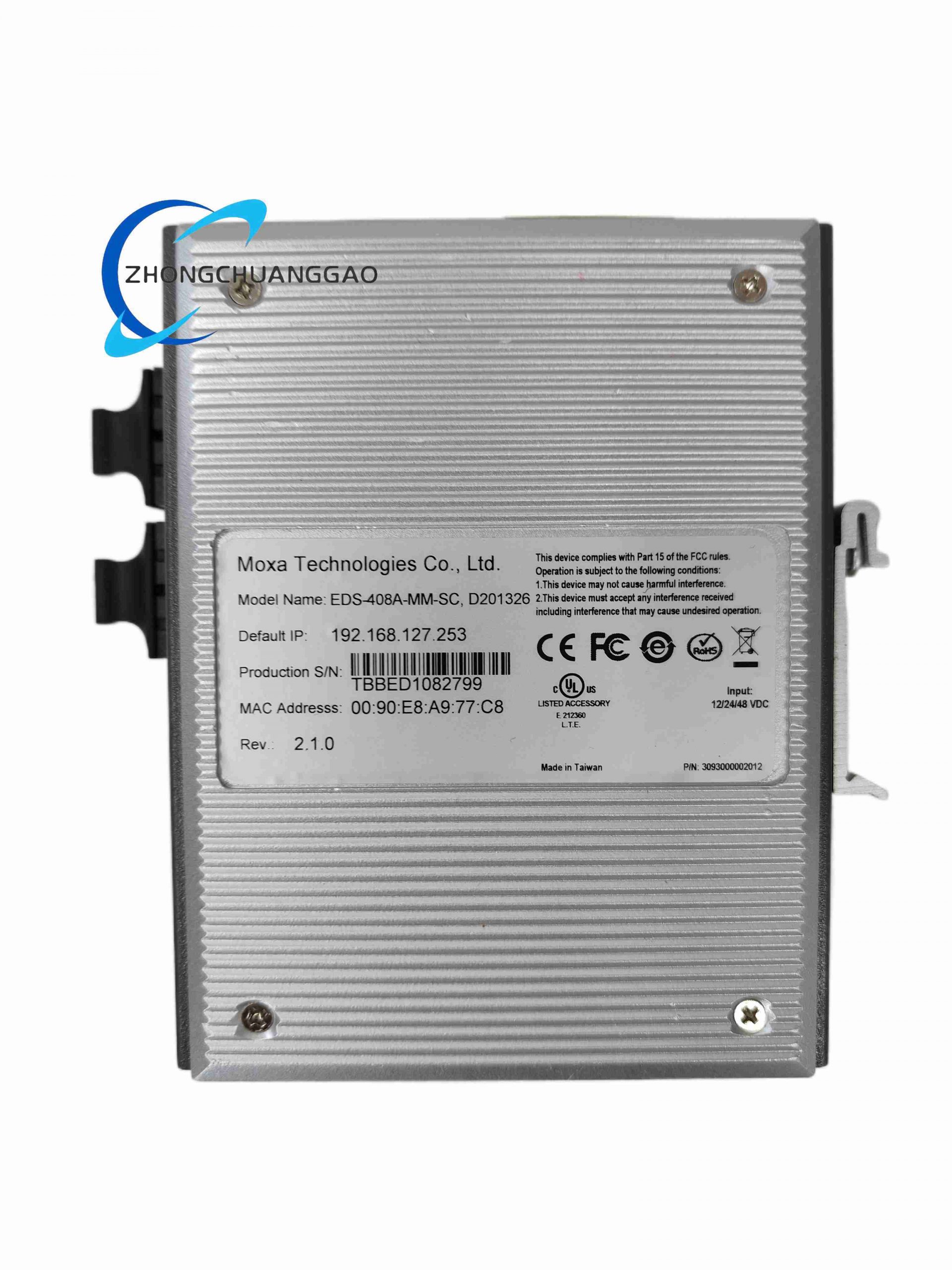

MOXA EDS-408A-MM-SC - Image 1

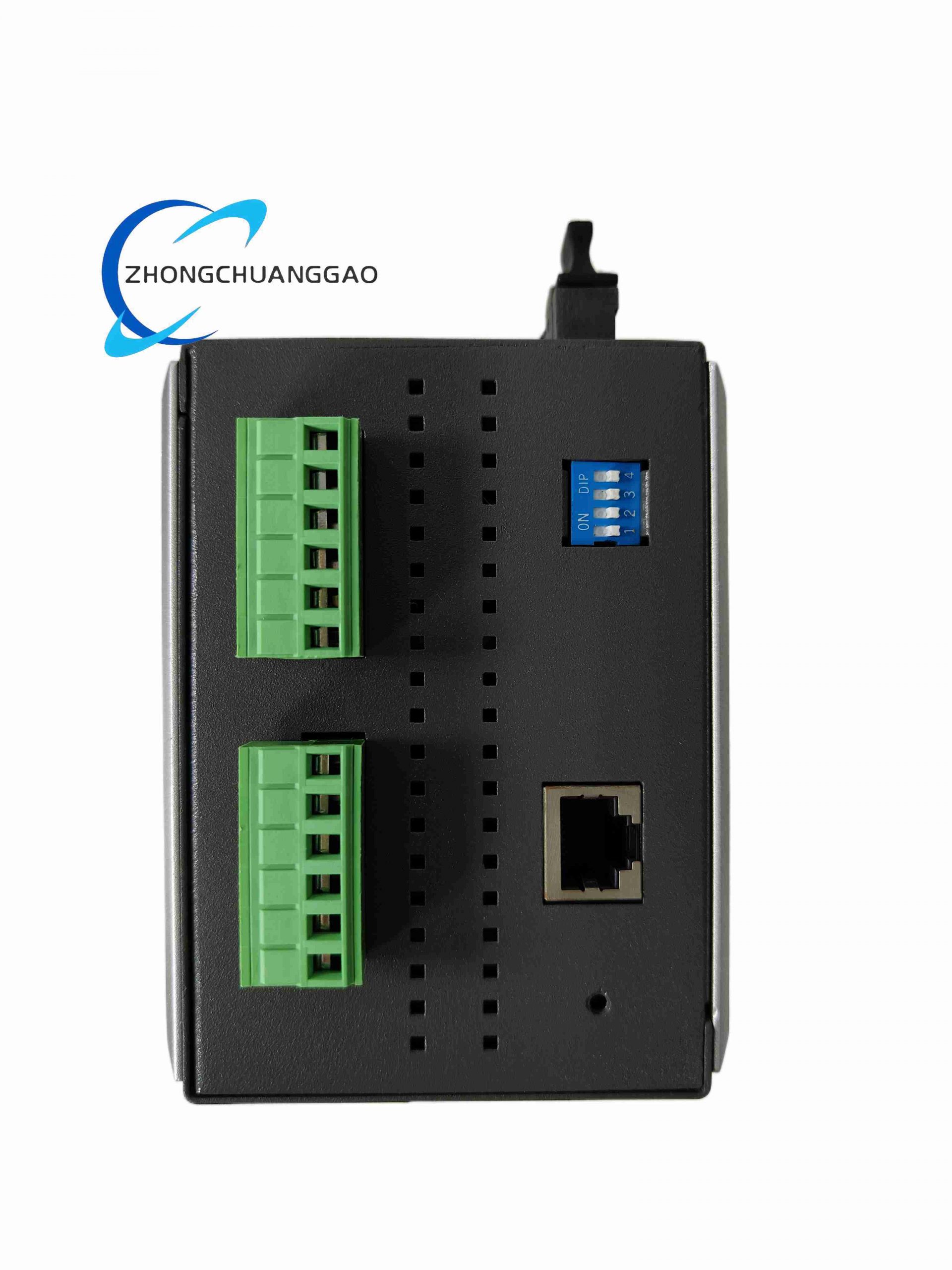

MOXA EDS-408A-MM-SC - Image 2
Click to enlarge
MOXA EDS-408A-MM-SC
MOXA EDS-408A-MM-SC - Image 2
MOXA EDS-308-MM-SC
MOXA EDS-308-MM-SC
Back to products
MOXA EDS-508A-MM-SC
MOXA EDS-508A-MM-SC

MOXA EDS-408A-MM-SC

Product Name:​ Moxa EDS-408A Series Managed Ethernet Switch, 6×10/100BaseT(X) + 2×100BaseFX MM SC
Product Introduction:​ Entry-level Layer-2 managed switch with Turbo Ring redundancy, VLAN, IGMP snooping, and SNMP management for industrial networks.
Category:
Description
Ethernet Interface:
  • 6 × 10/100BaseT(X) RJ45, auto MDI/MDI-X
  • 2 × 100BaseFX Multi-Mode SC, 1300 nm, typ. distance 4–5 km (OM1/OM2)
  • Console port: RS-232 (RJ45) for out-of-band config
Switching Features:
  • MAC Table: 8 K
  • VLAN: IEEE 802.1Q (up to 64 VLANs, VID 1–4094)
  • Redundancy: Turbo Ring v1/v2 (< 20 ms recovery), RSTP/STP
  • IGMP v1/v2 snooping (256 groups)
  • QoS: 4 priority queues, 802.1p
  • Management: Web, Telnet, SNMP v1/v2c/v3, BOOTP/DHCP, Syslog, TFTP firmware upgrade
Power & Alarm:
  • Input: 12/24/48 VDC (9.6–60 VDC), redundant
  • Current: ~0.30 A @ 24 VDC
  • 1 × relay alarm (power fail / port break)
Mechanical & Environment:
  • Same form factor as EDS-308: 53.6 × 135 × 105 mm, metal IP30
  • DIN-rail mount
  • Operating Temp: -10 to +60 °C (standard); -40 to +75 °C on -T variants
  • Certifications: UL 508, EN 60950-1, NEMA TS2, EN 50121-4(railway), IEC 61850-3(power substation on select models)
  • MTBF: > 1,200,000 hrs
