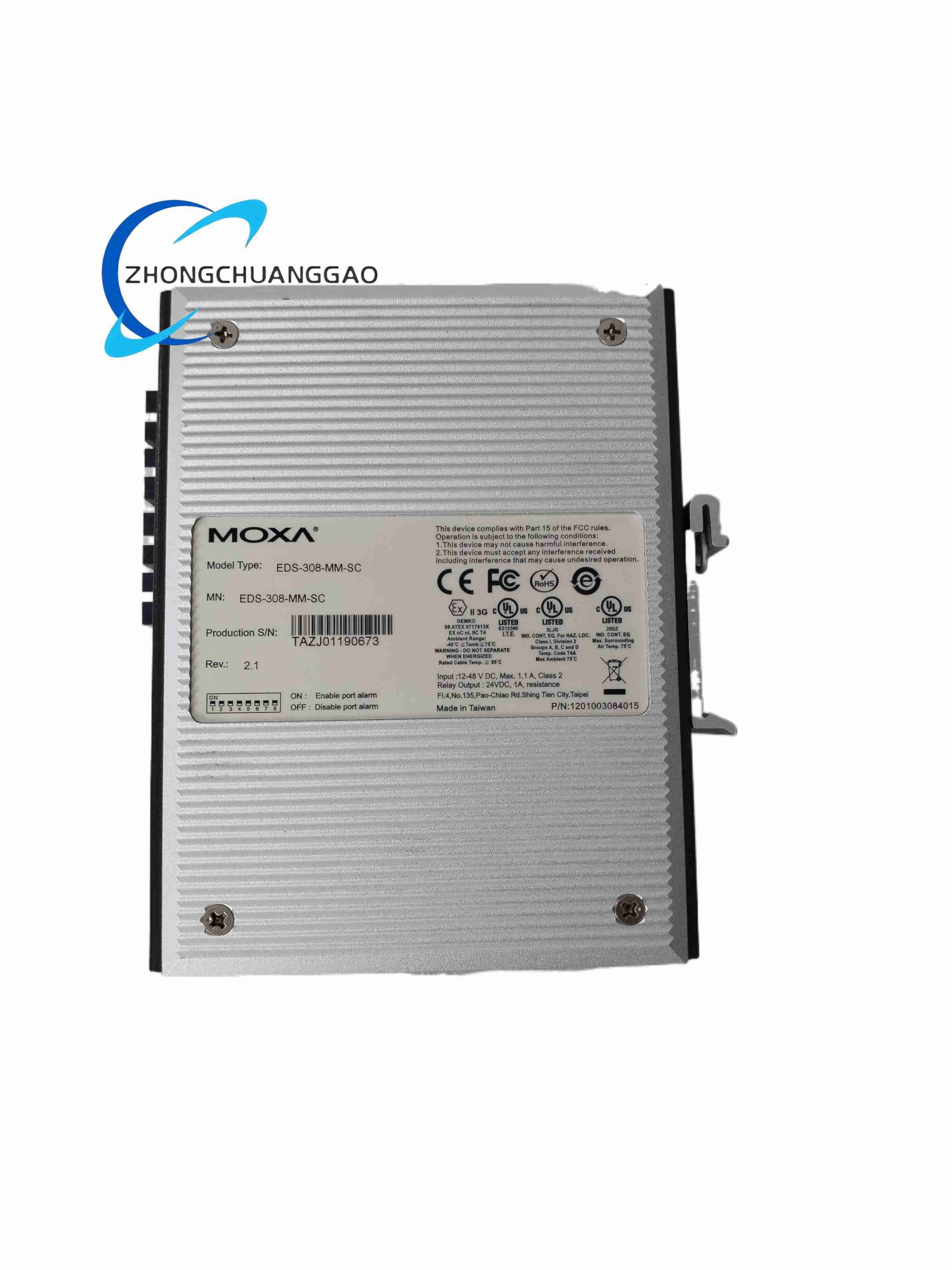

MOXA EDS-308-MM-SC

Product Name:​ Moxa EDS-308 Series Unmanaged Ethernet Switch, 6×10/100BaseT(X) RJ45 + 2×100BaseFX Multi-Mode SC
Product Introduction:​ Compact DIN-rail mount unmanaged industrial switch providing 6 copper Fast Ethernet ports plus 2 multi-mode 100 Mbps fiber ports with SC connectors for extended-distance segment links.
Category:
Description

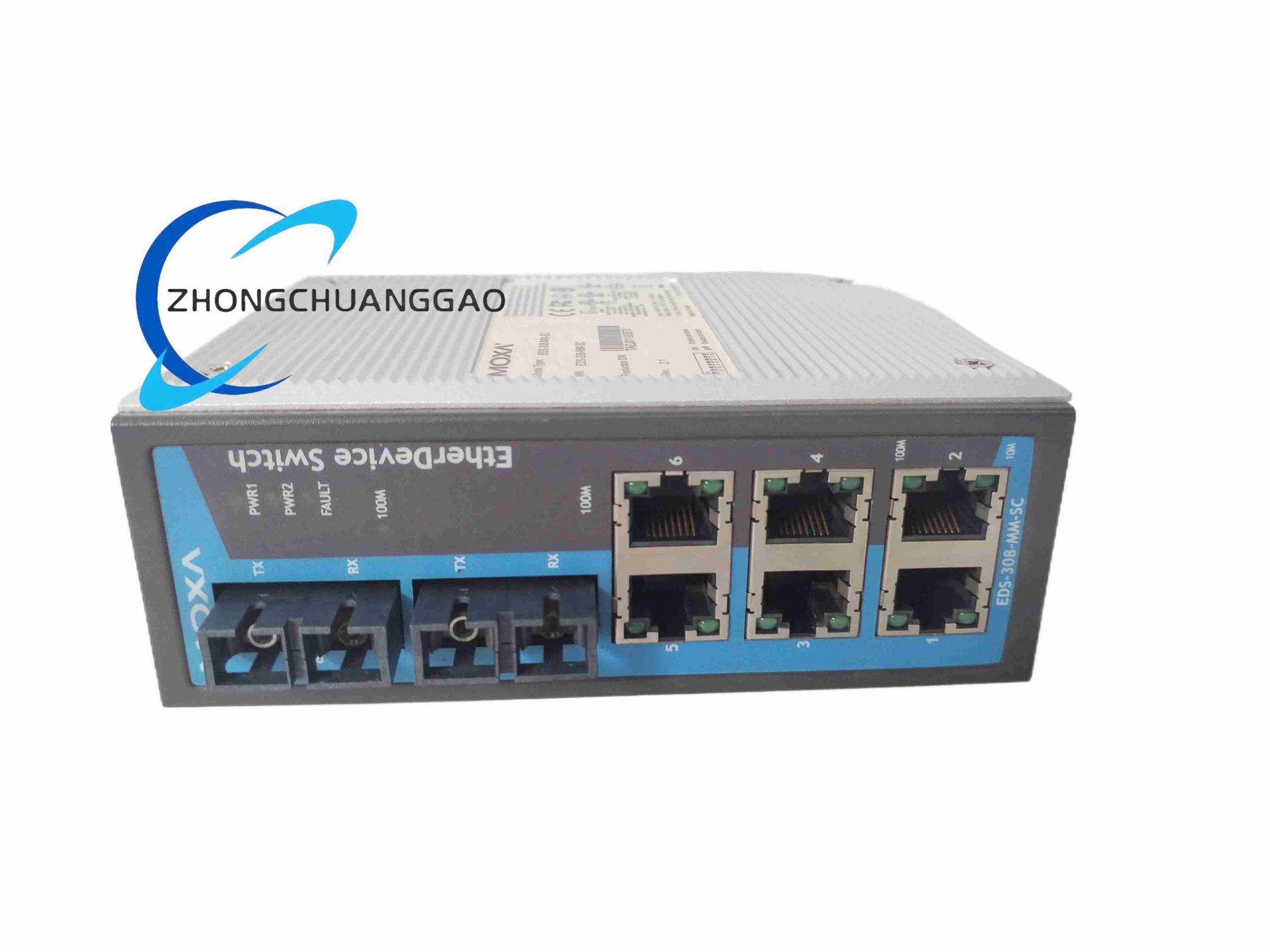

Ethernet Interface:
  • 6 × 10/100BaseT(X) RJ45, auto-negotiation, auto MDI/MDI-X, full/half duplex
  • 2 × 100BaseFX Multi-Mode SC connector, wavelength 1300 nm (typ.)
  • Fiber Distance: up to 4 km (OM1 62.5/125 µm), 5 km (OM2 50/125 µm)
Switch Properties:
  • MAC Table: 2 K entries
  • Packet Buffer: 768 Kbits
  • Forwarding: Store-and-Forward
  • Throughput: wire-speed non-blocking

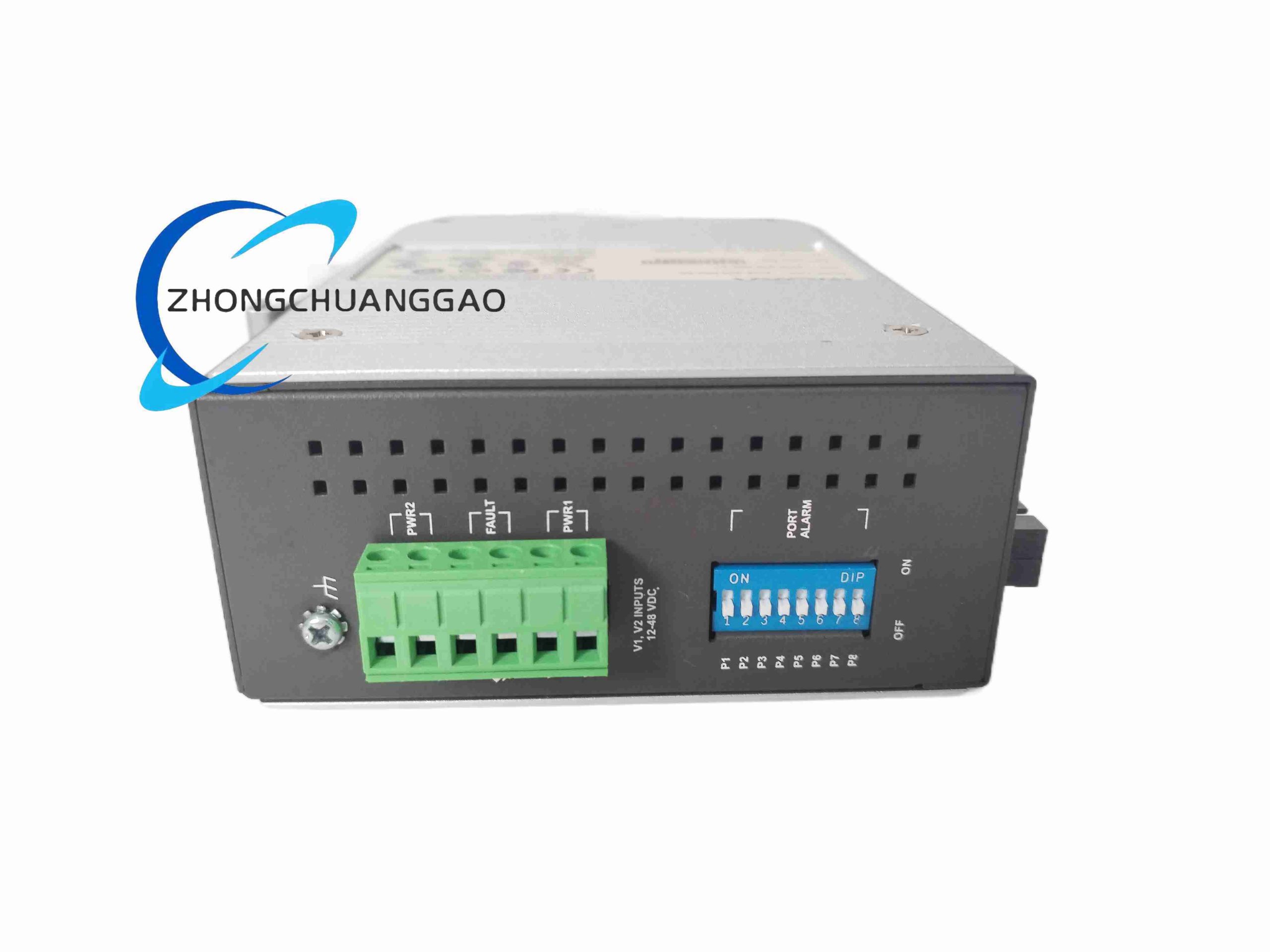

Alarm & Power:
  • 1 × relay alarm output (1 A @ 24 VDC) for power failure
  • Power Input: 12/24/48 VDC (9.6–60 VDC), redundant dual inputs
  • Current Draw: ~0.15 A @ 24 VDC
  • Reverse polarity & overload protection
Mechanical & Environment:
  • Housing: metal, IP30
  • Dimensions: 53.6 × 135 × 105 mm (W×H×D)
  • Mounting: DIN-rail or wall (optional kit)
  • Operating Temp: -10 to +60 °C (some docs -40 to +75 °C for extended models; std = -10~60)
  • Storage: -40 to +85 °C
  • Humidity: 5–95 % RH non-condensing
  • Weight: ~790 g
  • Certifications: UL 508, EN 60950-1, FCC Class A, CE
