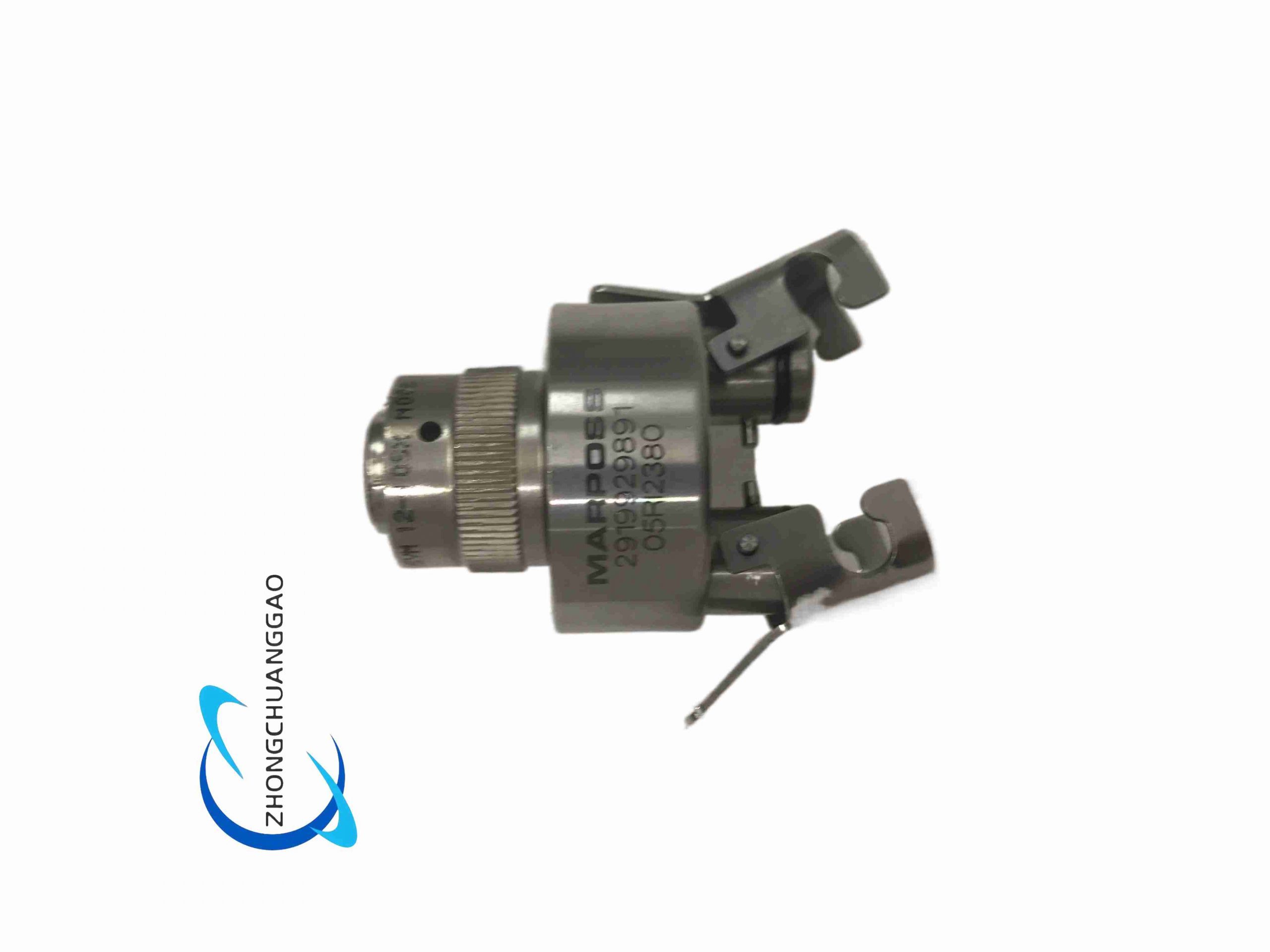

MARPOSS 2919929891 Unimar S Dual-Probe Outer Diameter Measuring Box
Product Introduction​
The 2919929891 unit is a grinding-machine measuring station configured as a two-gauge Unimar S box for inline outer diameter inspection. It integrates pneumatic probe mechanics with LVDT displacement measurement and transmits dimensional deviation signals to MARPOSS amplifiers for closed-loop grinding compensation.
Category:
Description
Technical Specifications​
  • Manufacturer part: 2919929891
  • Catalog description: GR.SCATOLA 2 UNIMAR S COLL.D
  • Measuring principle: pneumatic probe actuation with LVDT displacement output
  • Probe configuration: dual opposite probes for simultaneous diameter reading
  • Pneumatic supply: 0.3 MPa to 0.5 MPa clean dry air
  • Output interface: analog LVDT to MARPOSS amplifier
  • Compatible amplifiers: MARPOSS E4N, E9066 and equivalent signal conditioners
  • Net weight: approximately 0.13 kg to 0.15 kg depending on harness
Functional Features​
  • Simultaneous two-point diameter measurement for improved eccentricity rejection
  • Pneumatic probe opening and closing to avoid workpiece contact during approach
  • LVDT linear displacement conversion for high-resolution diameter deviation
  • Coolant and dust resistant construction for grinding environments
  • Direct compatibility with established MARPOSS amplifier platforms
Application Scenarios​
  • Cylindrical grinding outer diameter control
  • Centerless grinding continuous sizing
  • Bearing ring, roller, shaft and pin diameter inspection
  • Automotive crankshaft, camshaft and transmission component grinding
  • Hydraulic valve and precision pin production lines
Performance Parameters​
  • Repeatable micron-class diameter feedback when paired with calibrated LVDT amplifier
  • Real-time deviation output for automatic wheel dressing and feed correction
  • Stable measurement under coolant spray, vibration and chip contamination
  • Dual-probe averaging reduces single-side form error influence
Material And Construction​
  • Rigid measuring frame with machined probe seats
  • Pneumatic actuator ports and sealed air passages
  • Wear-resistant probe tips and guide surfaces
  • Enclosure materials selected for coolant, oil and fines resistance
Working Principle​
Compressed air actuates the probe arms so measuring contacts engage the rotating workpiece at fixed axial positions. Workpiece diameter variation moves LVDT cores inside the probe bodies; the induced linear displacement signal is conditioned by the MARPOSS amplifier and converted into diameter deviation. The controller compares target size with actual size and adjusts grinding feed or triggers dressing.
Installation Requirements​
  • Mount the box on the grinder fixture bracket with vibration isolation
  • Connect clean dry air with regulated pressure and particulate filtration
  • Use shielded LVDT cables to the designated amplifier input
  • Align probe contact points perpendicular to the workpiece axis
  • Perform zero setting with a certified master gauge before production
Usage Precautions​
  • Maintain air pressure within 0.3 MPa to 0.5 MPa at all times
  • Keep probe tips free from grinding sludge and bonded abrasive particles
  • Calibrate with traceable masters daily for tight-tolerance operations
  • Replace worn probe contacts before measurement drift appears
  • Avoid mechanical shock to the measuring frame and LVDT coils
