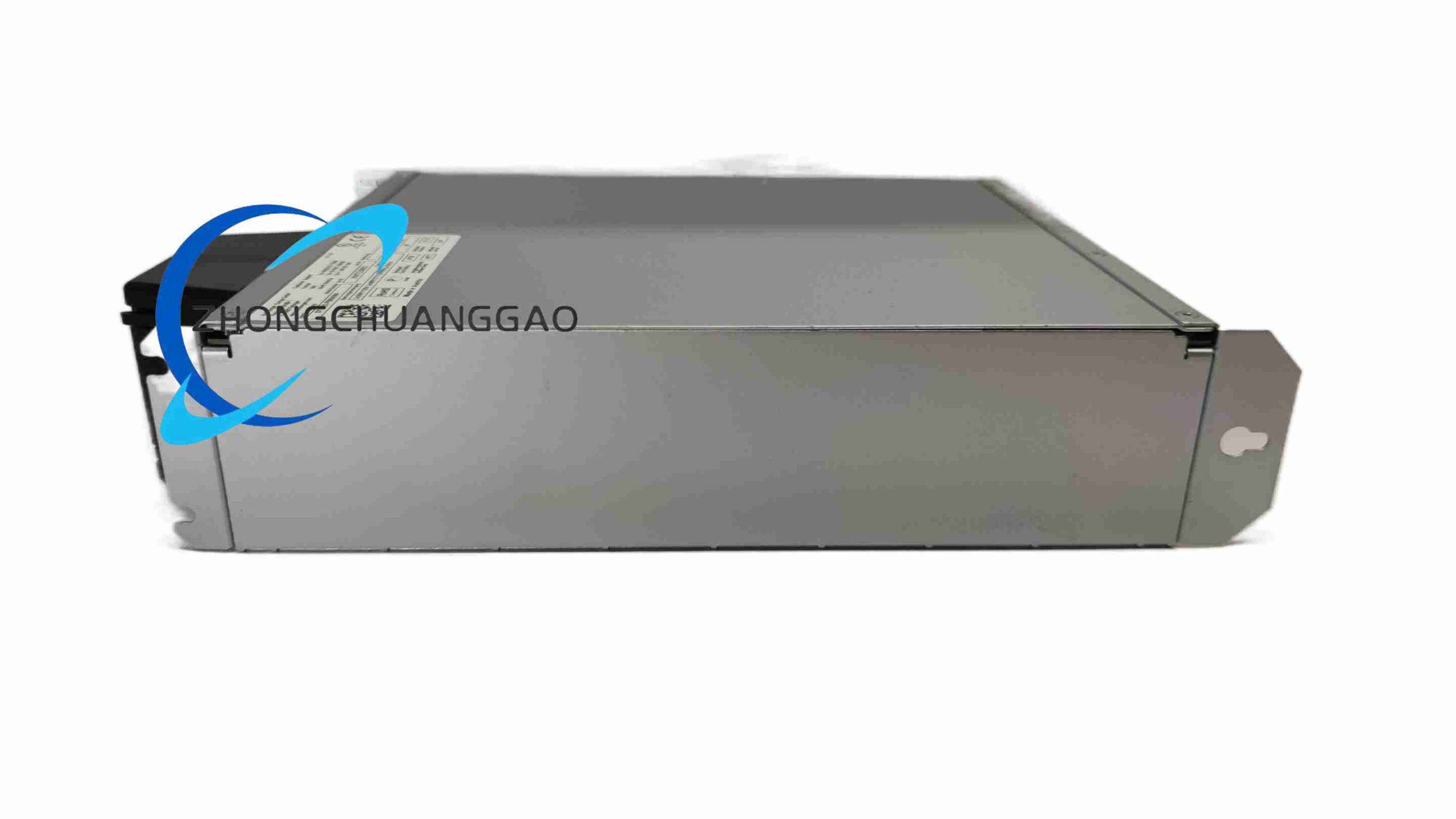

KOLLMORGEN S70602-PBNANA - Image 1

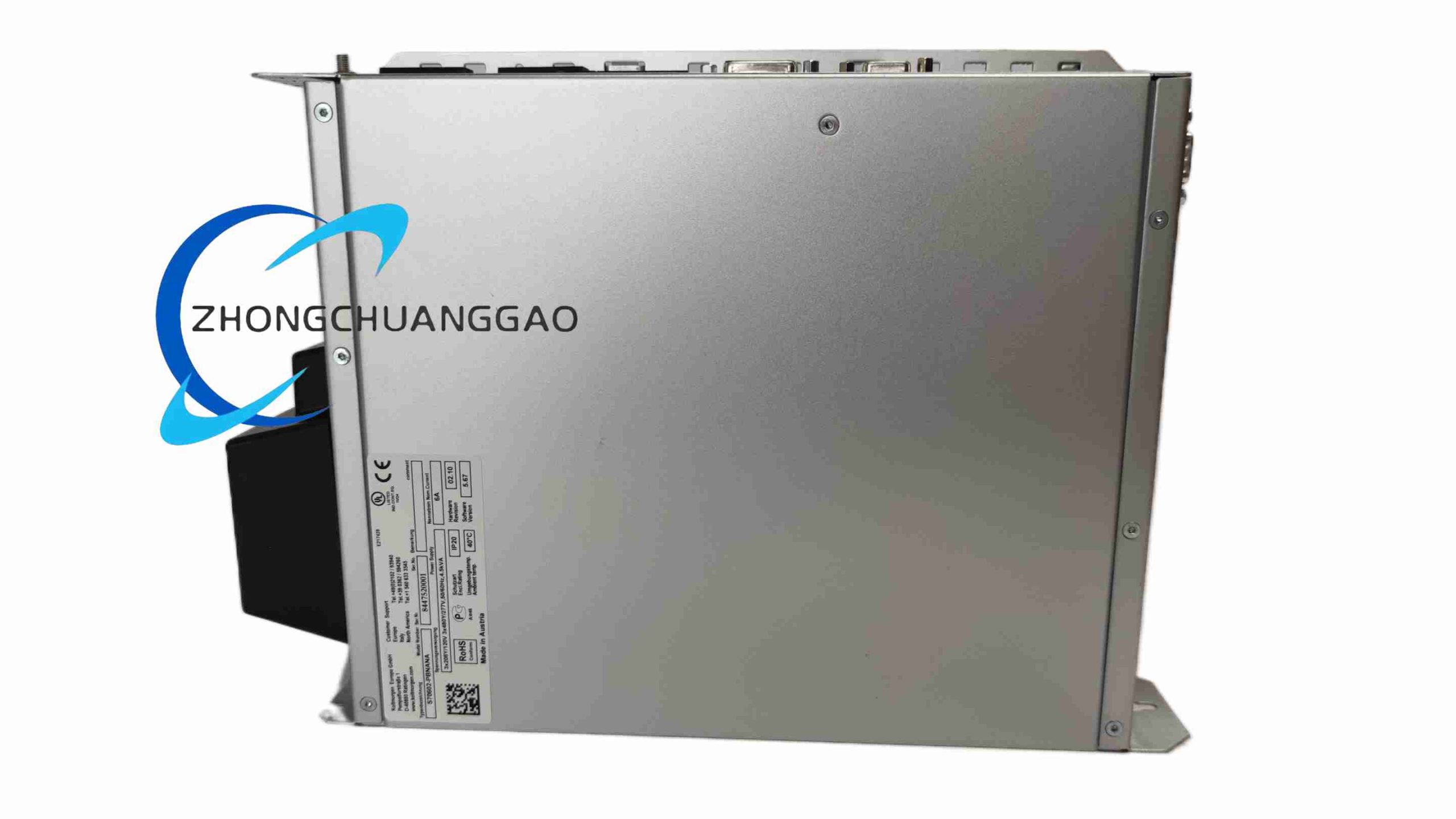

KOLLMORGEN S70602-PBNANA - Image 2
Click to enlarge
KOLLMORGEN S70602-PBNANA
KOLLMORGEN S70602-PBNANA - Image 2
KOLLMORGEN S70601-SE
KOLLMORGEN S70601-SE
Back to products
Placeholder
METSO S446105

KOLLMORGEN S70602-PBNANA

Product Name:​ S700 Series Digital Servo Drive with PROFIBUS DP Interface
Product Introduction:​ 6 A continuous servo drive from the same S700 range; PB in the suffix marks a PROFIBUS DP slave communication card installed in slot 1, remaining slots empty.
Category:
Description
Technical Specifications:
  • Continuous Output Current: 6 A RMS
  • Peak Output Current: 18 A RMS
  • Input: 3-phase 208–480 V AC
  • Communication: PROFIBUS DP (via PB card), onboard EtherCAT/CANopen inactive when PB selected as primary
  • Safety: STO dual channel
  • Feedback: Resolver, EnDat, BiSS, Hiperface, SSI, incremental
  • Control Cycle: Down to 125 µs with distributed clock when used on real-time bus
  • Protection: IP20
    Functional Features:​ Deterministic PROFIBUS motion profile support, adaptive resonance filtering, automatic motor tuning via AKD/WorkBench class tools, external brake resistor support.
    Application Scenarios:​ Legacy PLC-based lines (Siemens S7-300/400 PROFIBUS), metal cutting auxiliaries, winding and unwinding tension axes, battery electrode coating machines.
    Notes:​ Terminate PROFIBUS connector both ends; set station address via DIP or software; PROFIBUS card consumes slot 1 so no second fieldbus can be added without changing hardware.
