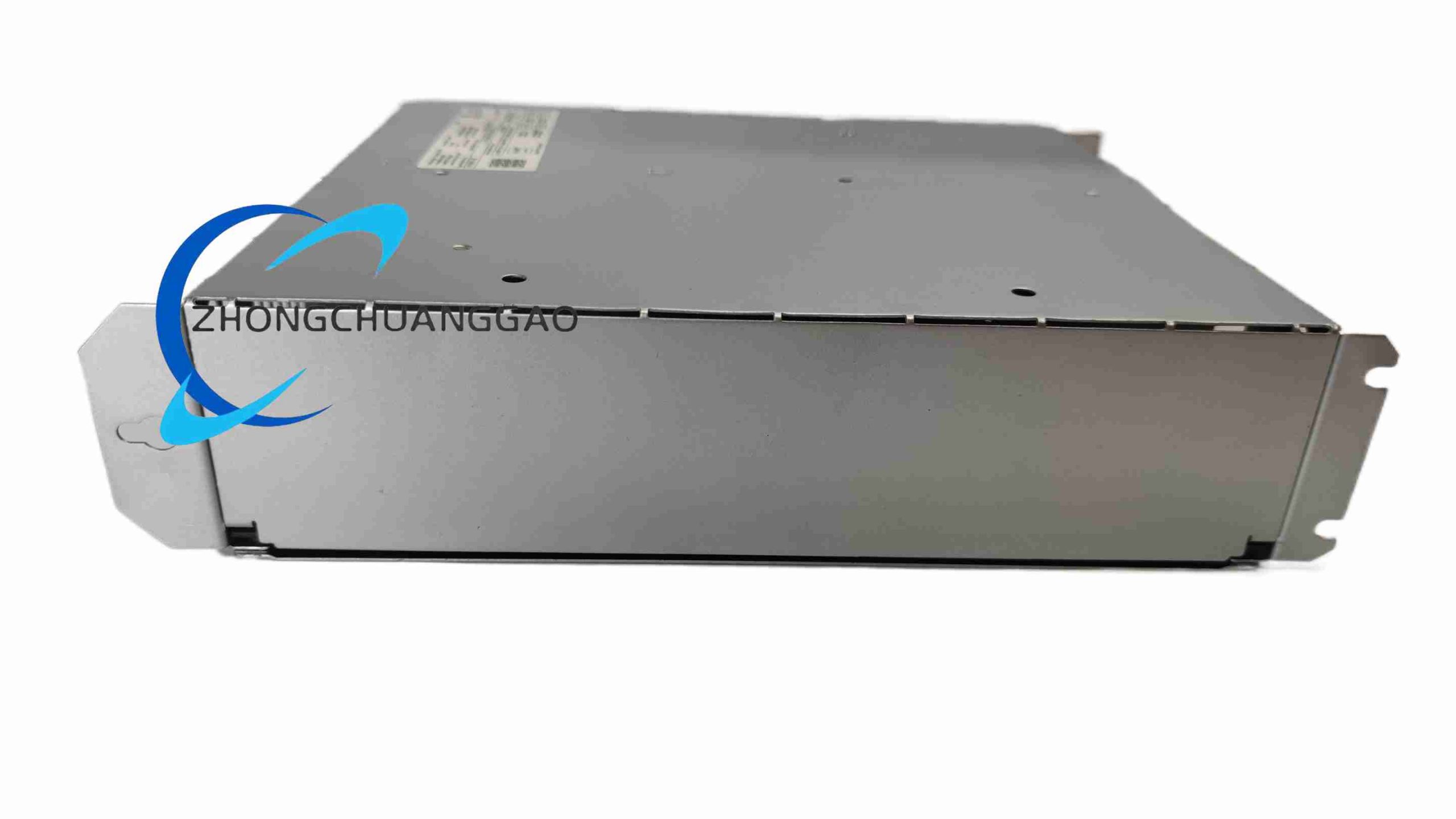

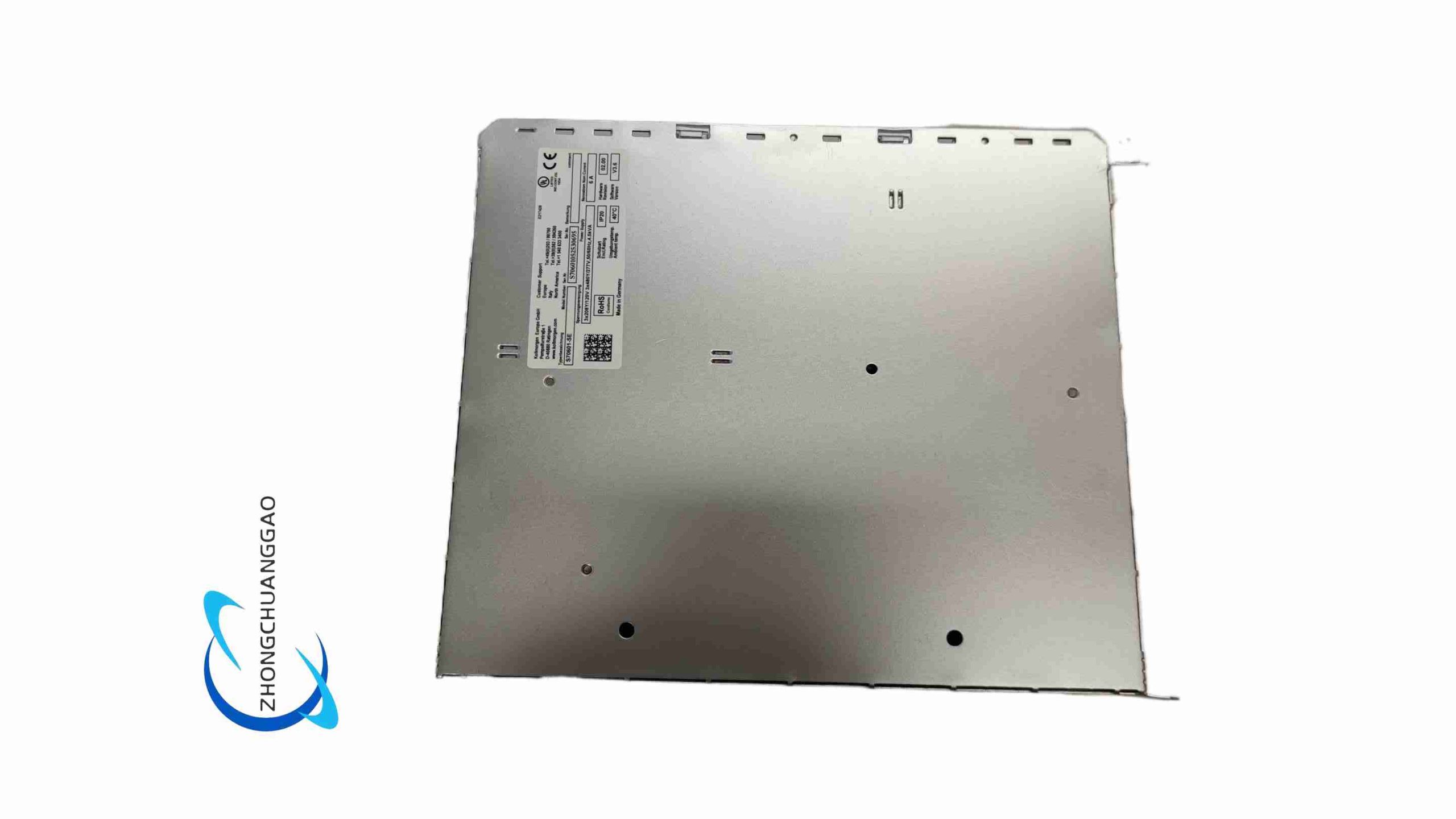

KOLLMORGEN S70601-SE

Key Features

• High - Precision Vector Control: Adopts advanced PID + feedforward control algorithms to achieve micron - level positioning accuracy and low - ripple speed regulation, minimizing following errors and improving dynamic response for complex motion trajectories.
• Flexible Compatibility: Compatible with multiple feedback devices and mainstream industrial fieldbuses, enabling seamless integration with PLCs, motion controllers, and HMI systems for real - time data exchange and coordinated control.
• Compact & Fan - less Design: Delivers 400W power in a slim form factor, saving cabinet space; passive cooling eliminates fan - related failures and reduces maintenance costs.
• Comprehensive Protection Mechanisms: Integrates overvoltage, undervoltage, overcurrent, short - circuit, overheating, and phase - loss protection functions to protect the drive, motor, and connected equipment from damage.
• Simplified Commissioning: Equipped with automatic motor parameter identification and one - click auto - tuning functions; Kollmorgen WorkBench software supports parameter backup/restore and real - time monitoring, shortening commissioning time.
• Energy - Efficient Operation: Optimized power conversion topology reduces energy loss by up to 15% compared with traditional drives, lowering long - term operating costs.

• Brand: Kollmorgen
• Model: CE03550
• Power Rating: Supports up to 100A continuous current (specific ratings may vary by configuration).
• Input Voltage: Compatible with 115/230V AC or 220V DC (depending on region and application).
• Feedback Support: High-resolution encoders such as EnDat, Hiperface®, and BiSS.
• Communication Protocols: Supports EtherCAT, CANopen, and other industrial Ethernet protocols for seamless integration.
• Environmental Rating: IP20 (standard); optional IP65 sealing for harsh environments.
• Dimensions: Compact form factor for DIN rail or panel mounting.
• Certifications: Complies with CE, UL, and other international safety standards.

• Brand: Kollmorgen
• Model: CR06200-000000
• Motor Type: Direct-drive rotary table torque motor
• Continuous Torque: Up to 620 Nm (specific ratings vary by configuration)
• Peak Torque: Up to 1,860 Nm (for short-duration operations)
• Rotor Inertia: Low inertia design for rapid acceleration/deceleration
• Maximum Speed: Up to 1,000 RPM (depending on application and load)
• Frame Size: 200 mm diameter
• Feedback Options: High-resolution encoders (e.g., EnDat, Hiperface®, BiSS)
• Environmental Rating: IP65 (standard); optional IP67 for harsh environments
• Cooling: Natural convection or forced air cooling (depending on power requirements)
• Certifications: Complies with CE, UL, and other international safety standards.

• Input Voltage: 115/240 VAC (50/60 Hz) or 208/480 VAC (three-phase).
• Rated Current: 10 A (continuous); supports short-term overload up to 3x rated current.
• Apparent Power: 7 kVA.
• Speed Loop Bandwidth: Up to 400 Hz for rapid acceleration/deceleration.
• Position Loop Refresh Rate: 250 μs (4 kHz) for precise positioning.
• Feedback Resolution: Supports 24-bit high-resolution encoders (e.g., Hiperface, EnDat, SFD-M).
• Communication Interfaces: CANopen, RS232, PROFIBUS, DEVICENET, SERCOS (via optional cards).
• Control Modes: Torque, velocity, position, electronic gearing, pulse tracking, and motion task-based control.
• Environmental Rating: IP20 (standard); optional IP65/IP67 for harsh environments.
• Weight: Approximately 1–2 kg (depending on configuration).
• Certifications: Complies with CE, UL, and IEC 61800-5-2 standards.
