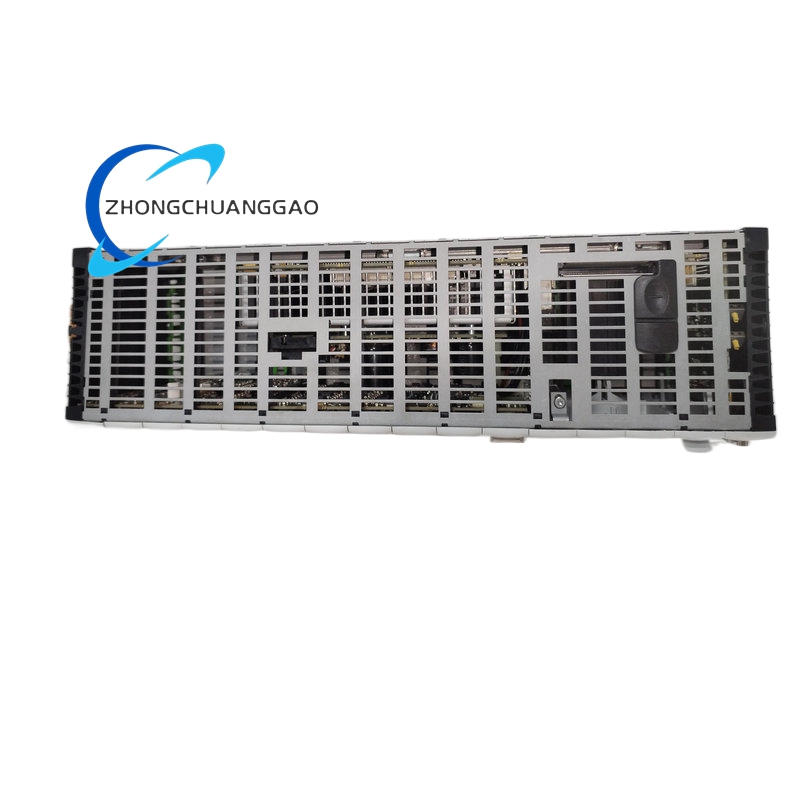

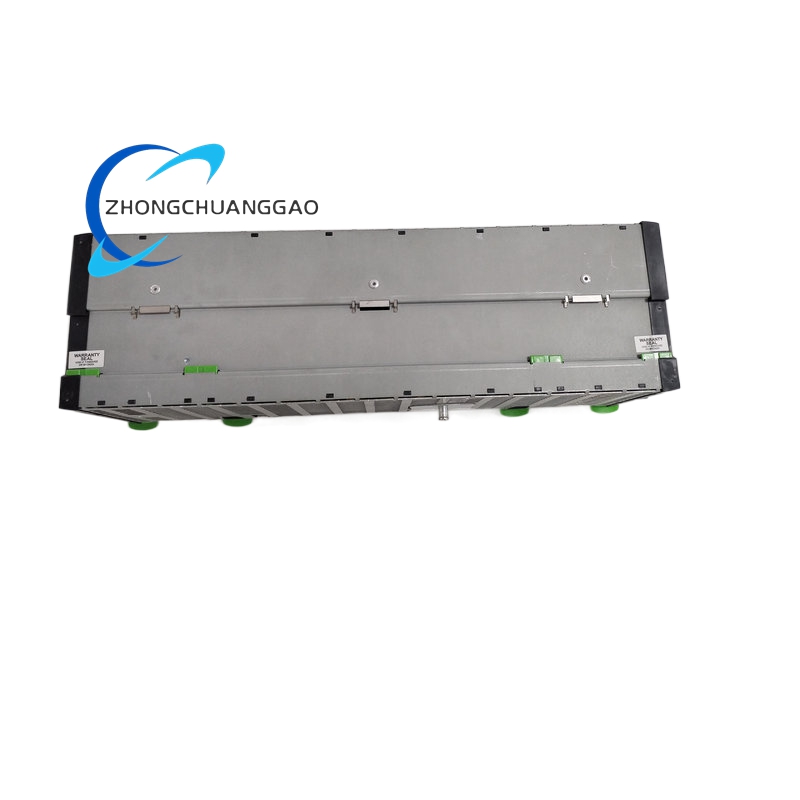

Technical & Performance Specifications
- Display Size: 4.3-inch widescreen TFT LCD
- Display Resolution: 480 × 272 pixel
- Touch Type: Analog resistive industrial touch screen, glove-touch compatible
- Display Brightness: 500 cd/m² fixed industrial grade brightness
- Display Lifetime: Min 50,000 hours continuous operation
- Main Processor: ARM Cortex-A9 dual-core 800 MHz industrial processor
- System Memory: 512 MB DDR3 application RAM; 4 GB onboard industrial flash storage
- Integrated PLC Runtime: KEBA KemStudio IEC 61131-3 standard full runtime
- Power Supply Input: Nominal 24 V DC, allowable fluctuation range 18 V DC – 30 V DC
- Power Consumption: Max 12 W full load operation
- Standard Communication Interfaces: 1×10/100 Mbps Ethernet, 1×RS485, 1×CANopen master port
- Optional Fieldbus Support: PROFIBUS DP, Modbus RTU/TCP, OPC UA
- Physical Dimensions: W 132 mm × H 82 mm × D 40 mm
- Mounting Type: Front panel flush cutout mounting or rear DIN rail bracket mounting
- Operating Ambient Temperature: 0°C ~ +50°C operational; -20°C ~ +70°C storage
- Protection Rating: IP65 front panel; IP20 rear wiring compartment
- Certifications: CE, UL, cUL, RoHS industrial compliance
Function Features
- Integrated HMI visualization + IEC 61131-3 PLC dual runtime without separate external PLC hardware
- Analog resistive touch supports operation with latex, cotton and leather industrial work gloves
- Native CANopen bus master interface for direct connection to servo drives and remote I/O modules
- Multi-language runtime support with real-time language switching for global production lines
- Onboard recipe storage database for batch production parameter saving and one-touch recall
- Built-in system fault alarm logging with timestamp storage for equipment maintenance traceability
- Ethernet communication supports remote program upload/download and plant SCADA data exchange
Working Principle
Dual-core ARM main processor runs isolated HMI visualization task and real-time PLC logic task in independent task partitions. Resistive touch layer collects operator touch coordinate input, transmits operation commands to PLC runtime for logic execution. CANopen, RS485 and Ethernet communication ports exchange real-time process data, setpoint commands and fault signals with servo drives, remote I/O modules and upper plant supervisory systems. TFT LCD refreshes real-time process variable screens, alarm windows and recipe parameter pages cyclically for on-site operator monitoring and manual intervention.
Material & Structural Composition
- Front Panel Frame: Black anodized aluminum alloy frame with scratch-resistant anti-reflection touch glass
- Rear Housing: Flame-retardant black polycarbonate enclosure with integrated wiring cable glands
- Internal Circuit Board: Multi-layer FR4 industrial PCB with surge suppression on all communication ports
- Touch Layer: Industrial grade analog resistive touch film with anti-oxidation silver conductive traces
Advantage Highlights
- All-in-one HMI+PLC architecture reduces cabinet hardware quantity and wiring complexity
- IP65 waterproof/dustproof front panel tolerates water splash and dust exposure on production machine surfaces
- Glove-operable touch screen eliminates requirement to remove protective gloves during equipment adjustment
- Native CANopen master interface enables direct servo motion control without additional bus gateway modules
- Wide 24 V DC power input tolerance adapts to unstable factory machine power supply
- Large onboard flash storage supports massive production recipe storage without external memory cards
Applicable Industries
Plastic injection molding machinery, automated packaging equipment, metal stamping presses, textile processing machines, lithium battery small assembly lines, woodworking CNC machinery
Installation Requirements
- Mounting Standard: Flush front panel cutout mounting or optional rear DIN rail bracket mounting
- Cutout Tolerance: ±0.5 mm for panel mounting cutout size
- Wiring Specification: Shielded twisted pair cable for CANopen and RS485 fieldbus wiring
- Power Wiring: Minimum 1.0 mm² copper wire for 24 V DC power terminals with dedicated protective earth connection
- Cabinet Ventilation: Passive air circulation required; avoid mounting adjacent to heat-generating drives
Operation & Maintenance Notes
- Touch screen cleaning only with lint-free microfiber dry cloth; alcohol or solvent cleaners damage touch conductive layer
- Backlight brightness degradation inspection every 12 months; replace unit when brightness drops below 300 cd/m²
- Complete program backup to external storage media every production shift cycle to prevent data loss
- Fieldbus cable shielding must ground at one single end only to avoid ground loop noise
- Unit operation above +50°C ambient temperature will trigger automatic backlight dimming protection
