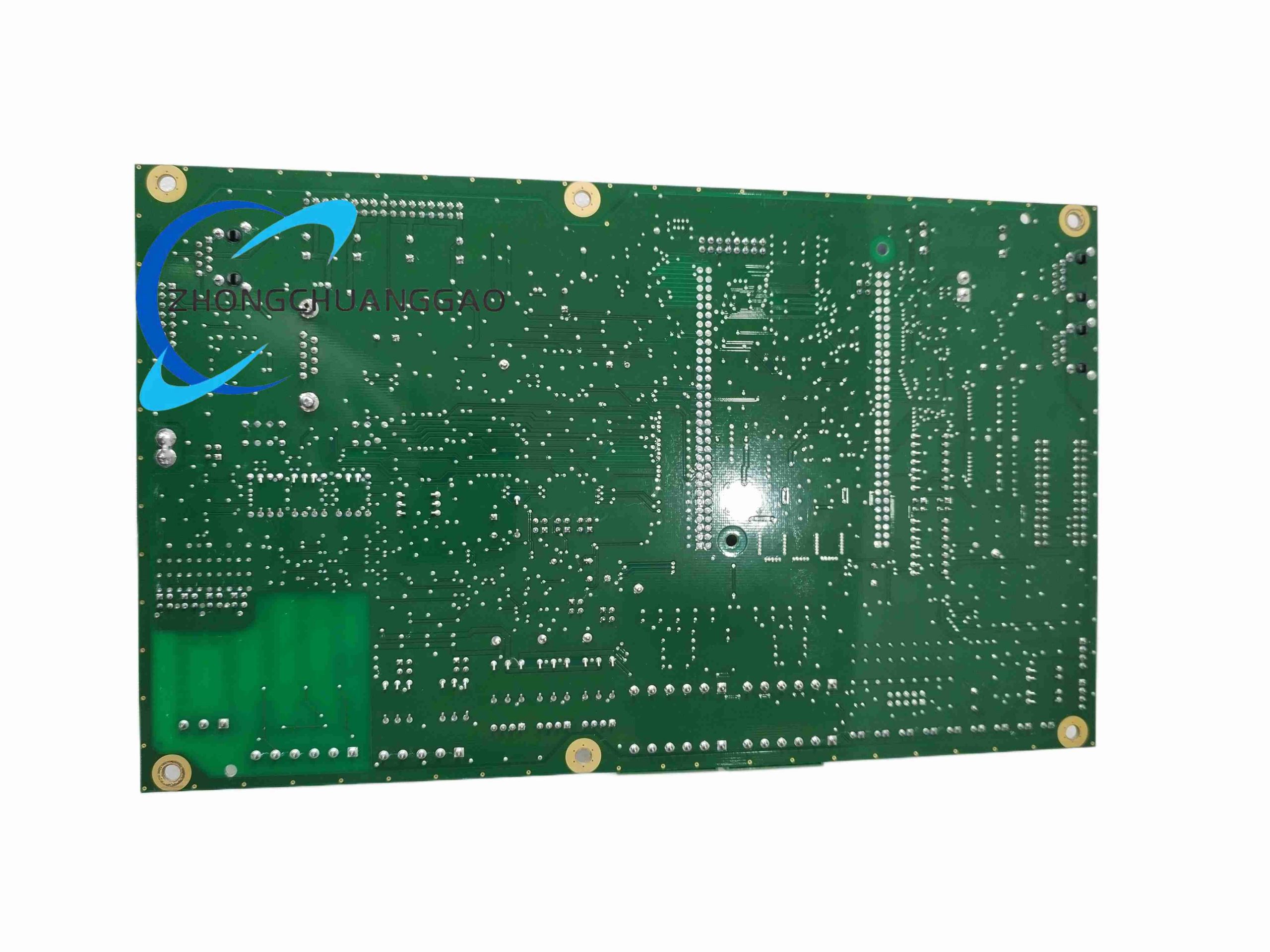

INCA CHLORIDE SG-1124-4 - Image 1

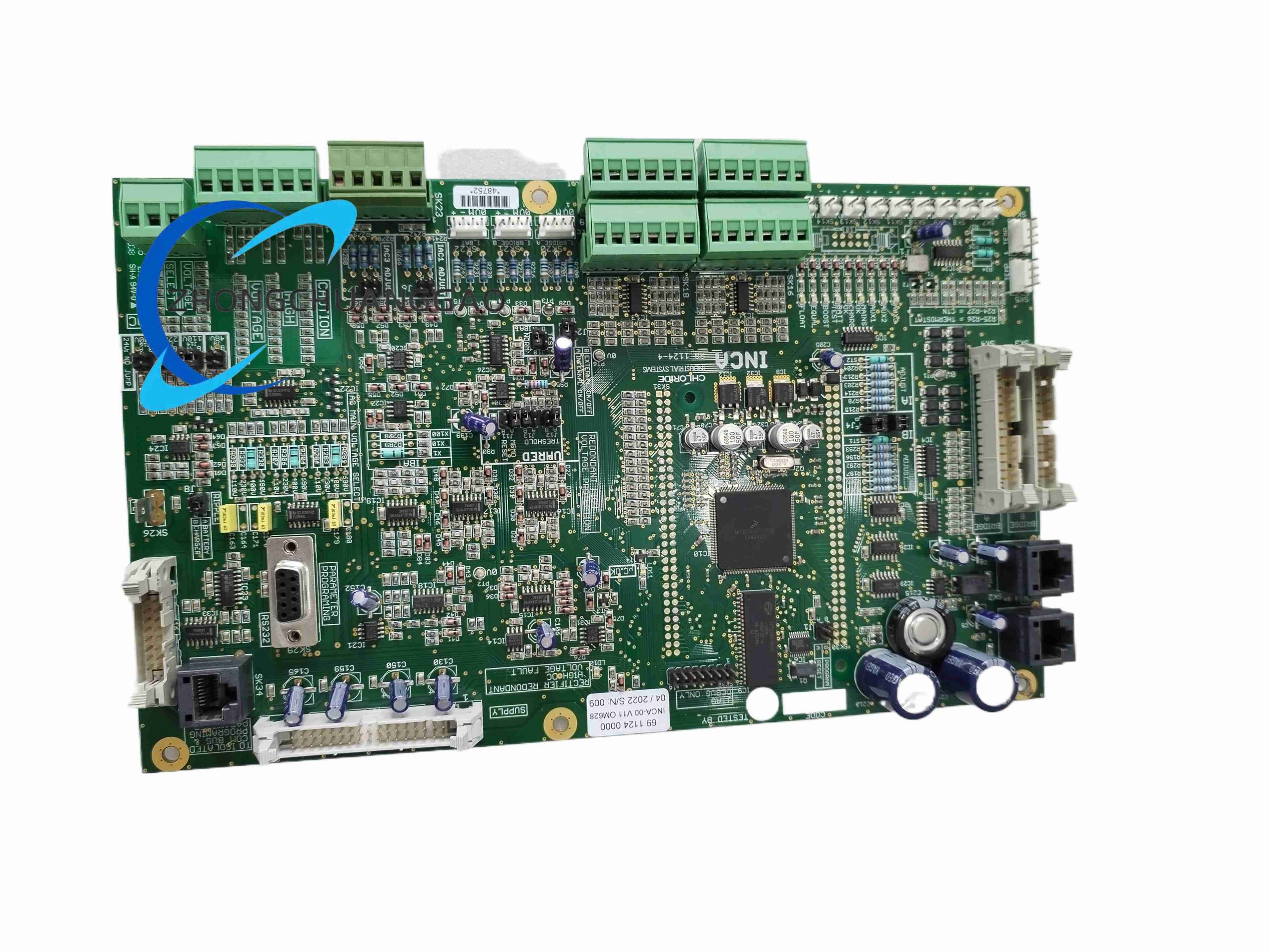

INCA CHLORIDE SG-1124-4 - Image 2
Click to enlarge
INCA CHLORIDE SG-1124-4
INCA CHLORIDE SG-1124-4 - Image 2
Kollmorgen SERVOSTAR 670 S67001
Kollmorgen SERVOSTAR 670 S67001
Back to products
Rolls-Royce SLIO-02
Rolls-Royce SLIO-02

INCA CHLORIDE SG-1124-4

Product Name:​ INCA Chloride SG-1124-4 Multi-Channel Analog Input / Relay Output Signal Conditioner Module
Product Brief:
A legacy Eurocard-format industrial electronics module from INCA Chloride’s water-treatment and chlorination control systems line, used to condition analog sensor signals (chloride, pH, conductivity) and drive alarm/control relays.
Category:
Description
Technical Specifications:
  • Analog Inputs:​ 4 × isolated channels, configurable 0–10 V DC or 4–20 mA
  • A/D Resolution:​ 12-bit (4096 counts)
  • Accuracy:​ ±0.25 % FS
  • Input Impedance:​ >200 kΩ (voltage mode), 250 Ω (current mode)
  • Relay Outputs:​ 4 × SPDT, potential-free, 5 A / 250 VAC (resistive), gold-flashed contacts
  • Power Supply:​ Universal — 24/48/110 VDC or 115/230 VAC (internal switch-mode)
  • Power Consumption:​ typ. 12 W, max 20 W
  • Serial Comm:​ RS-485 half-duplex, Modbus RTU
  • Digital I/O:​ 8 × opto-isolated inputs (5–48 VDC)
  • Galvanic Isolation:​ 1500 Vrms ch-ch, 2500 Vrms in-out
  • Operating Temp:​ -25 °C to +70 °C
  • Conformal Coating:​ Epoxy-coated PCB for corrosive atmosphere resistance
  • Dimensions:​ approx. 100 × 160 × 30 mm (Eurocard)
  • MTBF:​ >250,000 h (MIL-HDBK-217F@ 40 °C)
Features:
Built-in linearization for Ion-Selective Electrodes (ISE), pH, ORP. Configurable high/low alarms, damping, relay logic (AND/OR/NAND), pulse-width dosing mode. Self-calibration for zero/span drift.
Applications:​ Water & wastewater treatment plants, swimming pool chlorination control, chemical dosing skids, corrosion monitoring in process plants.
