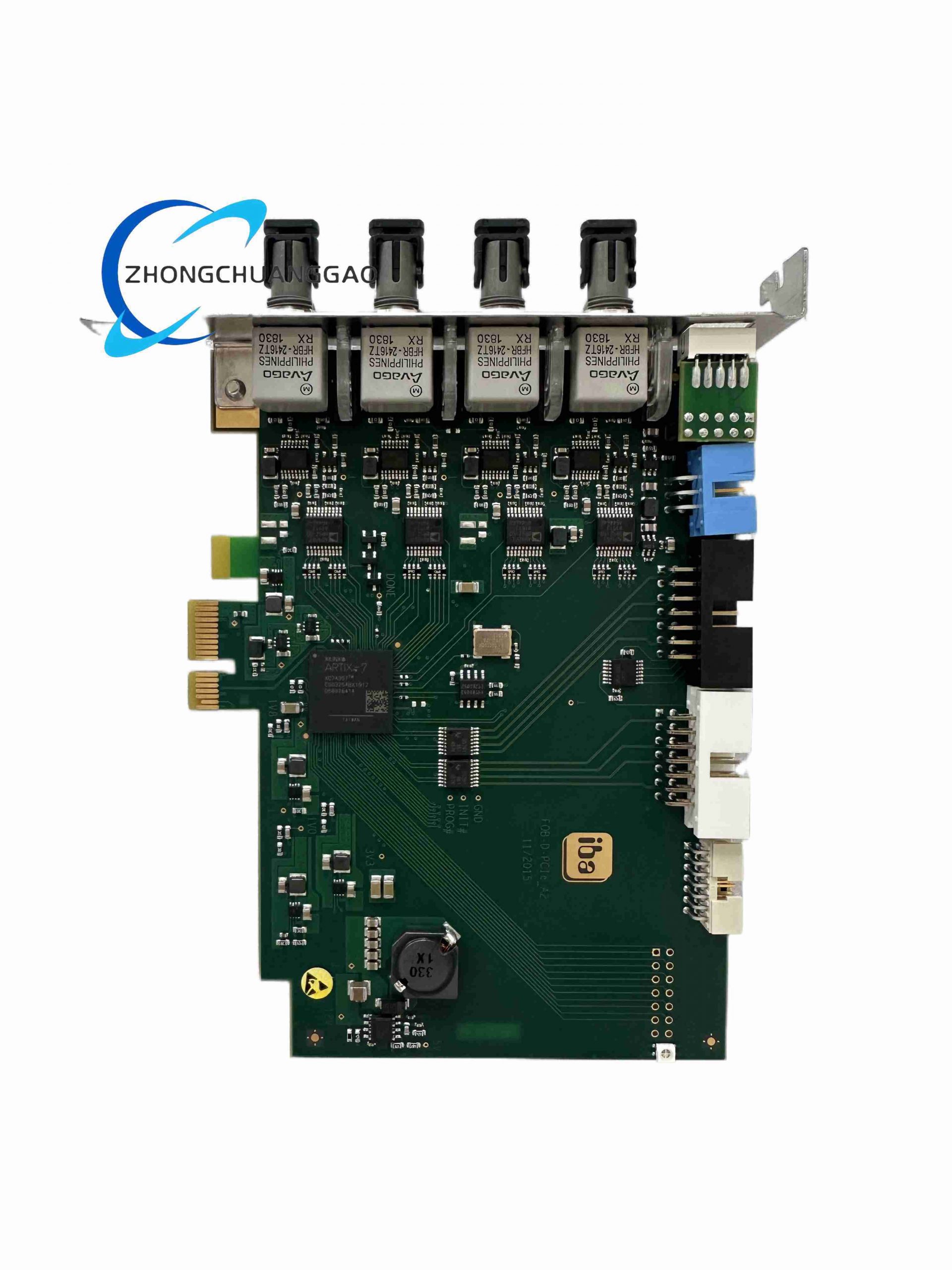

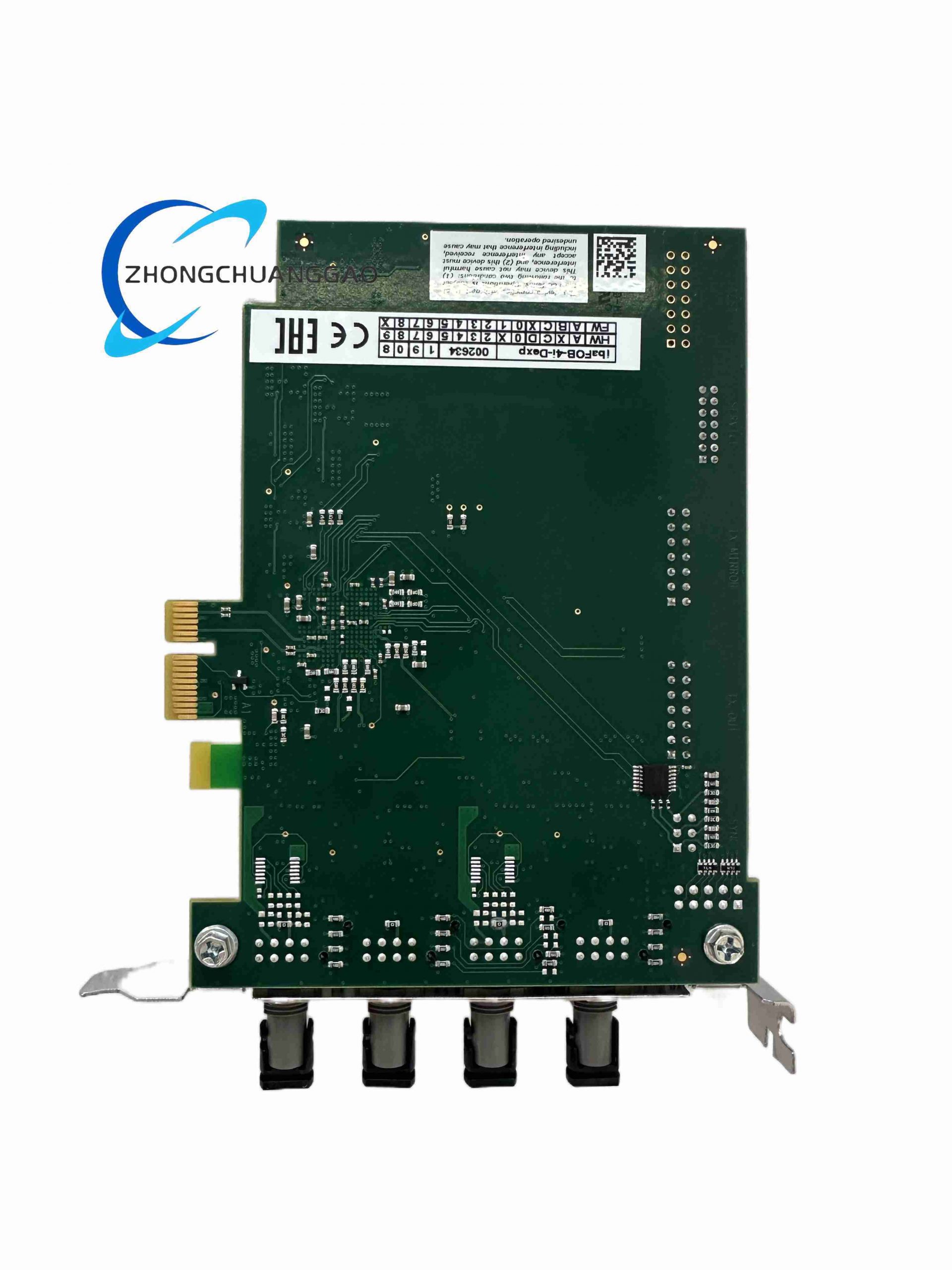

iba AG IBAFOB-4I-DEXP

Manufacturer:​ iba AG (Germany)
Product Brief:​ High-speed PCIe card receiving up to four independent simplex fiber-optic data streams from ibaPADU, ibaNet750, or other iba field units. Uses DMA to transfer measurement data directly into PC memory with minimal CPU load, for real-time process data acquisition and analysis.
Category:
Description
Key Technical Specifications:
  • Bus Interface:​ PCI-Express x1 (mechanically/electrically compatible with x4, x8, x16 slots)
  • Optical Inputs:​ 4 × unidirectional fiber optic inputs (Simplex)
  • Connector Type:​ ST (62.5/125 µm multimode fiber standard)
  • Data Rates Supported:​ 2 Mbit/s, 3 Mbit/s, 5 Mbit/s, 32 Mbit/s, 32 Mbit Flex
  • Max Fiber Length:​ Up to 2000 m (multimode, depending on rate)
  • DMA:​ Direct Memory Access — zero-copy transfer to host RAM
  • Max Payload:​ Up to 4060 bytes per link per cycle
  • Status Indicators:​ 4 ch. LEDs + 7-segment error display
  • Power Consumption:​ Typ. 4.2 W (from PCIe slot 3.3 V / 5 V)
  • Dimensions:​ 170 × 97 mm (half-length PCIe card)
  • Operating Temp.:​ 0 °C to +50 °C
  • Certification:​ CE
  • Compatible Software:​ ibaPDA V6+, ibaQDR V6+, ibaLogic V4+
Expandability:​ Can be paired with ibaFOB-4o-D (output card) for mirrored input or active output functionality.
Application Scenarios:​ Turbine test stands, power plant process monitoring, rolling mill data capture, long-term trend recording where galvanic isolation via fiber is mandatory.
Installation & Notes:
  • Install in a free PCIe slot with adequate cooling airflow.
  • Verify fiber polarity (Tx ↔ Rx) when connecting to source device — this card is INPUT ONLY.
  • If LED remains off or seven-segment shows error code, check fiber continuity and source device baud rate setting.
  • Update iba driver / firmware to match ibaPDA version to avoid DMA timeout issues.
