GE IC660EBD024

Manufacturer: GE Fanuc Automation / GE Vernova (Legacy Series 90-30 Genius I/O)

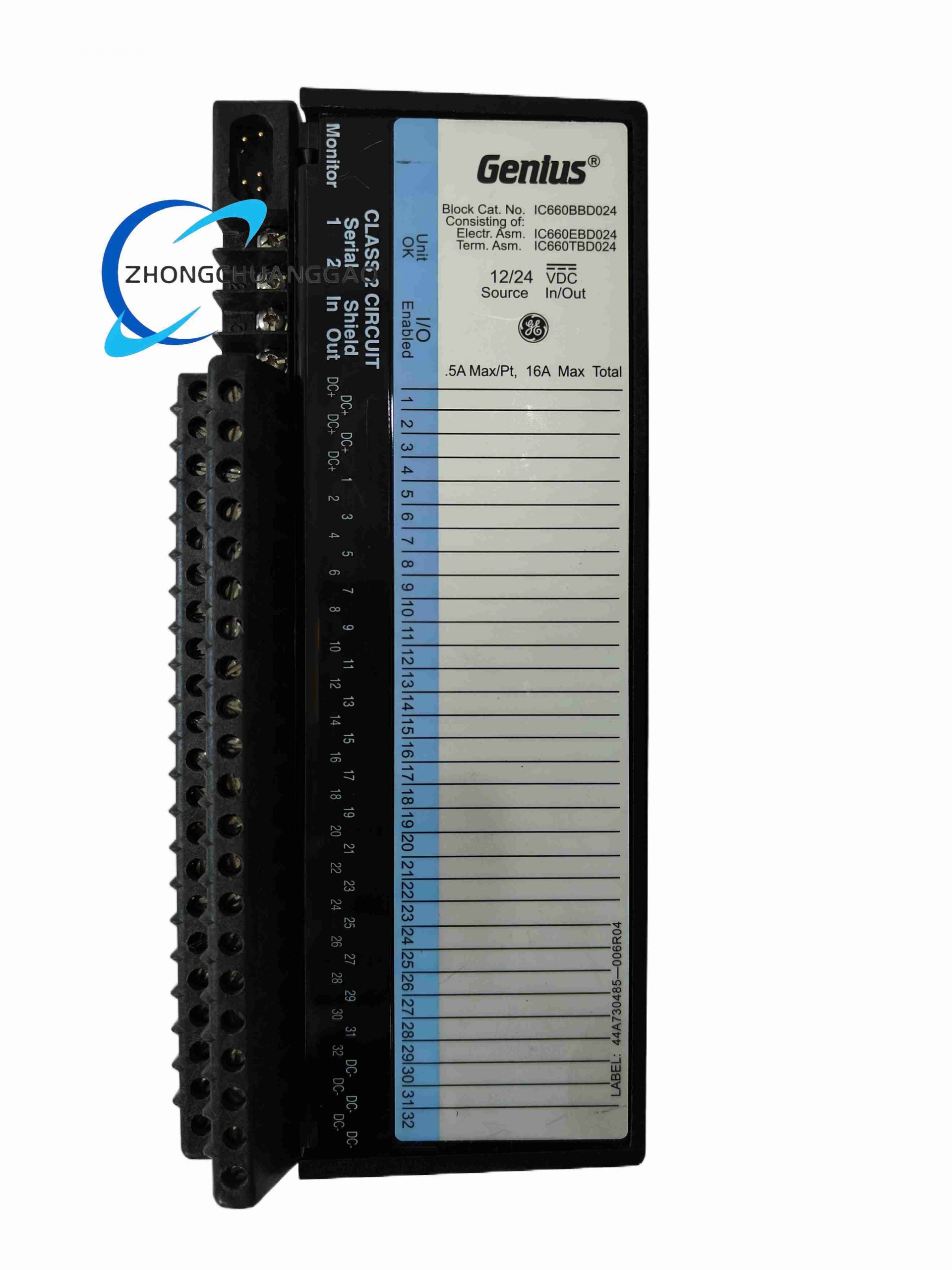

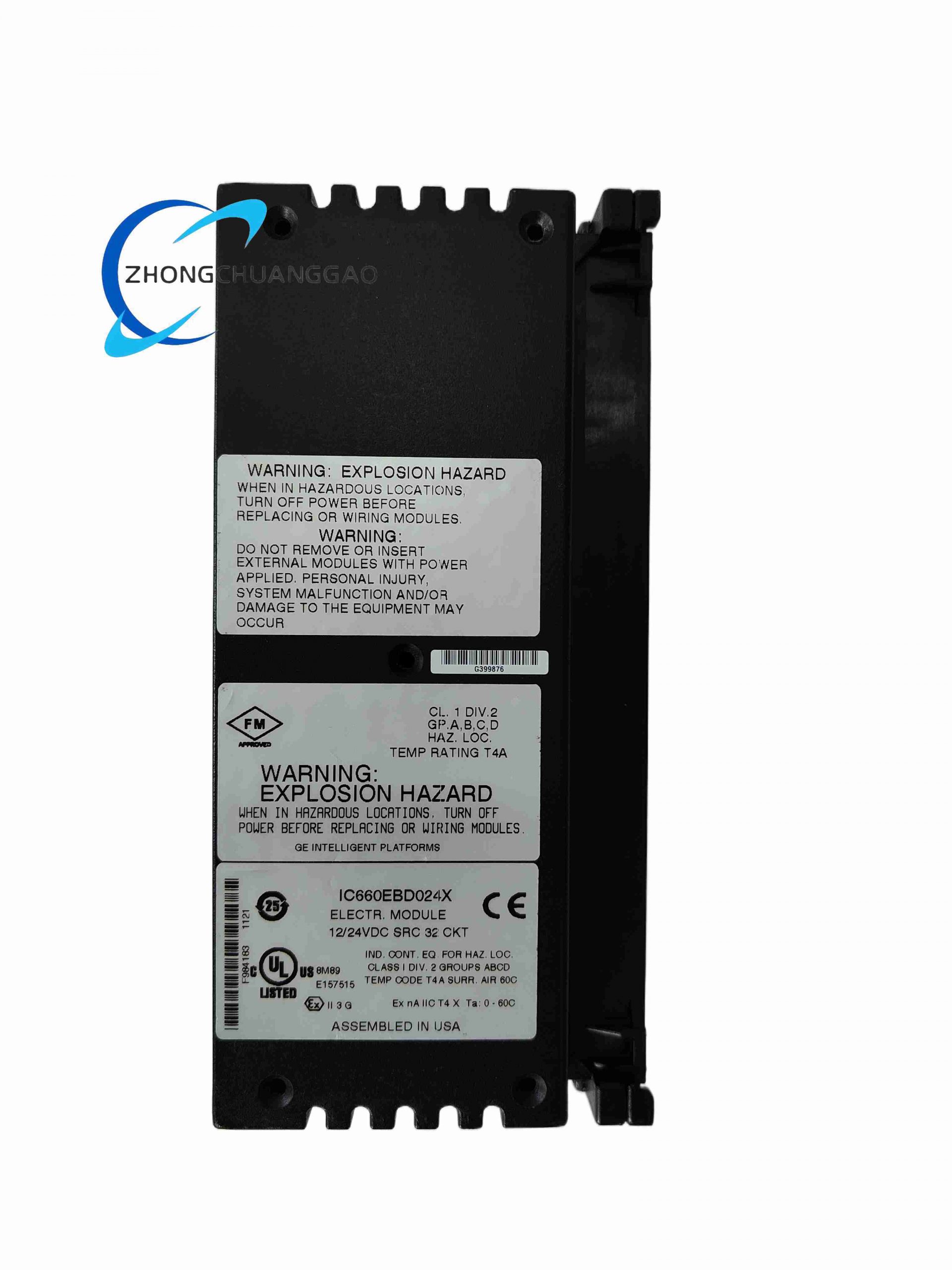

Product Brief: Intelligent block I/O module that operates on the GE Genius Bus. Each of the 16 points can be individually configured as input or output (source/sourcing type), accepts 24 V DC or 48 V DC field voltage, and reports diagnostics back to the Genius bus master (PLC or host). Often paired with IC660BBD024 terminal base.

Category: GE

Description

Key Technical Specifications:

Catalog Number: IC660EBD024
System: GE Genius I/O (Series 90-30 / RX3i Genius)
Channels: 16 discrete points (individually configurable as Input or Output)
Logic Type: Sourcing (Source / High-Side Switch for outputs; receives +V from field device for inputs)
Operating Voltage: 24 V DC or 48 V DC (auto-sensing within range; no jumper change needed)
Output Current (per point): 0.5 A typical @ 24/48 V DC
Total Module Current: Max. 4 A (all outputs ON)
Isolation: 1500 V AC block-to-block; optical isolation between field side and logic
Short-Circuit Protection: Yes — electronic current limiting with auto-reset or latch-off (configurable)
Diagnostics: Open wire detect (output mode), short detect, overtemp, bus communication loss — reported per-point to bus
Bus Interface: Genius Bus (twisted pair or fiber optic bus via bus controller)
Station Address: Set via DIP switches or bus configurator software (1–31)
Operating Temp.: 0 °C to +60 °C
Humidity: 5 % – 95 % RH non-condensing
Mounting: Snap-onto IC660BBD024 terminal base (DIN rail or panel)
Dimensions (Block): Approx. 76 × 203 × 102 mm
Certifications: UL, CSA, CE

Functional Features:

Each point independently software-configurable as Input or Output
LED indicators: Module OK, Bus OK, individual point status
Supports bus-controlled forcing / overriding of outputs for commissioning
Watchdog timer forces outputs to predefined safe state on bus loss

Application Scenarios: Discrete valve solenoid driving, motor starter feedback, pushbutton / limit switch monitoring in process plants, power generation, water/wastewater.

Installation & Notes:

Wire positive supply (+24/48 V) to common terminal; load returns to 0 V / DC Common.
Use proper ferrules and torque to spec (typically ~0.6 N·m).
Do NOT mix 24 V and 48 V field devices on same block unless verified compatible with your wiring scheme.
Configure point types and failsafe state in the Genius bus configuration before placing in service.
