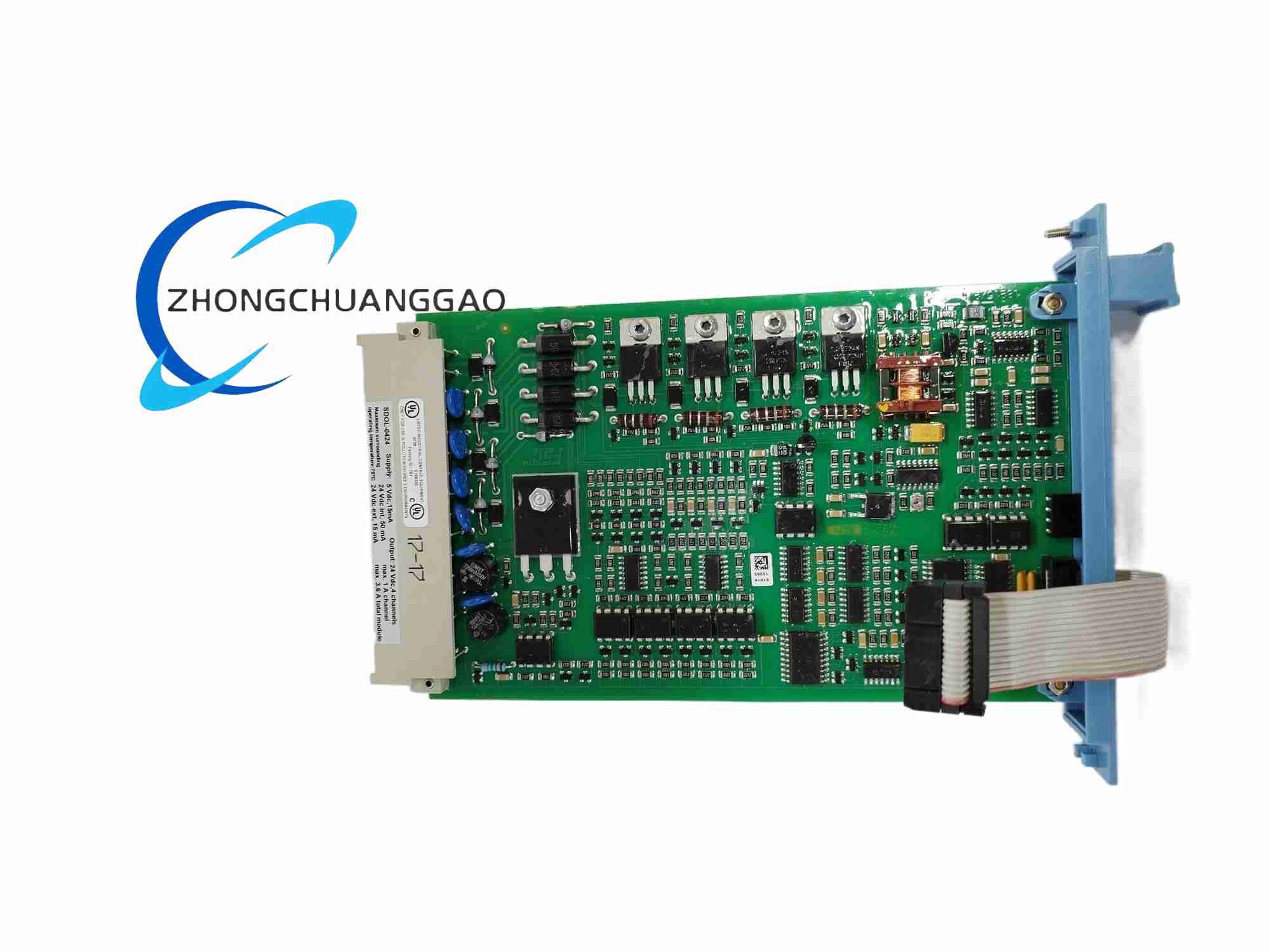

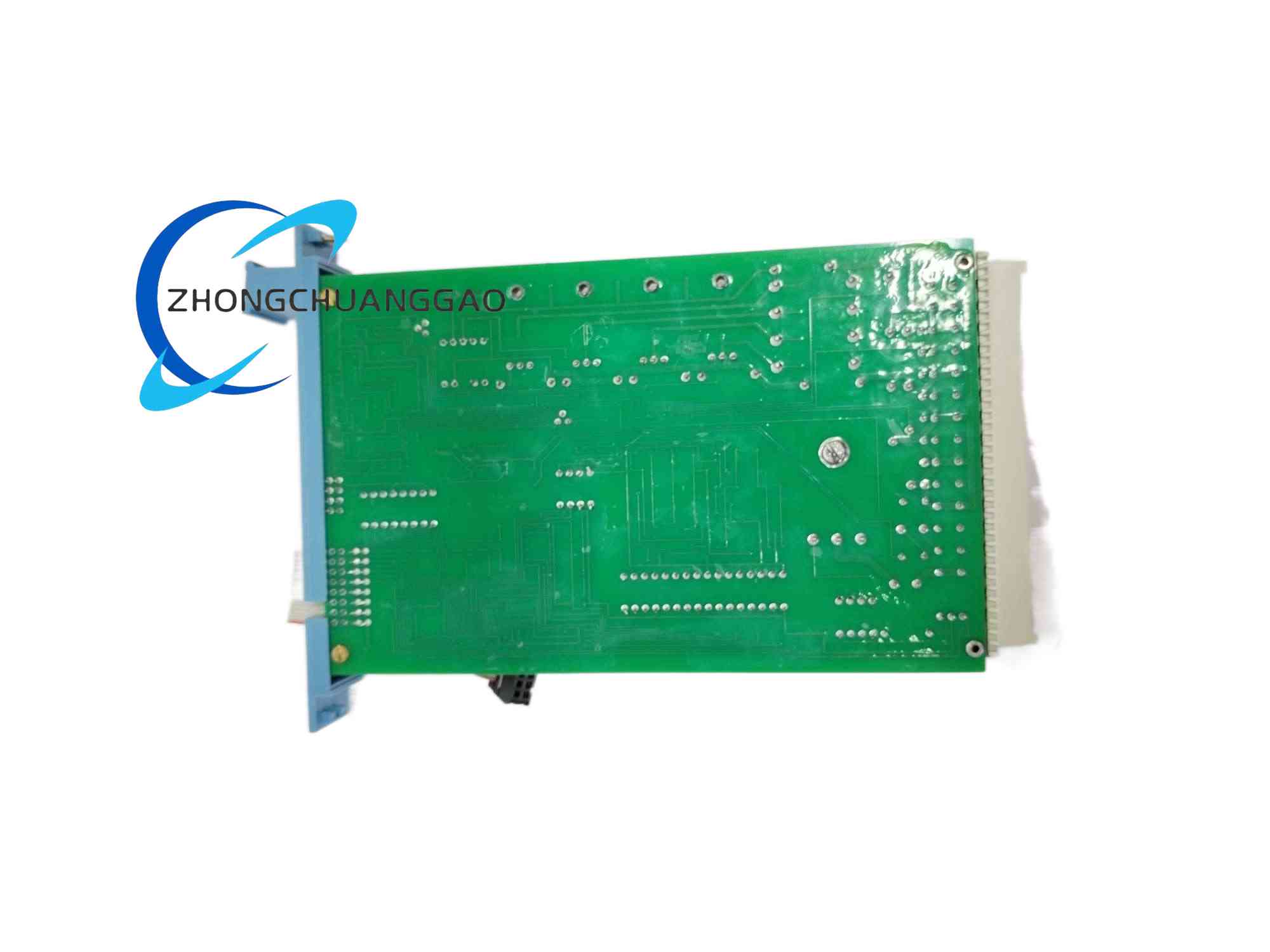

Honeywell SDOL-0424

Product Name:​ 4-Channel 24 VDC Supervised Low-Density Digital Output Module (Building Tech F&G variant)
Product Overview:​ A light-density supervised output module from Honeywell Building Technologies (not Process Solutions). Drives small 24 VDC loads such as horns, strobes, beacon lights, small solenoids with line supervision (open/short fault reporting).
Category:
Description
Technical Specifications:
  • Channels:​ 4 digital outputs
  • Output Voltage:​ 24 VDC
  • Per-Channel Load:​ ~0.5–1 A (Light density, lower than SDO-0824’s 1.5 A)
  • Supervision:​ Yes—detect open/short on field loop (DSM fault)
  • Typical Loads:​ 24 VDC horn, strobe, warning lamp, small vent damper (0.3 A class)
  • Companion:​ Pairs with SDI-1624 in small F&G cabinets; sibling to 8-ch SDO-0824
  • Mounting:​ Standard BT rack/module slot
    Features:​ Loop supervision; LED per channel; designed for non-critical audible/visual notification rather than SIS actuator duty.
    Applications:​ Office building fire alarm sounder control, auxiliary skid beacon drive, low-power HVAC alarm annunciation.
    Installation & Notes:​ Not for SIL 3 ESD valve cutting—use FC-USIO/Safety Manager DO for SIS; size fuse for 1 A/channel; separate notification circuit from safety input wiring.
