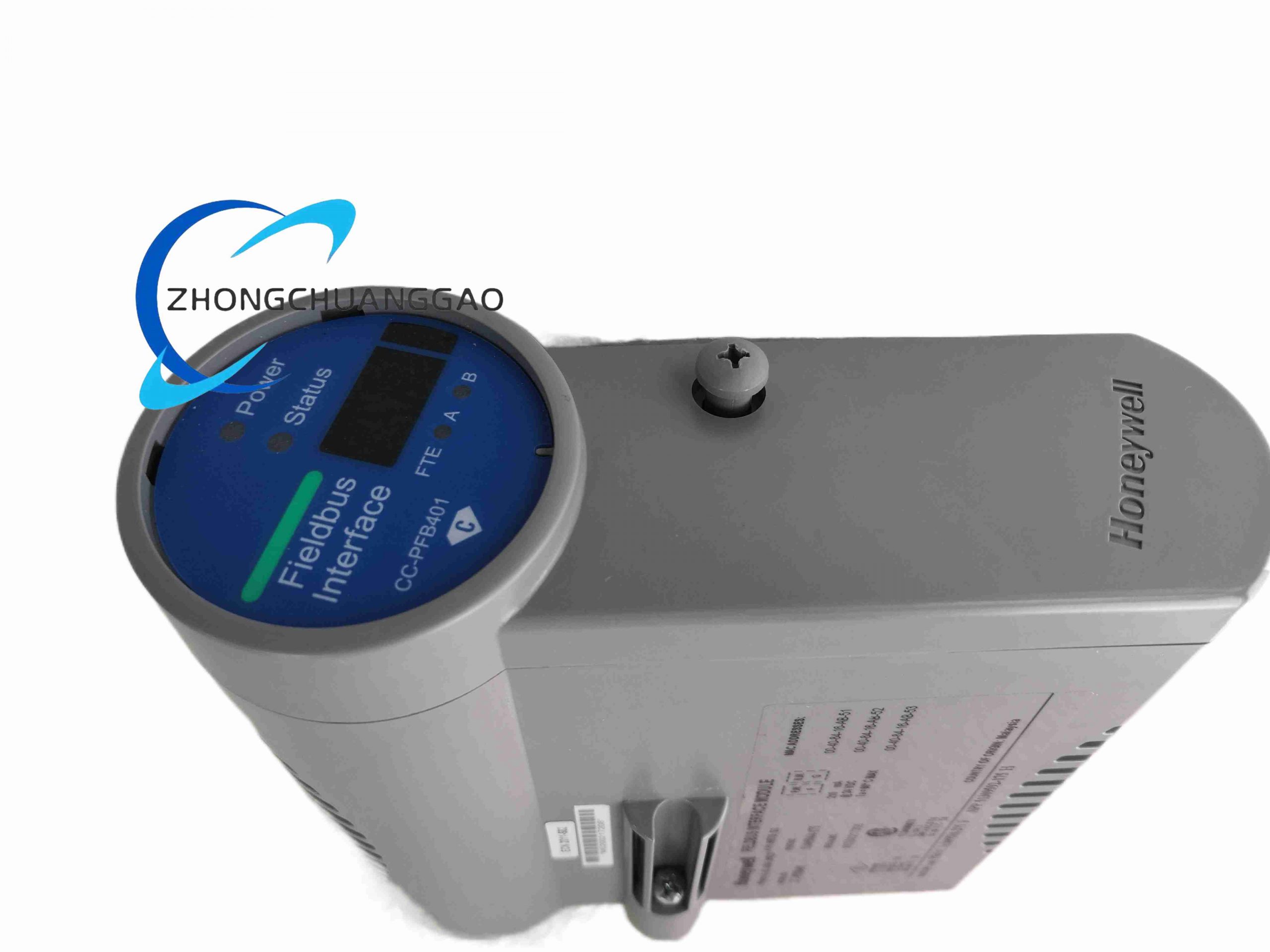

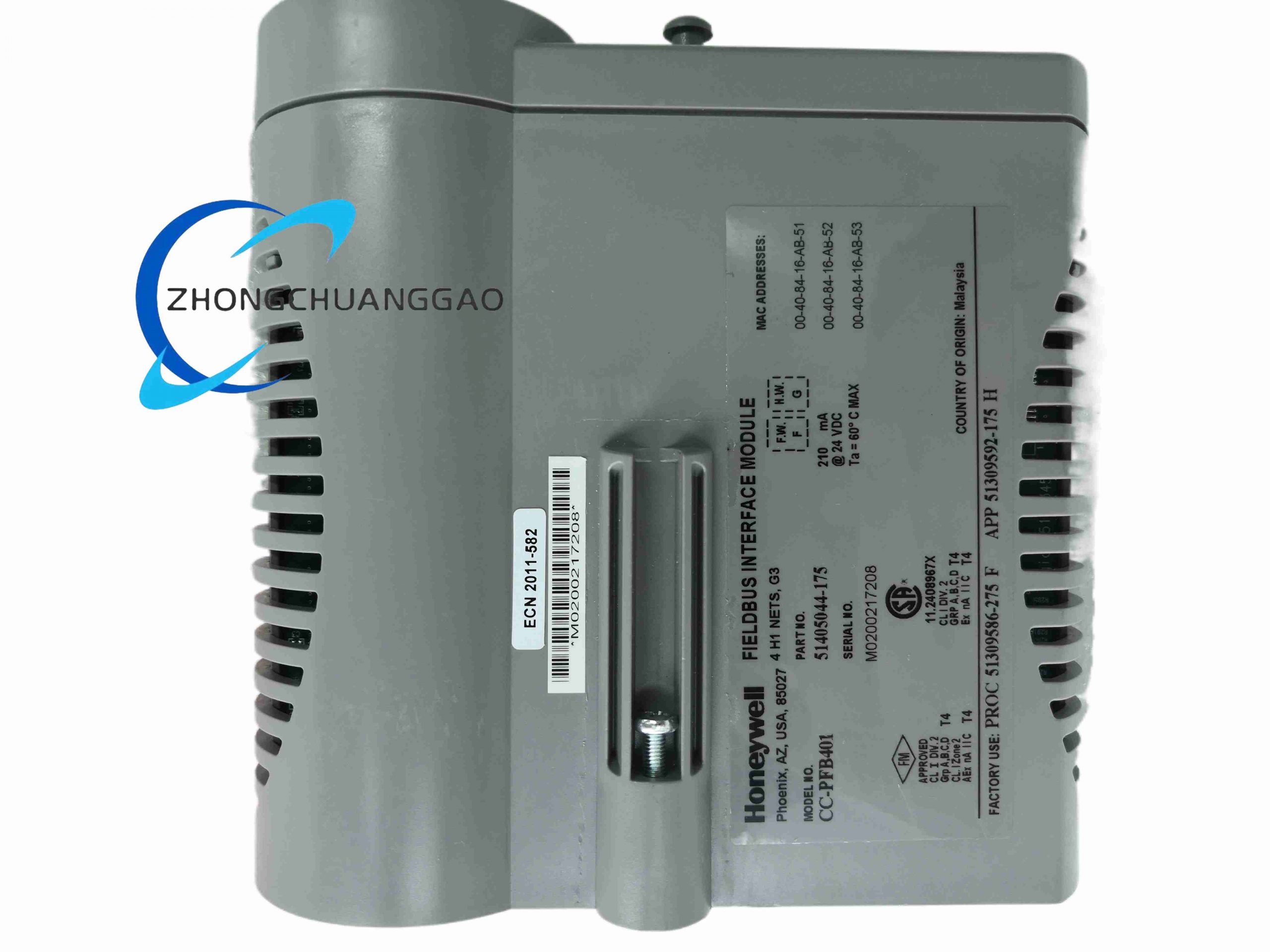

Honeywell CC-PFB401

Technical Specifications

• Number of H1 Links: 4 independent fieldbus channels per module
• Maximum Field Devices per Link: 16 devices (64 devices total per module)
• Communication Protocol: FOUNDATION Fieldbus H1, 31.25 kbit/s
• Isolation Voltage: 1500 VDC (network to system)
• Power Supply: 24 V DC, 0.5 A (supplied via IOTA)
• Operating Temperature: -40°C to +70°C
• Humidity Range: 5% to 95% non-condensing
• Available Macrocycle Periods: 250 ms, 500 ms; 1, 2, 4, 8, 16, 32 seconds
• Weight: 0.3 kg
• Dimensions: 61 mm × 52 mm × 106 mm

Functional Features

• Supports both non-redundant and redundant side-by-side IOTA configurations
• Enhanced real-time diagnostics for network and device fault troubleshooting
• Integrated fieldbus power conditioning for field devices
• Compatible with standard FOUNDATION Fieldbus H1 devices from multiple vendors
• Seamless integration with Experion PKS control strategy and asset management
• Advanced network status monitoring and alarm reporting

Application Scenarios

• Digital fieldbus systems in oil and gas production facilities
• Refinery and petrochemical plant process control
• Pharmaceutical manufacturing with intelligent field instrumentation
• Power plant auxiliary system control
• Distributed control system modernization and fieldbus migration projects

Working Principle

The module connects the C300 controller to up to four H1 fieldbus segments. It manages communication scheduling, data exchange and device configuration on each fieldbus link according to the FOUNDATION Fieldbus protocol standard. Process data from field instruments is transmitted to the controller, while control outputs and configuration commands are sent to field devices in a scheduled, deterministic manner.

Installation Requirements

• Plug into Series C IOTA terminal assembly
• Connect fieldbus trunk cables to dedicated terminals on the IOTA
• Install proper bus termination resistors at each end of every fieldbus segment
• Ground cable shield at one end only to prevent ground loops
• Route fieldbus cables separate from high-voltage power cables to avoid interference
• Ensure total cable length per segment complies with 31.25 kbit/s H1 distance limits

Usage Precautions

• Do not exceed the maximum number of devices per H1 segment
• Verify proper bus termination before powering up the fieldbus network
• Avoid running fieldbus cables parallel to power cables for long distances
• Follow ESD handling procedures when installing or removing the module
• Do not connect or disconnect fieldbus cables under power to avoid device damage
