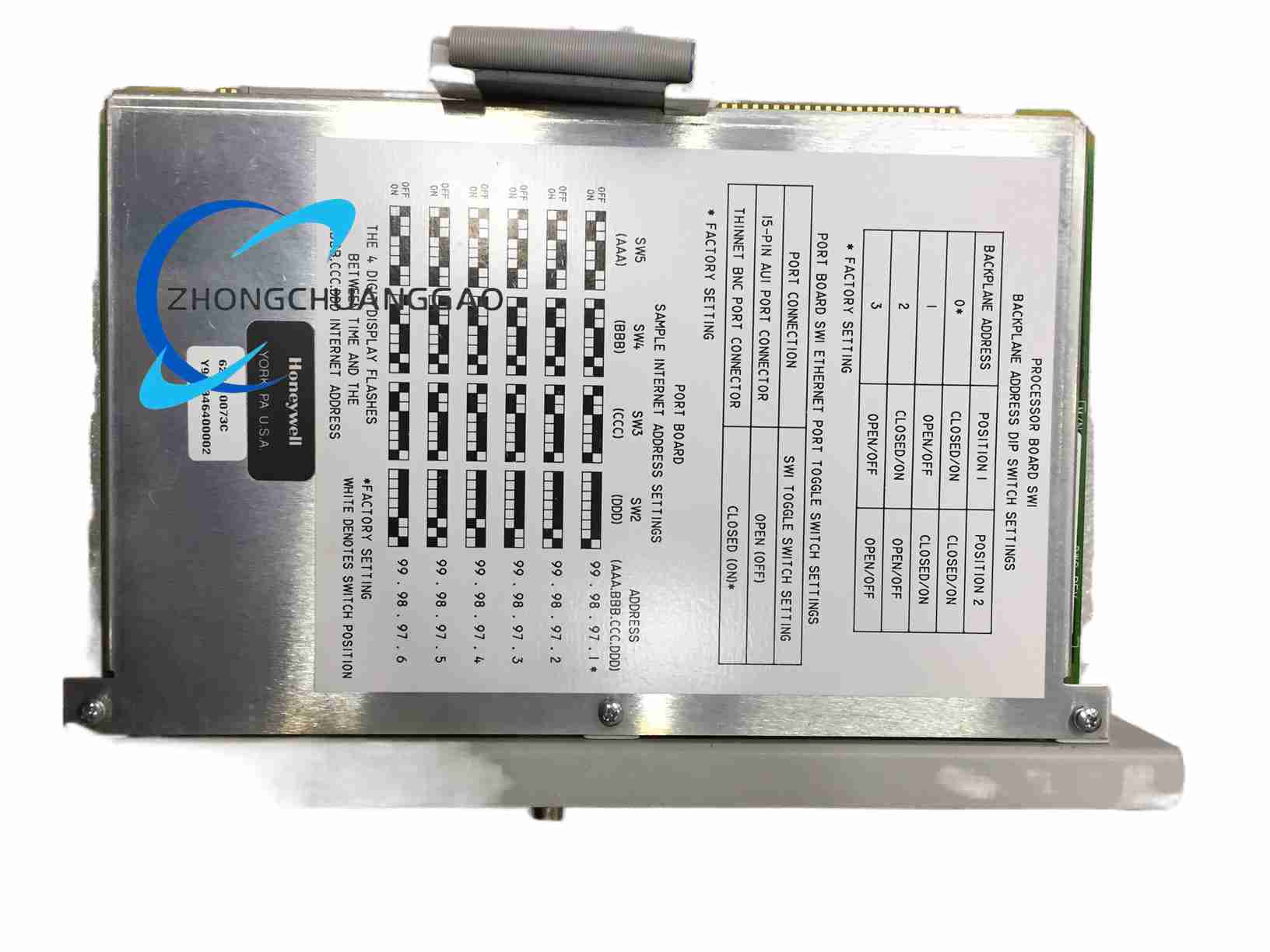

Honeywell 620‑0073C

Technical Specifications

• Compatible System: Honeywell S9000 controller rack‑based system
• Input Logic Power: 24 VDC nominal
• Operating Temperature Range: ‑20 °C ~ +60 °C
• Humidity: 0‑95 % non‑condensing
• Mechanical Dimensions: 178 mm × 102 mm × 44 mm
• Weight: 1.2 kg
• Certifications: CE, UL508, CSA Functional Features
• Multi‑channel discrete digital output for driving field‑side actuators and relay coils
• Channel‑level status‑indicator LED lamps for on‑site troubleshooting
• Galvanic isolation between controller‑logic backplane and field‑output circuits
• On‑board channel‑fault diagnostic feedback to host S9000 controller
• Hot‑swap capable for rack‑based system maintenance Application Scenarios
• Petrochemical plant S9000 process‑control I/O rack
• Power‑generation‑plant auxiliary‑process control systems
• General manufacturing‑plant discrete‑output control for valves, solenoids and motor‑relay coils Performance Parameters
• Isolation voltage between backplane side and field‑output side meets industrial‑process‑control standards
• Each output channel provides over‑current short‑circuit protection Material Composition

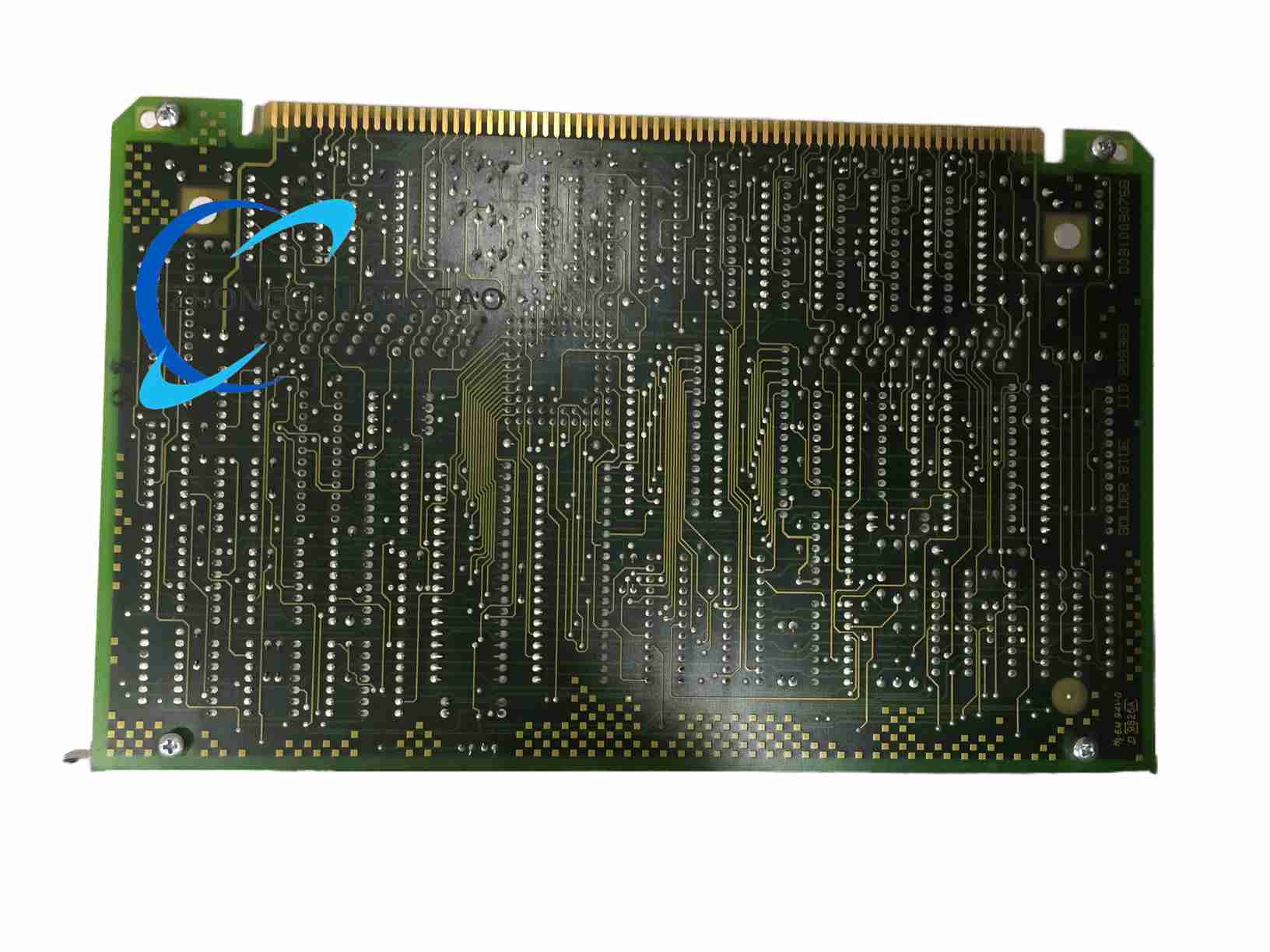

• Printed‑circuit‑board substrate: high‑reliability industrial‑grade FR‑4 PCB
• Isolation devices: optocoupler galvanic‑isolation components
• Rack‑edge connector: gold‑plated high‑reliability back‑plane contact assembly
• Module housing: flame‑retardant industrial thermoplastic Structural Characteristics
• Rack‑plug‑in card‑module form factor for S9000 rack‑slot installation
• Front‑panel field‑wiring terminal block for field‑device connection
• Visible channel‑status LED indicators on module front edge
• Back‑side gold‑plated edge connector mates with S9000 controller‑rack backplane bus Working Principle: S9000 host‑controller sends digital‑output command data across rack‑backplane bus to this module. On‑board logic receives commands, passes through galvanic‑isolation optocoupler circuits, and drives field‑side output power circuits to switch on‑off field‑connected actuators. Channel‑status feedback signals are isolated and sent back to host controller for fault‑diagnosis processing. Installation Requirements
• Insert module into designated slot of Honeywell S9000 controller rack
• Ensure edge‑connector is fully seated into rack‑backplane connector
• Torque field‑wiring terminal‑block screws to manufacturer‑specified torque value
• Route field‑cable shields to rack‑ground busbar following Honeywell system‑grounding specification Usage Notes
• Only deploy within S9000‑series compatible rack hardware; do not install in other vendor‑controller racks
• Keep ambient‑air non‑condensing; condensation will destroy isolation performance
• Do not exceed rated load‑current per individual output‑channel
• Observe ESD handling rules when removing‑inserting module from powered rack
