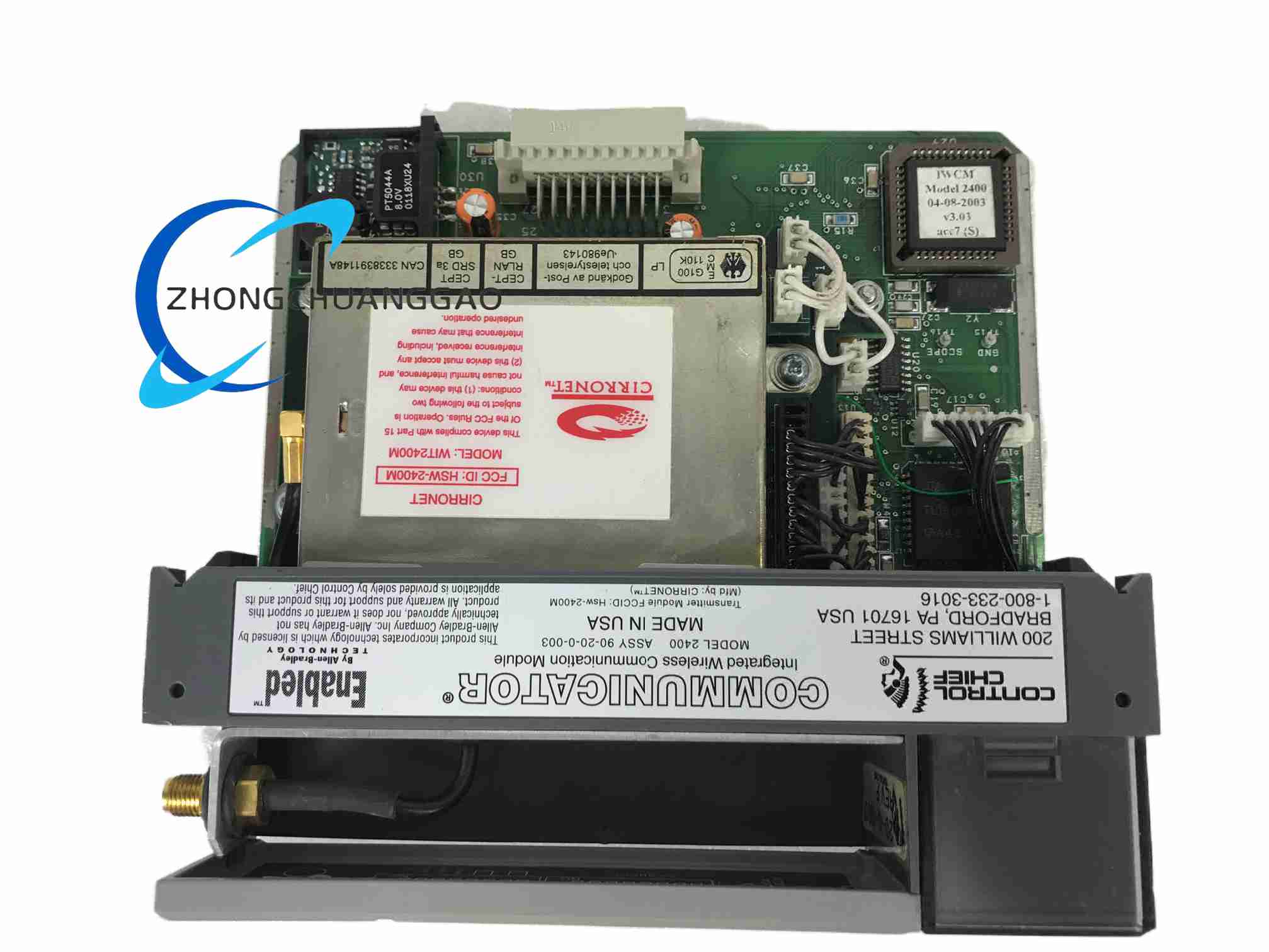

CONTROL CHIEF 90‑20‑0‑003 - Image 1
Click to enlarge
Honeywell 620‑0073C
Honeywell 620‑0073C
Back to products
AMAT 0100‑00003
AMAT 0100‑00003

CONTROL CHIEF 90‑20‑0‑003

Product Name: Industrial Wireless Remote Control Receiver Assembly Product Brief: Rugged industrial radio‑frequency receiving unit for locomotive, overhead crane and heavy‑duty material handling wireless remote control systems, receives radio command signals from portable transmitters and converts wireless instructions into hard‑wired relay outputs for field equipment controlControl Ch…

Category:
Description

Technical Specifications

  • Operating Frequency: Industrial license‑free ISM radio band
  • Supply Voltage: 12‑24 VDC industrial power input
  • Relay Output Rating: 10 A / 250 VAC force‑guided safety relay contacts
  • Operating Temperature: ‑40 °C ~ +70 °C
  • Ingress Protection: IP65 for enclosure assembly
  • Weight: 2.2 kg
  • Communication Distance: Up to 1000 m open‑field line‑of‑sight range
  • Function Features
  • Integrated safety interlock logic with hardware emergency‑stop relay circuits
  • Built‑in signal loss fail‑safe, all outputs force de‑energized upon radio link dropout
  • Multi‑transmitter pairing capability, supports dedicated ID code authentication
  • Diagnostic LED indicators for power status, radio signal strength and channel faults
  • Built‑in surge and transient voltage suppression for heavy‑industry electrical noise environment
  • Application Scenarios: In‑plant railway locomotive remote operation, overhead travelling cranes, material loading‑out systems, industrial winches, port material handling machinery, heavy‑duty conveyor systemsControl Ch….
  • Performance Parameters: Receiver sensitivity ‑105 dBm; response latency less than 80 ms; channel‑hopping anti‑interference algorithm; mechanical relay service life ≥1 000 000 switching cycles.
  • Material Composition: Die‑cast aluminium alloy main housing; high‑impact glass‑filled nylon terminal cover; gold‑plated signal and power connectors; flame‑retardant internal PCB substrate.
  • Structural Characteristics: Compact wall‑mount metal enclosure; external antenna interface; sealed cable‑gland entry points; internal modular circuit layout for component replacement.
  • Working Principle: Radio frequency antenna captures encoded wireless commands, baseband circuit decodes unique transmitter ID and control instructions, hardware relay array executes output switching; signal‑timeout monitoring triggers safety fail‑safe state when valid radio frames stop arriving.
  • Installation Requirements: Mount on rigid vibration‑damped metal surface; keep antenna clear of large metal obstructions; separate power wiring from high‑power motor cable runs; maintain minimum 30 cm clearance from high‑voltage switching equipment; use shielded power cable as specified in installation manual.
