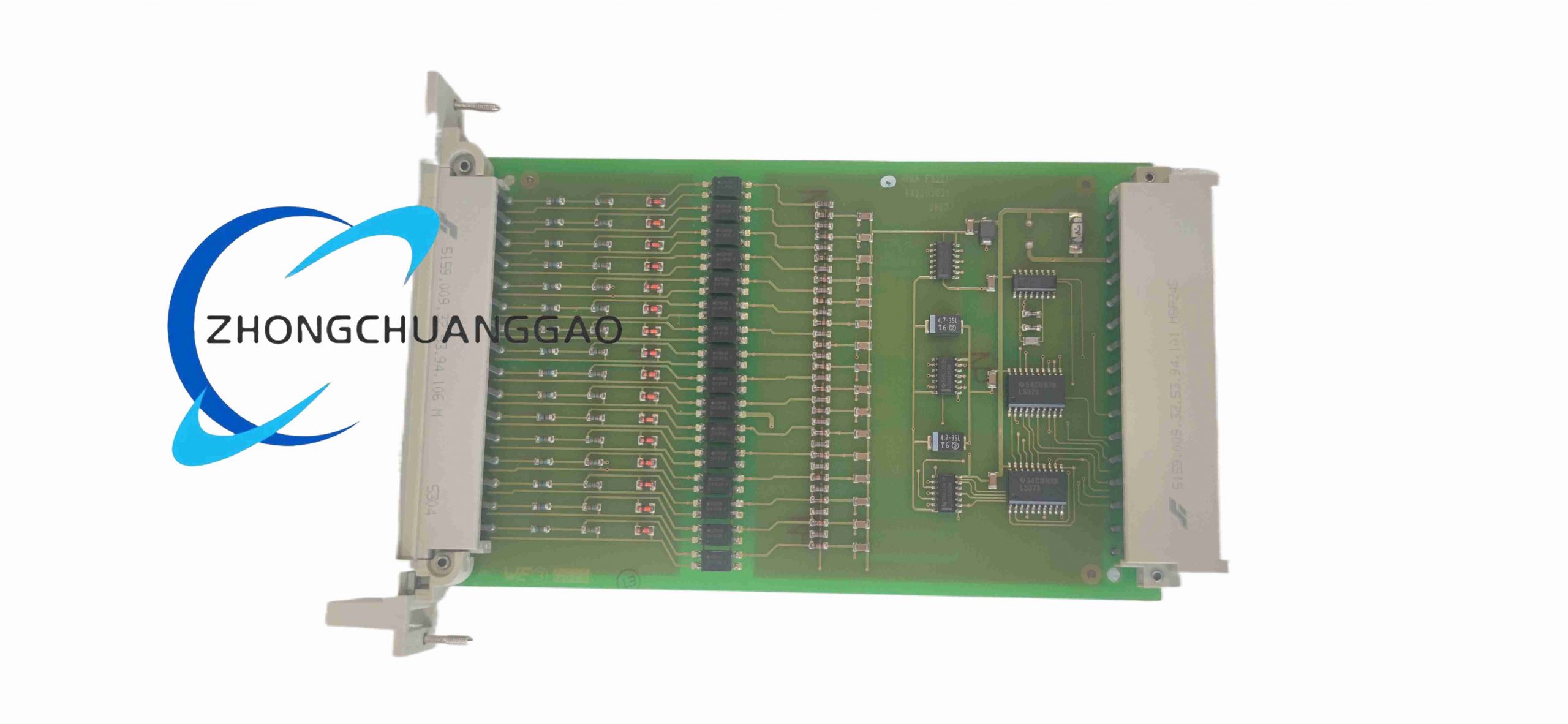

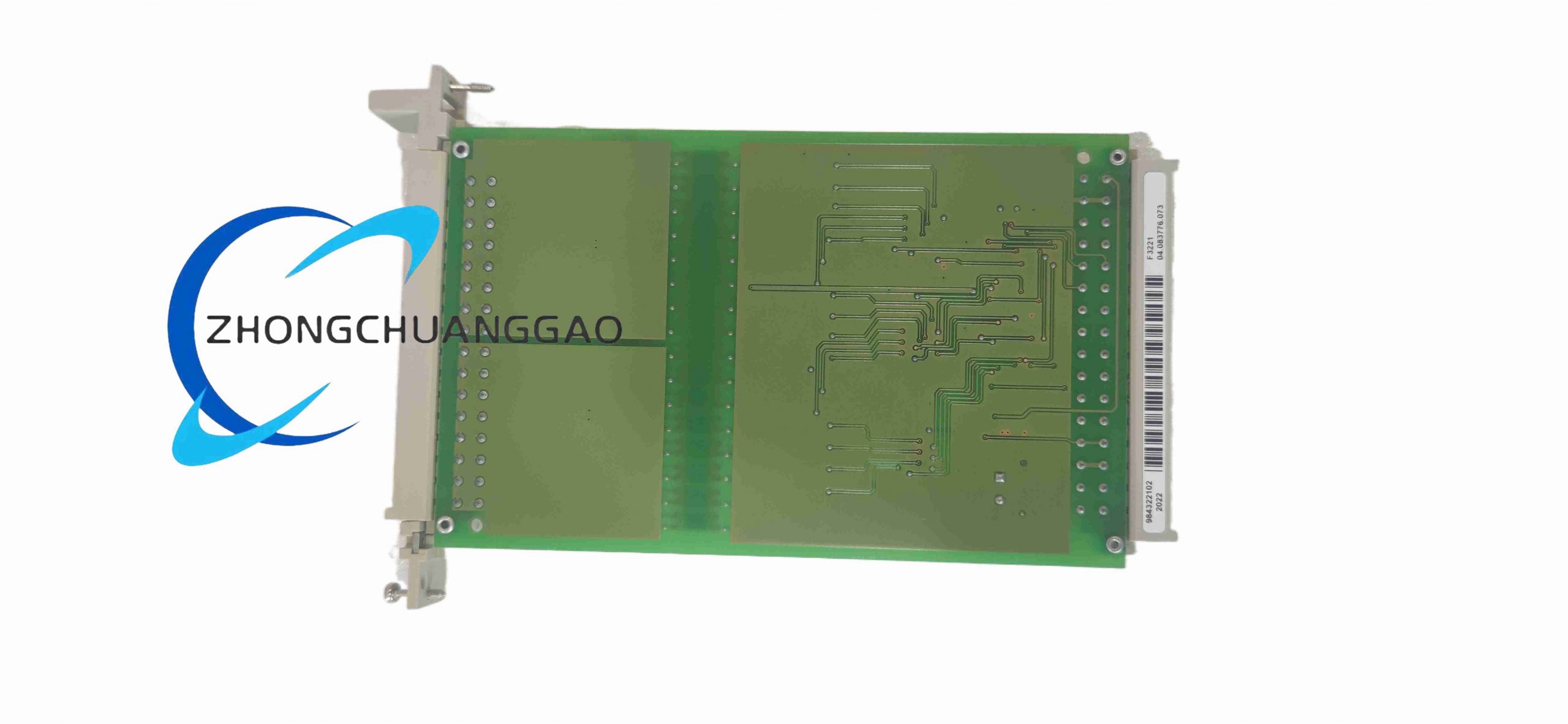

Product Name: HIMA F3221 Digital Input Module (HIQuad Series)
Product Introduction: 16-channel safety-related digital input module for HIMA HIQuad H41q/H51q central safety systems, certified for SIL 3 signal acquisition from field sensors and emergency stops.

Category: HIMA

Description

Technical Specifications:
- Model: F3221
- Part Number: 984322102
- Input Channels: 16 channels (non-interacting, galvanically isolated groups)
- Input Voltage: 24 V DC (typical), ON ≥15 V, OFF ≤5 V
- Input Current: 8 mA (1-signal with cable plug) or 20 mA (depending on sensing type)
- Input Impedance: 10 kΩ at 24 V DC
- Response Time: < 5 ms (signal change to data output), typical 10 ms switch time
- Safety Integrity: SIL 3 (IEC 61508), Cat. 4, PL e
- Supply: From HIMA backplane (5 V DC ~70 mA, 24 V DC ~130 mA)
- Space Requirement: 4 TE (approx 20.32 mm width per rack unit)
- Operating Temp: -20°C to +60°C
- Protection: IP20 (rack mounted)
Functional Features: Channel-level diagnostics (wire break, short to ground/supply); debounce time configurable 10 ms – 200 ms; supports mechanical contact and proximity switch inputs; safely isolated inputs.
Performance Parameters: Diagnostic coverage > 99%; reading refresh per safety bus cycle; high noise immunity per IEC 61131-2.
Material Composition: Metal/plastic front face, PCB with safety trace spacing, conformally coated.
Structural Characteristics: Plug-in module for HIMA K 1409 style rack; front LEDs for channel status and module fault; rear edge connector for backplane; handled by extraction tool/latch.
Working Principle: Each input channel optically isolated; voltage monitored by safety ASIC; comparison against thresholds determines 0/1; continuous test pulses check line integrity; fault reported via diagnostic bit on safety bus; redundant read paths ensure validity.
Advantages: High density 16 ch in 4 TE; TÜV SIL 3 certified; deep diagnostics prevent nuisance trips; compatible with HIQuad architecture ensuring deterministic response.
Applicable Industries: ESD Systems (Oil/Gas/Chemical), Turbine Protection, Burner Management, Rail Safety, Heavy Machinery.
Model Series: HIMA HIQuad F3200 Series (F3221, F3226 etc.).
Installation Requirements: Insert into designated I/O slot of HIMA HIQuad rack until latched; ensure backplane 5 V / 24 V powered correctly; verify earth continuity of rack; use ferrules on field wires if terminating at external TB.
Usage Precautions: Do not exceed 24 V DC input rating; ensure common wiring matches sinking/sourcing requirement; monitor diagnostic LEDs for channel faults; replace only with identical 984322102 part number to maintain certification; avoid touching connector pins; perform function test after insertion.
