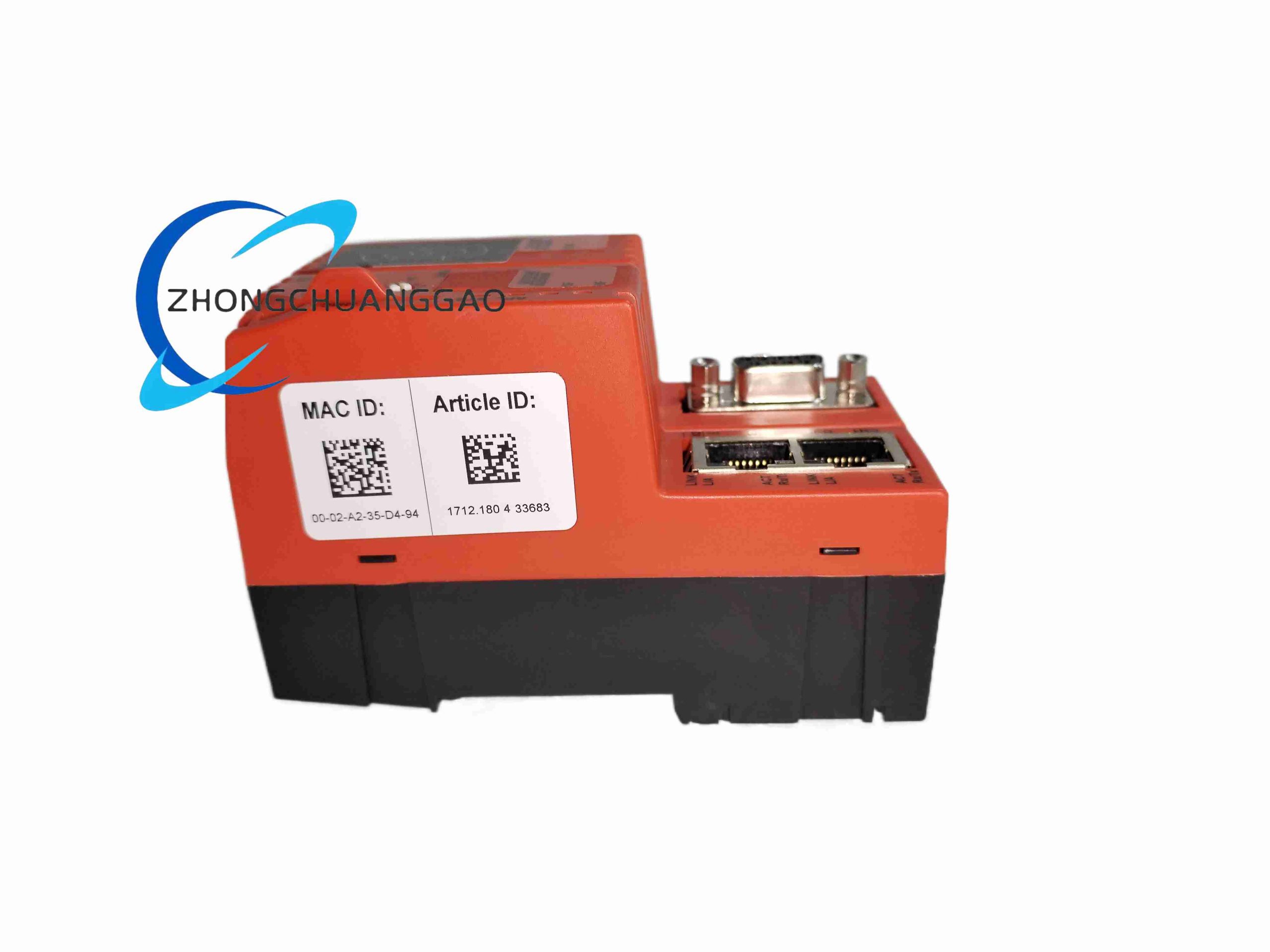

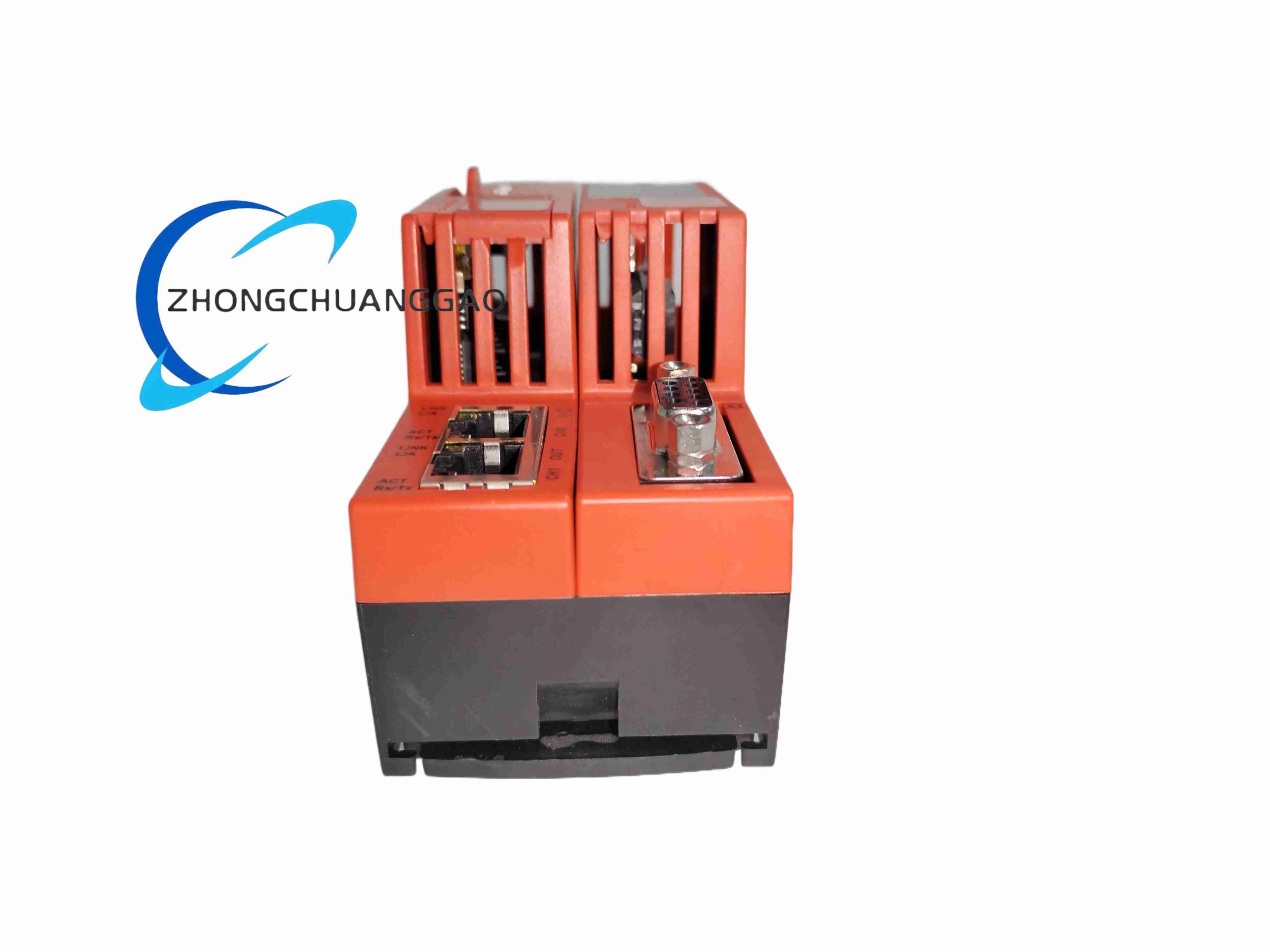

Hilscher NT100-RE-DP

Product Name:​ netTAP 100 Gateway – Real-Time Ethernet to PROFIBUS-DP
Product Introduction:
DIN-rail protocol converter bridging one real-time Ethernet side (2-port switch) to one PROFIBUS-DP slave/master side. Firmware loaded via SD/MMC defines which RTE protocol is active (EtherCAT, PROFINET IO, EtherNet/IP, Modbus TCP, Sercos III).
Category:
Description
Technical Specifications:
  • Controller:​ Hilscher netX 100
  • Memory:​ 8 MB SDRAM, 4 MB serial flash, SD/MMC up to 2 GB
  • RTE side:​ 2 × RJ45, 10/100 BASE-TX, electrically isolated
  • PB side:​ 9-pin D-Sub RS-485, optical isolation
  • PB capacity:​ Master up to 125 slaves; slave mode supported
  • Conversion time:​ < 10 ms typical
  • Supply:​ 24 V DC ±6 V, 130 mA, 3.2 W, reverse-polarity protected
  • Service:​ Mini-USB diagnostic, rotary node-address switches
  • LEDs:​ SYS, APL, LINK, ACT, COM (dual color)
  • Temp:​ 0–60 °C, non-condensing, pollution degree 2
Features:​ Swappable SD card holds firmware+config for seconds-swap replacement, SYCON.net engineering, multi-RTE license selectable.
Applications:​ Retrofit PROFIBUS-DP drives into EtherCAT cell, PROFINET controller talking to legacy DP valve manifold, Modbus TCP SCADA to DP instruments.
Installation Notes:​ DIN rail only; 24 V isolated source for UL; set node address before power; terminate PROFIBUS with 120 Ω at ends; do not mix RTE firmware without SD reload.
