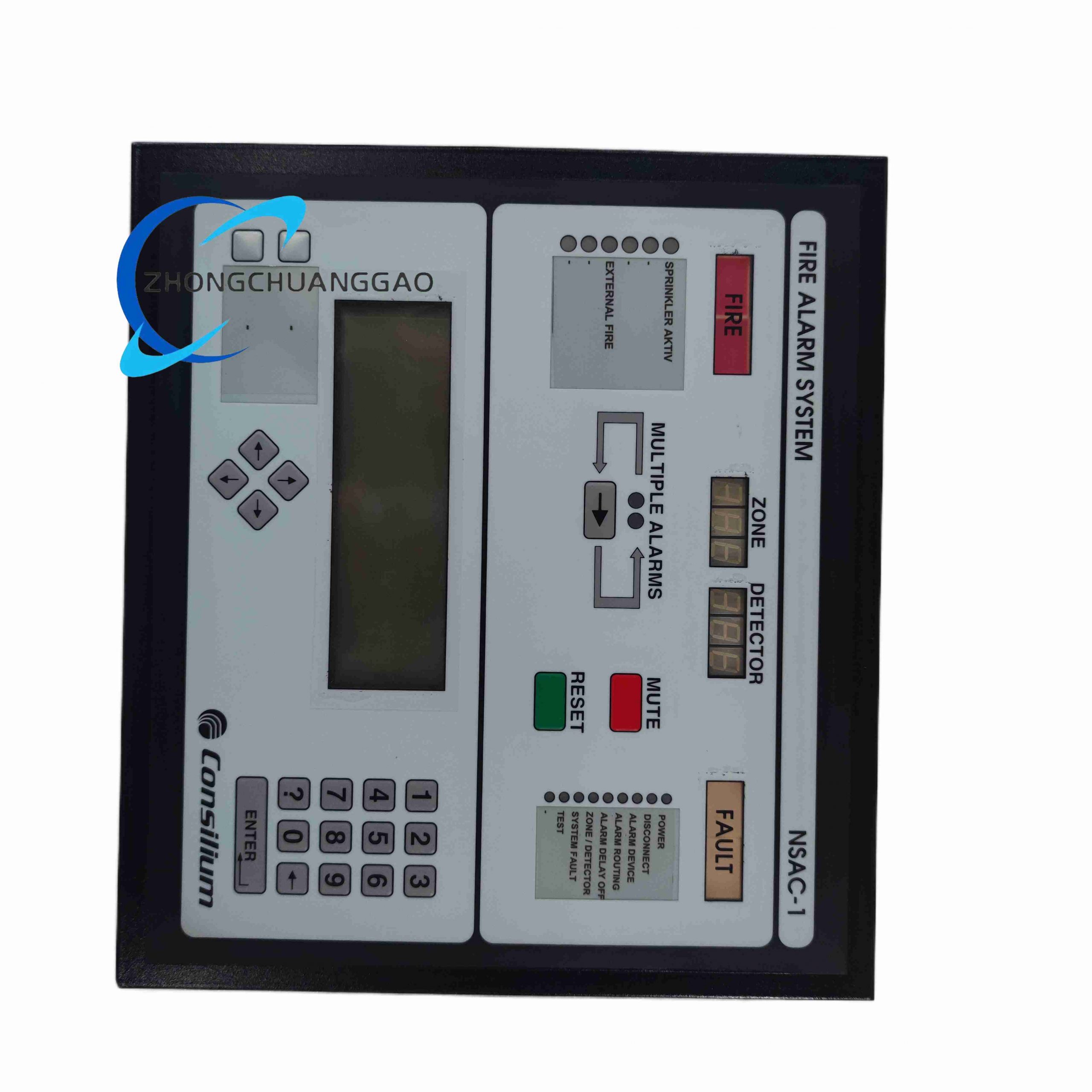

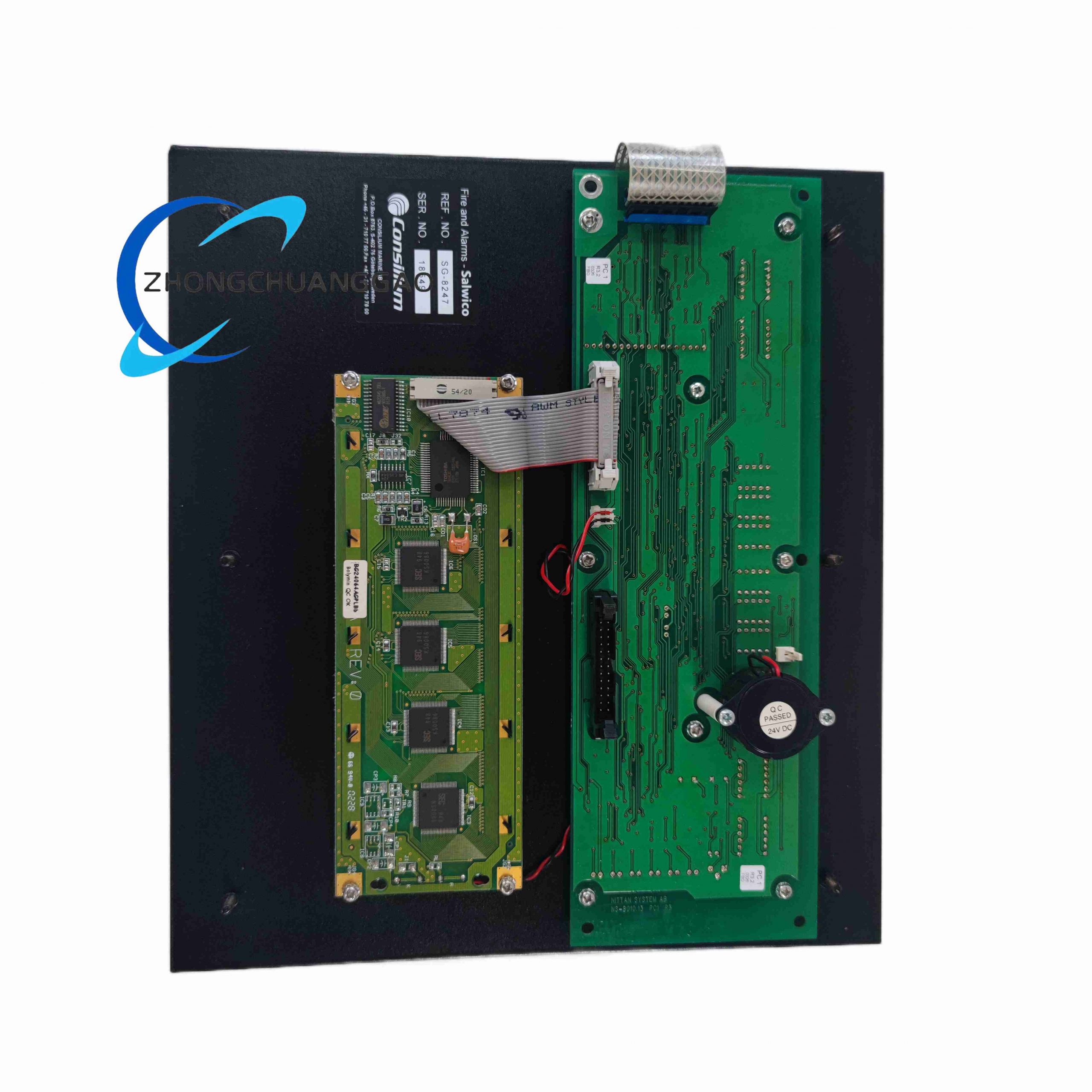

CONSILIUM NSAC-1

Product Name:​ SafeSea Marine Fire & Gas Alarm Control Unit
Product Introduction:
Central microprocessor panel for Consilium/Siemens marine F&G system. Runs NSD (Networked Sensor Device) loop, polls intelligent smoke/heat/flame/manual-call points, drives relays for ventilation trip, CO₂ release, alarm bells.
Category:
Description
Technical Specifications:
  • Loops:​ 2 × NSD RS-485, 127 devices per loop
  • Supply:​ 24 V DC main + 24 V DC battery standby auto-switch
  • Outputs:​ Fire/fault/pre-alarm relays, sounder beacon driver
  • Comms:​ RS-485 NSD, RS-232 config, optional Ethernet repeater
  • Temp:​ −15 °C to +55 °C
  • Ingress:​ IP30 (indoor wheelhouse/CCR)
  • Certification:​ SOLAS II-2, MED, DNV-GL, ABS, LR, BV
  • Alarm reaction:​ Zone displayed < 2 s
Features:​ Addressable device health (dirty/contacts/fault), programmable cause-effect matrix, bridge repeat panel support.
Applications:​ Merchant vessels, passenger ships, tankers, offshore platforms engine-room and cargo-zone fire monitoring.
Installation Notes:​ Mount in climate-controlled CCR; test battery annually; recalibrate detectors every 2 years; verify loop termination resistors.
