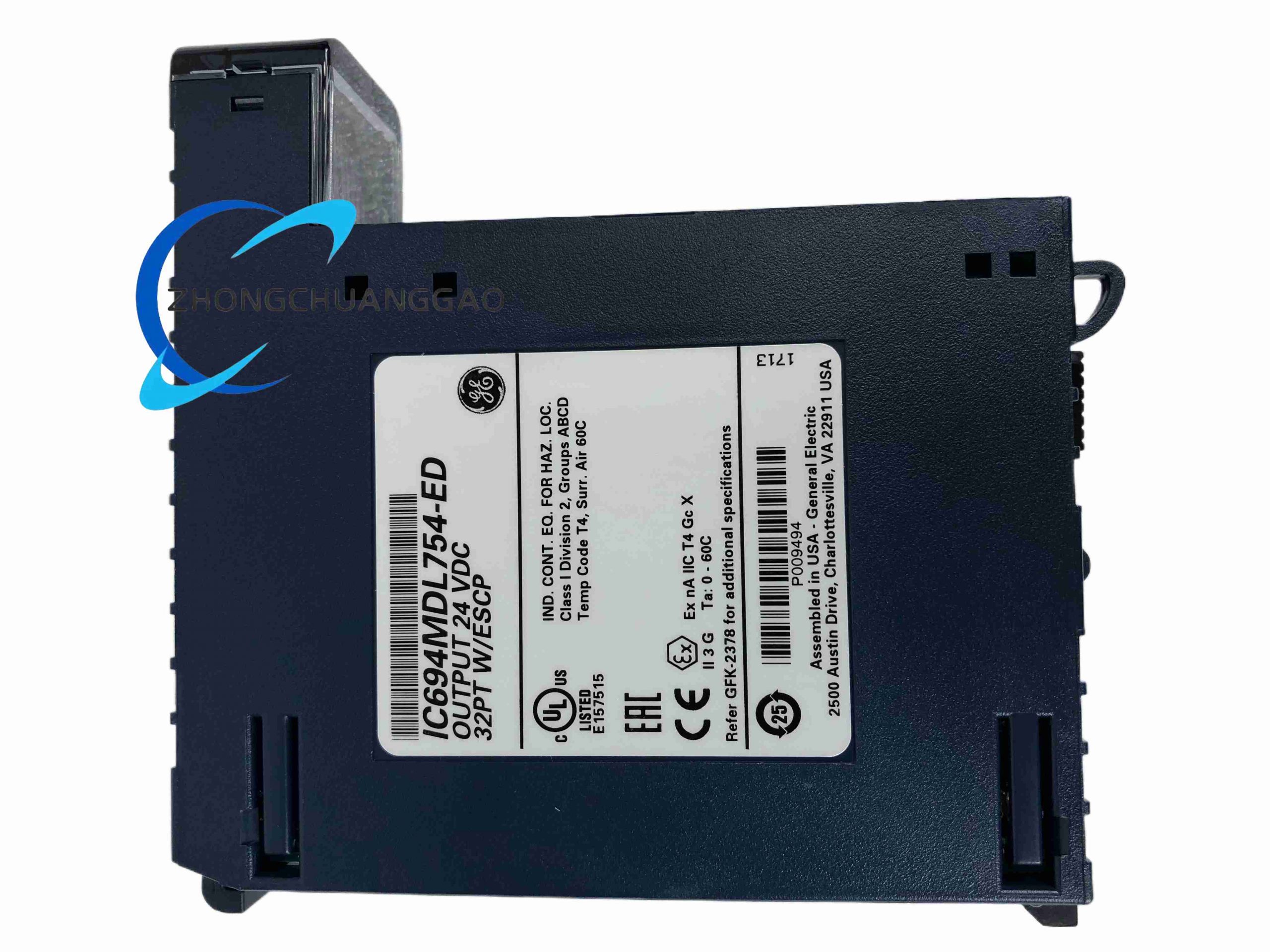

GE IC694MDL754 - Image 1

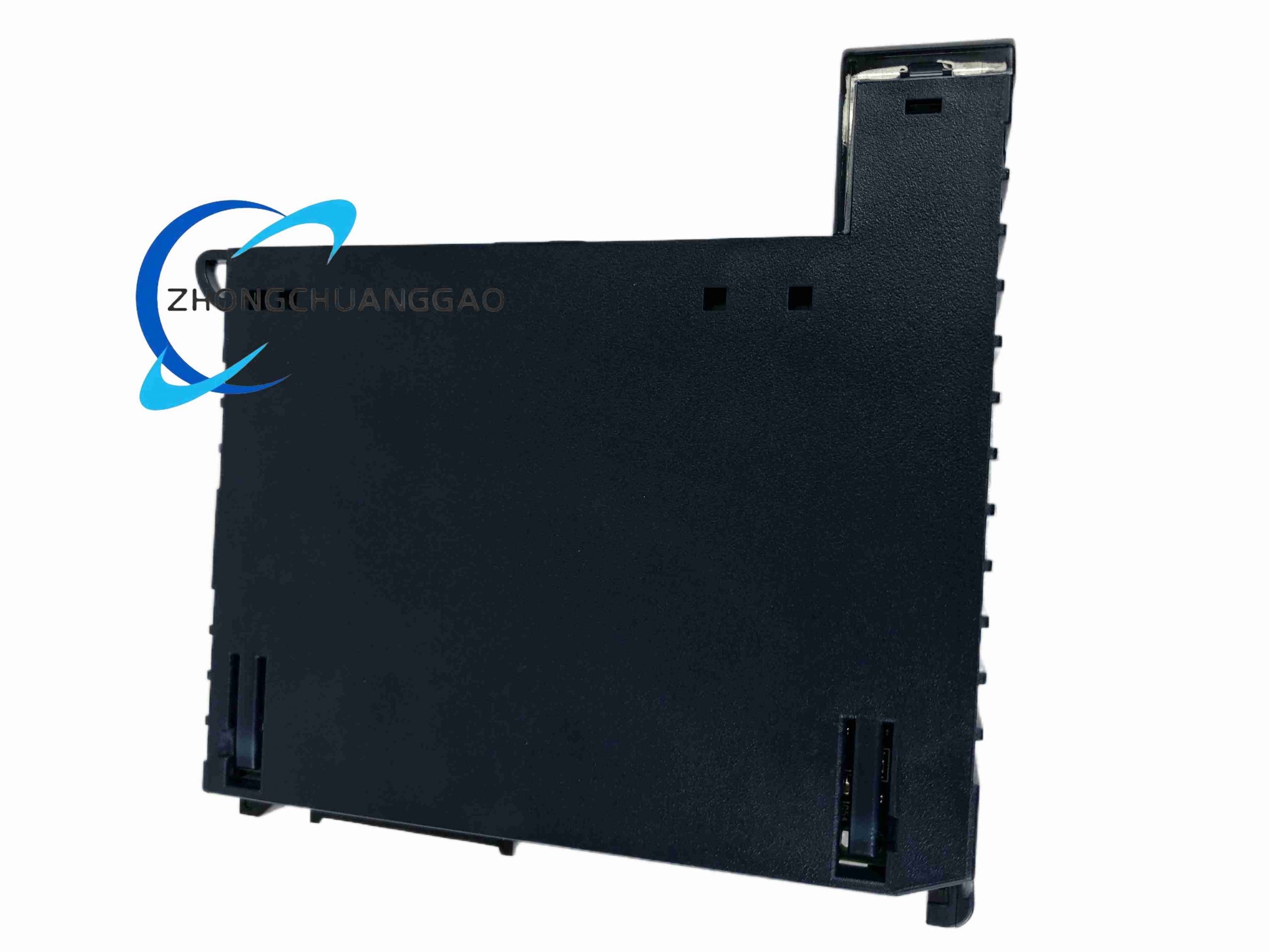

GE IC694MDL754 - Image 2
Click to enlarge
GE IC694MDL754
GE IC694MDL754 - Image 2

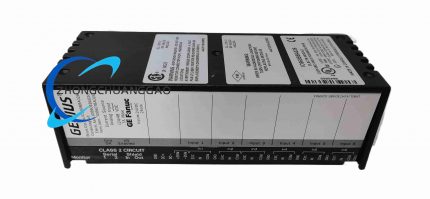

GE IC660BBA026
GE IC660BBA026
Back to products
Cisco IE-4000-16GT4G-E
Cisco IE-4000-16GT4G-E

GE IC694MDL754

Product Name

RX3i PACSystem 32-Point Positive Logic Output Module, 12/24 VDC, ESCP

Product Introduction

The GE IC694MDL754 is a high-density discrete output module from GE Fanuc’s RX3i PACSystem PLC series. It provides 32 sourcing-type output points with electronic short circuit protection, designed for industrial automation control applications requiring high channel count and reliable load driving.

Category:
Description

Technical Specifications

  • Number of output points: 32, organized in 2 isolated groups of 16 channels each
  • Output voltage range: 10.2 V DC to 30 V DC (12 V / 24 V DC nominal)
  • Maximum output current per point: 0.75 A
  • Output type: Positive logic (sourcing) output
  • Output response time: <1 ms
  • Backplane current consumption: 70 mA at 5 V DC
  • Isolation voltage: 1500 V AC for 1 minute
  • Operating temperature range: -20°C to +60°C
  • Storage temperature range: -40°C to +85°C
  • Shock resistance: 30 G (11 ms)
  • Vibration resistance: 5 G (10 Hz to 500 Hz)
  • Protection rating: IP67 (module housing)

Functional Features

  • Electronic Short Circuit Protection (ESCP) on each output point with individual fault reporting
  • Configurable default output state: Force Off or Hold Last State (set via DIP switch)
  • Group-level isolation allows different supply voltages for each output group
  • Comprehensive fault diagnostics including output driver fault, field power loss and configuration mismatch
  • LED indicators for output status and module fault conditions
  • Supports hot swap replacement for minimum system downtime

Application Scenarios

  • High-density discrete control in manufacturing automation
  • Relay, solenoid valve and indicator lamp driving
  • Material handling and packaging equipment control
  • Assembly line and conveyor system control
  • PLC system I/O expansion in industrial process control

Working Principle

The module receives output command data from the RX3i CPU through the backplane bus. The internal drive circuit controls the state of each output channel according to the command data, and switches the positive side of the load power supply to deliver current to field loads. Each output channel integrates electronic overcurrent and short circuit protection, which triggers protection action and reports fault status to the CPU when overcurrent conditions are detected. The module also monitors field side power status and reports power loss faults to the control system.

Installation Requirements

  • Install on RX3i PLC system backplane
  • Use appropriate gauge wiring based on output current requirements
  • Separate field power supplies for each output group when using different voltages
  • Ensure proper load power supply polarity
  • Torque terminal screws to manufacturer specified values

Material & Structure

  • Housing made of high-strength flame-retardant ABS material
  • Internal integrated power drive circuit, protection circuit and communication interface
  • Screw terminal block for reliable field wiring connection
  • Front panel with channel status LEDs and fault indicators

Usage Notes

  • Do not exceed the per-channel current rating or total group current limit
  • Verify load voltage compatibility before connection
  • Inductive loads require additional surge suppression components
  • Disconnect field power before wiring or module replacement
  • Configure default output state according to application safety requirements
