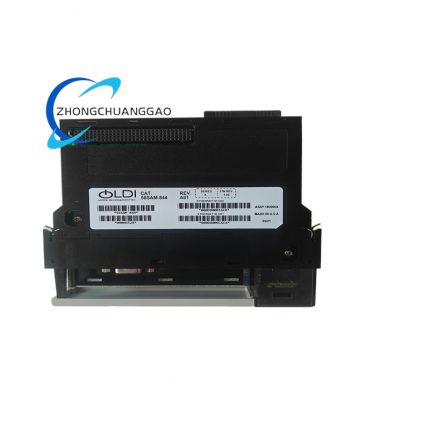

GE 56SAM-844
GE 56SAM-844

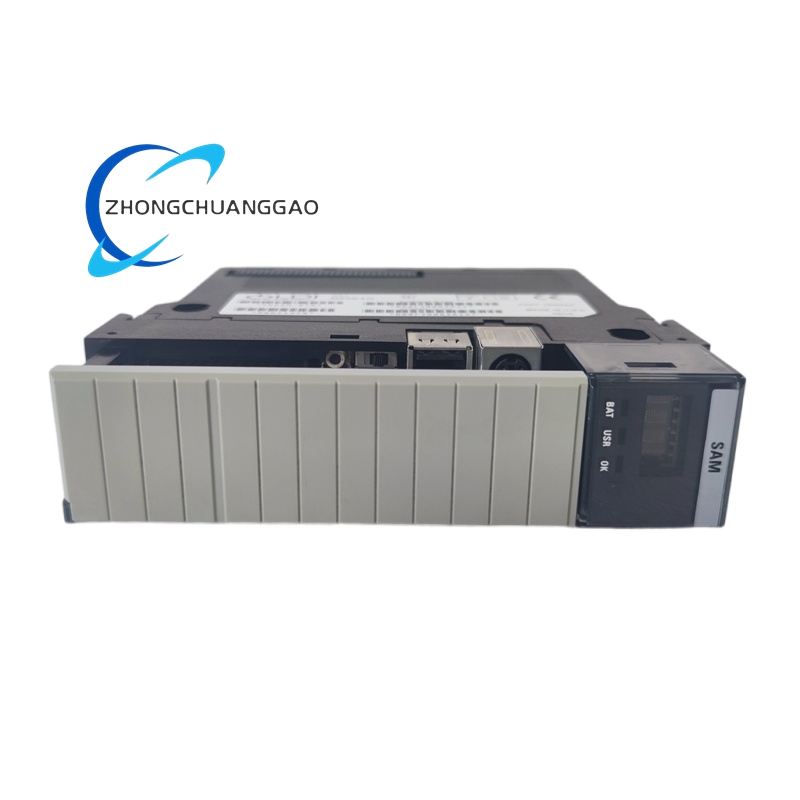

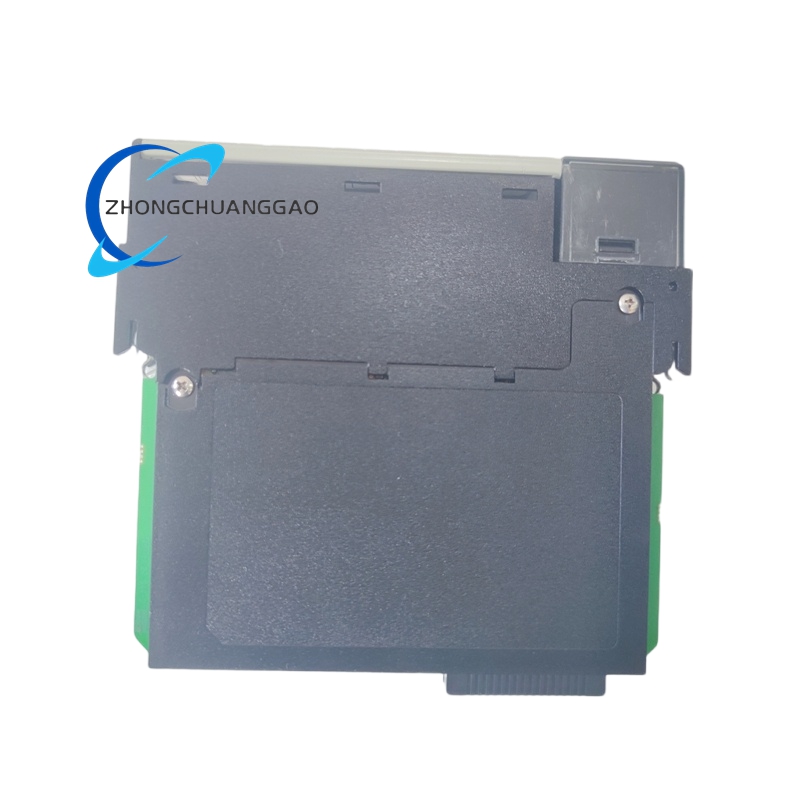

GE 56SAM-810

Series: Series 90-70 / VersaMax or 90-30 Compatible

Product Overview:
The GE 56SAM-810 is a 16-point DC input module designed for use with GE Fanuc Programmable Logic Controllers (PLCs). It is part of the Series 90-70 / VersaMax product family and provides sink-type DC inputs for connecting field devices such as sensors, switches, and proximity detectors to the PLC rack.

Category:
Description

Technical Specifications:

Parameter Value
Input Type DC Sink (Sourcing)
Number of Points 16 inputs
Input Voltage Range 12V DC to 24V DC
Input Current (per point) 3 mA typical
On/Off Threshold 5V DC minimum for ON, 1V DC maximum for OFF
Isolation Voltage 500V DC between field and logic
Module Voltage Rating 5V DC to 30V DC
Power Consumption 1.0W typical (logic side)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% non-condensing
Mounting DIN rail or backplane (rack-mounted)
Weight Approx. 0.25 kg (0.55 lb)

Function Features:

  • 16-channel DC sink input for field device interfacing
  • Opto-isolated inputs providing 500V DC isolation from logic side
  • LED indicators per channel for visual status verification
  • Wiring via removable terminal block for easy field connection
  • Compatible with GE Series 90-70, 90-30, VersaMax PLC platforms
  • Hot-swappable in supported backplane configurations

Applicable Industries:
Manufacturing automation, process control, material handling, packaging machinery, water/wastewater treatment.

Installation Requirements:

  • Mount in standard DIN rail enclosure or PLC rack
  • Ensure proper grounding of chassis
  • Use shielded cable for noisy environments
  • Maximum cable length: 100m (328 ft) depending on wire gauge

Usage Notes:

  • Input voltage must remain within 12–24V DC range
  • Do not exceed 30V DC on any input channel
  • Verify polarity: DC sink inputs require positive voltage to field device, negative to common
