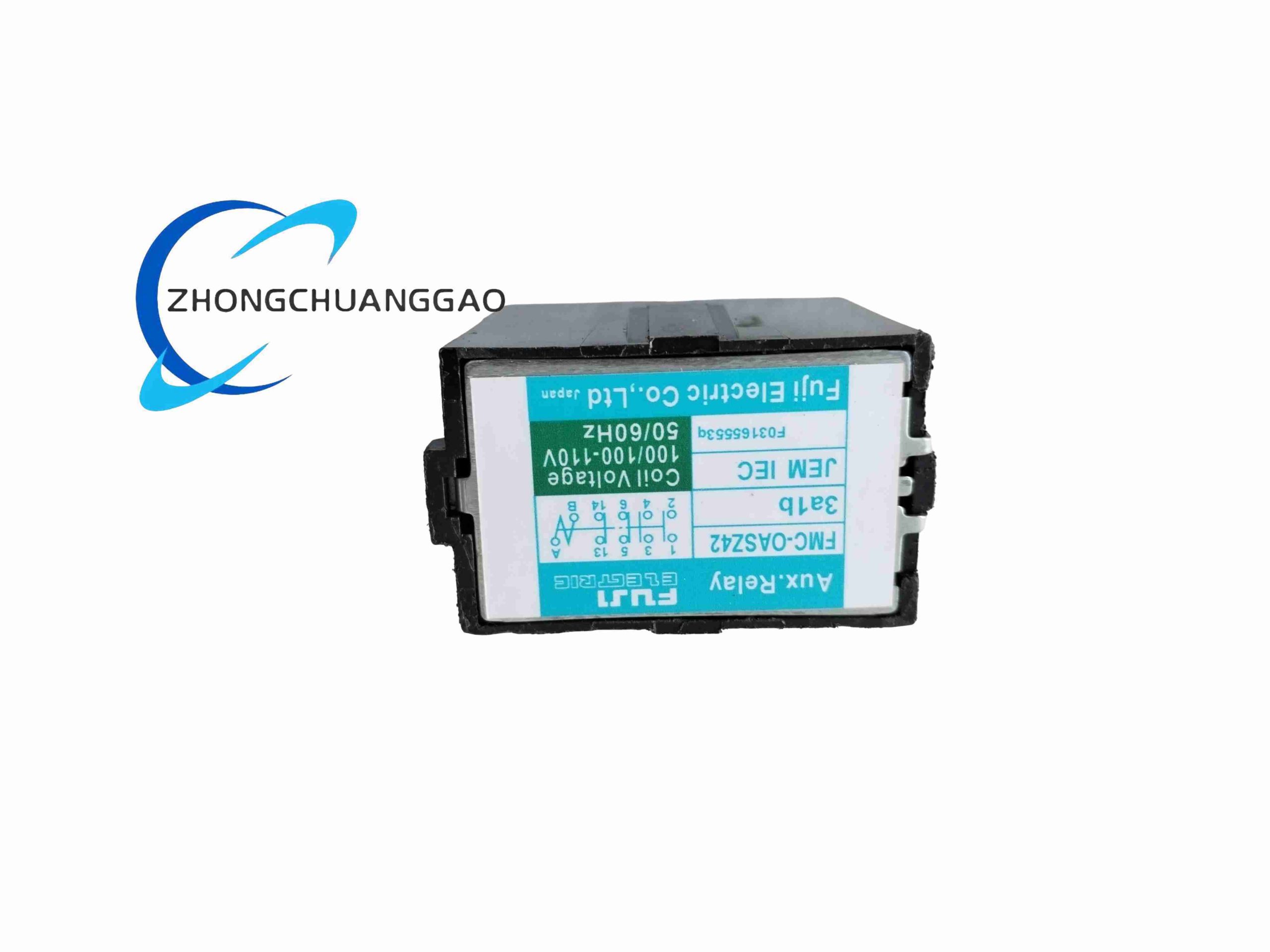

Fuji Electric FMC-OASZ42 - Image 1

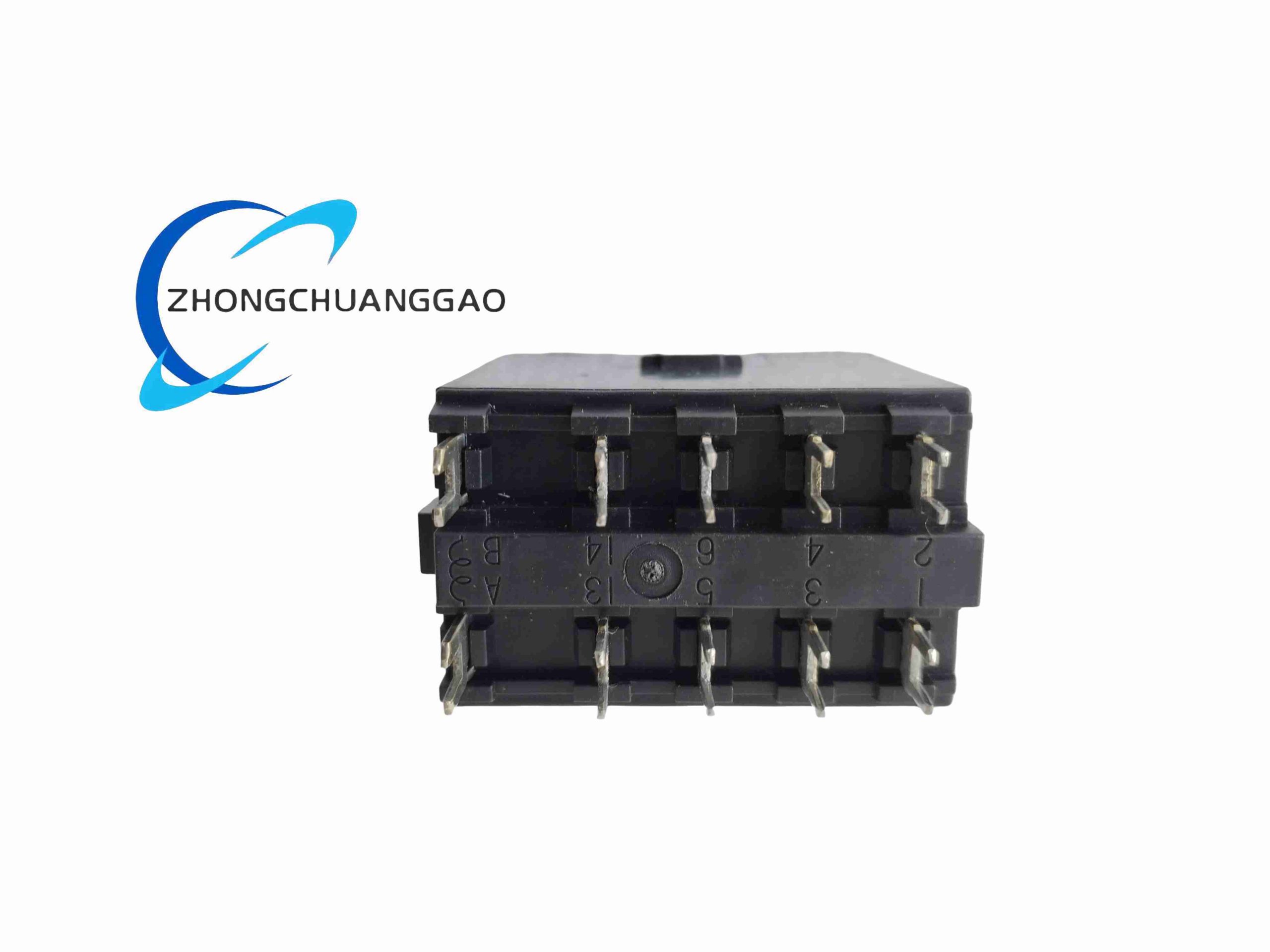

Fuji Electric FMC-OASZ42 - Image 2
Click to enlarge
Fuji Electric FMC-OASZ42
Fuji Electric FMC-OASZ42 - Image 2
Honeywell FC-SDO-0824
Honeywell FC-SDO-0824
Back to products
Emerson FloBoss S600+
Emerson FloBoss S600+

Fuji Electric FMC-OASZ42

  • Product Name:​ Fuji Electric FMC Series Plug-In Electromagnetic Auxiliary Relay, Model FMC-OASZ42, Contact Configuration 3A1B (3 NO + 1 NC)
  • Product Introduction:​ A general-purpose, 10-pin octal-type plug-in relay used in control panels for interlocking, signaling, and switching low-power loads. The “3A1B” denotes three Form A (Normally Open) and one Form B (Normally Closed) contact.
Category:
Description
  • Key Features:
    • 100/110 V AC coil, 50/60 Hz
    • 3 NO + 1 NC contacts (3A1B = 4-pole, 3 make + 1 break)
    • Octal round 10-pin (8+2) socket mount footprint
    • Mechanical life typically > 10 million operations; electrical life depends on load
    • LED indicator and test button optional on matching socket
  • Performance Parameters:
    • Coil Voltage: 100–110 V AC, 50/60 Hz
    • Rated Contact Current: typically 2 A / 5 A resistive @ 250 V AC (varies by exact sub-series)
    • Contact Rating: 250 V AC / 30 V DC max
    • Pick-up / Drop-out Voltage: approx. 80 % / 30 % of rated coil voltage
    • Operating Temp: -10 °C to +55 °C
    • Dielectric Strength: ≥ 2 kV AC 1 min (coil-contact)
  • Structure & Material:​ Thermoset/molded phenolic body; silver alloy contacts; plug-in blade terminals
  • Installation & Notes:
    • Use with Fuji or compatible 10-pin octal socket (screw / PCB / DIN-rail types)
    • Verify coil voltage matches supply before energizing
    • Avoid exceeding contact rating especially for inductive AC loads — use snubber if needed
