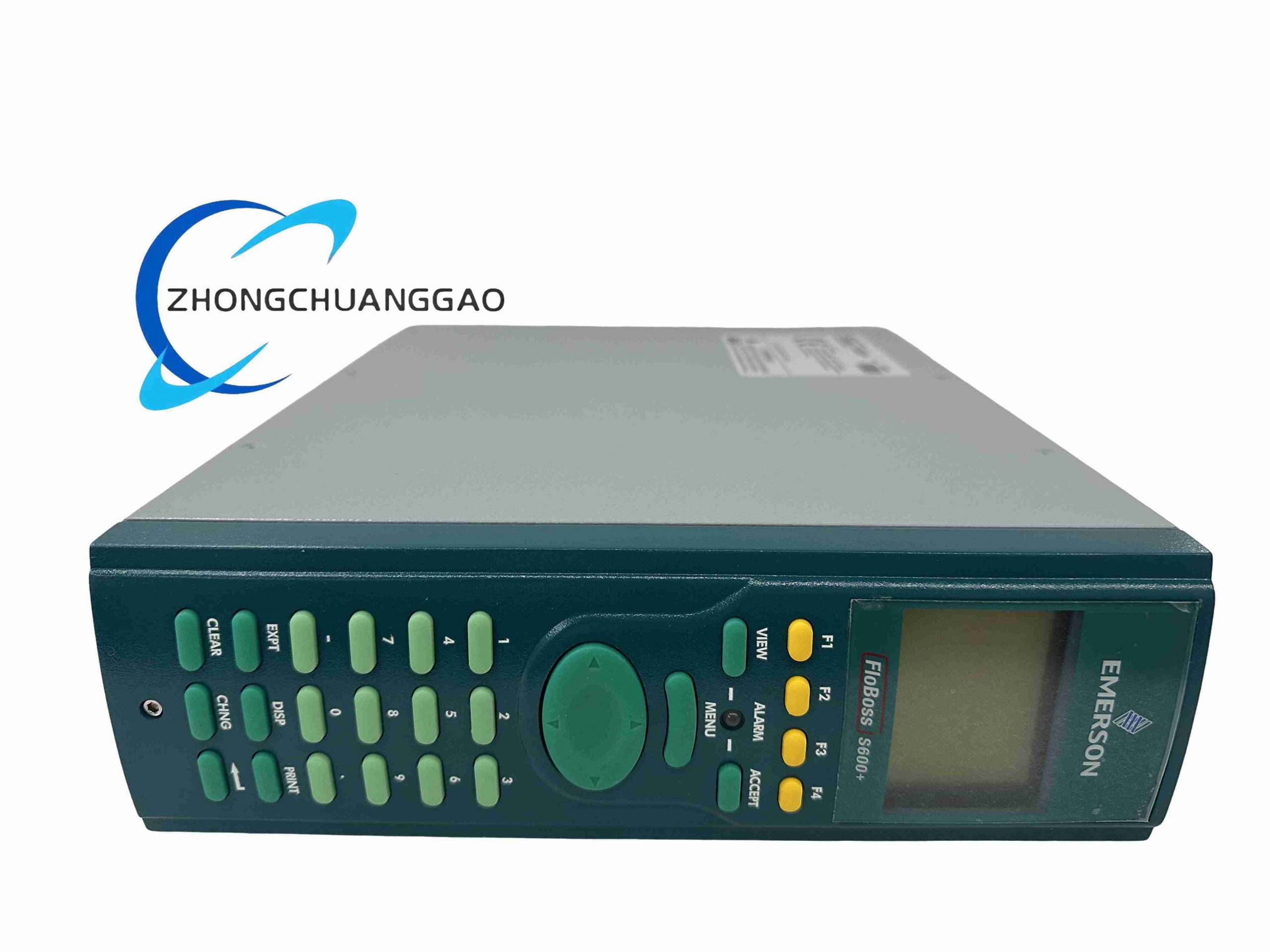

Emerson FloBoss S600+ - Image 1

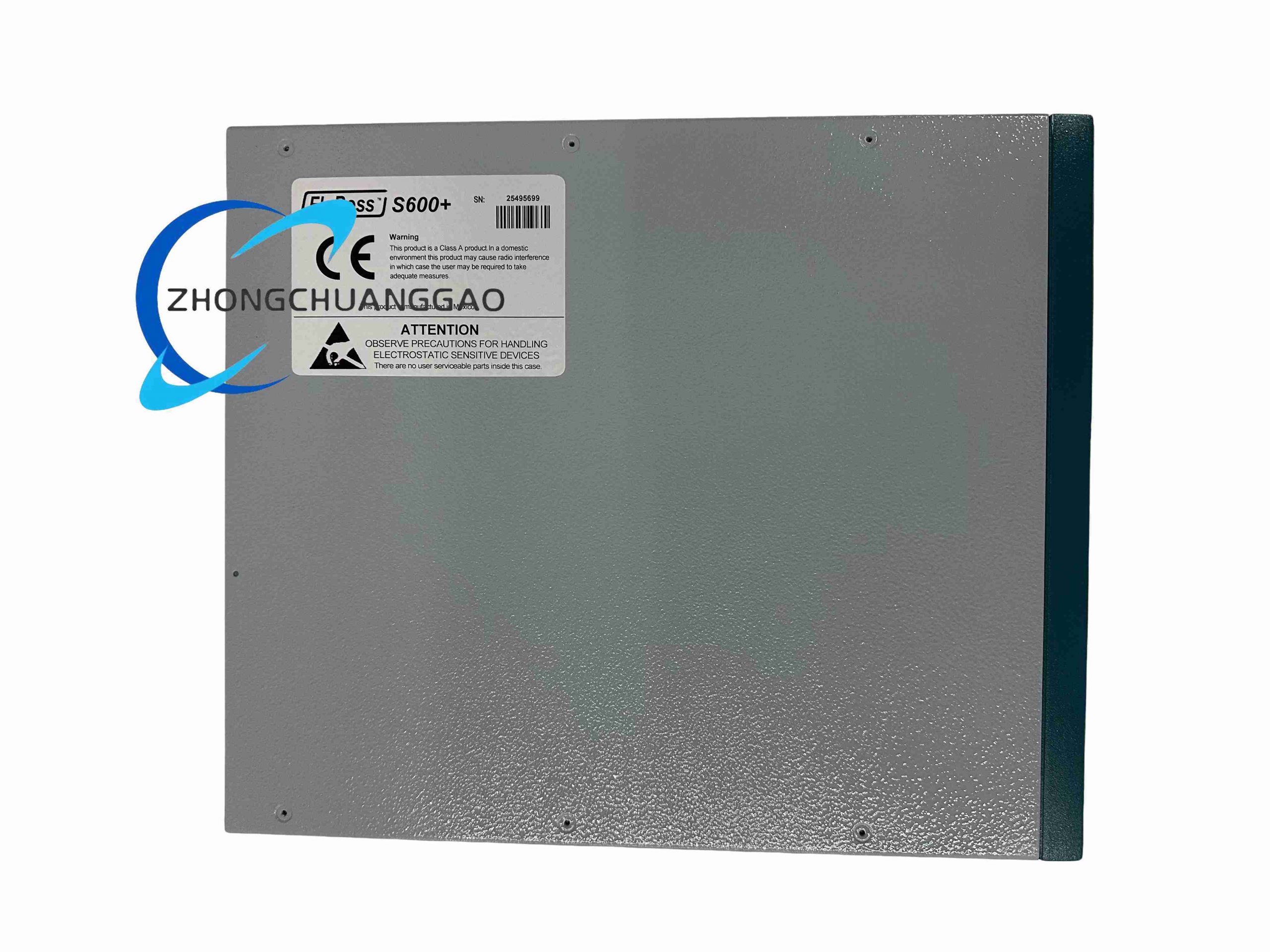

Emerson FloBoss S600+ - Image 2
Click to enlarge
Emerson FloBoss S600+
Emerson FloBoss S600+ - Image 2
Fuji Electric FMC-OASZ42
Fuji Electric FMC-OASZ42
Back to products
Honeywell FS-BLIND-COM
Honeywell FS-BLIND-COM

Emerson FloBoss S600+

  • Product Name:​ Emerson FloBoss™ S600+ Panel-Mount Multi-Stream Flow Computer for Gas & Liquid Fiscal Metering
  • Product Introduction:​ A high-performance, panel-mounted flow computer designed for custody transfer (fiscal) measurement of gas and liquid hydrocarbons. Supports multi-stream, multi-station configuration with simultaneous gas and liquid metering, AGA/API standards compliance, and extensive I/O/expansion options.
Category:
Description
  • Key Features:
    • Up to 10 measurement runs (single or dual pulse), 2 independent meter stations
    • 64-bit double-precision floating-point calculations for AGA 3/7/8/9/10(gas) and API 11.1/11.2/11.3, ASTM D1250, ISO 6976, GERG, GOST(liquid/gas)
    • Tri-register (Tri-reg) cumulative total storage for audit integrity
    • Local graphic LCD (128×64 px) with 29-key keypad; web server via Ethernet
    • Optional HART interface module (12 ch, up to 50 HART transmitters)
    • Expandable: up to 3 plug-in I/O modules (P144 I/O, P154 Prover, P188 HART)
  • Performance Parameters:
    • CPU: Freescale ColdFire MPC8313 @ 333 MHz w/ FPU
    • Memory: 256 MB Flash, 128 MB DRAM, 4 MB SRAM; 333-day history + 50k events/alarms
    • Analog Inputs: 12 ch, 24-bit Σ-Δ ADC, ±0.005 % FS accuracy @ 23 °C
    • Digital I/O: 16 DI / 12 DO standard; Pulse Inputs: 2 dual or 4 single; Pulse Outputs: 5
    • Communications: Dual 10/100Base-T Ethernet (Modbus TCP/DNP3/HTTP/FTP), 7×RS-485 + 2×RS-232, HART option
    • Power: 20–32 VDC (nominal 24 VDC), < 36 W typical
    • Operating Temp: -10 °C to +60 °C (panel version); storage -40 °C to +70 °C
    • Enclosure: Painted steel case, IP50 (body) / IP67 (front bezel); panel cutout ≈ 66 × 150 mm
    • Dimensions: 84.5(W) × 270(H) × 303.8(D) mm; weight ≈ 4.3 kg
  • Applications:​ Oil & gas fiscal custody transfer, batch loading/unloading, meter proving, pipeline SCADA nodes
  • Installation & Notes:
    • Requires proper grounding and shielded cable for analog/pulse inputs to maintain ±0.005 % accuracy
    • Configure measurement standards (AGA/API version) per local fiscal authority requirement
    • Use Conformal Coated boards option for high-humidity or corrosive environments
