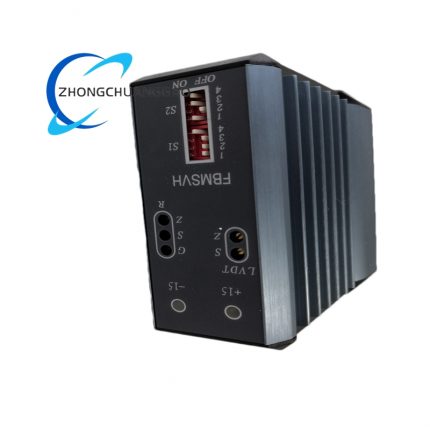

Foxboro FBMSVH
Foxboro FBMSVH

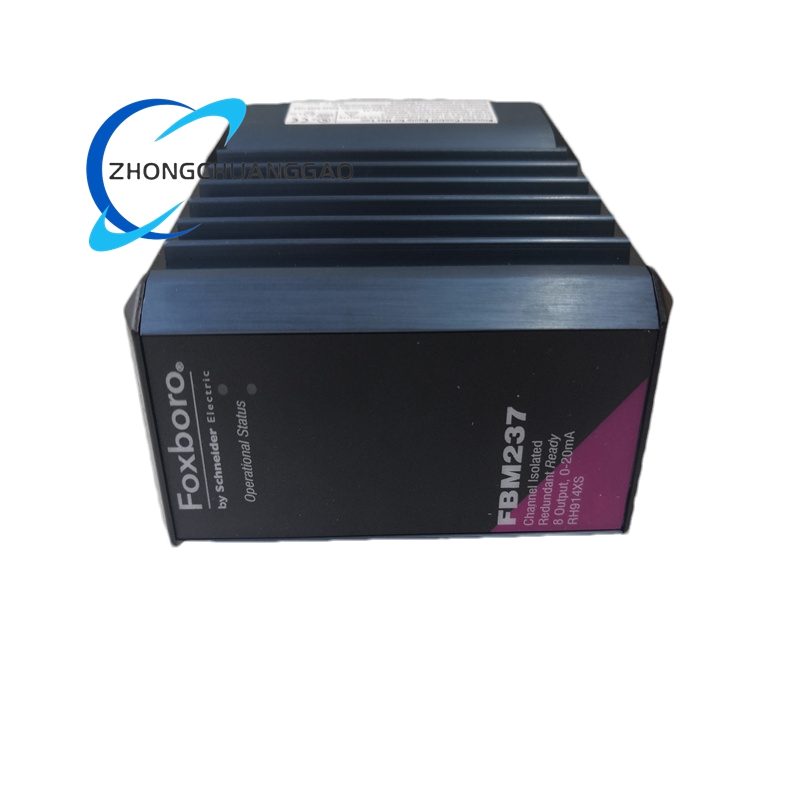

Foxboro FBM237

Technical Specifications
  • Output Channels: 8 channels
  • Output Signal Range: 0 – 20 mA
  • Operating Voltage: 12 VDC – 24 VDC
  • Current Capacity per Channel: 20 mA
  • Signal Processing Speed: 100 kHz
  • Communication Protocol: Supports Modbus RTU
  • Isolation: Channel – to – channel and channel – to – ground isolation
  • Operating Temperature Range: – 40°C to + 85°C
  • Enclosure Protection Level: IP65
  • Dimensions (W x H x D): 60 mm x 40 mm x 20 mm
  • Weight: Approximately 0.06 kg
Category:
Description
Functional Characteristics
  • Channel Isolation: Each of the 8 output channels is electrically isolated, preventing signal interference between channels and enhancing system reliability.
  • Redundancy Design: Supports redundant configuration, which can be used as a single module or in a redundant pair to improve system availability.
  • Modular Design: The modular construction allows for easy installation, replacement, and maintenance.
  • High – precision Output: Provides accurate 0 – 20 mA output signals, suitable for precise control of industrial processes.
Application Scenarios
  • Petrochemical Industry: Used for process control in oil refining and petrochemical production, such as controlling the opening and closing of valves to regulate the flow of materials.
  • Power Industry: Applied in power plants and substations for controlling parameters such as generator speed and voltage, and for the control of power distribution equipment.
  • Metallurgical Industry: Used in metal smelting and rolling processes to control process parameters such as temperature, pressure, and flow, ensuring product quality.
  • Pharmaceutical Industry: In pharmaceutical production, it is used to control the dosage and flow rate of raw materials, as well as the operation of equipment such as reactors and centrifuges.
  • Water Treatment Industry: Used to control the operation of water treatment equipment, such as regulating the opening degree of water inlet and outlet valves according to water quality and flow requirements.
