Telemecanique 9007CR61B2

2. Product Brief Introduction

3. Technical Specifications

• Rated AC Operational Voltage: Max 600VAC universal rated nominal voltage, graded branch ratings: 480VAC, 240VAC, 120VAC
• Rated DC Operational Voltage: Max 250VDC universal rated nominal voltage, graded branch rating:125VDC
• Full AC Contact Current Rating: 10A@600VAC; 1.5A@480VAC; 3A@240VAC; 6A@120VAC
• Full DC Contact Current Rating:1A@250VDC; 0.55A@125VDC; 0.11A@125VDC minimum load current
• Rotary Actuation Torque Threshold: Rated minimum trigger torque 0.45N·m (4 lbf·in) for mechanical head movement
• Total Rotary Travel Range: Fixed full travel angle 90° mechanical rotation of central rotary shaft
• Pretravel Angle: Fixed pre-trigger mechanical travel 10° before contact switching execution
• Differential Travel Angle: Fixed dead zone travel between reset and re-trigger 4°
• Ingress Protection Grade: IP67 per IEC60529 standard for dustproof and temporary immersion waterproofing
• NEMA Enclosure Compliance: NEMA1, NEMA2, NEMA4, NEMA6, NEMA6P, NEMA12, NEMA13, NEMA7, NEMA9 enclosure rating approval
• Hazardous Area Certification: Class I Division1 Groups B/C/D, Class II Division1 Groups E/F/G North American hazardous location certification
• Conduit Entry Standard: Single port 1/2″-14 NPT ANSI B1.20.1 standard threaded cable entry opening
• Applicable Wire Gauge Range: Internal screw terminals support AWG22 ~ AWG12 solid/stranded copper field wiring
• Overall Outer Dimension: Height 154.94mm × Width 69.09mm × Depth70.87mm; net single unit weight 0.9888kg
• Continuous Working Ambient Temperature: -29°C ~ +85°C (-20℉ ~ +185℉), sealed long-term storage temperature -40℃~+90℃
• Formal Industry Certifications: UL listed, CSA certified, CE compliant, complying with IEC60947-1, IEC60947-5-1, NEMA250 industry standard specification

4. Functional Features

1. Bidirectional CW/CCW lateral rotary trigger design supports single-side or dual-side mechanical component contact actuation with freely programmable effective trigger direction on installation site.
2. Integrated zinc alloy built-in spring return mechanism automatically resets rotary actuator head back to neutral home position once external mechanical triggering force withdraws, no auxiliary reset component required.
3. DPDT-DB double-break 2NO+2NC silver snap-action contact layout cuts both positive and negative circuit poles synchronously to eliminate residual arc and enhance circuit breaking safety coefficient.
4. Full metal die-cast enclosure with epoxy powder anti-corrosion coating blocks liquid splash, fine particulate dust and surface chemical corrosion in harsh workshop environment.
5. Viton fluorocarbon quad-ring shaft sealing structure installed between rotary head shaft and main housing to permanently prevent moisture, oil mist and dust infiltration into internal contact chamber.
6. Screw-clamp terminal structure eliminates loose wiring risk under long-term equipment vibration, compatible with all common AWG specification field control cables without extra terminal crimp accessory.
7. Unified NPT standard single conduit entry simplifies on-site cable conduit layout and explosion-proof wiring construction for hazardous location application.
8. Non-modular fixed-body construction improves whole-unit structural rigidity and anti-shock performance for heavy vibration mechanical equipment matching scenario.

5. Performance Parameters

• Full Unit Mechanical Service Lifespan: ≥10,000,000 no-load mechanical rotary switching cycles under rated ambient operating environment
• Full Unit Electrical Service Lifespan: ≥1,000,000 full-rated load contact switching cycles at 120VAC 6A rated working condition
• Contact Snap Action Switching Time: ≤12ms mechanical contact break/make completion time after reaching pretravel angle threshold
• Repeat Position Precision: Switch trigger repeat error ≤±0.3° mechanical rotary angle across full service lifespan
• Enclosure Dielectric Withstand Voltage: 2000VAC/60s isolation between internal live contact assembly and outer metal housing without insulation breakdown
• Internal Spring Fatigue Resistance: Spring return mechanism maintains rated reset torque specification after 5 million consecutive full-stroke cycles without torque attenuation
• Temperature Drift Coefficient of Trigger Torque: ≤8ppm/℃ rated torque variation within full -29℃~+85℃ working temperature range

6. Material Composition

1. Main Switch Enclosure Housing: High-density die-cast aluminum alloy base material with outer epoxy powder anti-rust coating treatment, UL94-HB flame retardant grade shell body.

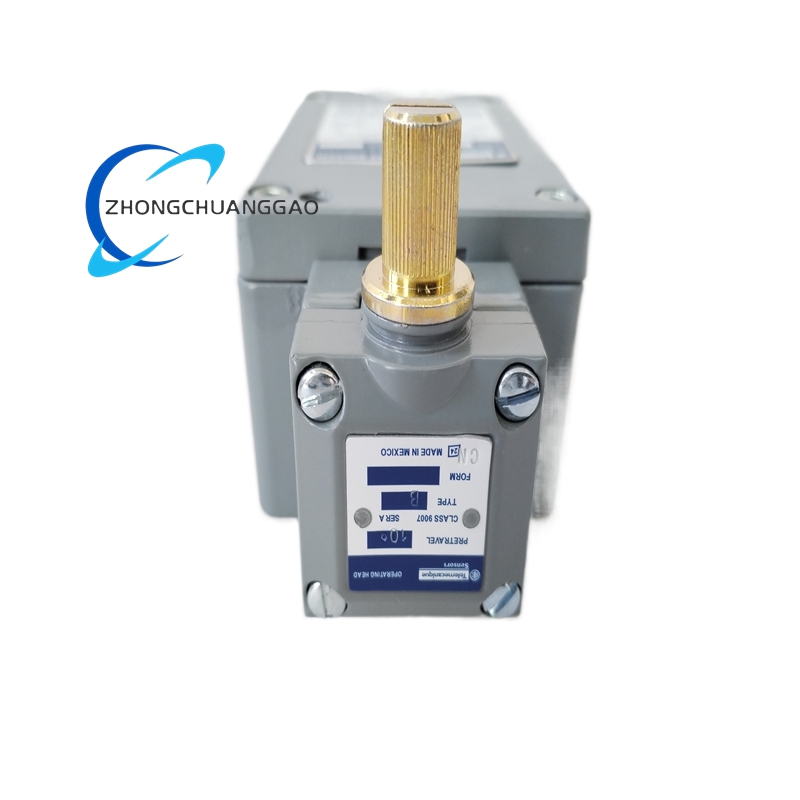

2. Top Rotary Actuator Head: Zinc alloy precision die-cast forming with surface passivation anti-oxidation processing.
3. Internal Return Spring Component: High-carbon manganese spring steel with vacuum temper heat treatment for stable elastic reset performance.
4. Electrical Switching Contacts: High-purity silver alloy composite contact sheet with anti-wear plating layer to resist electric arc ablation during frequent switching.
5. Internal Terminal Base Insulator: Glass fiber reinforced PA66 flame retardant engineering plastic insulation framework.
6. Terminal Fastening Hardware: Nickel-plated solid brass screw and conductive terminal inserts to avoid oxidation and terminal loosening under temperature fluctuation.
7. Shaft Sealing Gasket: Viton fluorocarbon rubber quad-ring sealing component with oil-resistant, high-low temperature resistant property.
8. Internal Fixed Position Parts: Cold-rolled steel stamping bracket with zinc anti-corrosion plating for internal contact assembly fixed installation.

7. Structural Characteristics

1. Split three-section integral structure consisting of top rotary actuator head, middle main internal contact chamber and bottom wiring terminal cavity, sealed by stainless steel fixing bolts around enclosure perimeter.
2. Internal space physical partition design separates mechanical rotary driving chamber and electrical contact wiring chamber via isolated plastic baffle to block metal debris falling into live contact region during long-term operation.
3. Top rotary shaft adopts oversized diameter structural design to reduce shaft bending damage probability under eccentric lateral mechanical impact force from field equipment.
4. Single bottom-side centered 1/2″ NPT threaded conduit opening with integrated internal anti-pullout cable limiting rib structure for field cable fixed restraint.
5. Four symmetrical fixed mounting through-holes prefabricated on enclosure side walls for body-mounted bolt fastening installation without auxiliary mounting bracket accessory.

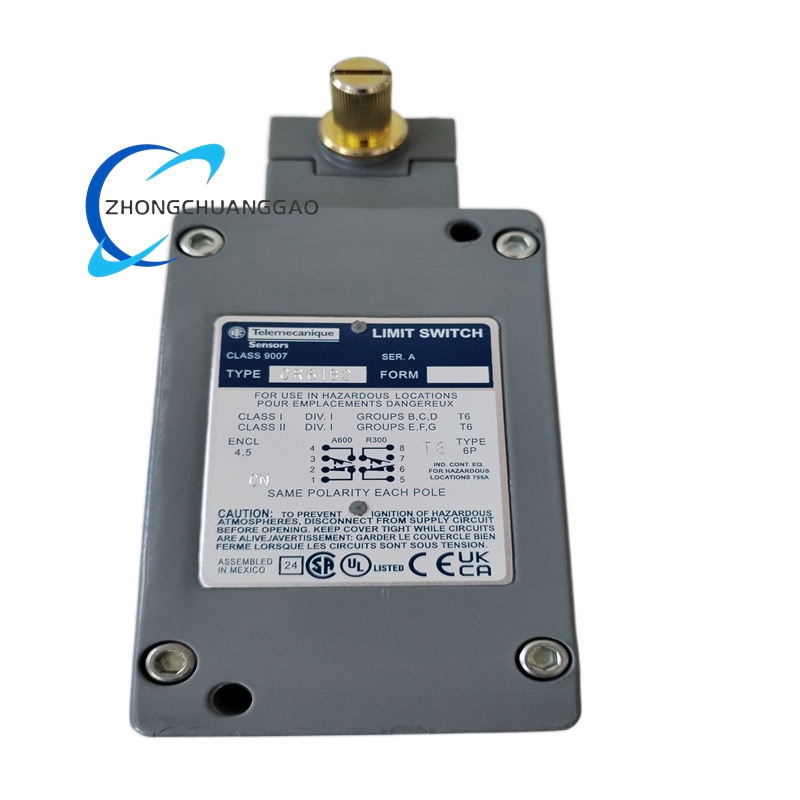

6. Outer casing permanent solvent-resistant high-temperature silkscreen marking including part number 9007CR61B2, wiring schematic, certification logos and NEMA/IP rating specification information.

8. Working Principle

Step1: External Mechanical Force Input

Step2: Pretravel Mechanical Transmission

Step3: Snap-Action Contact Switch Execution

Step4: Electrical Signal Output Change

Step5: Automatic Spring Reset

Step6: Seal Protection Execution

9. Advantage Highlights

1. Multi-standard NEMA+IP67 dual enclosure certification enables unified model to be deployed across ordinary workshop and North American classified hazardous explosive working site without separate model replacement.
2. Built-in spring return bidirectional rotary design omits separate lever accessory procurement cost and reduces spare part inventory expense for system integrator and end user.
3. Double-break DPDT contact construction simultaneously disconnects two polarities of control circuit to eliminate dangerous floating residual voltage for safety-critical machine limit control loop.
4. Full metal die-cast housing and fluorocarbon shaft sealing realize excellent anti-vibration, splash-proof and oil-proof performance adapting to foundry, steel and heavy machinery severe production environment.
5. Wide -29℃~+85℃ full working temperature range fits outdoor open-air mechanical equipment and high-temperature baking workshop installation without auxiliary temperature isolation treatment.
6. Standard NPT 1/2 inch conduit port directly matches North American standard explosion-proof conduit specification for quick hazardous location wiring construction.
7. Ultra-long mechanical and electrical switching service lifespan drastically cuts field equipment regular maintenance frequency and limit switch replacement downtime cost.

10. Applicable Industries

• Heavy Machinery Manufacturing Industry: CNC machine tool travel limit, stamping press stroke positioning, hydraulic machinery cylinder end position interlock control
• Material Handling & Logistics Industry: Automated conveyor belt terminal position stop, stacker crane stroke limit, warehouse lifting equipment safety cutoff control
• Petrochemical Industry: Refinery and chemical plant Class I Division1 hazardous area pipeline valve mechanical position feedback and equipment interlock protection
• Automotive Assembly Industry: Automobile production line fixture positioning detection, automated robotic arm travel limit switch control
• Metallurgical & Foundry Industry: Hot rolling mill equipment stroke limit, casting production line high-temperature equipment position signal conversion
• Mining Equipment Industry: Underground coal mine conveyor safety cutoff, mine hoist terminal overtravel protection control
• Packaging & Textile Industry: High-speed packaging machine mechanical limit, textile spinning equipment spindle over-position protection
• Water Treatment Industry: Large water pump gate valve opening/closing position feedback and stroke limit control

11. Model Series Affiliation

• Parent Core Product Series: Telemecanique 9007 Heavy-Duty Industrial Limit Switch Full Product Family
• Same Series Sibling Standard Models:
  1. 9007CR51B2: Single-direction rotary spring return limit switch without dual CW/CCW trigger function
  2. 9007CR62B2: Identical rotary head structure with externally attachable adjustable operating lever accessory
• Compatible Matching Peripheral Equipment: Industrial control PLC, AC/DC contactor, intermediate control relay, 1/2 inch NPT explosion-proof conduit, AWG22~AWG12 control cable

12. Installation Requirements

1. Mounting Environment Specification: Install main unit body on rigid fixed metal equipment frame; direct installation in strong corrosive acid/alkali gas enclosed chamber is prohibited without additional anti-corrosion outer protective housing.
2. Body Mounting Standard: Secure switch enclosure via four prefabricated side mounting holes using grade5 stainless steel bolt fasteners with recommended tightening torque 2.2~2.5N·m to avoid shell deformation from over-tightening.
3. Conduit Wiring Specification: Connect certified NPT standard explosion-proof conduit into bottom 1/2″ NPT threaded entry port; apply thread sealant on conduit joint for full liquid and dust sealing compliance.
4. Internal Terminal Wiring Rule: Strip 6~8mm insulation layer off control cable core, insert into screw-clamp terminal, fasten terminal screw with 0.8~1.0N·m rated torque per wiring terminal; avoid over-tightening screw crushing copper conductor core.
5. Mechanical Trigger Clearance Requirement: Reserve minimum 2mm safety gap between equipment moving contact component and switch rotary head under neutral home position to prevent continuous preload on internal return spring.
6. Hazardous Location Installation Standard: Strictly follow NEC North American explosion-proof wiring specification for all field wiring when deploying within Class I/II Division1 classified hazardous working area.

13. Use & Maintenance Precautions

1. Strictly forbid live disassembly of terminal cover or enclosure fixing bolts when control circuit is energized; live opening exposes internal live silver contact group leading to accidental short-circuit and electric shock hazard.
2. Never apply lateral triggering torque exceeding 1.2N·m onto rotary actuator head; over-torque directly fractures internal transmission shaft and permanently invalidates switch core mechanical structure.
3. All field wiring modification work must be completed after cutting off full upstream control power supply to avoid accidental contact short-circuit triggering unplanned equipment emergency shutdown.
4. Quarterly routine maintenance only uses dry lint-free cotton cloth to wipe outer housing dust and rotary head surface oil contamination; alcohol, acetone and corrosive organic solvent direct contact with shell and shaft seal is forbidden to prevent Viton gasket aging deterioration.
5. Spare unused switches must be sealed inside original anti-static moisture-proof packing bag and stored under 10℃~35℃ constant dry ambient condition; damp open-air long-term storage is prohibited to avoid internal spring rust failure.
6. Fault replacement on critical safety interlock loop only permits original factory genuine Telemecanique 9007CR61B2 unit; third-party refurbished or imitation substitute products cannot be installed on safety-related equipment control circuit.
7. Avoid high-frequency inverter and arc welding equipment installed within 50cm distance of mounted switch; strong electromagnetic radiation induces unexpected contact bounce and false equipment shutdown action.
