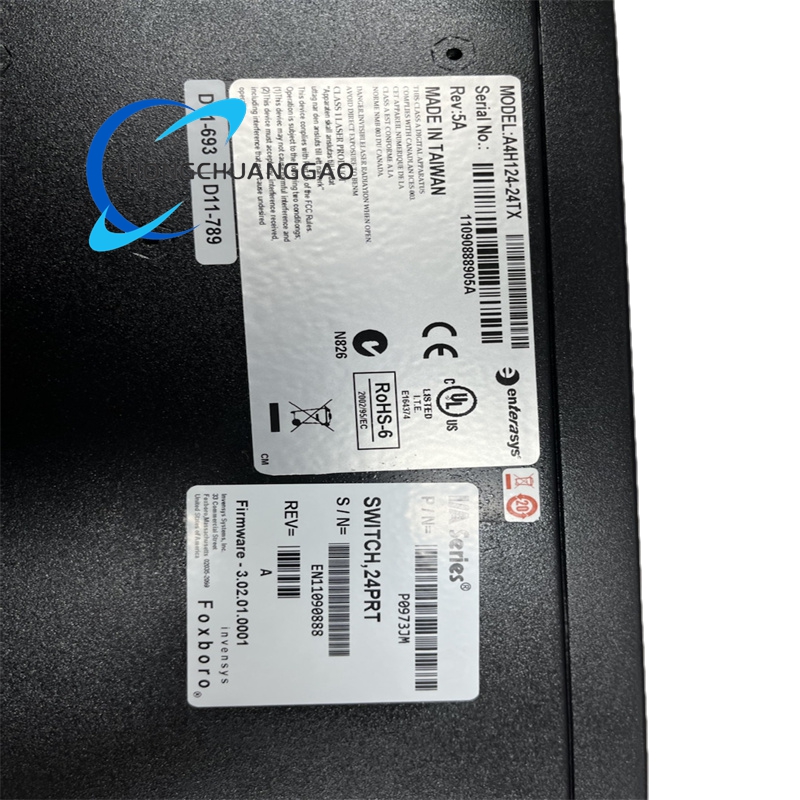

Foxboro A4H124-24TX Ethernet Switch - Image 1

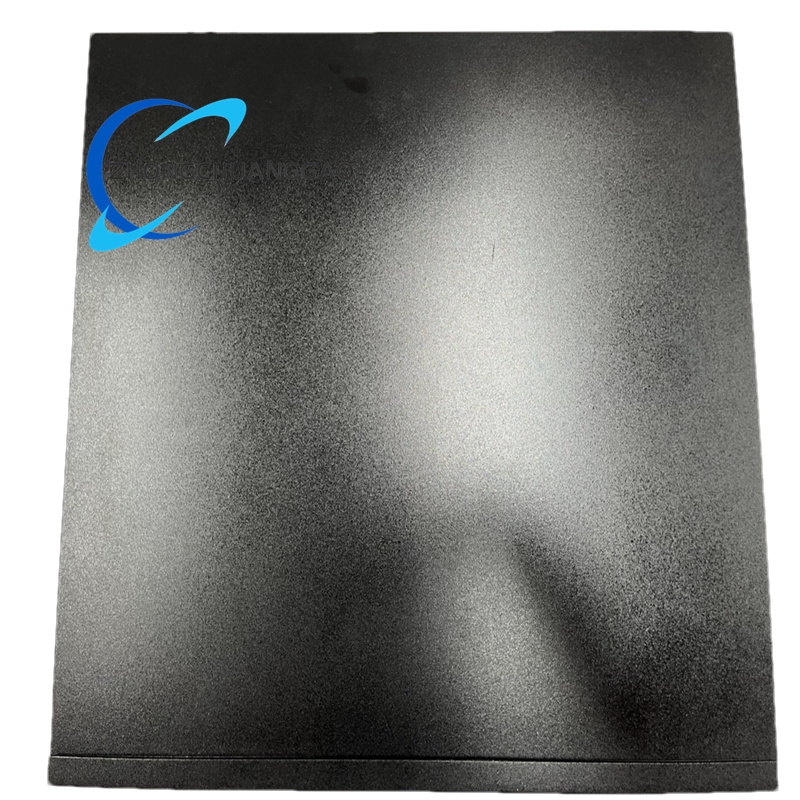

Foxboro A4H124-24TX Ethernet Switch - Image 2
Click to enlarge
Foxboro A4H124-24TX Ethernet Switch
Foxboro A4H124-24TX Ethernet Switch - Image 2
Foxboro A2H124-24FX Ethernet Switch
Foxboro A2H124-24FX Ethernet Switch
Back to products
Foxboro C2RPS-PSM Redundant Power Supply Module
Foxboro C2RPS-PSM Redundant Power Supply Module

Foxboro A4H124-24TX Ethernet Switch

Technical Specifications
  • Port Quantity: 24
  • Transmission Rate: 10/100/1000Mbps adaptive
  • Switching Capacity: 48Gbps
  • MAC Table Capacity: 8K
  • Power Supply: AC 100 – 240V
  • Shell Material: Metal
  • Size: 440mm x 44mm x 210mm
  • Weight: 2.5kg
Category:
Description
Functional Characteristics
  • High – speed Transmission: Supports 10/100/1000Mbps adaptive transmission rate to meet the needs of high – speed networks.
  • Strong Stability: Adopts high – quality hardware and advanced switching technology to ensure stable network operation.
  • Easy Installation and Use: Provides simple installation steps and a user – friendly interface, facilitating users to quickly deploy and manage.
  • Multiple Security Functions: Supports port security, MAC address binding, 802.1x authentication, etc., to ensure network security.
  • VLAN Function: Supports the IEEE 802.1Q VLAN standard to achieve effective isolation and management of the network.
Application Scenarios
  • Enterprise Local Area Networks: Provides stable and efficient network connections for enterprises, supporting various office and business applications.
  • Data Centers: As the core switching equipment in data centers, it undertakes the transmission and processing tasks of a large amount of data.
  • Cloud Computing: In the cloud computing environment, it provides high – speed and reliable network connections for virtual machines, containers, etc.
  • Industrial Automation: In industrial automation systems, it realizes data exchange and communication between devices, improving production efficiency and safety.
