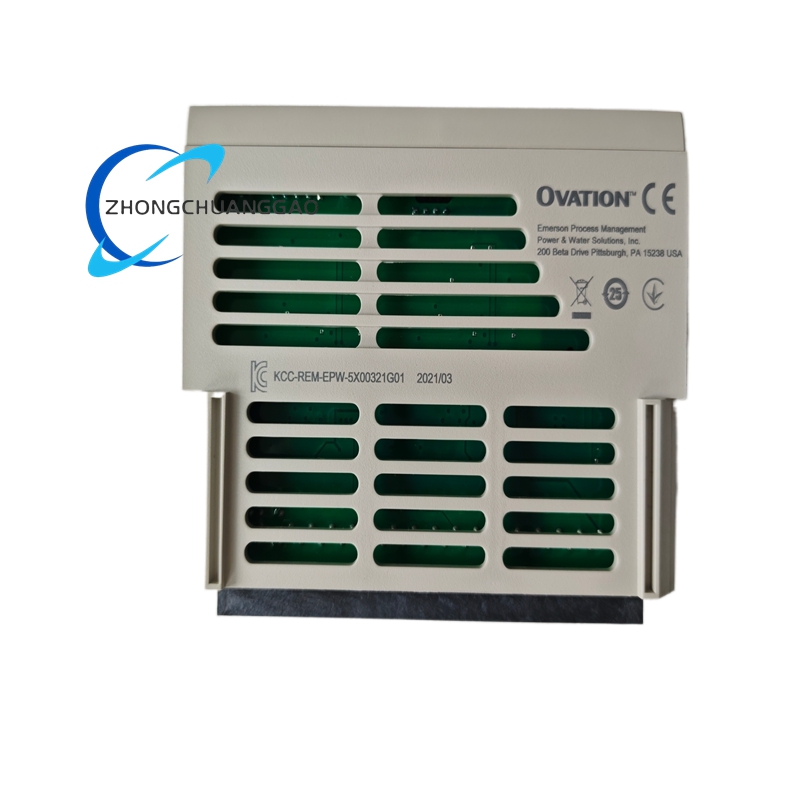

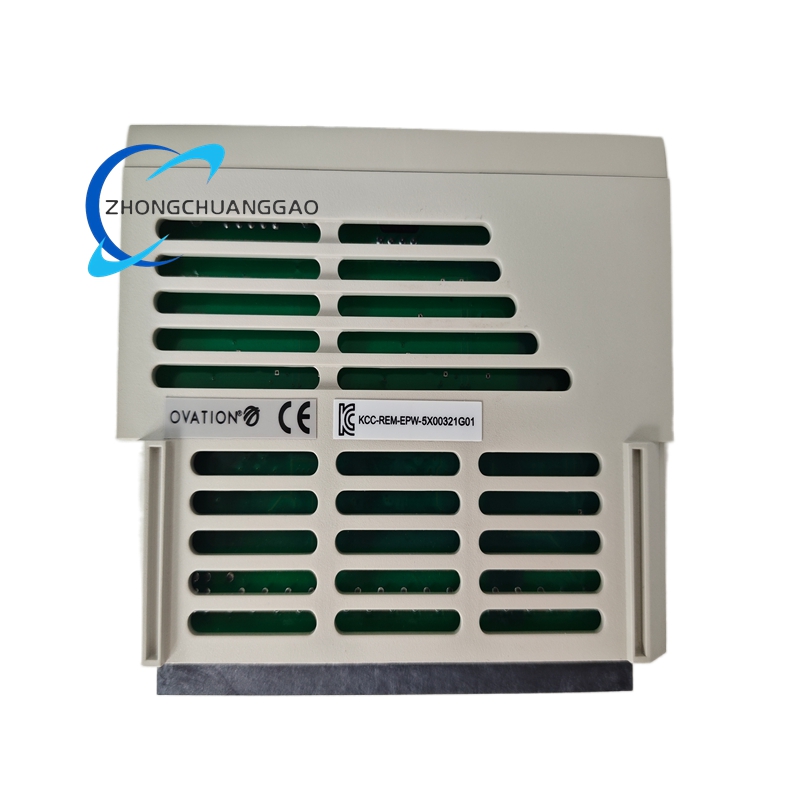

Emerson 5X00321G01

Technical Specifications:

• Channels: 4 high-speed counter inputs (redundant, A/B bus)
• Input Type: 24 V DC pulse (NPN, sinking) or dry contact (configurable per channel)
• Input Voltage: 12–30 V DC (pulse), dry contact (voltage-free)
• Maximum Frequency: 100 kHz per channel
• Counter Resolution: 32-bit (4,294,967,296 counts)
• Counting Modes: Up, Down, Up/Down, Quadrature (A/B)
• Filter Time: 10 µs to 10 ms (software configurable)
• Isolation: 500 V DC (channel-to-channel, channel-to-bus)
• Diagnostics: Signal loss detection, pulse width error detection
• Communication: Ovation backbone bus (redundant A/B)
• Power Supply: 5 V DC (from Ovation backplane)
• Power Consumption: 2.0 W (typical)
• Protection Class: IP20 (chassis-mounted)
• Certifications: CE, FCC, ATEX Zone 2 (optional), IEC 61508 SIL 2

Functional Features:

• Per-Channel Configuration: Counting mode, filter, preset value, alarm setpoints
• Quadrature Decoding: 4x resolution (A/B phase) for encoder inputs
• Totalizer: 32-bit accumulating totalizer with battery-backed retention (optional)
• Pulse Output: Configurable pulse output for batch totalization
• Fail-Safe Mode: Holds last count value on communication loss

Performance Parameters:

• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Resistance: 1 g (10–500 Hz)
• Shock Resistance: 15 g (11 ms half-sine)
• MTBF: >200,000 hours (at 40°C)

Material Composition:

• Housing: Zinc die-cast alloy, black epoxy coating
• PCB: FR-4, 4-layer, conformal coated (UL94 V-0)
• Terminals: Pluggable screw terminals, tin-plated, 1.5 mm² max
• Connectors: Ovation backplane connector, 96-pin DIN 41612

Structural Features:

• Dimensions: 220 x 125 x 25 mm (W x H x D)
• Mounting: DIN rail (35 mm) or chassis slot (Ovation rack)
• Weight: approximately 0.42 kg
• LEDs: 4 channel status LEDs + 2 bus status LEDs (A/B)

Applicable Industries:
Oil & gas (custody transfer), power generation (turbine speed), water/wastewater (flow metering), mining, pulp & paper

Installation Requirements:

• Install in Ovation I/O rack (chassis slot or DIN rail)
• Use shielded twisted pair for pulse inputs, max 100 m cable length at 100 kHz
• For dry contact inputs: debounce time must be set ≥1 ms
• Ground shield at controller end only
• Do not apply voltage exceeding 30 V DC to any input

Usage Notes:

• Maximum input frequency: 100 kHz (do not exceed)
• For quadrature encoding, use shielded twisted pair with A/B phase wires twisted together
• Configuration via Emerson DeltaV / Ovation Workstation software
• Replace only with Emerson 5X00321G01 or approved equivalent
• Calibration per IEC 61508 schedule (typically every 24 months)
