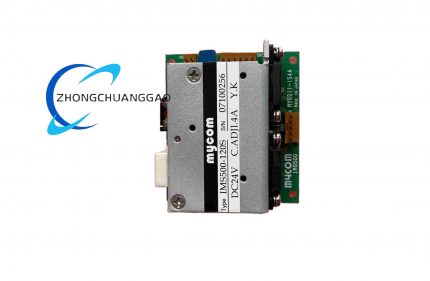

MYCOM IMS500-120S
MYCOM IMS500-120S
Back to products
METSO IOP302
METSO IOP302

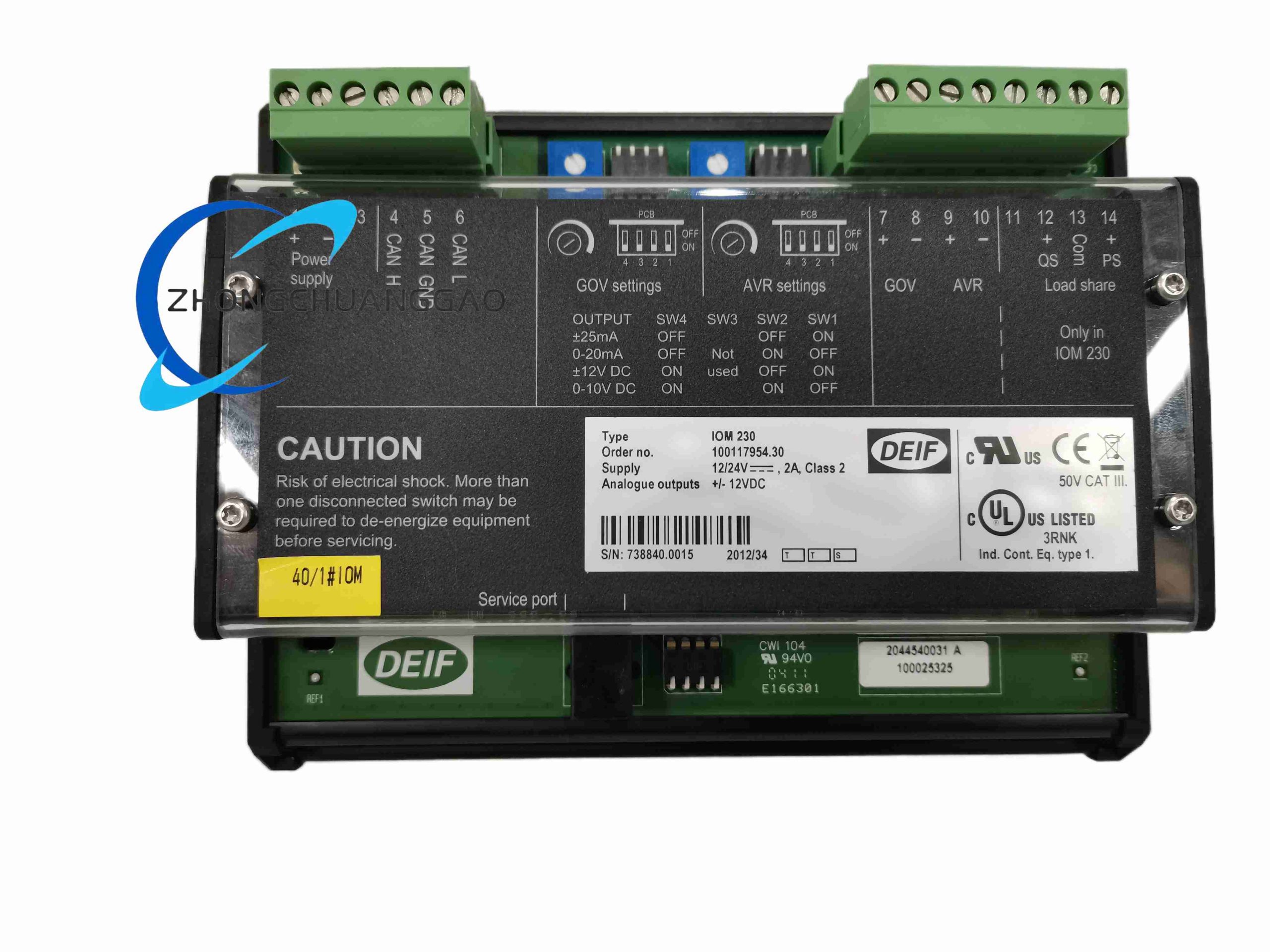

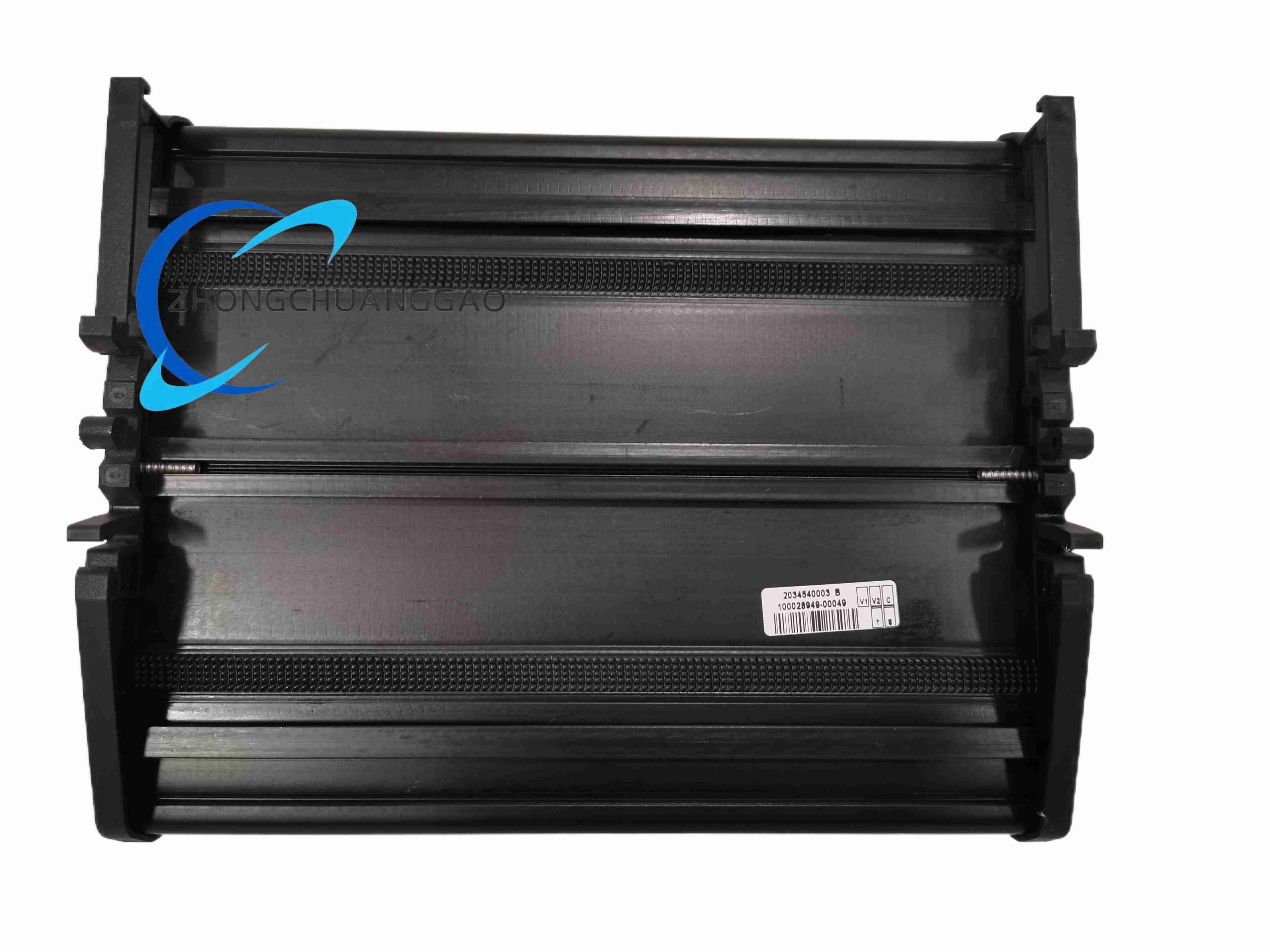

DEIF IOM230

Product Name: Input / Output Module

Product Description: DEIF IOM230 is an expansion I/O module for DEIF multi-line generator control systems. It provides additional digital and analogue input and output channels to expand monitoring and control capacity for genset controllers.

Category:
Description

Technical Specifications:

  • Digital Inputs: Configurable binary inputs
  • Digital Outputs: Relay outputs
  • Analogue Inputs: 0/4-20 mA analogue inputs
  • Communication: CAN bus interface to connect with main controller
  • Power Supply: 24 VDC nominal
  • Operating Temperature: -25 °C to +70 °C
  • Protection Class: IP20 for indoor cabinet installation

Functional Features:

  • Extend signal acquisition capacity of genset control units
  • Relay outputs for alarm, actuator and status signalling
  • Analogue input for pressure, temperature and transmitter signals
  • CAN bus communication for real-time data exchange
  • Galvanic isolation between field signals and internal electronics
  • Fault detection for wire break on analogue input loops

Application Scenarios:

  • Diesel generator set control systems
  • Combined heat and power plants
  • Marine power generation systems
  • Backup power station monitoring
  • Power plant auxiliary control cabinets

Performance Parameters:

  • Analogue input resolution: 12 bit
  • Relay output rated load: 250 VAC / 30 VDC
  • CAN bus communication baud rate auto-adaptation

Structure Characteristics:

  • DIN rail mount plastic housing
  • Screw terminal blocks for field wiring
  • LED status indicators for channel and module status

Installation Requirements:

  • Mount on standard DIN rail inside control cabinet
  • 24 VDC power supply with proper fuse protection
  • CAN bus cable termination resistor installed at bus endpoints
  • Separate low signal wiring from high power cables

Notes:

  • Module must be configured via DEIF controller software
  • Verify galvanic isolation requirements when connecting field sensors
  • Do not exceed rated voltage and current on relay outputs
