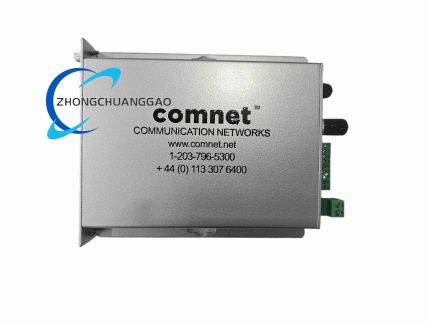

ComNet FVR110M
ComNet FVR110M
Back to products
Yokogawa FX112-4-2
Yokogawa FX112-4-2

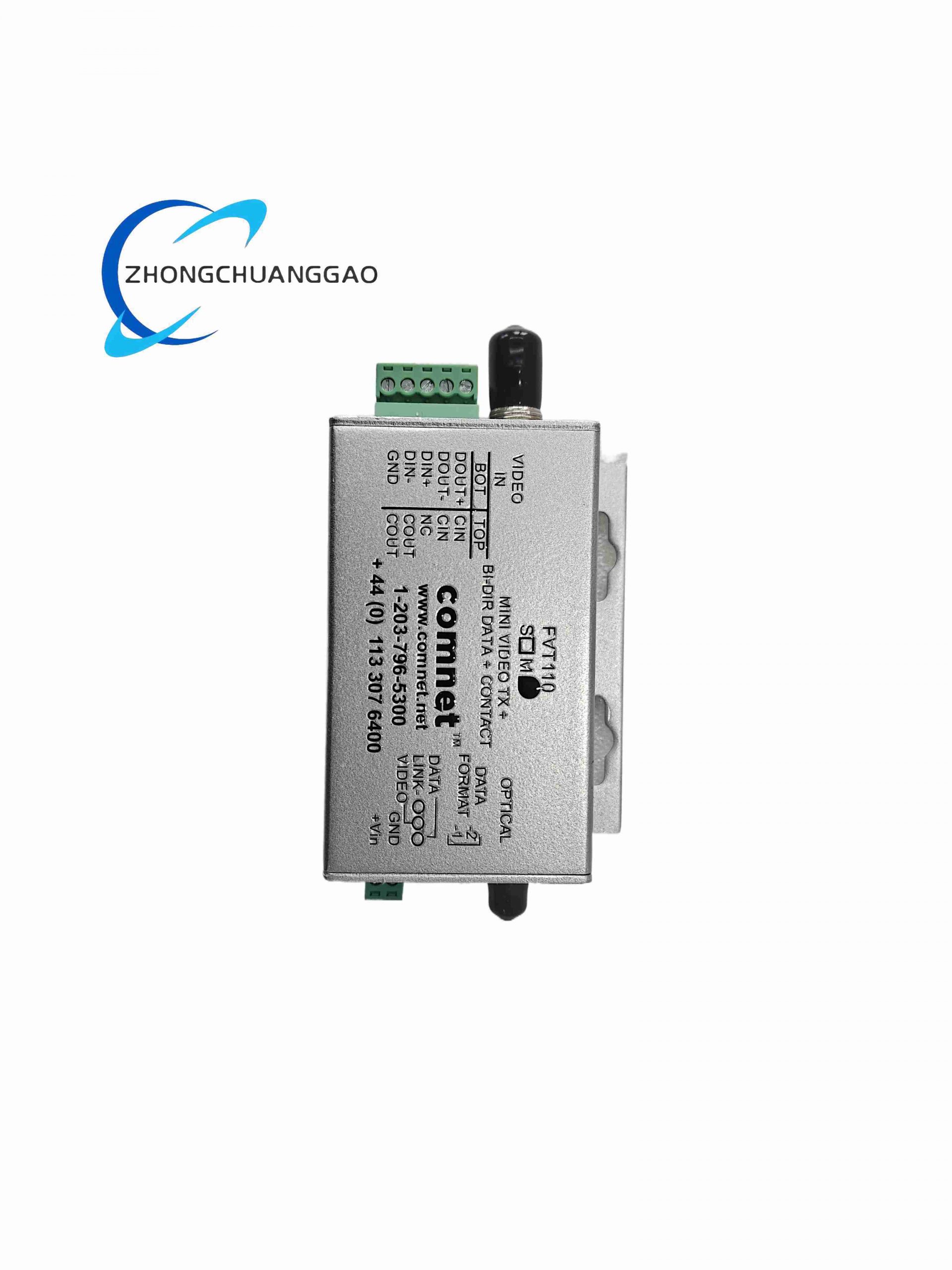

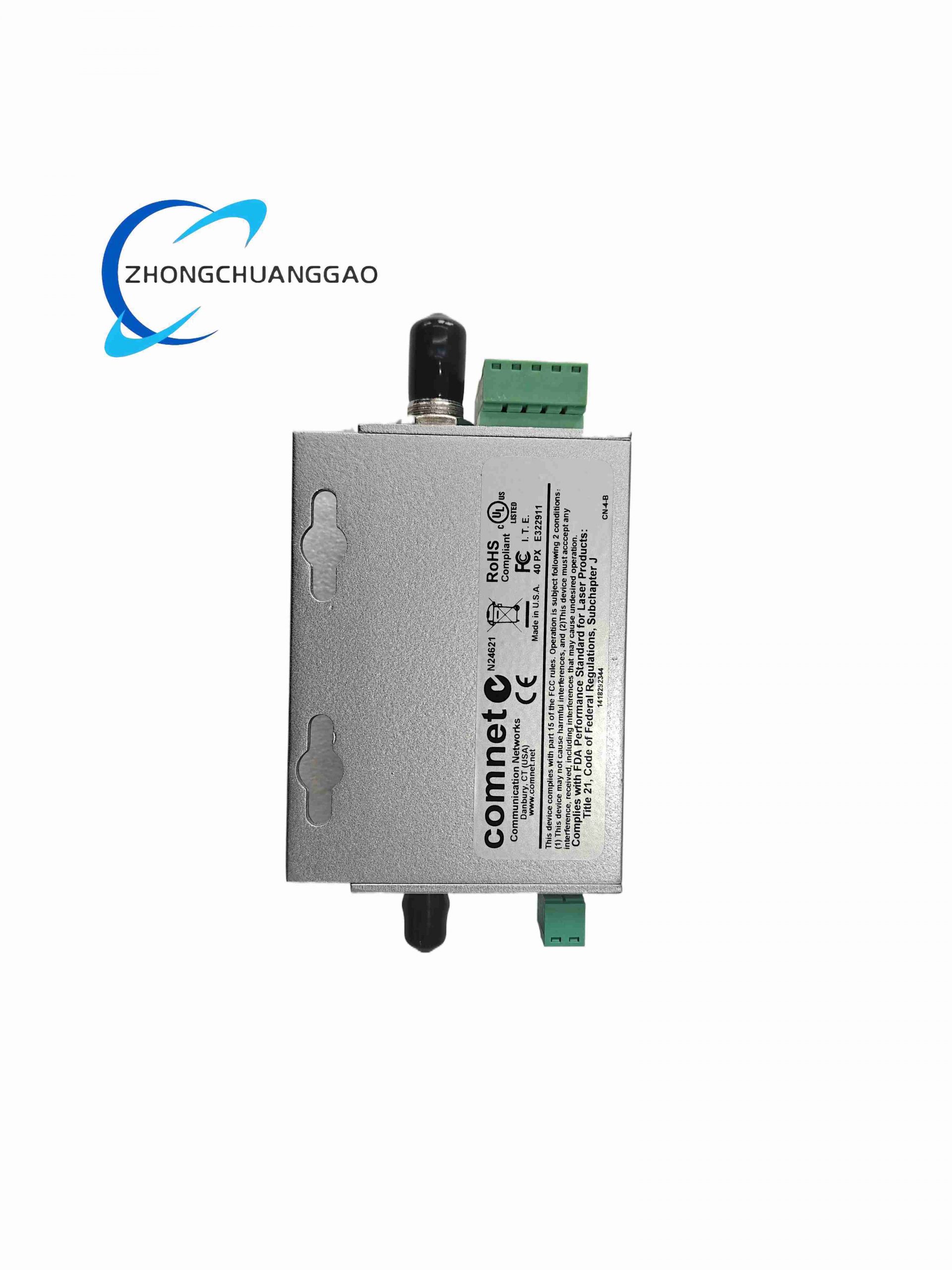

ComNet FVT110M

  • Product Name:​ ComNet FVT110M — 10-bit Digitally Encoded Video Transmitter & Bi-directional Data Transceiver over One Multimode Optical Fiber
  • Product Introduction:​ Companion unit to the FVR110M. Accepts baseband composite video (from CCTV camera or DVR) and serial data, digitizes video to 10-bit depth, and transmits over one 62.5/125 µm multimode fiber together with bidirectional data for PTZ control.
Category:
Description
  • Key Features:
    • Same encoding and data features as FVR110M — 10-bit digital, Up-the-Coax support
    • Contact closure transmit option on some variants
    • LED indicators for Power, Video Present, Data TX/RX
    • ComFit™ housing; wall / rack / DIN-rail mountable
  • Performance Parameters:
    • Optical: 1310 nm LED / Laser (MM), 16 dB budget, 3 km (MM) / 48 km (SM version FVT110S)
    • Video: 1 V p-p (75 Ω) BNC input; Bandwidth 5 Hz – 10 MHz
    • Data: RS-232 / RS-422 / RS-485 (2W/4W) support
    • Power: 9–36 VDC (12 VDC adapter typical), < 4 W
    • Operating Temp: -40 °C to +75 °C; NEMA TS-1/TS-2 compliant
  • Installation & Notes:
    • Always install as a matched pair (FVT110M ↔ FVR110M) on same fiber type (MM or SM)
    • For in-dome versions (FVT110M1/BO) plug directly into Bosch dome connector
    • Use proper 62.5/125 µm (or 50/125 µm with adjusted loss budget) multimode patch cords
