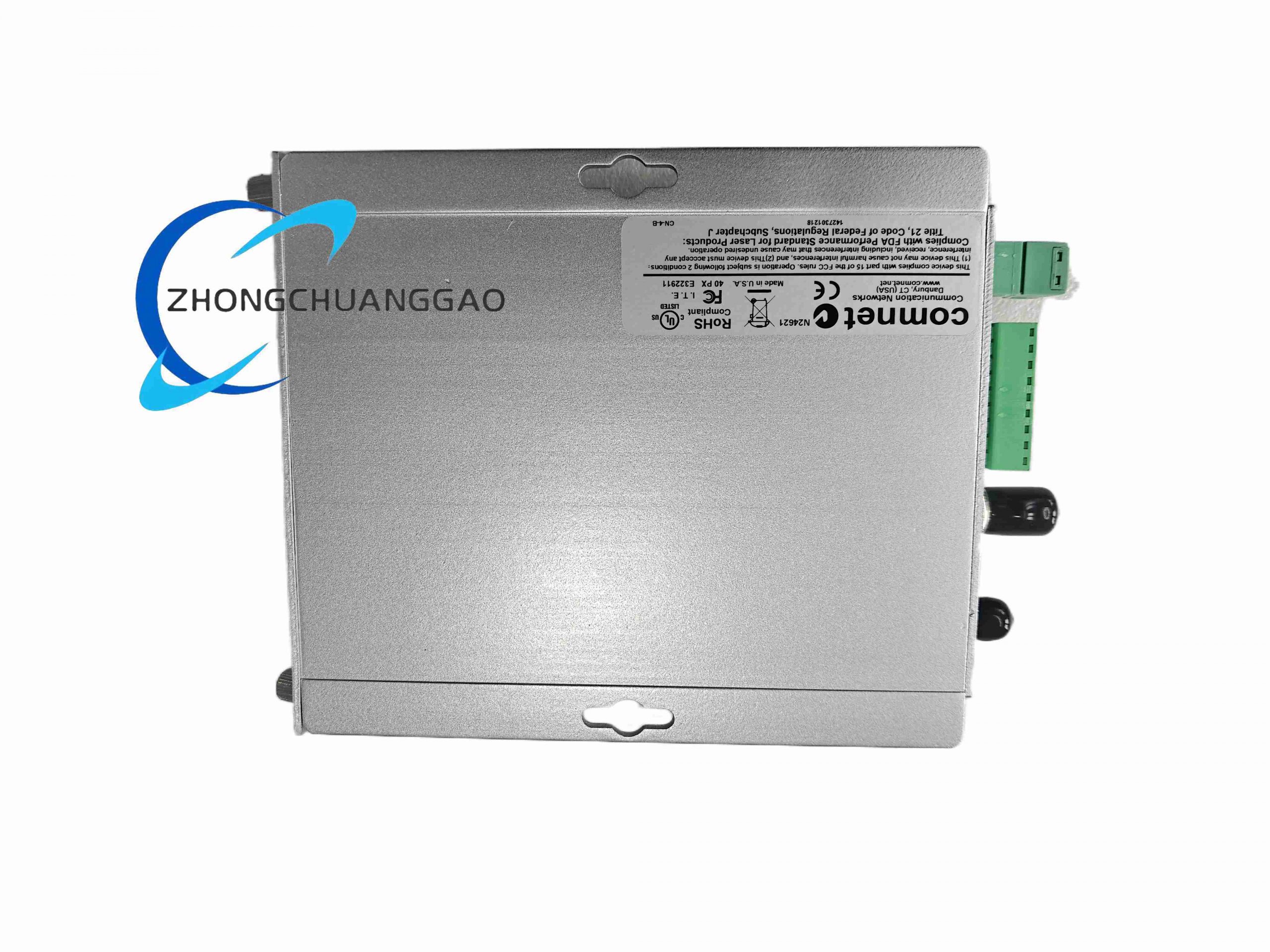

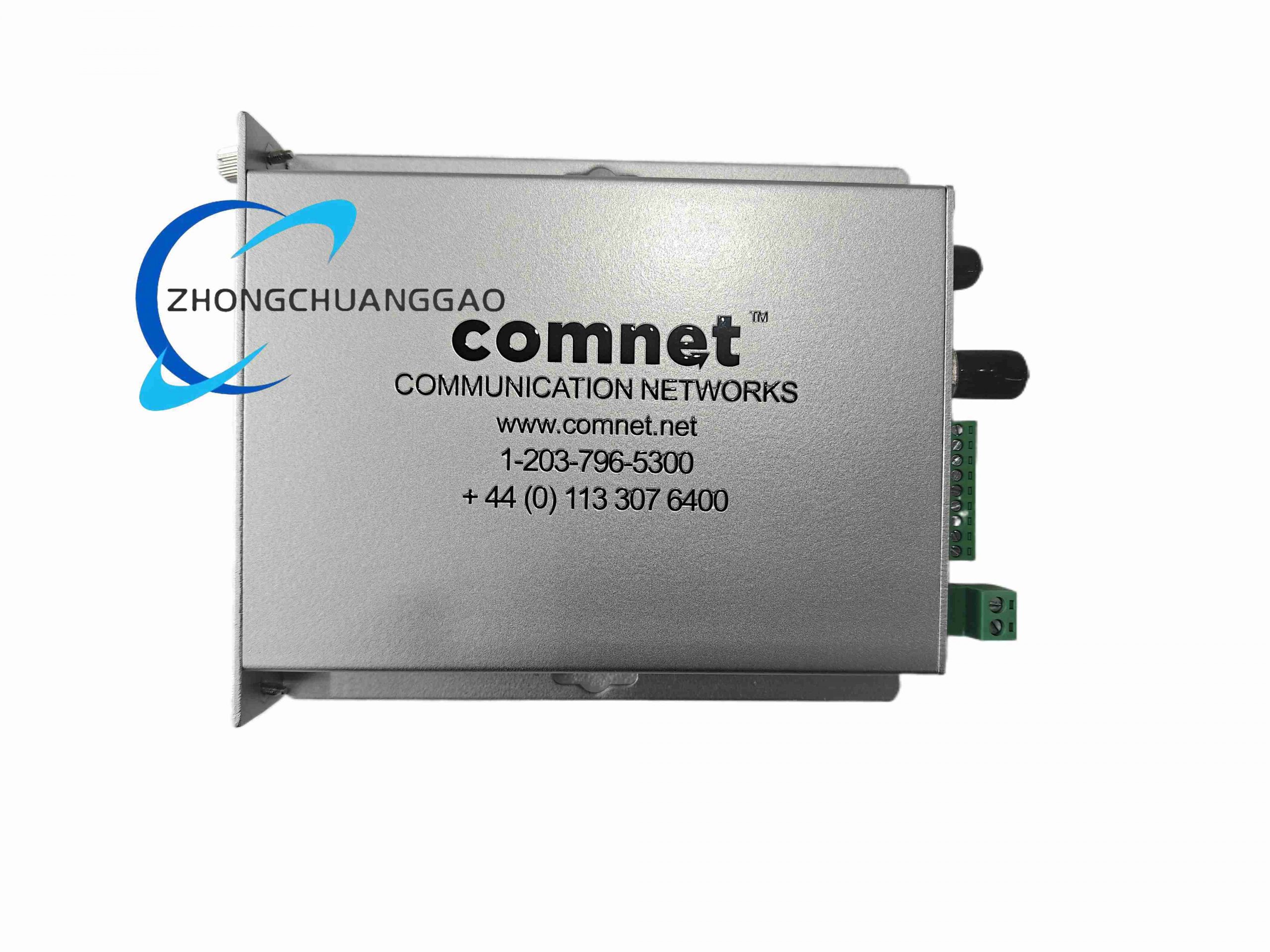

ComNet FVR110M

  • Product Name:​ ComNet FVR110M — 10-bit Digitally Encoded Video Receiver & Bi-directional Data Transceiver over One Multimode Optical Fiber
  • Product Introduction:​ Part of the ComNet FVT/FVR110 series, the FVR110M receives 10-bit digitally encoded NTSC/PAL composite video and bidirectional RS-232/422/485 data transmitted by a companion FVT110M transmitter over one 62.5/125 µm multimode fiber. Used in CCTV and security surveillance links.
Category:
Description
  • Key Features:
    • 10-bit digital video encoding per EIA RS-250Cshort-haul quality
    • Supports “Up-the-Coax” telemetry — Bosch Bilinx™, Pelco Coaxitron™, Panasonic Proteus™
    • Bi-directional data channel: RS-232, RS-422, 2-wire / 4-wire RS-485
    • Hot-pluggable; LED status for Power, Video, Data, Link
    • Available in ComFit™ housing — wall, rack, or DIN rail (with adapter DINBKT1)
  • Performance Parameters:
    • Video Input (Optical): 1310 nm wavelength (MM); Optical Power Budget: 16 dB typical
    • Max Distance (MM 62.5/125 µm): 3 km (2 mi); (SM version FVR110S: up to 48 km)
    • Video Bandwidth: 5 Hz – 10 MHz (typical 6.5 MHz -3 dB)
    • Differential Gain: < 2 %; Differential Phase: < 0.7 °; SNR: > 67 dB
    • Video I/O: 1 V p-p (75 Ω), BNC connector; Overload > 1.5 V p-p
    • Power: 9–36 VDC (typically 12 VDC wall adapter included), auto-resettable fuse
    • Operating Temp: -40 °C to +75 °C; Humidity: 0 %–95 % non-condensing
    • MTBF: > 100,000 hrs; Compliant with NEMA TS-1/TS-2, Caltrans
  • Installation & Notes:
    • Pair with FVT110M (transmitter) — mismatched single-mode/multimode will not work
    • Use ST optical connectors; clean fiber ends before mating
    • Ensure correct polarity on RS-485 data pair for PTZ camera control
