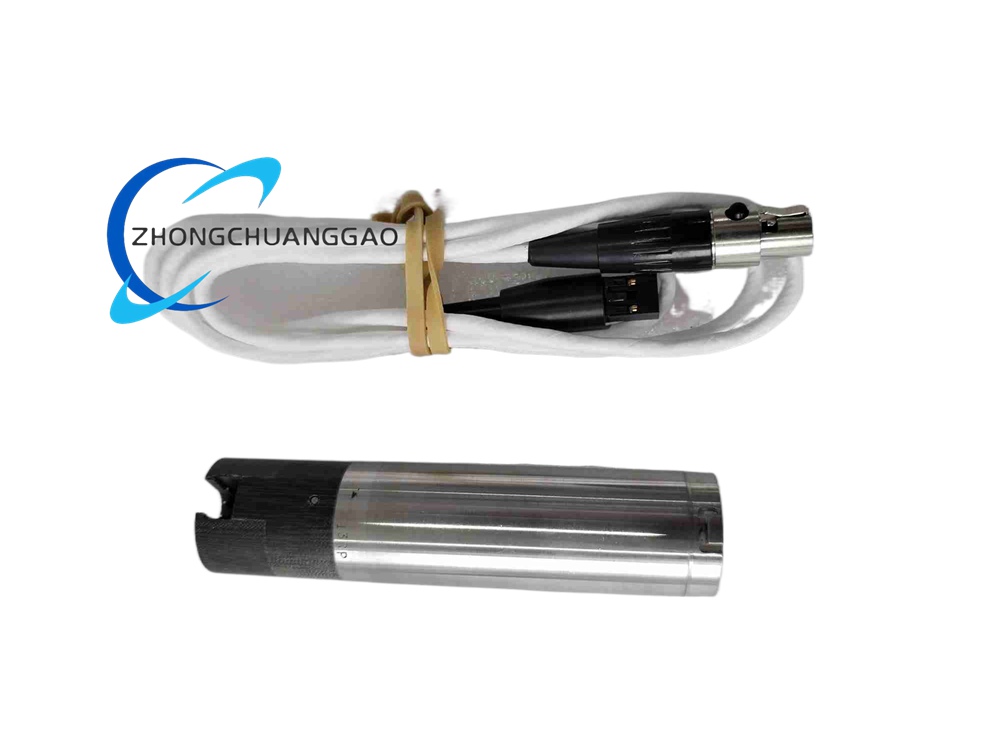

BROOKFIELD SC4-13RPY

  • Product Name:​ Small Sample Adapter Sample Chamber with RTD Temperature Probe and Cable
  • Product Introduction:​ Precision cylindrical sample cup for Brookfield Small Sample Adapter (SSA) used with LV/RV/HA/HB viscometers and rheometers. Enables viscosity measurement of 2–16 mL fluid volumes under defined shear rate with optional temperature sensing.
Category:
Description
  • Technical Specifications:
    • Chamber Type: SC4-13R base cup + integral RTD probe + shielded cable (PY suffix)
    • Material: Stainless steel body, embedded RTD temperature element
    • Sample Volume (with matching spindle): depends on spindle, e.g. SC4-18 = 6.7 mL, SC4-14 = 2.1 mL
    • Shear Rate Range: spindle-dependent (e.g. SC4-18 = 1.32 N, SC4-31 = 0.34 N)
    • Compatibility: All Brookfield dial-reading and digital viscometers equipped with SSA adapter
  • Structural Features:​ Removable chamber with black insulating bottom; coaxial RTD well; accepts SC4-series cylindrical spindles; optional disposable aluminum chamber SC4-13RD-100 available.
  • Application Scenarios:​ Small-volume Newtonian/non-Newtonian fluid testing, pharmaceutical serums, coatings, cosmetics, food pastes, adhesives.
  • Installation Requirements:​ Mount in SSA bracket on viscometer; align spindle concentric with chamber axis; connect RTD cable to instrument thermowell input or external thermometer.
  • Usage Notes:​ Do not soak chamber in methanol, toluene, ammonia or trichloroethylene; never expose RTD cable to flex fatigue; use SC4-45YD water jacket when testing below ambient or above 100 °C; clean with mild solvent only.
