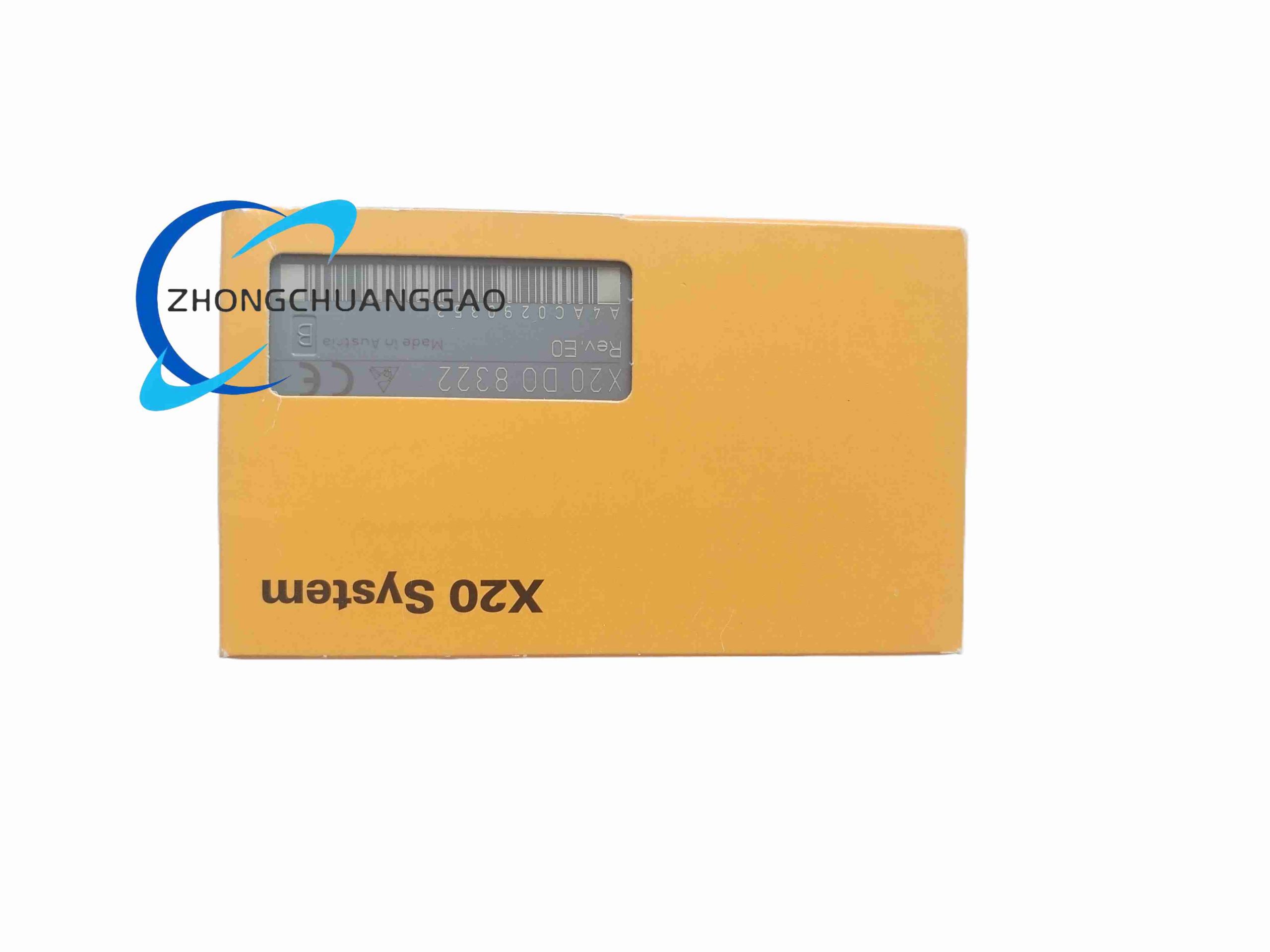

B&R X20DO8322

Product Name:​ X20 Digital Output Module — 8 Channels, 24 V DC, Source (PNP), 0.5 A per Channel
Product Introduction:
Standard 8-channel digital output slice for controlling 24 V DC actuators (relays, solenoid valves, indicator lamps) in 1-wire connection topology.
Category:
Description
Technical Specifications:
  • Outputs:​ 8 × Digital Output, sourcing (PNP), 24 V DC
  • Nominal Output Current:​ 0.5 A / channel; Total max. 4 A per module
  • Switching Voltage:​ 24 V DC (–15% / +20%)
  • Leakage Current (OFF):​ < 5 µA
  • RDS(on):​ typ. 210 mΩ
  • Short-Circuit Peak Current:​ < 12 A; thermal shutdown with auto-recovery (~10 ms)
  • Free-Wheeling Diode:​ Integrated for inductive load protection
  • Switching Time (ON/OFF):​ < 300 µs
  • Max. Switching Frequency (resistive):​ 500 Hz
  • Isolation:​ Channel ↔ Bus (500 V~); Channels NOT isolated from each other
  • Diagnostics:​ Output status LED per channel; module error LED; software-readable diagnostics
  • Power Consumption:​ Bus = 0.26 W; Internal I/O = 0.8 W
  • Operating Temp.:​ –25 … +60 °C (horizontal); –25 … +50 °C (vertical)
  • Required Accessories:​ X20BM11, X20TB12
