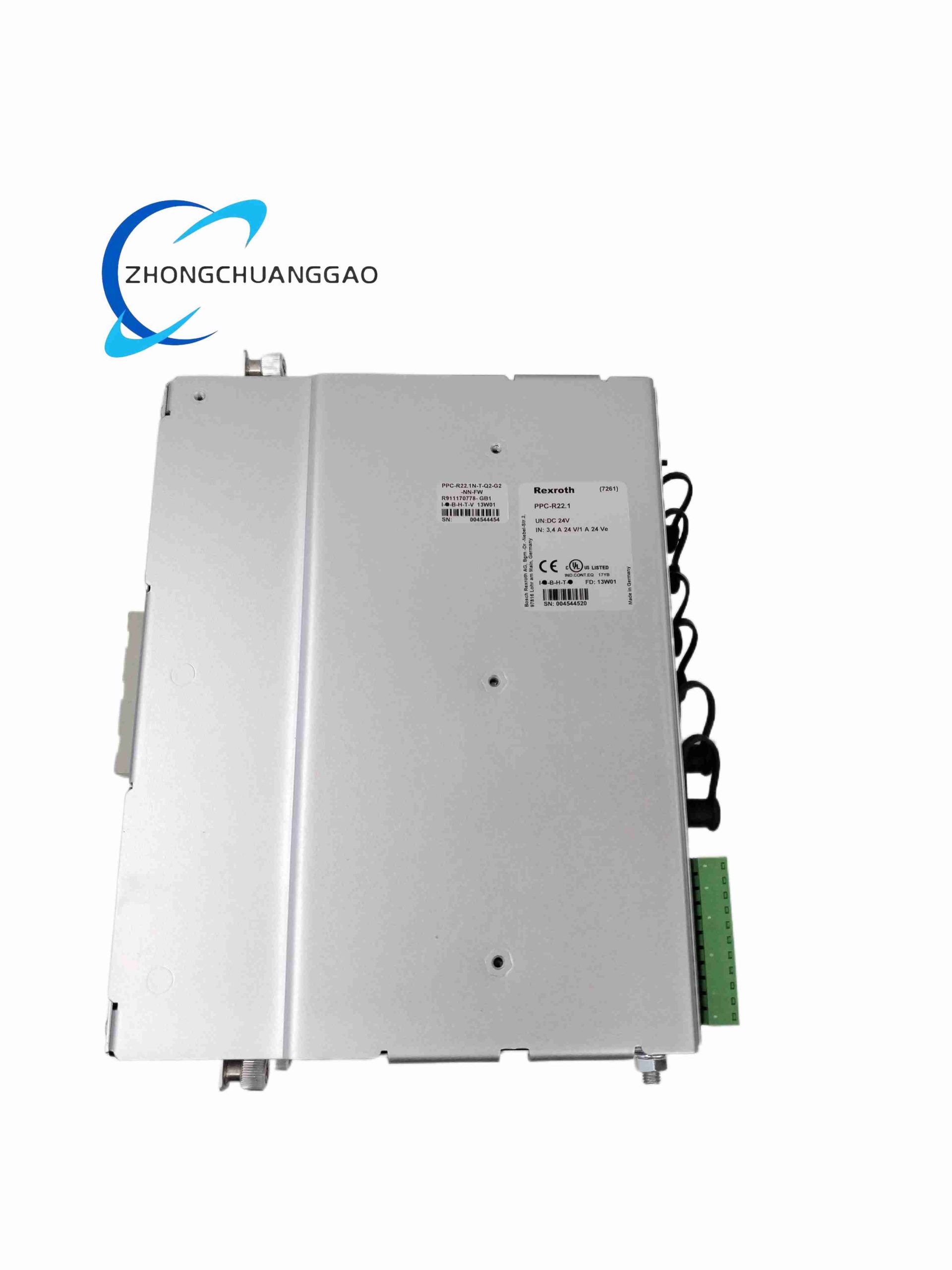

Bosch Rexroth PPC-R22.1N-T-Q2-G2-NN-FW

Product Name:​ Bosch Rexroth PPC-R22.1N-T-Q2-G2-NN-FW IndraMotion MTX / PPC-R Series Multi-Axis Motion Controller
Product Introduction:​
An industrial PC-based multi-axis motion controller for demanding CNC and packaging applications. It executes real-time motion control tasks (interpolation, camming, electronic gearing) and communicates with IndraDrive / EcoDrive servo amplifiers via SERCOS or real-time Ethernet.
Category:
Description
Key Technical Specifications:
  • Processor:​ Intel Atom E3826, 1.33 GHz (or equivalent embedded x86)
  • Memory:​ 4 GB DDR3L (upgradable to 8 GB)
  • Storage:​ 32 GB SSD (upgradable to 64 GB)
  • Interfaces:​ 2 × Gigabit Ethernet, 2 × USB 2.0, 1 × RS-232, 1 × RS-485
  • Option Modules (per code):​ “T” = Ethernet onboard; “Q2” = Dual fast digital input (DAQ03); “G2” = Master encoder interface (LAG)
  • Supply Voltage:​ 24 V DC (19.2–30 V DC), typ. 1.2 A max
  • Mounting:​ Vertical insertion into Rexroth RMB02.2 subrack / control cabinet DIN rail adapter
  • Dimensions (W×H×D):​ ~83 × 182 × 150 mm
  • Protection:​ IP20 (cabinet installation only)
Functional Features:
  • Supports up to multi-axis coordinated motion with sub-millisecond cycle times
  • Firmware (FW = NN → no pre-loaded application, loaded by user): supports GPP10/GPP11 motion kernel
  • Integrated PLC functionality per IEC 61131-3
  • Expandable via additional interface cards in subrack
Application Scenarios:​
Printing & converting machines, CNC machining centers, pick-and-place robots, food & beverage packaging lines.
Installation Notes:
  • Install vertically in subrack for proper convection cooling
  • Connect 24 V DC via fused supply; observe polarity
  • Backup firmware and project files before replacement; FW must be loaded onto blank unit via IndraWorks / ctrlX Works
