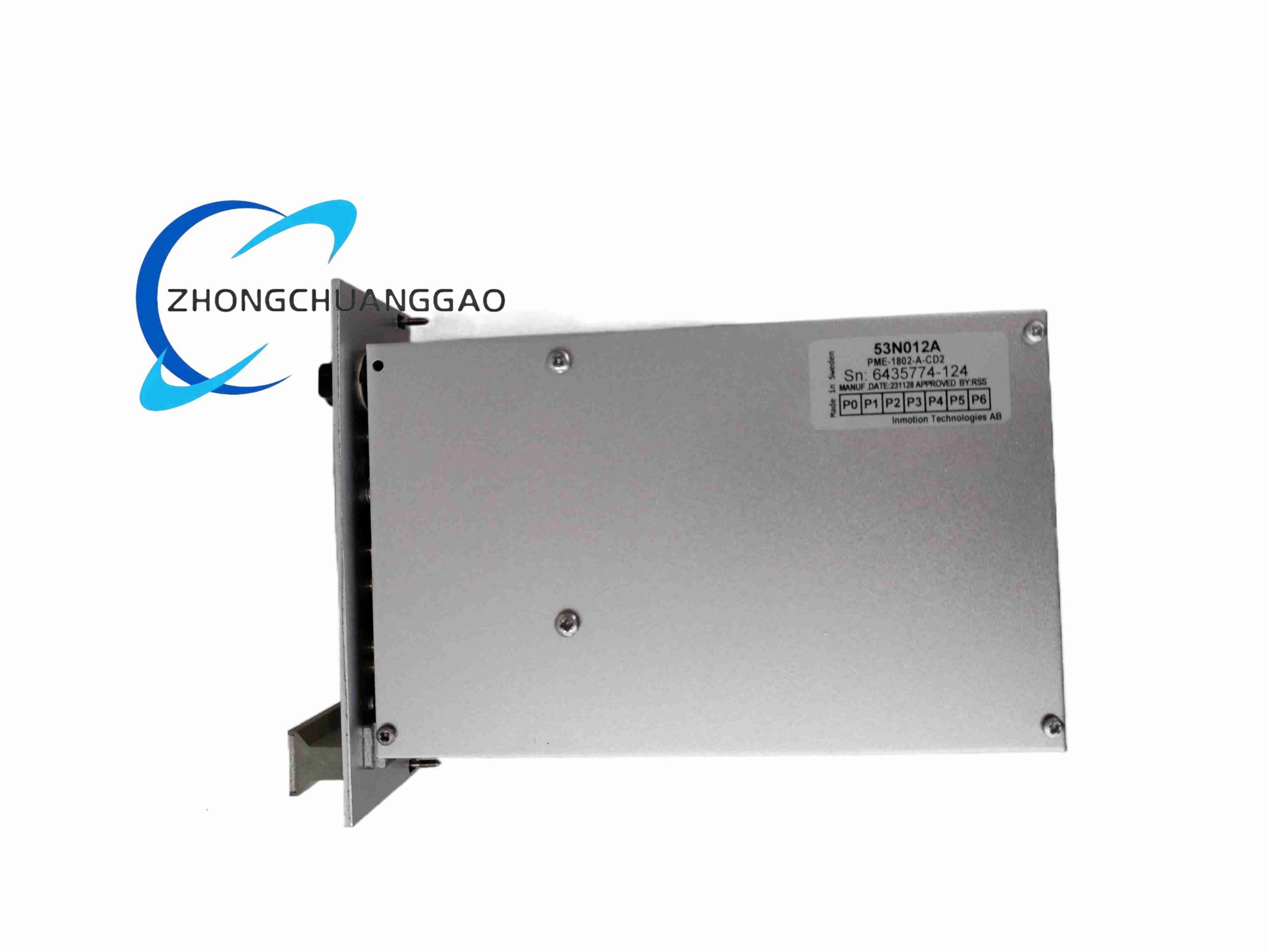

Atlas Copco PME-1802-A-CD2

Product Name: Atlas Copco / Tetra Pak PME-1802-A-CD2 DC Motor / Armature Controller (originally Danaher Motion / Tetra Pak OEM part)

Product Introduction:

A compact DC armature controller designed for small DC servomotors or actuator drives, commonly found in Tetra Pak filling machines. Provides regulated DC armature voltage with adjustable speed reference and current limiting.

Category: Others

Description

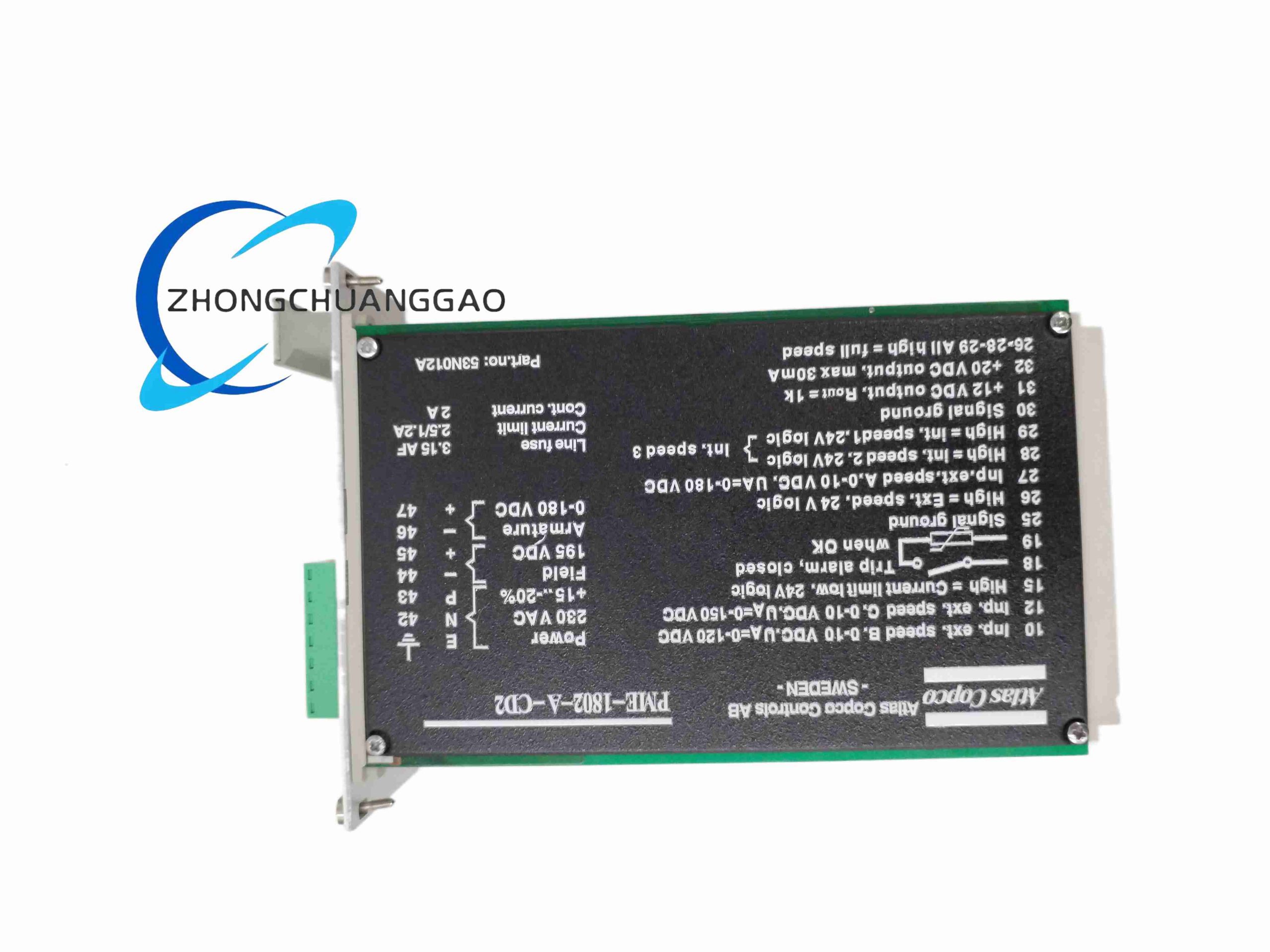

Key Technical Specifications:

Mains Input: 230 V AC ±15/–20 %
Field Supply: 195 V DC (fixed field excitation)
Armature Output: 0–180 V DC adjustable
Continuous Current: 2 A (peak 2.5 A / limited)
Speed Reference Inputs: 0–10 V DC (three selectable external speed inputs A/B/C with logic-select high/low)
Internal / External Speed Selection: TTL/24 V logic inputs for preset speed selection
Auxiliary Outputs: +12 V DC (max 30 mA), +20 V DC ref (max 30 mA)
Current Limit Adjustable: dual settings (typ. 1.2 A / 2.5 A)

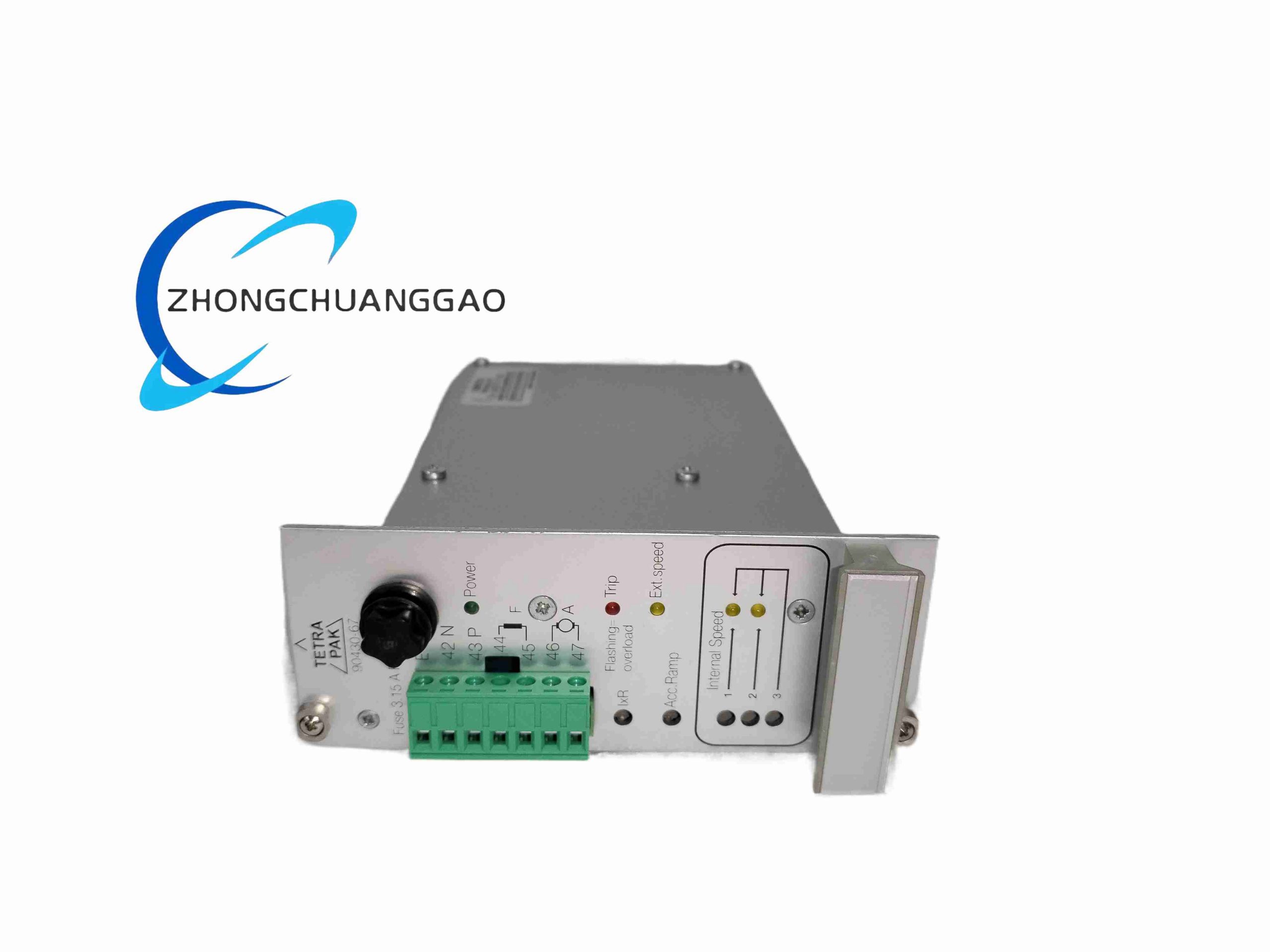

Indicators / Connections: Screw terminals, LED status

Functional Features:

IR compensation for improved speed stability under load
Adjustable acceleration/deceleration ramps (via potentiometers)
Enable / inhibit via 24 V logic input

Application Scenarios:

Tetra Pak packaging machinery (filler bowl drives, knife actuators), small conveyor indexing, lab-scale DC motor control.

Installation Notes:

Separate field winding must be connected before armature to prevent runaway
Use shielded cable for speed reference; keep away from AC power lines
Verify motor armature resistance and set current limit accordingly before first run
