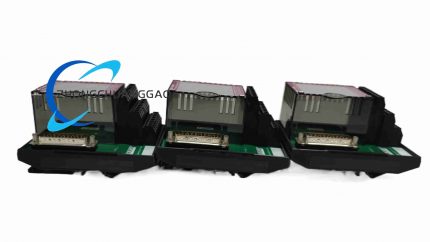

FOXBORO RH916XG
FOXBORO RH916XG
Back to products
YOUYAN QJH-25WL
YOUYAN QJH-25WL

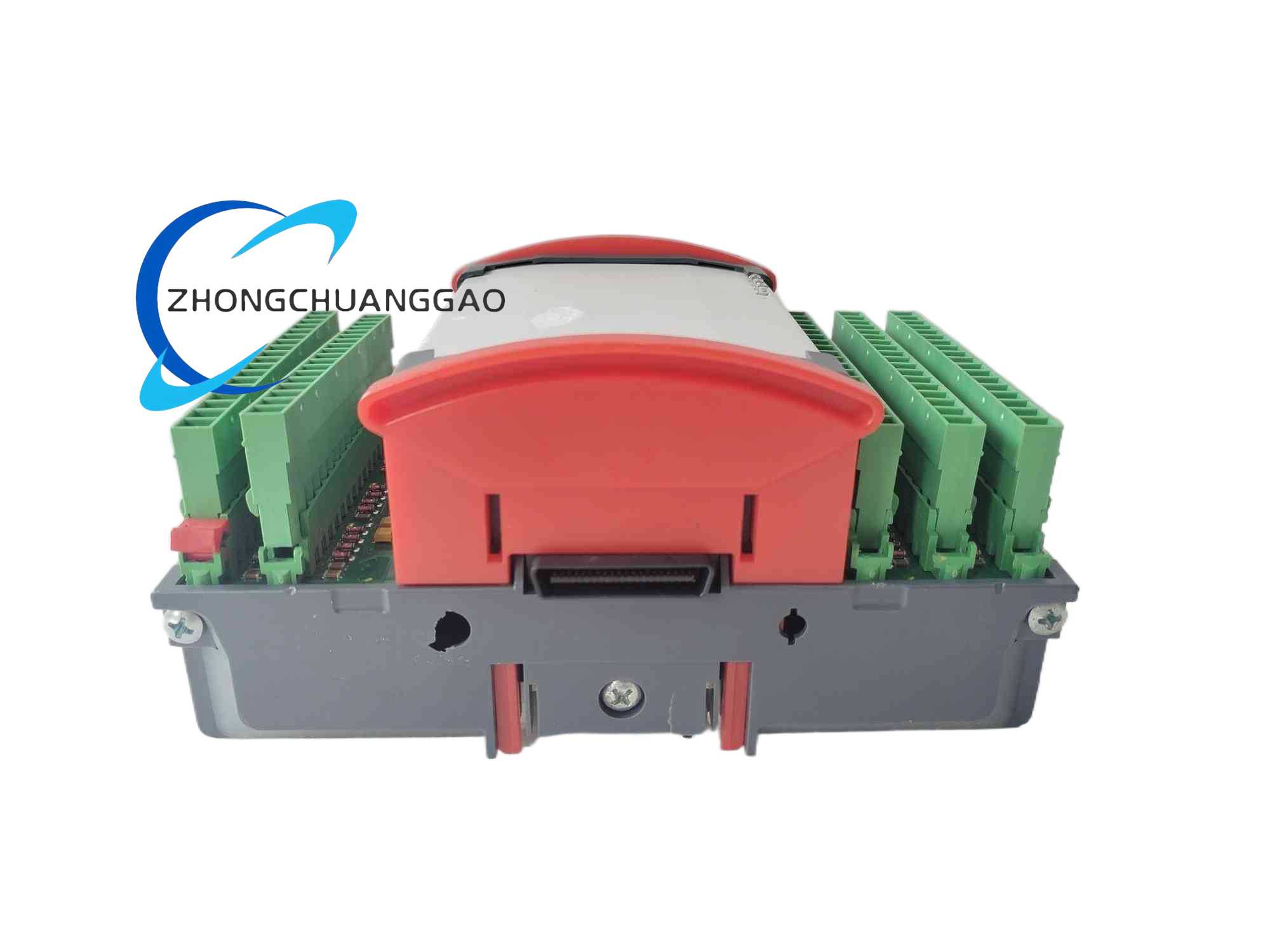

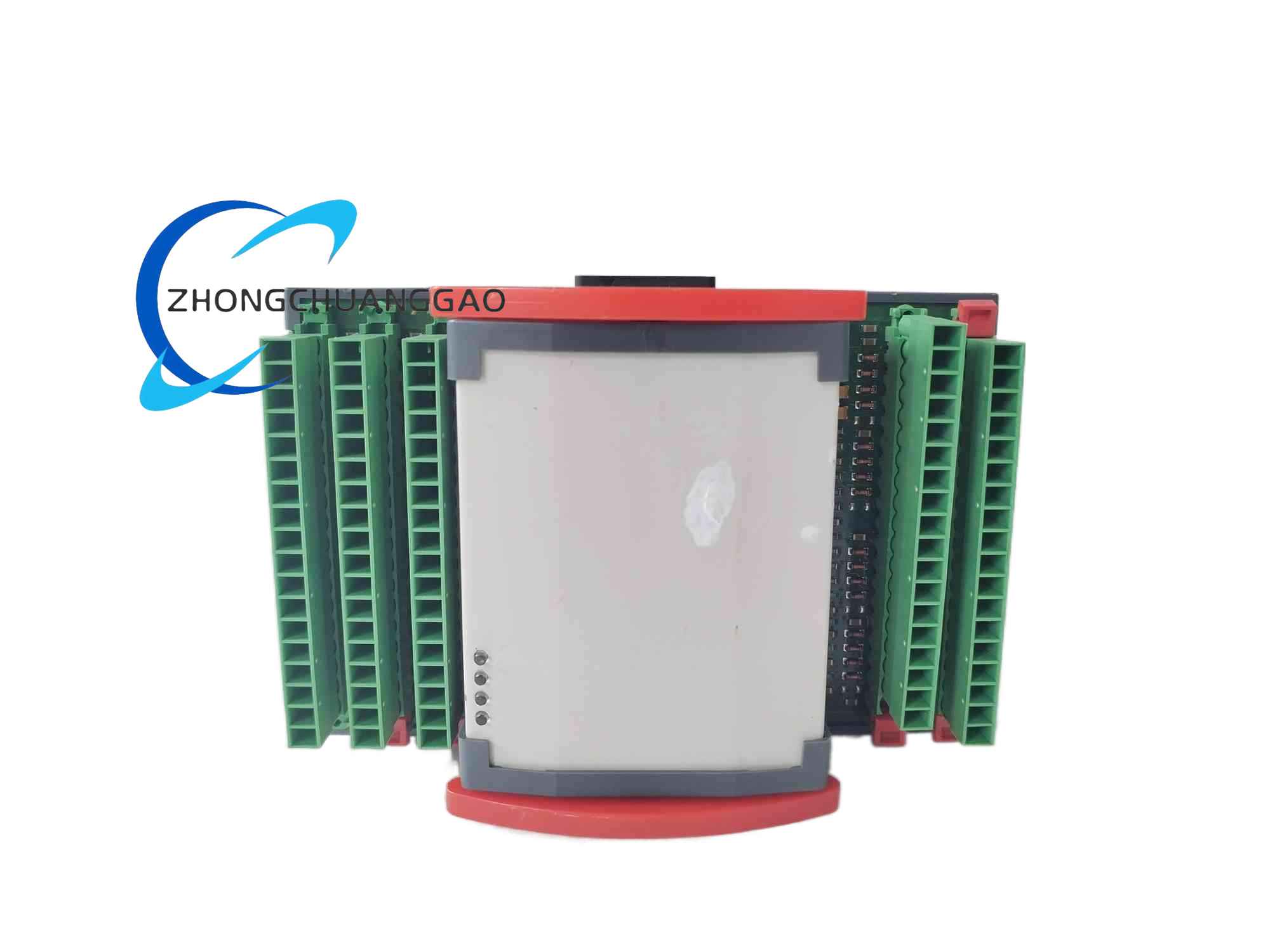

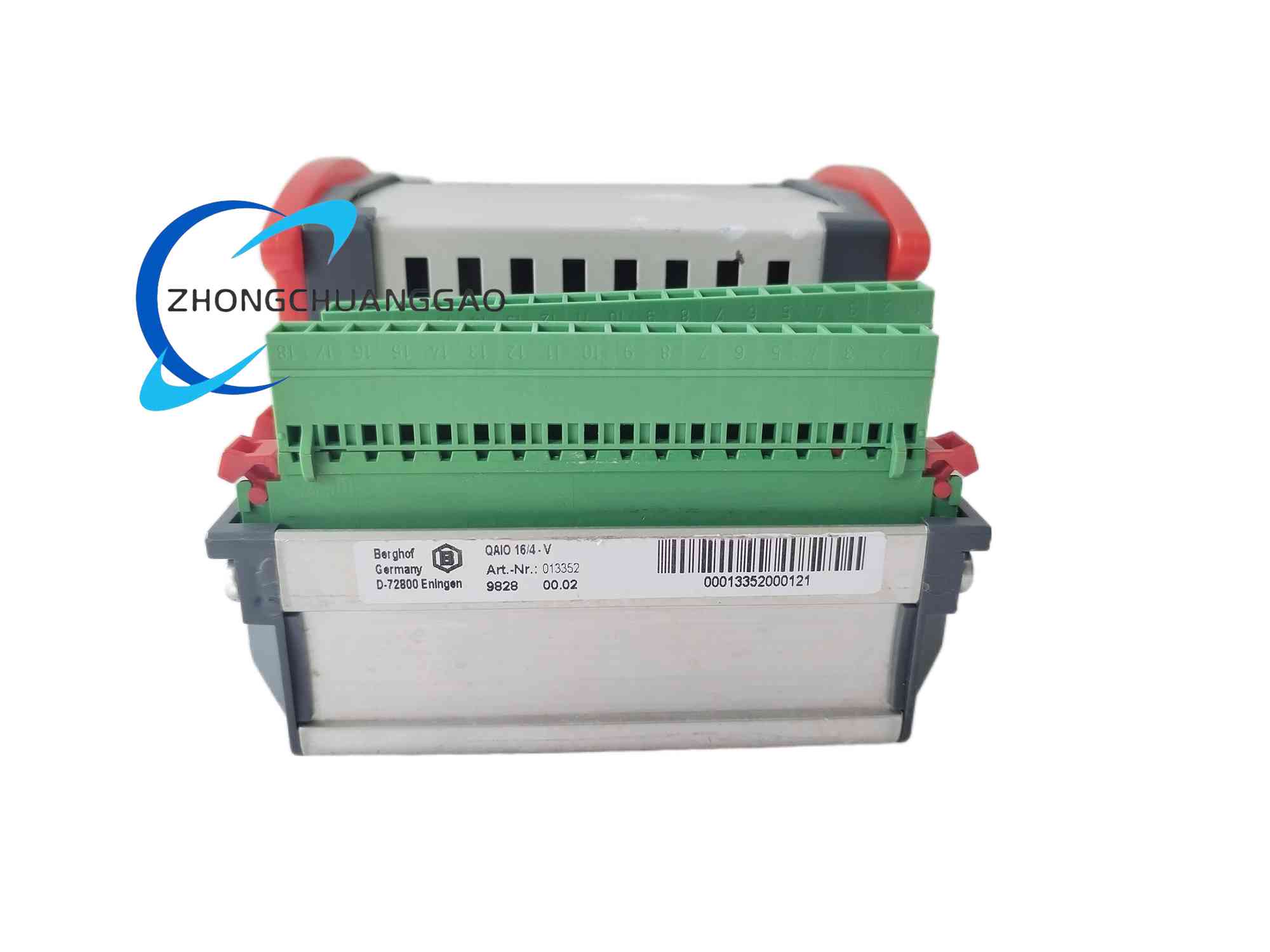

Berghof QAIO16/4-V

  • Product Name:​ Analog I/O Interface Module (QAIO16/4-V)
  • Product Introduction:​ Compact DIN-rail analog input/output interface belonging to the Berghof automation peripheral family, designed to sit on the backplane of Berghof BVS/SLC controllers or as a distributed field module for acquiring and generating ±10 V / 0–10 V / 0–5 V analog signals.
Category:
Description
  • Technical Specifications:
    • Analog Inputs:​ 16 channels single-ended or 8 differential, ±10 V / 0–10 V / 0–5 V configurable
    • Analog Outputs:​ 4 channels, ±10 V or 0–10 V configurable, 16-bit resolution
    • Output Load:​ ≥5 mA per channel (into 2 kΩ minimum load)
    • Accuracy:​ ±0.1 % of full scale typical at 25 °C
    • Isolation:​ Galvanic isolation ≥2.5 kV between field side and internal bus
    • Power Supply:​ 24 VDC ±10 % via backplane or dedicated terminals
    • Communication:​ Berghof proprietary backplane bus
    • Operating Temperature:​ 0 °C to +55 °C
    • Mounting:​ 35 mm DIN rail (EN 60715)
    • Diagnostics:​ Status LEDs, error reporting via controller software
    • Certifications:​ CE, RoHS, UL listed (variant dependent), EMC per EN 61000-6-2/6-4
  • Functional Features:​ High-resolution 16-bit conversion, galvanic isolation for noise immunity, configurable input/output ranges, hot diagnostics through controller software.
  • Application Scenarios:​ PLC analog expansion in machine control, hydraulic press command/feedback conditioning, test rig data acquisition, process signal buffering.
  • Installation Requirements:​ Mount on 35 mm DIN rail inside control cabinet, ensure 24 VDC clean supply, separate analog wiring from high-power conductors, use shielded cables for sensitive inputs.
  • Usage Notes:​ Performance depends on host controller firmware; do not mix isolated and non-isolated ground references; verify range jumpers before energizing.
