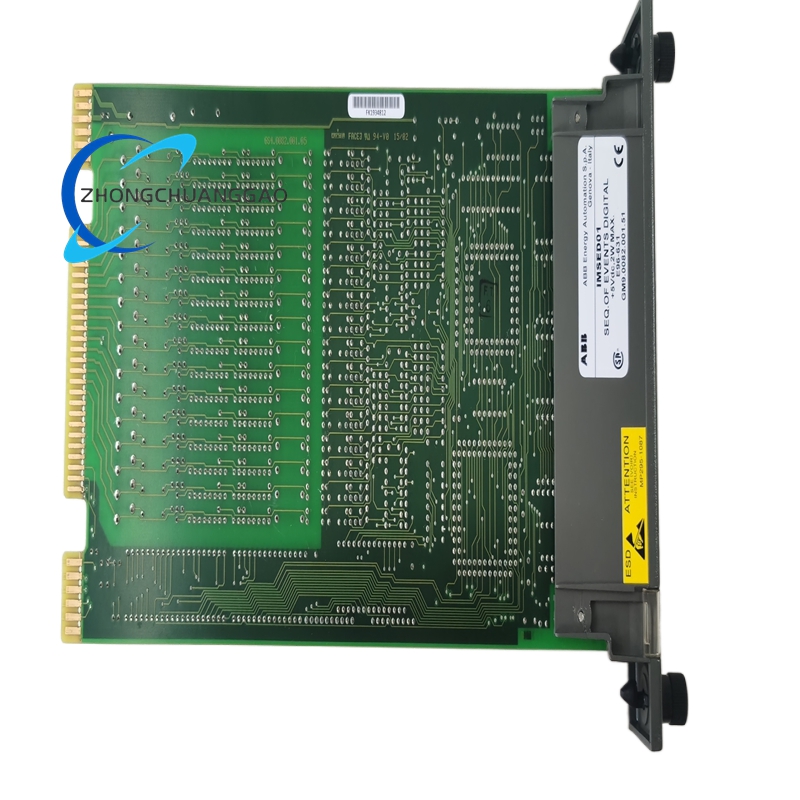

ABB IMSED01 16-Channel Digital Input Module

• Input Voltage Range: Supports 10-30V DC (typically 24V DC or 48V DC)
• Response Time: Less than 1ms for rapid signal response
• Operating Temperature Range: -25°C to +70°C (adaptable to harsh environments)
• Protection Class: IP20 (dust and small particle resistance)
• Mounting: DIN rail mountable for easy installation in control cabinets
• Weight: 0.35kg (compact and lightweight)
• Communication: Connects to the Symphony Plus PLS controller via the HR bus

Functional Features

• Configurable Input Characteristics: Each channel can be set to “active high” or “active low” and supports filtering options to prevent signal noise.
• LED Indicators: Provides visual feedback on the status (active/inactive) of each channel for easy monitoring.
• Advanced Circuit Design: Ensures stable and reliable signal reception, even in complex industrial environments.
• Compact Design: Space-saving dimensions facilitate integration into existing control systems without requiring significant additional space.

Application Scenarios
The ABB IMSED01 is widely used in industrial automation and process control systems, including:

• Power Generation: Monitoring and control of boiler water quality analysis instruments, such as conductivity meters, pH meters, and dissolved oxygen monitors.
• Manufacturing: Signal acquisition and processing in assembly lines, robotic systems, and CNC machinery.
• Water Treatment: Monitoring and control of water treatment processes, including chemical dosing and filtration systems.
• Oil and Gas: Process control and safety monitoring in upstream and downstream operations.
• Building Automation: Energy management and environmental control in smart buildings, such as HVAC systems and lighting control.

Advantages

• High Reliability: Designed for continuous operation in demanding industrial environments.
• Flexibility: Configurable input characteristics and support for multiple voltage levels adapt to diverse application requirements.
• Ease of Installation: DIN rail mounting and compact design simplify integration into control cabinets.
• Real-Time Monitoring: LED indicators and fast response times enable immediate detection of signal changes.
• Cost-Effective: Reduces system complexity and maintenance costs by consolidating multiple input signals into a single module.
