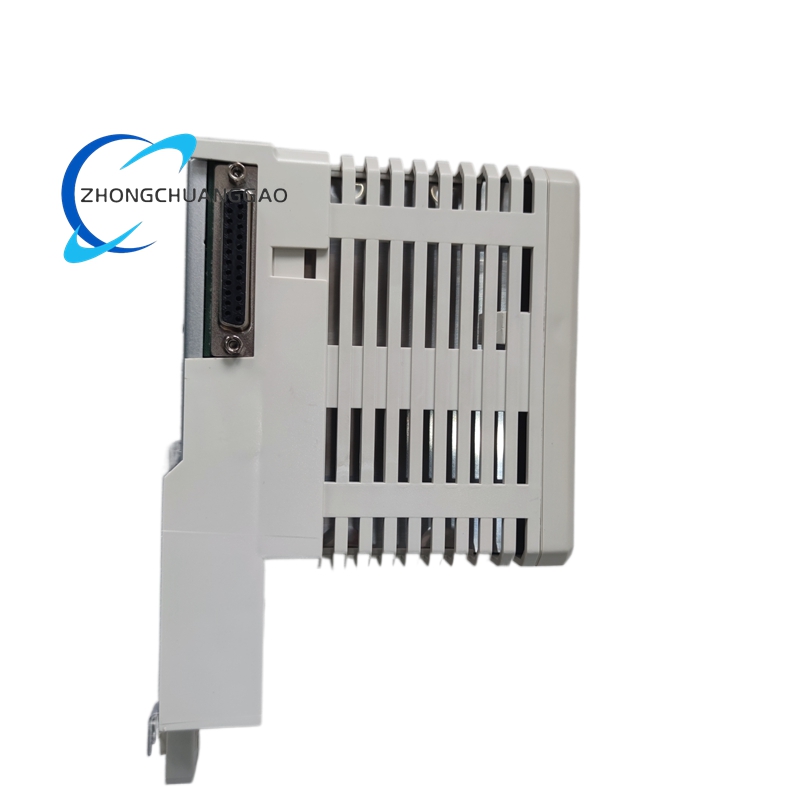

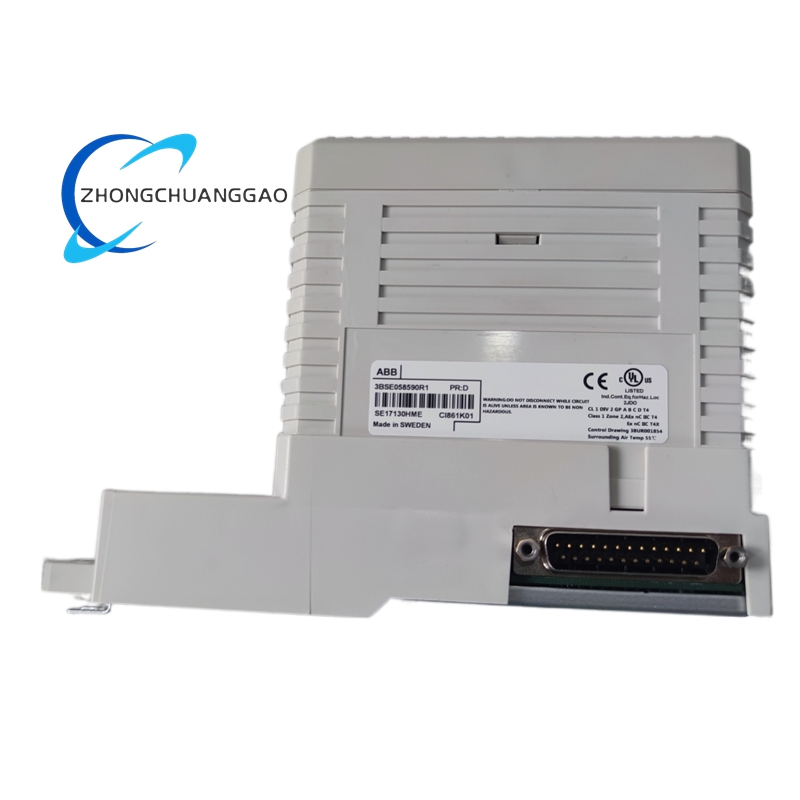

ABB CI861K01 3BSE058590R1 Communication Module

• Transmission Rate: Up to 12 Mbps, ensuring high-speed data transfer.
• Operating Temperature: -40°C to +70°C, suitable for extreme industrial environments.
• Protection Class: IP20 design, with anti-electromagnetic interference (EMI/RFI) circuits for stable operation in harsh conditions.
• Power Supply: 24V DC, with low power consumption.
• Mechanical Dimensions: Compact design, saving space within control cabinets.
• Interfaces: Equipped with 2 RS485/RS232 serial ports, 1 Ethernet interface (optional), and supports USB host/client connections.

Functional Characteristics

• Multi-Protocol Compatibility: Breaks down device barriers by seamlessly connecting PLCs, DCSs, SISs, sensors, and actuators from different manufacturers.
• High Reliability: Designed for industrial environments, ensuring stable and reliable operation under strong vibrations and high humidity conditions.
• Redundancy Protection: Supports channel-level short-circuit and overload protection, with a low failure rate and long mean time between failures (MTBF).
• Easy Installation and Configuration: Standard slot design, supporting hot-swapping for maintenance without system downtime.
• Rich Diagnostic Functions: LED status indicators for quick fault location, and remote diagnostics via Ethernet interface for reduced maintenance time.
• Flexible Parameter Configuration: Communication protocols, baud rates, and data formats can be modified online through ABB configuration software (e.g., Control Builder).

Application Scenarios

• Chemical and Petrochemical Industry: Used to connect pressure transmitters, temperature sensors, and safety instrumented systems (SISs) for real-time monitoring of reactor parameters. For example, in a refinery, it enables PROFIBUS DP protocol-based monitoring, triggering SIS interlock shutdowns to prevent explosions when pressure exceeds limits.
• Power Generation: Integrates Modbus TCP protocol to upload wind turbine PLC data to cloud platforms, supporting AI-based power generation forecasting. Its high-precision clock synchronization function (supporting IEEE 1588 protocol) ensures data timestamp errors of less than 1μs, improving forecast accuracy.
• Automotive Manufacturing: Serves as an EtherNet/IP master station to connect 12 ABB robots and 200 I/O points, achieving synchronized control of welding and painting processes. The 12Mbps high-speed communication capability ensures motion instruction delays of less than 1ms, boosting product qualification rates to 99.9%.
• Water Treatment: Monitors and controls water quality parameters, pump stations, and distribution networks, enabling efficient and reliable operation of water treatment plants.
• Mechanical Manufacturing: Facilitates communication between PLCs and field devices in manufacturing automation lines, improving production efficiency and flexibility.
• Building Automation: Connects to building management systems for monitoring and controlling HVAC, lighting, and security systems, enhancing energy efficiency and occupant comfort.
