• Product Overview: 90W DC-input power supply module for GE Series 90-70 PLC systems, installed in the leftmost slot of IC697 racks, providing +5VDC, +12VDC, -12VDC outputs and backplane logic sequencing signals. It accepts 18-32VDC input, delivers 90W total output (18A at +5VDC, 1.5A at +12VDC, 1A at -12VDC), supports dual-rack operation via IC697CBL700 cable, and maintains 10ms output ride-through during input loss. It includes electronic short-circuit, overcurrent, and overvoltage protection.
• Technical Specifications - Input Voltage: Nominal 24VDC; range 18-32VDC
• Technical Specifications - Input Power: 160W at full load

• Product Introduction: The IC698CHS117C is an 18‑slot wall‑mount I/O chassis for GE PACSystems RX7i PACs, built on a VME64 backplane with 4x standard VME bandwidth for high‑speed I/O throughput. It supports RX7i CPUs, RX7i I/O modules, Series 90‑70 I/O, and standard VME modules, with slot 0 dedicated to power modules, slot 1 for CPU (slot 2 used if dual‑width CPU with embedded Ethernet), and slots 3–18 for I/O. It features slot sensing, software configuration (no DIP switches/jumpers), and works with high‑power RX7i power supplies, delivering reliable, scalable I/O expansion for industrial control systems.
• Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now part of Emerson Automation)
• Chassis Type: 18‑slot wall‑mount I/O chassis for PACSystems RX7i

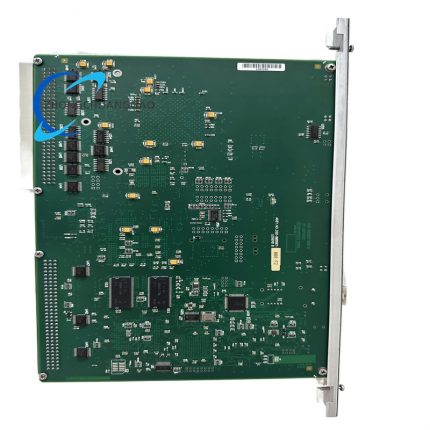

• Product Overview: Single-slot reflective memory communication module for GE PACSystems RX7i PLCs, using reflective memory technology to enable deterministic real-time data sharing across fiber optic networks. It has 16MB SDRAM with parity, LC fiber optic ports, 2.12 Gbaud transfer rate, supports up to 256 nodes per network, and redundant transfer mode. The ED firmware fixes false alarms in high-temperature/high-data-load conditions, ensuring stable operation in industrial environments. It is CPU-independent, requires +5VDC/1.8A, and mounts in RX7i main rack slots 3 or 4.
• Technical Specifications - Memory: 16MB SDRAM with parity checking, 400ns typical access time

Technical Specifications

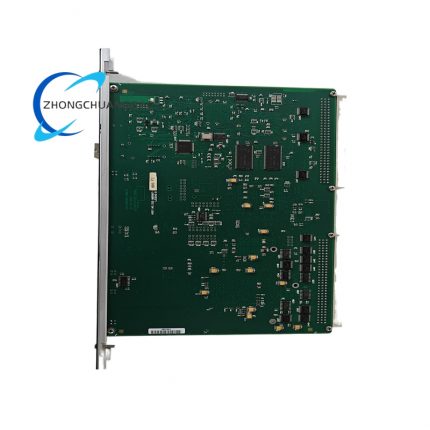

• IC698CMX016-ED Control Memory Exchange Module
  • Memory: 16 MB SDRAM with parity for reflective memory data storage .
  • Communication:
    • Fiber Optic Interface: 2.12 Gbaud transmission rate over multimode fiber (LC connectors), supporting up to 300 meters .
    • Network Nodes: Up to 256 nodes in a daisy-chained loop configuration .
    • Packet Sizes: Dynamic 4–64 bytes, achieving 43–174 MB/s transfer rates .

• Processor Performance: Features a powerful processor capable of handling complex logic, motion control, and process control tasks efficiently.
• Memory Capacity: Comes with substantial memory to support large-scale applications, including program storage and execution, as well as data logging and historical information.
• Communication Interfaces: Supports various communication protocols such as Ethernet/IP, Modbus TCP, Profibus, and serial communications, ensuring compatibility with a broad array of devices and systems.
• I/O Capabilities: Designed to connect with multiple types of input/output modules, supporting both discrete and analog signals for comprehensive control over field devices.
• Redundancy Options: Offers redundancy features that enhance system reliability and ensure continuous operation in critical applications.
• Environmental Tolerance: Engineered to withstand harsh industrial environments, featuring resistance to temperature extremes, vibration, and electrical noise.

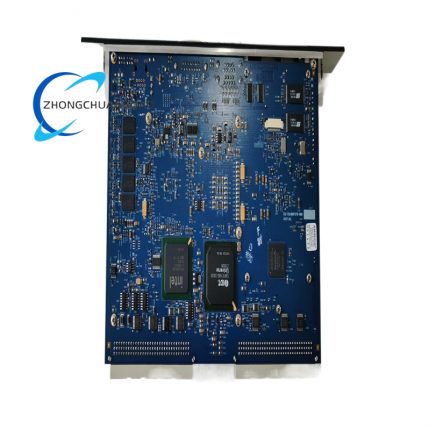

• Product Introduction: The IC698CPE030 is a single‑width CPU module for GE PACSystems RX7i PACs, powered by a 600 MHz Intel Pentium M microprocessor. It provides high‑performance real‑time control, connecting to I/O and smart modules via a VME64 backplane. It features 64 MB battery‑backed RAM and 64 MB non‑volatile flash memory, dual 10/100BASE‑TX Ethernet ports, three isolated serial ports, and supports IEC 61131‑3 programming languages. It works with Series 90‑70 I/O modules and VME modules, and allows online logic modification without stopping the CPU, minimizing downtime in critical applications.
• Manufacturer: GE Fanuc (General Electric Fanuc Intelligent Platforms, now part of Emerson Automation)
• Processor: 600 MHz Intel Pentium M microprocessor, 32‑bit, supports floating‑point operations
