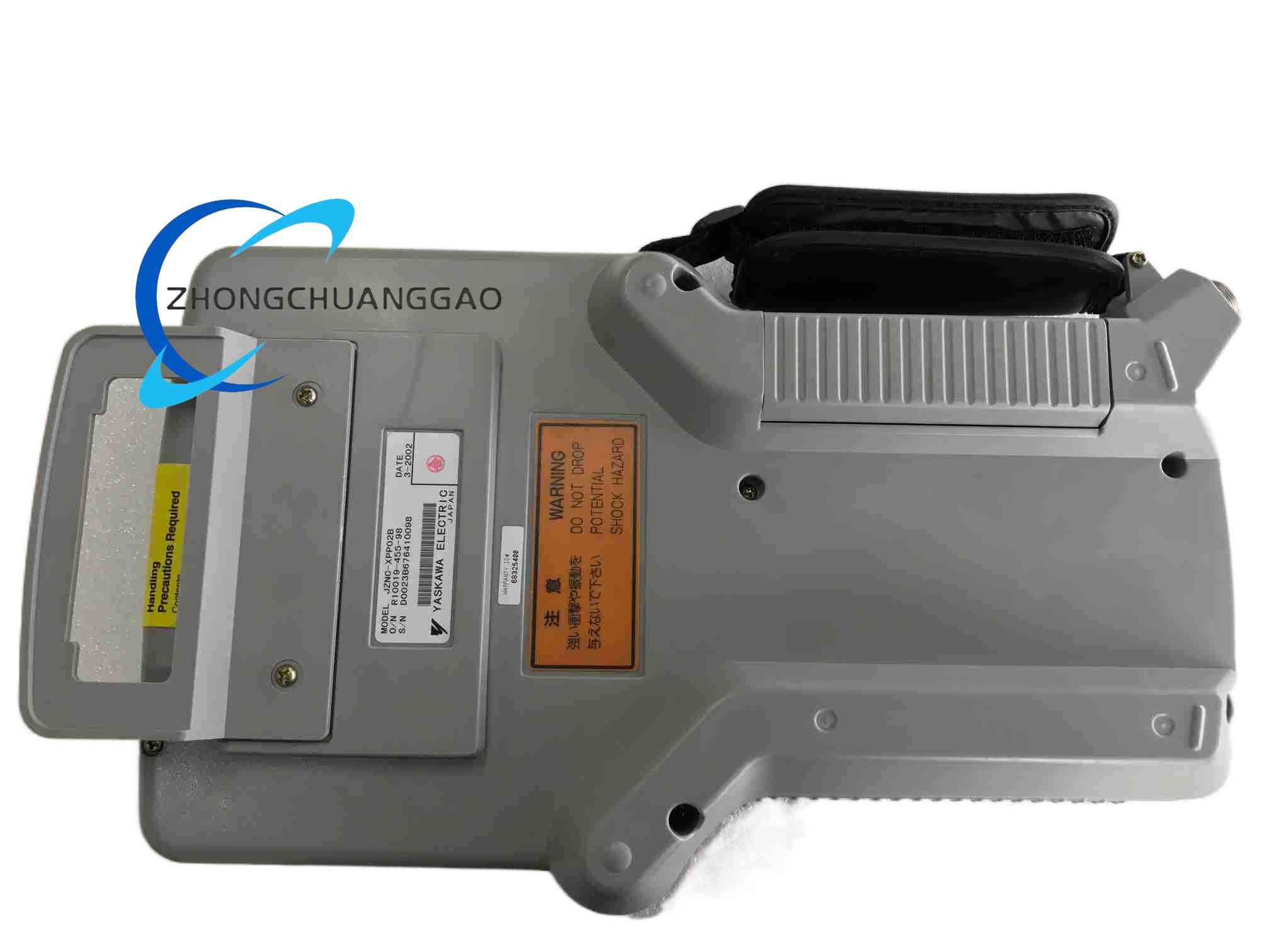

Yaskawa JZNC-XPP02B - Image 1
Yaskawa JZNC-XPP02B - Image 2
Click to enlarge
Yaskawa JZNC-XPP02B
Yaskawa JZNC-XPP02B - Image 2

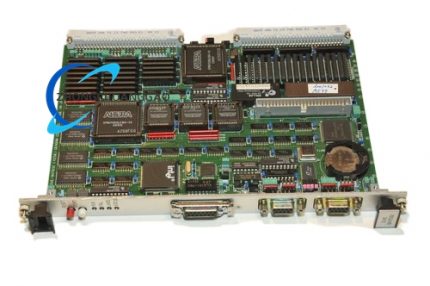

Densan DVE-SH7032
Densan DVE-SH7032
Back to products
Yaskawa JZNC-XRK01D-1
Yaskawa JZNC-XRK01D-1

Yaskawa JZNC-XPP02B

Product Name
JZNC-XPP02B Motoman XRC robot teach pendant.
Product Overview
Industrial handheld programming terminal for Yaskawa Motoman XRC robot controllers. It provides joint and Cartesian jogging, job editing, I/O monitoring, alarm diagnosis and manual operation from the factory floor.
Category:
Description
Technical Specifications
  • Controller compatibility: Yaskawa Motoman XRC and XRC 2001 platforms
  • Display: integrated backlit LCD graphic panel
  • Processor: 32-bit HMI processor
  • Input device: membrane keypad with numeric, function and navigation keys
  • Safety devices: integrated emergency stop button and three-position deadman switch
  • Communication: dedicated XRC pendant port over shielded serial cable
  • Standard cable length: approximately 8 meters
  • Operating temperature: 0 to 40 degrees Celsius
  • Weight: approximately 1.04 kilograms
Functional Features
Full access to motion programming, job management, alarm history, I/O status and parameter setting. Ergonomic housing reduces operator fatigue. Safety circuit is hardwired into the controller safety chain.
Application Scenarios
Automotive welding cells, arc welding, material handling, palletizing, machine tending, paint automation and general Motoman XRC maintenance replacement.
Performance Parameters
Real-time command transfer through the XRC internal serial bus. E-stop and deadman state override software mode. Keypad matrix scanning supports teach, play and remote operation.
Material Composition
Industrial-grade ABS or reinforced polymer housing, tempered display window, membrane overlay, copper-flex cable shielding, stainless steel mounting inserts where used.
Structural Characteristics

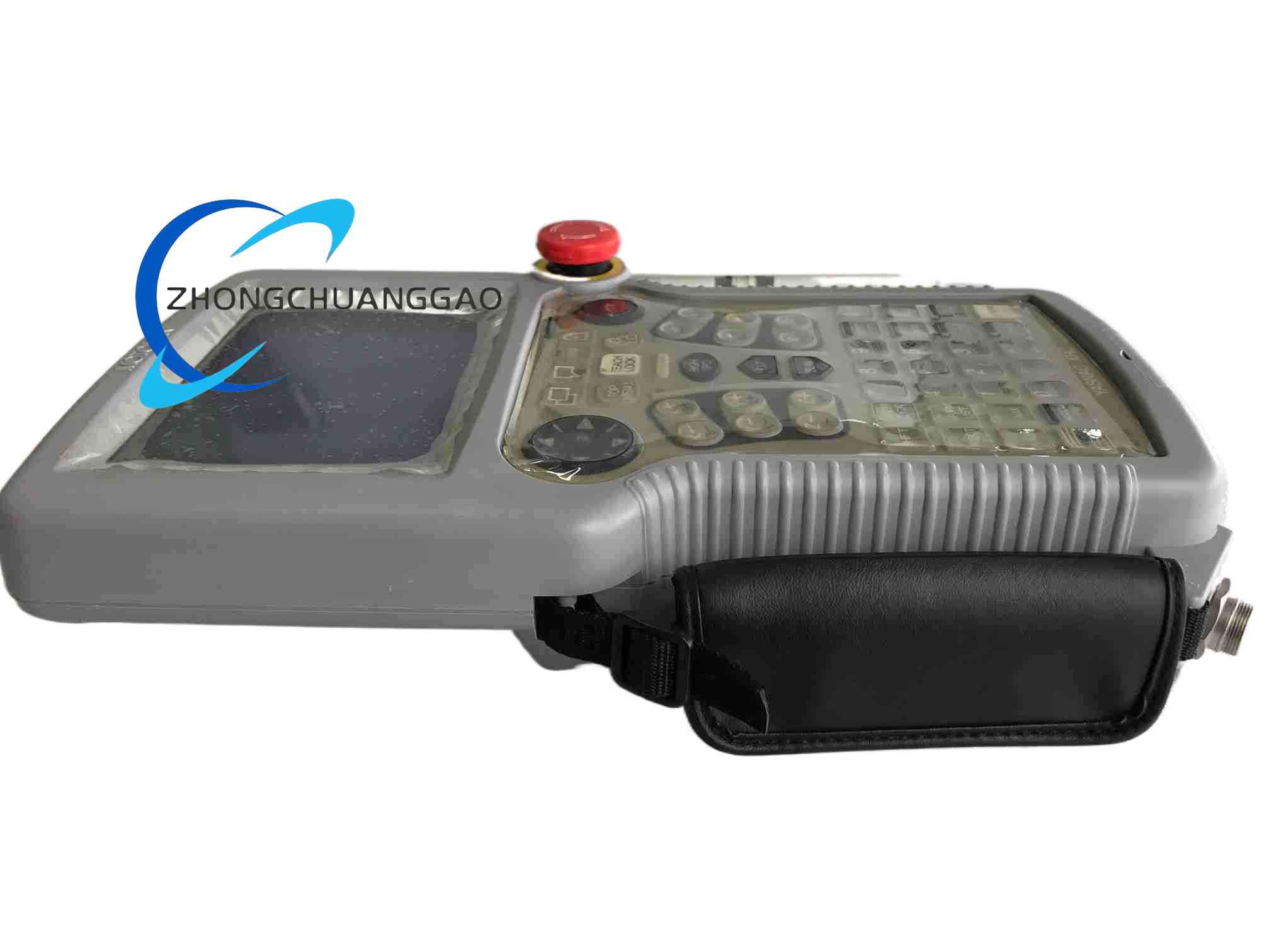

Single handheld enclosure with LCD window, membrane keypad, emergency stop mushroom button, deadman switch, XRC connector interface and strain-relief cable outlet.
Working Principle
Operator key inputs are scanned by the pendant processor and transmitted to the XRC controller CPU through the shielded serial interface. Motion commands, I/O requests and program edits are executed by the controller and fed to servo amplifiers. The emergency stop and deadman circuits are wired directly into the controller safety relay chain for immediate power removal.
Installation Requirements
Connect only to the designated XRC teach pendant port. Secure cable with strain relief and cable carrier support. Verify connector keying before mating. Mount nothing additional to the pendant housing that blocks ventilation or safety buttons.
Usage Precautions
Use exclusively with XRC controllers. Never bypass the three-position deadman switch. Test emergency stop before each teaching session. Keep the cable away from sharp edges, hot surfaces, oil pools and moving robot links.
