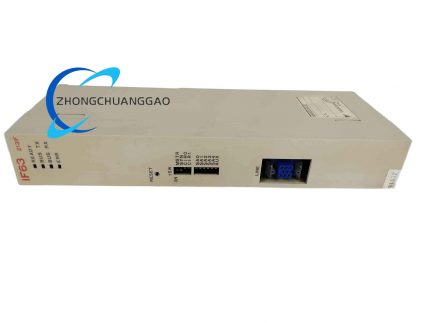

Yaskawa JAMSC-1F63V
Yaskawa JAMSC-1F63V
Back to products
Yaskawa JAMSC-IF62AV
Yaskawa JAMSC-IF62AV

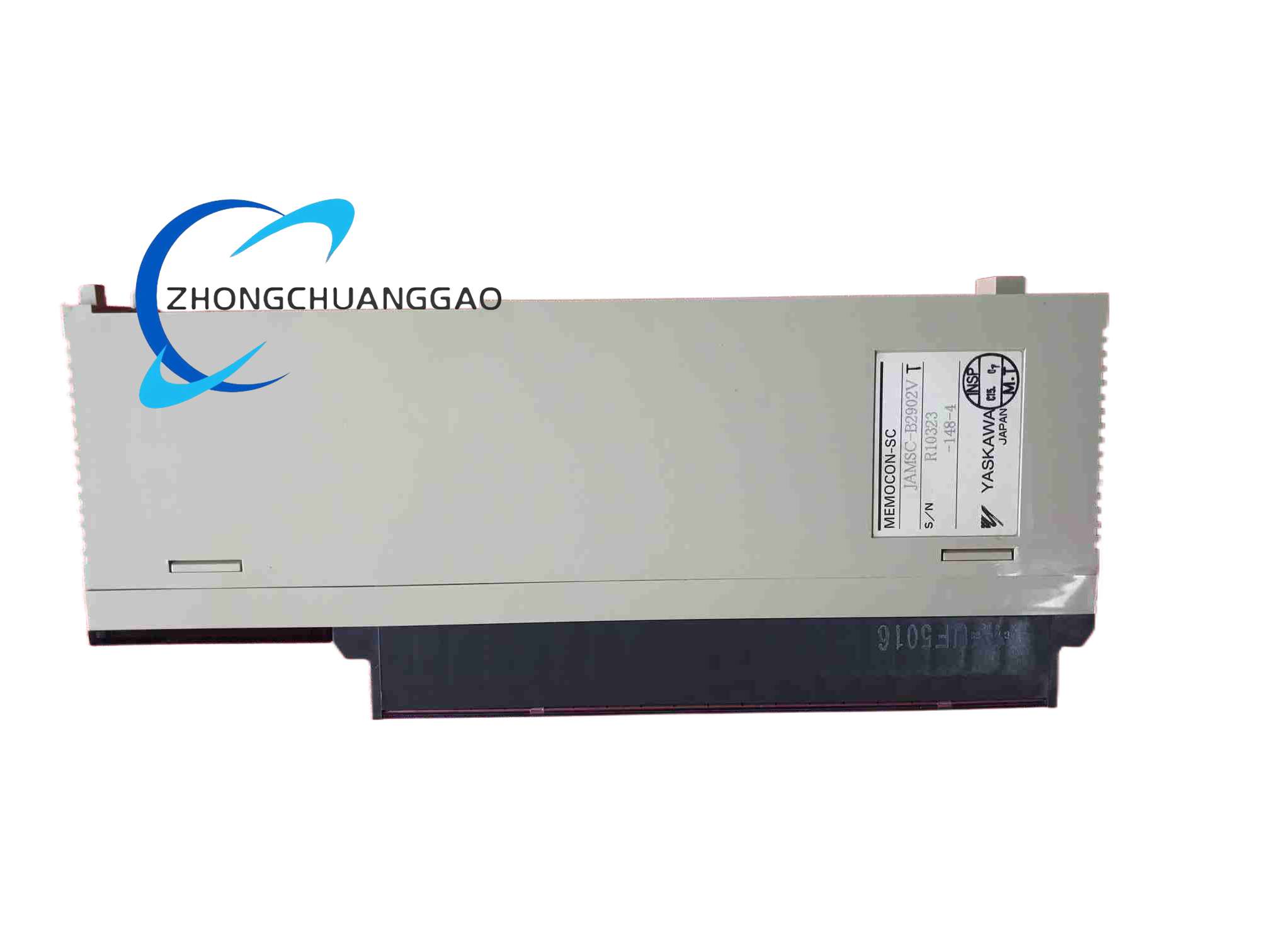

Yaskawa JAMSC-B2902V

Product Name
Yaskawa JAMSC-B2902V digital I/O module for Yaskawa controller and PLC systems.
Product Overview
JAMSC-B2902V is a Yaskawa digital input/output module used to expand switching-signal capacity for motion controllers, PLCs and industrial machines. It converts field device states into controller-readable signals and drives actuators from controller commands.
Category:
Description
Technical Specifications
For MP motion controller backplane documentation, the module provides 16 digital inputs and 16 digital outputs, DC24V, NPN sink input, transistor output, 0.5 A maximum per output point, 4 A total output current, MP-Link backplane communication, approximately 0.25 kg, operating temperature 0 to 55°C, storage temperature -25 to 85°C, humidity 30 to 95 percent non-condensing. For MEMOCON-SC PLC documentation, the module is listed in 32-point DC24V transistor configurations with high-density output or mixed I/O according to the exact base and firmware.
Functional Features
Channel-level status LEDs, high-speed switching, isolated field wiring, controller backplane or base mounting, limit and origin signal acquisition, relay/valve/indicator driving, and fault localization through LED diagnostics.
Performance Parameters
Response time is suitable for machine interlock, servo ready, origin search, alarm input and discrete actuator control. Output load capacity must remain within per-point and total current limits. Backplane-powered versions obtain internal logic power from the controller; externally powered versions require separate DC24V supply.
Material Composition
Housing uses flame-retardant industrial plastic, internal PCB uses FR4 multilayer material, output stage uses power transistors, input stage uses optocouplers or isolated interface components, and connectors use plated copper contacts.
Structural Characteristics
Module body with field terminals, LED indicators, controller backplane connector or base slot interface, and DIP/software addressing according to system family.
Working Principle
Input circuits condition field voltage through isolation and filtering, then send logic states to the controller. Output circuits switch DC load current under controller commands. The backplane or base transmits configuration, diagnostics and power management data.
Installation Requirements
Insert the module into the designated controller slot or base. Verify input sourcing/sinking type, output transistor rating, external supply voltage and controller firmware. Tighten terminals to specified torque and provide cable strain relief.
Usage Precautions
Confirm whether the unit is the MP 16-input/16-output version or the MEMOCON-SC 32-point version before replacement. Never exceed 0.5 A per point or the total output current limit. Prevent condensation, dust accumulation and improper grounding.
