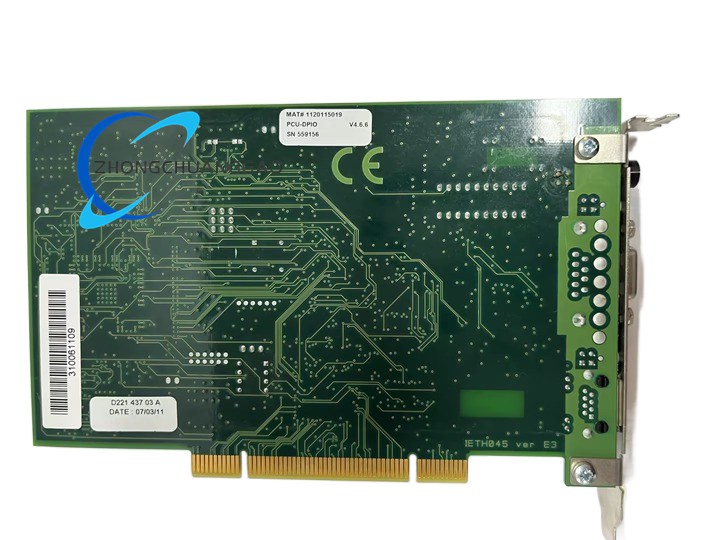

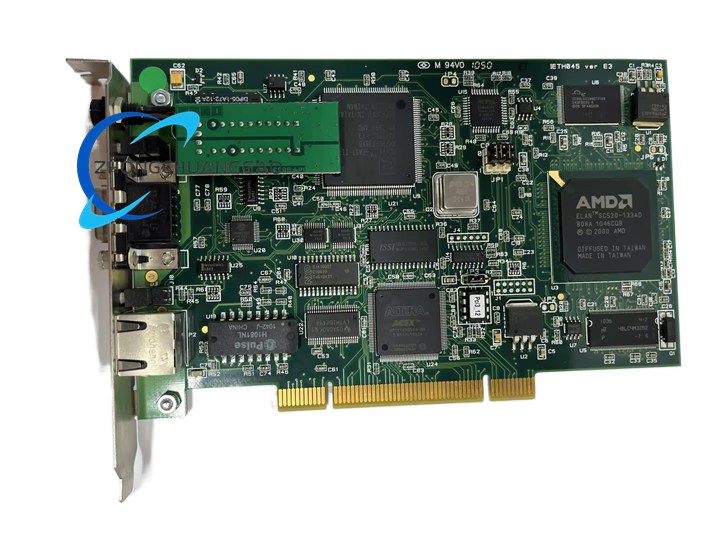

Woodhead PCU-DPIO

Product Name:​ Woodhead PCU-DPIO Profibus DP Digital I/O Interface Module
Product Introduction:​ A panel-mount or DIN-rail Profibus DP slave node exposing discrete digital inputs and outputs directly on the fieldbus without a separate PLC. Often paired with PCU1500S7 in PC-based control architectures.
Category:
Description
Technical Specifications (typical class):
  • Fieldbus:​ Profibus DP-V0/V1, up to 12 Mbps
  • I/O Count:​ 16–32 channels (model-dependent), sourcing/sinking 24 VDC
  • Input Filter:​ 3 ms debounce (software selectable)
  • Output Current:​ 0.5 A per channel, total 4 A
  • Addressing:​ DIP switch or handheld commutator
  • Isolation:​ 500 V channel-to-bus
  • Terminals:​ Spring-cage, 0.2–1.5 mm²
  • Supply:​ 24 VDC ±10 % (separate sensor/logic rails)
  • Temp:​ -20 °C to +60 °C
  • Indicators:​ Bus-active, SF/BF, channel LEDs
Features:​
GSD file import into STEP 7, fail-safe state on bus loss, diagnostic alarms per channel.
Applications:​
Distributed valve bank control, conveyor zone sensors, PC-controlled test rigs.
Precautions:​
Terminate bus both ends with 220 Ω + bias; never mix sensor/common grounds with logic ground.
