Watlow DC10‑12P0‑0000

Functional Features: Contact‑less SCR semiconductor switching; phase‑angle power regulation for heating load; open‑heater fault alarm output; natural convection cooling; finger‑safe touch‑proof terminals; compact DIN‑rail form factor; no mechanical wear‑and‑tear components.

Application Scenarios: Plastic processing heating system, packaging thermal sealing equipment, food processing heating equipment, industrial furnace temperature control, semiconductor thermal processing equipment, all kinds of resistive heater load power regulation occasions.

Performance Parameters: Fast semiconductor switching response; no mechanical contact bounce; 200 kA short‑circuit current withstand rating; stable power adjustment for resistive heating loads.

Material Composition: Aluminum alloy heat‑sink base; thyristor SCR power semiconductor components; flame‑retardant plastic housing; touch‑safe insulation terminal block; industrial‑grade control PCB.

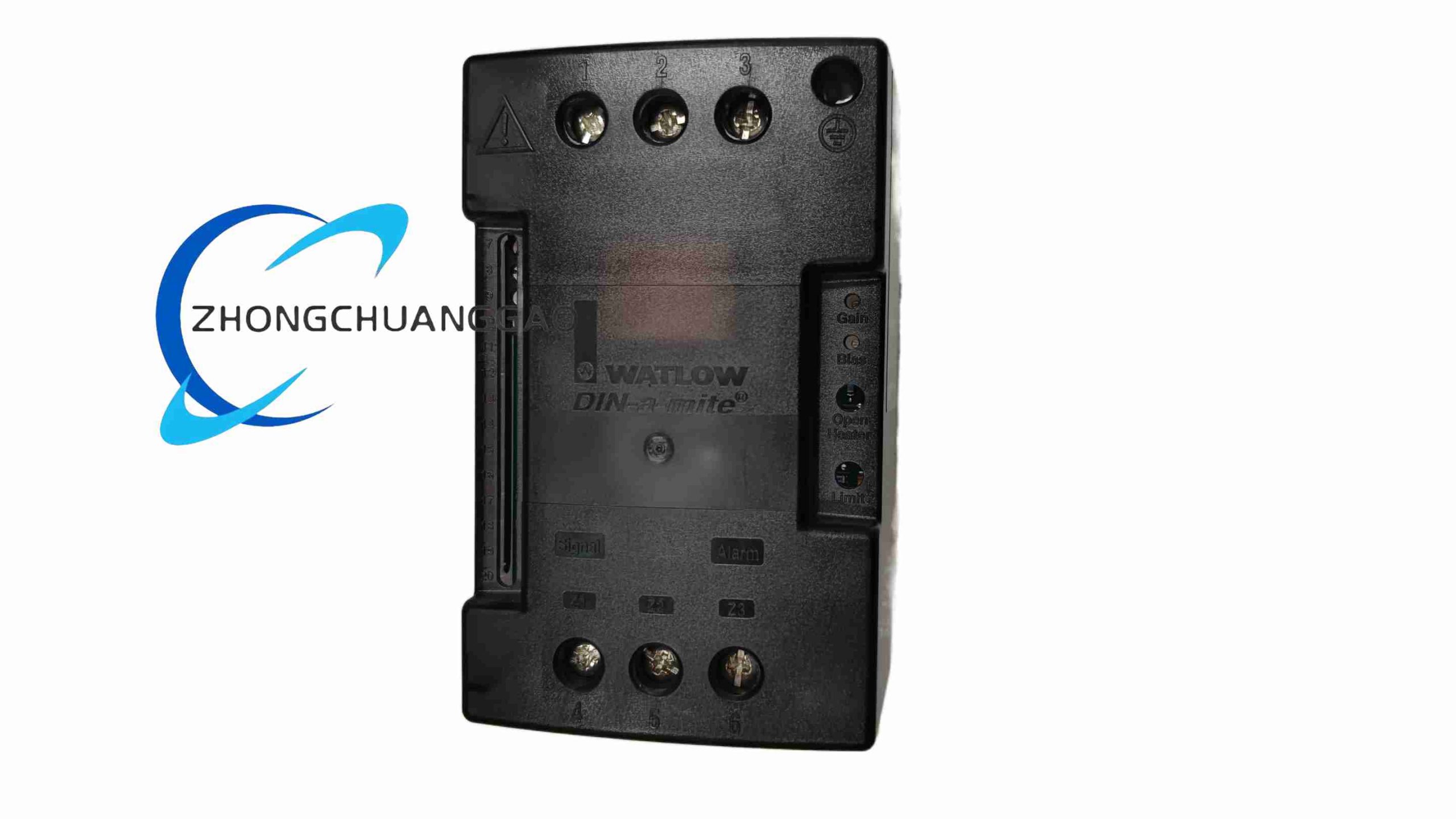

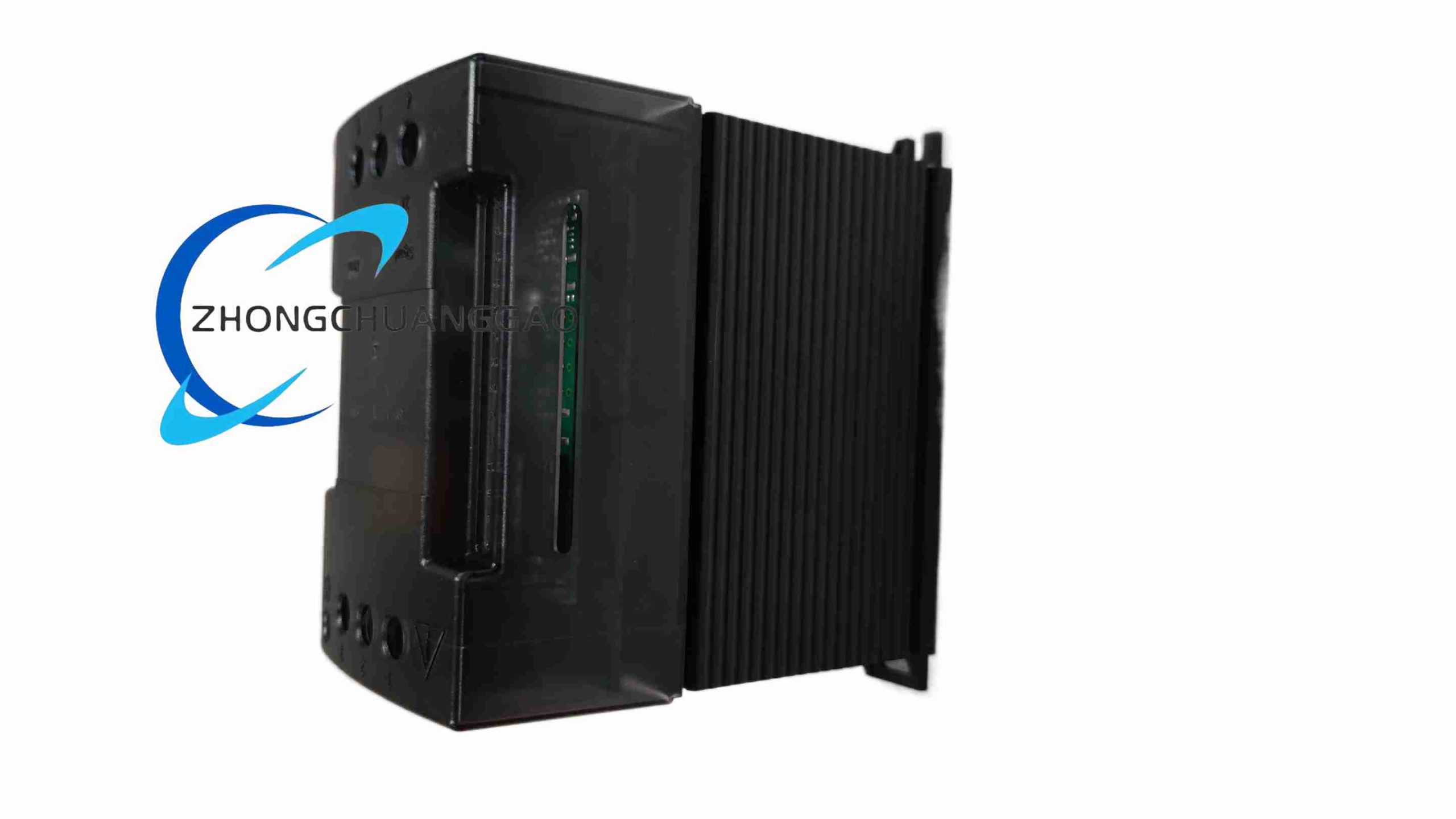

Structural Features: Standard 35 mm DIN‑rail mounting housing; power wiring terminals on lower part; control‑signal terminals on upper part; LED status indicator on front panel; integrated heat sink for natural convection cooling, vertical installation design for heat dissipation optimization.

Working Principle: Receive analog control signal from external temperature controller, adjust SCR thyristor conduction phase angle, change effective output voltage and power supplied to resistive heating load, realize continuous adjustment of heating power, detect heater circuit fault state and trigger alarm signal.

Installation Requirements: Vertical mounting on 35 mm DIN‑rail inside industrial control cabinet; maintain upper‑and‑down ventilation gap for heat‑sink convection cooling; connect load power and control‑signal wiring strictly according to terminal definition; reliable protective ground connection.

Usage Notes: Only apply for resistive heating load; do not operate beyond rated current and voltage; vertical installation direction must be followed for heat dissipation; install external semiconductor fuse for load‑circuit protection; avoid ambient temperature higher than 50 °C; do not cover heat‑sink surface during operation.
