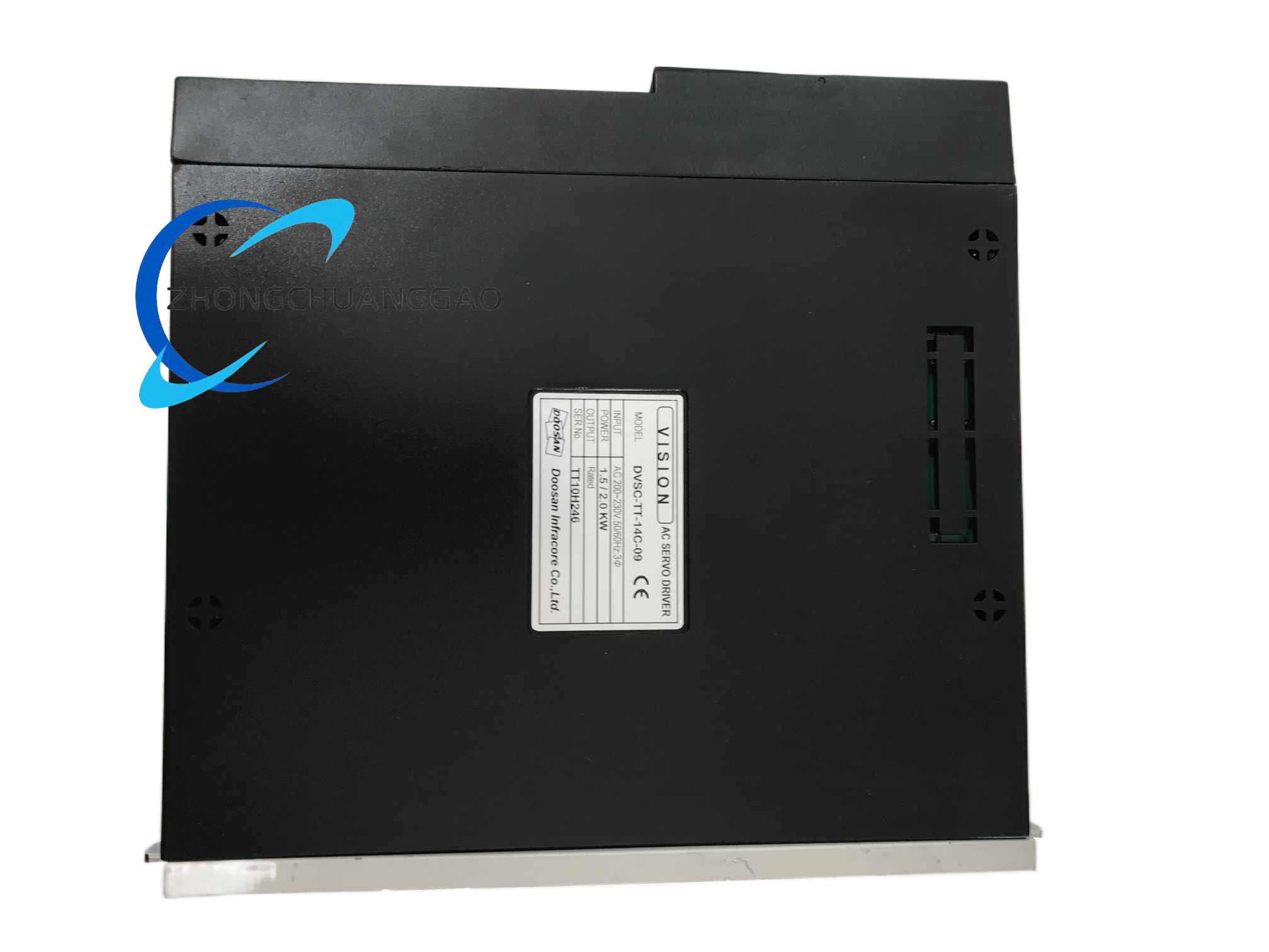

Vision DVSC‑TT‑14C‑09

Functional Features: Position, speed, torque three‑control‑mode switching; pulse‑command input control; Modbus‑bus motion‑command control; built‑in electronic‑gear function; auto‑tuning function for motor‑parameter identification; multiple protection functions including over‑current, over‑voltage, under‑voltage, over‑heat, overload; alarm‑code display; vibration‑suppression filter function; support absolute‑encoder and incremental‑encoder feedback; status‑code display on front‑panel digital tube.

Application Scenarios: Machine‑tool feeding‑axis control; automatic assembly equipment; packaging machinery; printing‑equipment servo‑axis; material‑handling automation equipment; textile machinery; industrial‑robot joint auxiliary‑drive; general‑purpose high‑precision positioning‑automation equipment.

Performance Parameters: Realize closed‑loop servo control according to motor‑encoder feedback signal; support high‑speed dynamic response; auto‑tuning adapts to different load inertia; protection‑mechanism quick‑trigger under abnormal‑working‑condition; conform to industrial‑EMC anti‑interference‑standard; long‑time continuous‑operation stability for industrial‑production‑line environment.

Material Composition: Outer housing: metal sheet‑metal shell; heat‑dissipation part: aluminum‑alloy heat sink; internal circuit board: industrial‑grade power‑PCB; power‑device: IGBT power‑module; signal‑circuit components: microprocessor, encoder‑signal processing chip; wiring terminals: high‑current copper‑terminal and signal‑plastic‑terminal; front‑panel: digital‑tube display and operation‑key membrane‑panel.

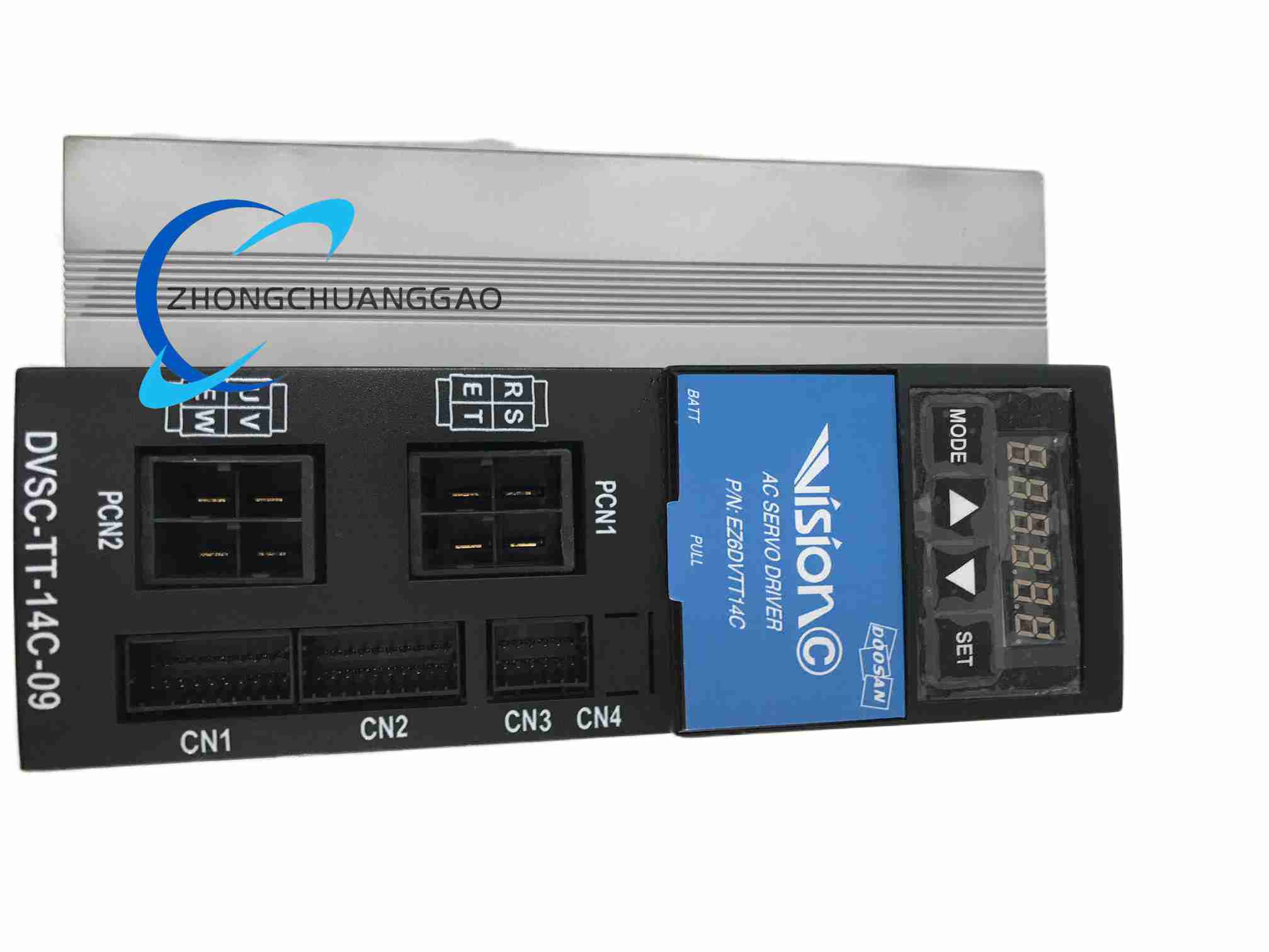

Structural Characteristics: Wall‑mount metal‑sheet‑metal cabinet‑type structure; large‑area aluminum‑alloy heat‑sink on rear‑side for heat dissipation; front‑side digital‑tube display and operation‑buttons; upper‑and‑lower‑side wiring‑terminal area for power‑supply, motor, encoder and I/O‑signal; multiple fixing‑screw holes for wall‑mount installation; internal separation layout for high‑power‑circuit and weak‑signal‑circuit; ventilation‑hole for air‑convection heat‑dissipation on housing shell.

Working Principle: Receive external motion‑command via pulse‑input or Modbus‑RTU bus; read real‑time position‑speed feedback signal from servo‑motor encoder; internal servo‑controller calculates deviation between command‑value and feedback‑value; adjust IGBT power‑module output‑voltage‑frequency to control servo‑motor torque, speed and position; monitor current, voltage and temperature real‑time; trigger protection‑lock‑out and output alarm‑code when detecting abnormal‑parameter.

Installation Requirements: Wall‑mount inside control cabinet, keep sufficient heat‑dissipation‑gap around driver; vertical‑mount orientation; connect three‑phase AC input‑power‑supply according to specification; connect motor‑power‑cable and encoder‑feedback‑cable with dedicated shielded‑cable; distinguish power‑terminal and signal‑terminal strictly; cabinet ground‑wire must connect to driver ground‑terminal reliably; complete motor‑parameter auto‑tuning after power‑on; separate high‑power‑cable and weak‑signal‑cable wiring route.

Usage Notes: Wiring operation must be completed under power‑off status; use shielded‑cable for encoder‑signal wiring and single‑end grounding; do not touch heat‑sink surface after long‑time operation for high‑temperature risk; avoid dust, oil‑mist and corrosive‑gas accumulation inside cabinet; prohibit operating beyond rated‑voltage and rated‑load range; static‑protection measure is required when opening housing for maintenance; do not block housing ventilation‑holes; perform parameter‑backup before parameter‑modification.
