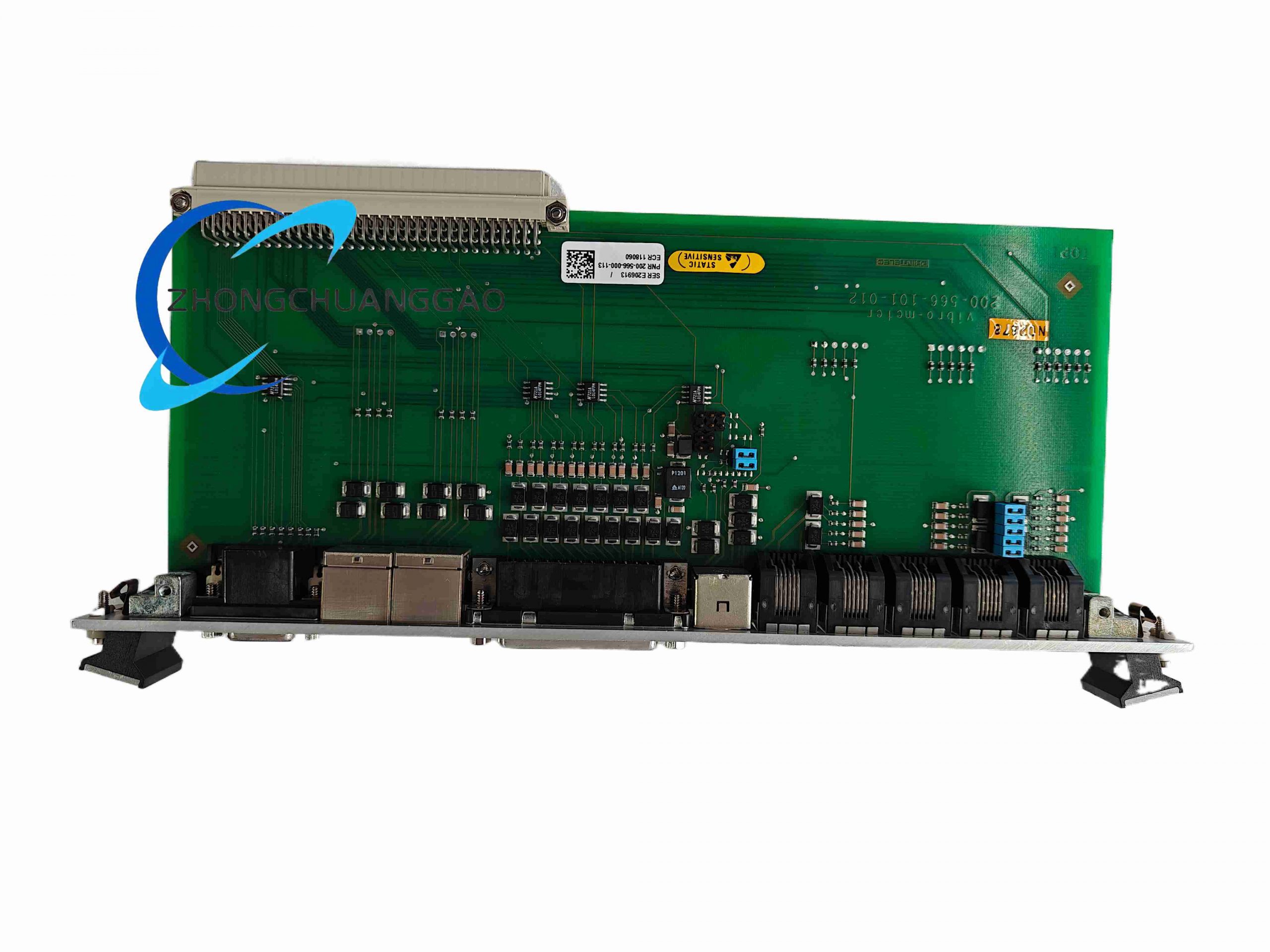

Vibro-Meter IOCN 200-566-000-113 - Image 1

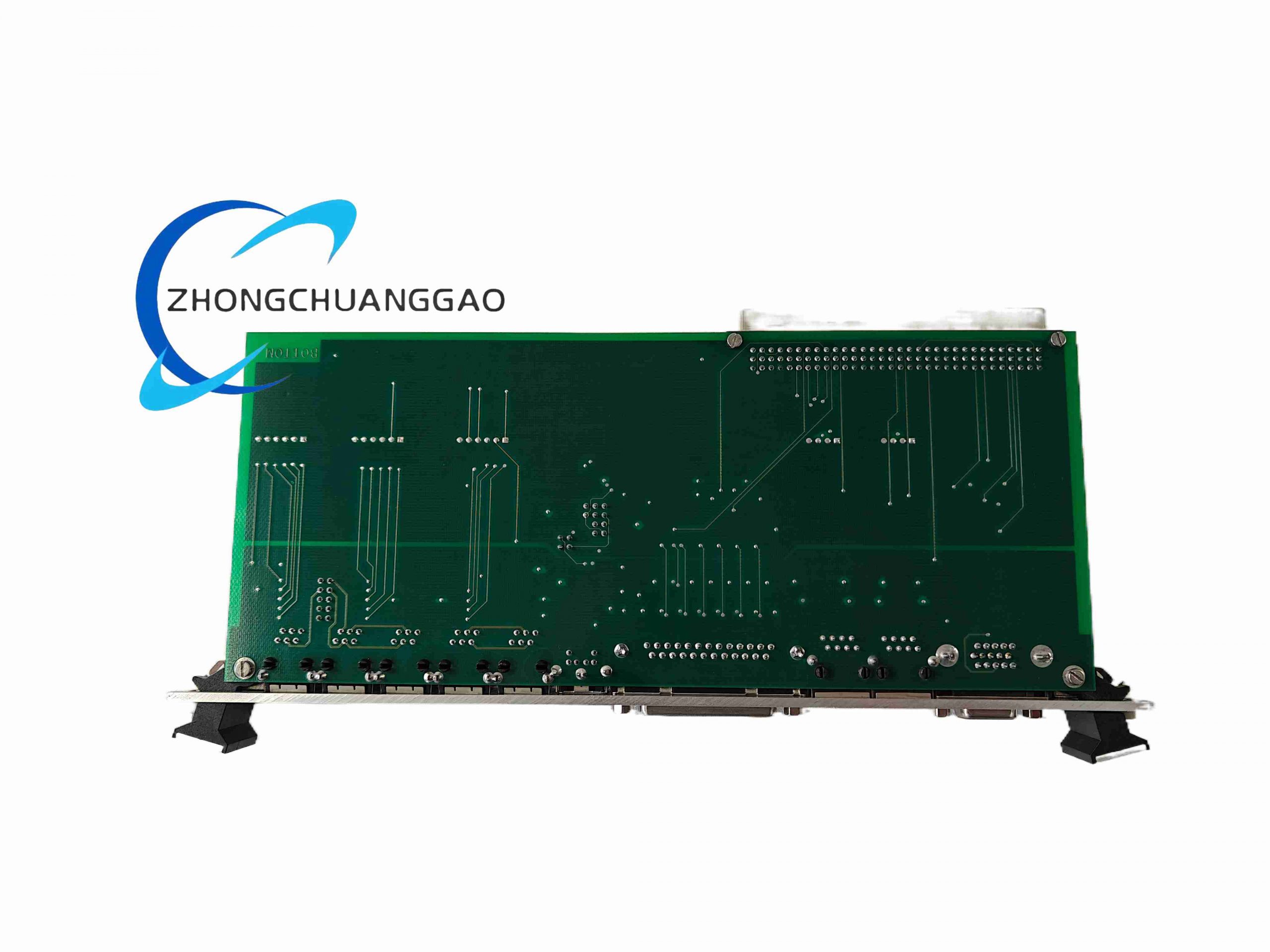

Vibro-Meter IOCN 200-566-000-113 - Image 2
Click to enlarge
Vibro-Meter IOCN 200-566-000-113
Vibro-Meter IOCN 200-566-000-113 - Image 2
Coperion KCM IP65
Coperion KCM IP65
Back to products
Vibro-Meter IOCT16T
Vibro-Meter IOCT16T

Vibro-Meter IOCN 200-566-000-113

  • Product Name: VM600 Series I/O Communication Interface Card (CIC)
  • Product Introduction: A communication gateway module within the Meggitt (formerly Vibro-Meter) VM600 Machinery Protection System (MPS) and Condition Monitoring System (CMS). It bridges field-level vibration/temperature data with higher-level control systems like DCS or SCADA.
Category:
Description
  • Technical Specifications & Performance Parameters:
    • Power Supply: 24 VDC (±10%), typical consumption ≤8W.
    • Communication Interfaces: 1 x Ethernet (Modbus TCP), 1 x RS485 (Modbus RTU), CANopen.
    • I/O Configuration: 8 Digital Inputs (24VDC dry/PNP/NPN), 8 Digital Outputs (Relay/Transistor, 2A/channel). Some variants feature 4 dynamic inputs and 2 tacho inputs.
    • Environmental Tolerance: Operating -20°C to +70°C, storage -40°C to +85°C, anti-vibration 0.7g.
    • Data Handling: Programmable alarm delay (0-10s), event logging up to 10,000 entries.
  • Functional Features:
    • Redundancy Support: Ensures continuous data availability via redundant communication links.
    • Hot-Swappable: Supports live insertion/removal without system shutdown.
    • Remote Diagnostics: Integrated with VibroSight software for remote configuration and channel diagnostics.
    • Protocol Support: Modbus TCP/RTU, PROFINET, Profibus DP.
  • Application Scenarios: Steam/gas turbines, compressors, generators in power plants, oil & gas, and marine propulsion systems.
  • Material & Structural Features: Single-width PCB card housed in a metallic VM600 rack (ABE04x), IP20 protection (chassis mounted), screw-terminal or rear-backplane connections.
  • Working Principle: Receives digitized dynamic/static signals from MPC4 or IOC4T cards via the rack backplane, processes alarm logic, converts data packets to Ethernet/Serial protocols, and transmits status to external hosts.
  • Installation Requirements: Must be installed in a VM600 standard 19-inch rack slot aligned with the backplane guide rails; secure with front panel screws. Requires shielded twisted-pair cabling for communication ports.
  • Usage Notes: Ensure 24VDC polarity is correct before insertion. Do not mix different firmware versions in a redundant pair without consulting the manual. Always verify API 670 compliance settings for safety-critical trips.
