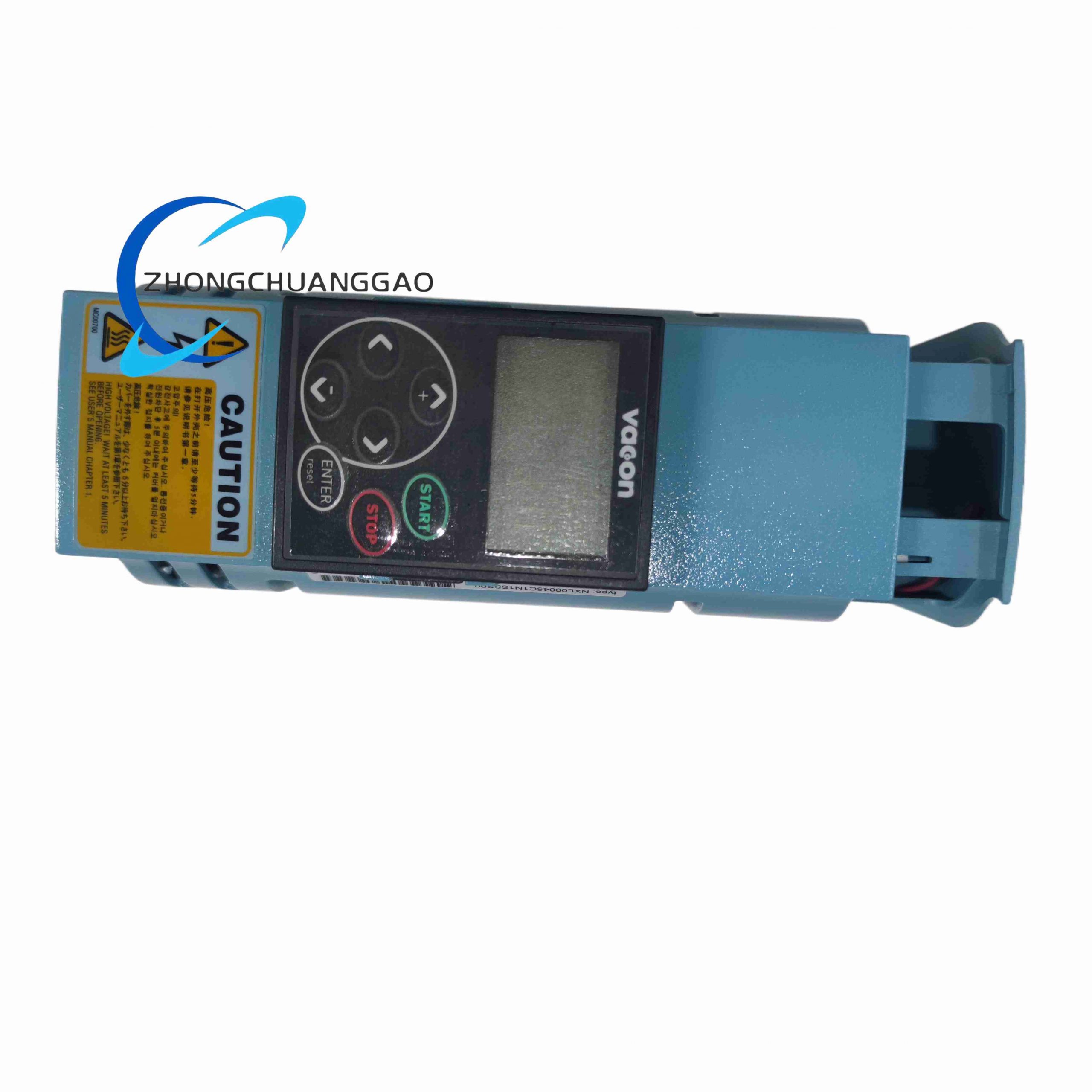

Vacon NXL00045C1N1SSS00 - Image 1

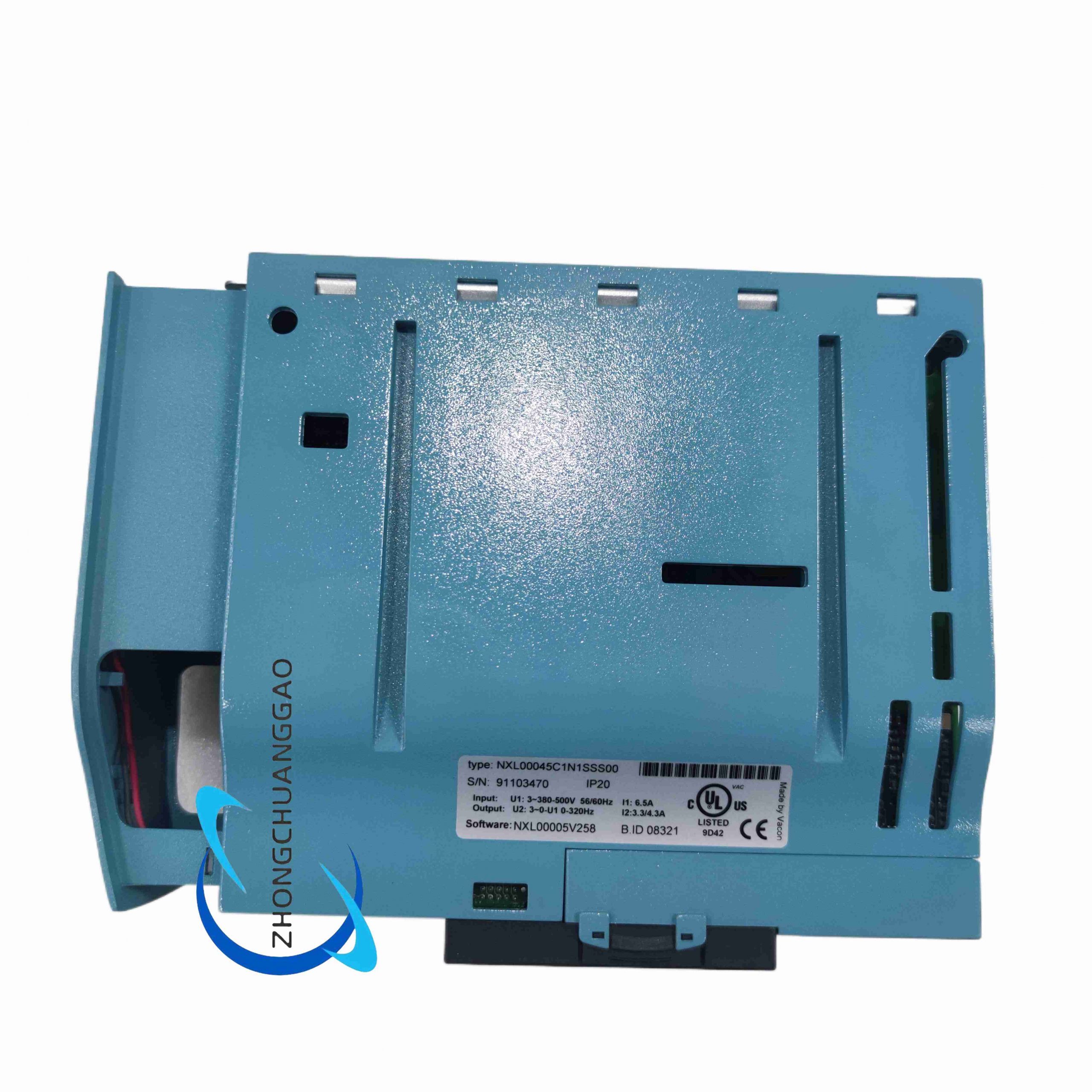

Vacon NXL00045C1N1SSS00 - Image 2

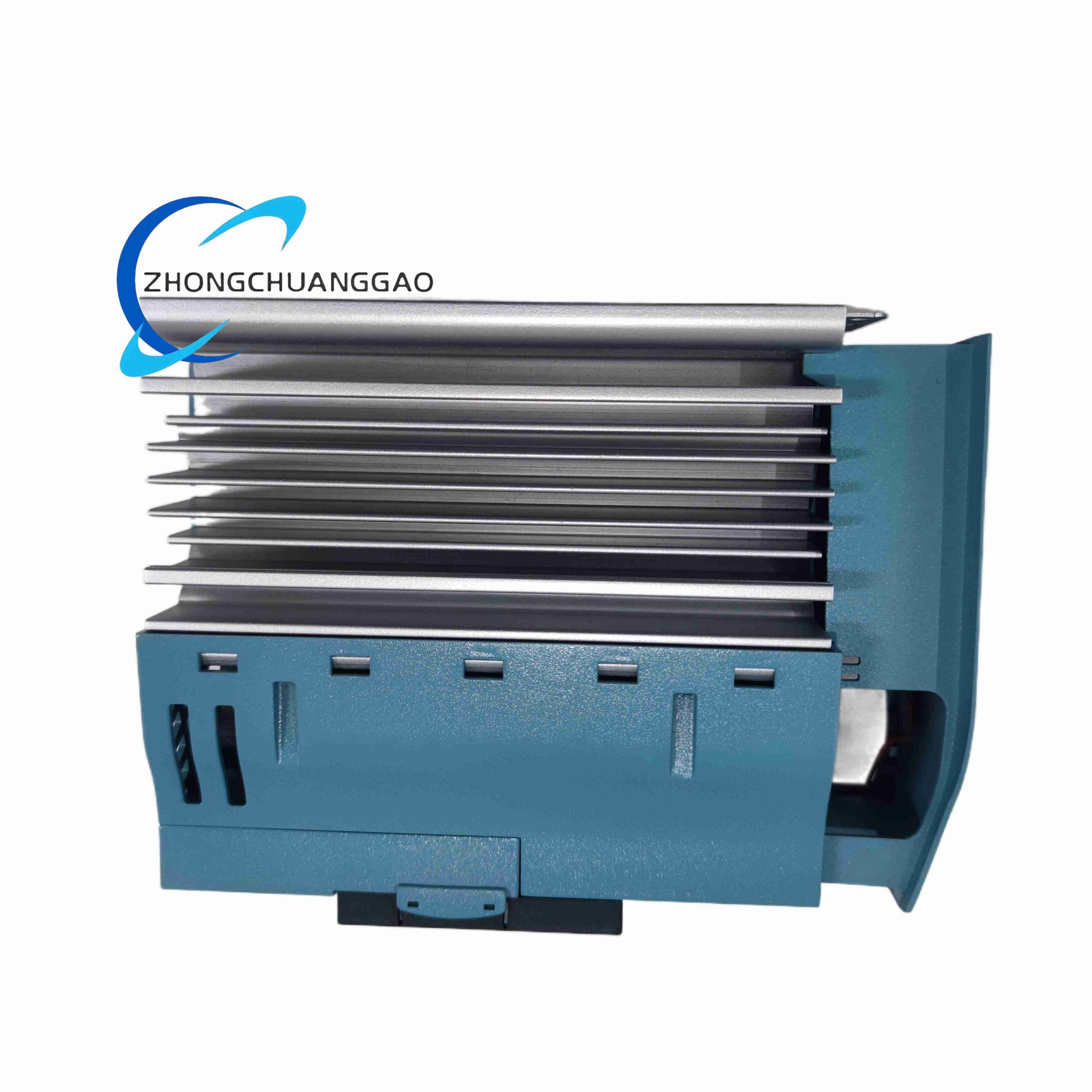

Vacon NXL00045C1N1SSS00 - Image 3
Click to enlarge
Vacon NXL00045C1N1SSS00
Vacon NXL00045C1N1SSS00 - Image 2
Vacon NXL00045C1N1SSS00 - Image 3
Schneider NW-BM85C002
Schneider NW-BM85C002
Back to products
KEBA OF457A K2-400
KEBA OF457A K2-400

Vacon NXL00045C1N1SSS00

Product Name:​ Vacon NXL Compact AC Variable Frequency Drive, 1.1 kW / 1.5 HP
Product Introduction:​ Air-cooled micro-class frequency converter for 380–500 V three-phase motors, size MF3, IP20, built-in brake chopper, standard control keypad, no option boards.
Category:
Description
Type Code Decoding:​ NXL – 00045 (1.1 kW HD / 1.5 kW ND) – C (keypad) – 1 (380–500 V) – N1 (IP20) – SSS (std I/O, internal brake chopper, no EMC filter) – 00 (no option).
Technical Specifications:
  • Supply:​ 380–500 V AC 3-phase, 50/60 Hz
  • Rated current:​ 3.3 A heavy duty (150 % 1 min/10 min), 4.3 A normal duty
  • Output:​ 0–500 Hz, V/f or sensorless vector
  • Dimensions:​ 84 × 184 × 172 mm (W×H×D)
  • Weight:​ 1.9 kg
  • Brake chopper:​ Internal
  • Control:​ 7-seg keypad, analog/digital I/O onboard
  • Fieldbus:​ Optional (none fitted)
  • Standards:​ EN 61800-5-1, EN 61800-3
    Functional Features:​ PID, multi-step speeds, DC brake, stall protection, Modbus RTU via option.
    Working Principle:​ Diode rectifier → DC bus → IGBT 3-phase inverter with SVM modulation; current feedback for vector control.
    Installation:​ Vertical mount, ≥50 mm top/bottom clearance, grounded metal panel, screened motor cable with 360° gland, separate run from mains.
    Usage Notes:​ Must fit external EMC filter for residential/C2; set motor data P2.1.x before run; never measure insulation with megger while drive connected.
