UNIOP EKDC-16 6ZA933-7

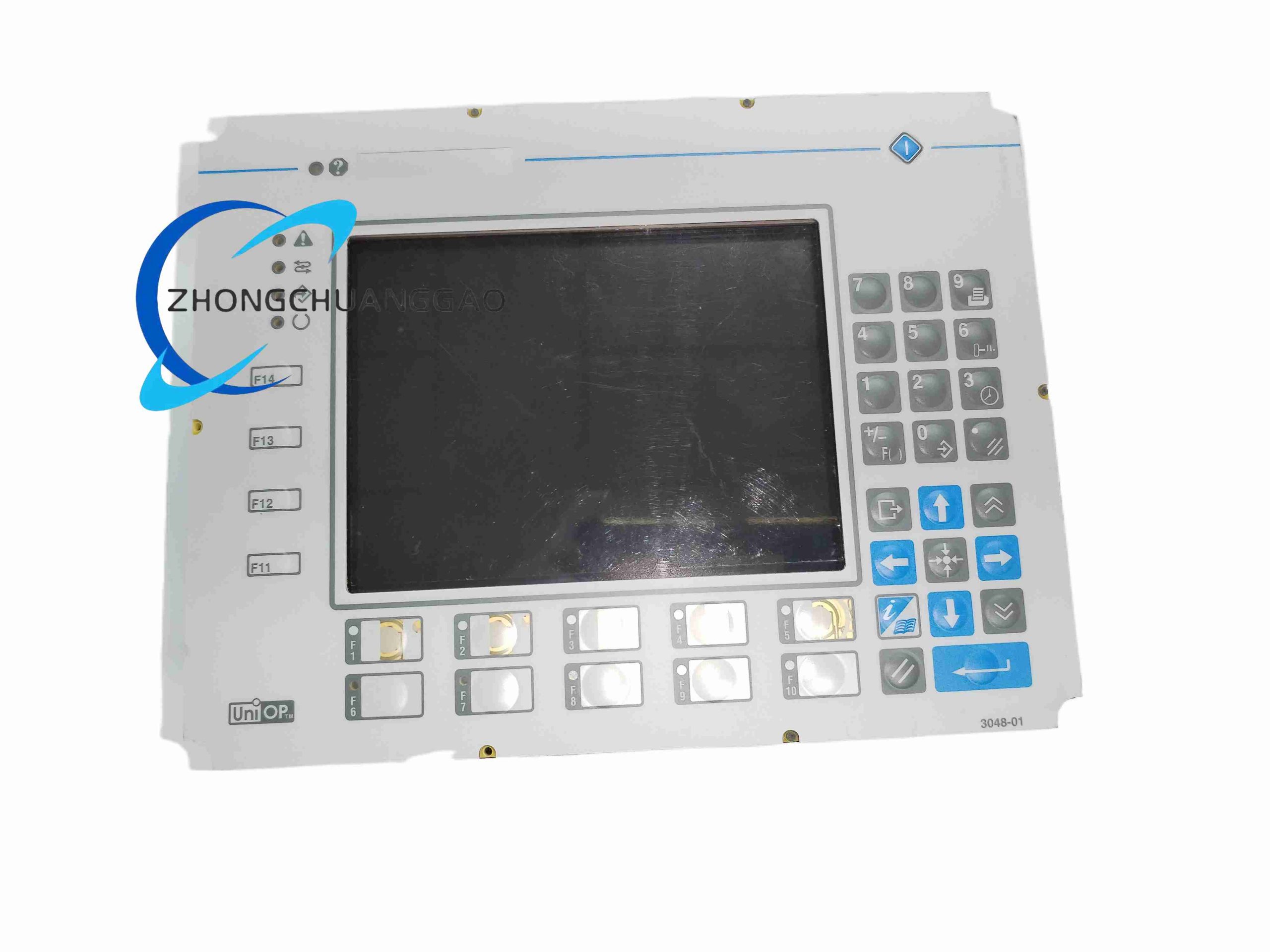

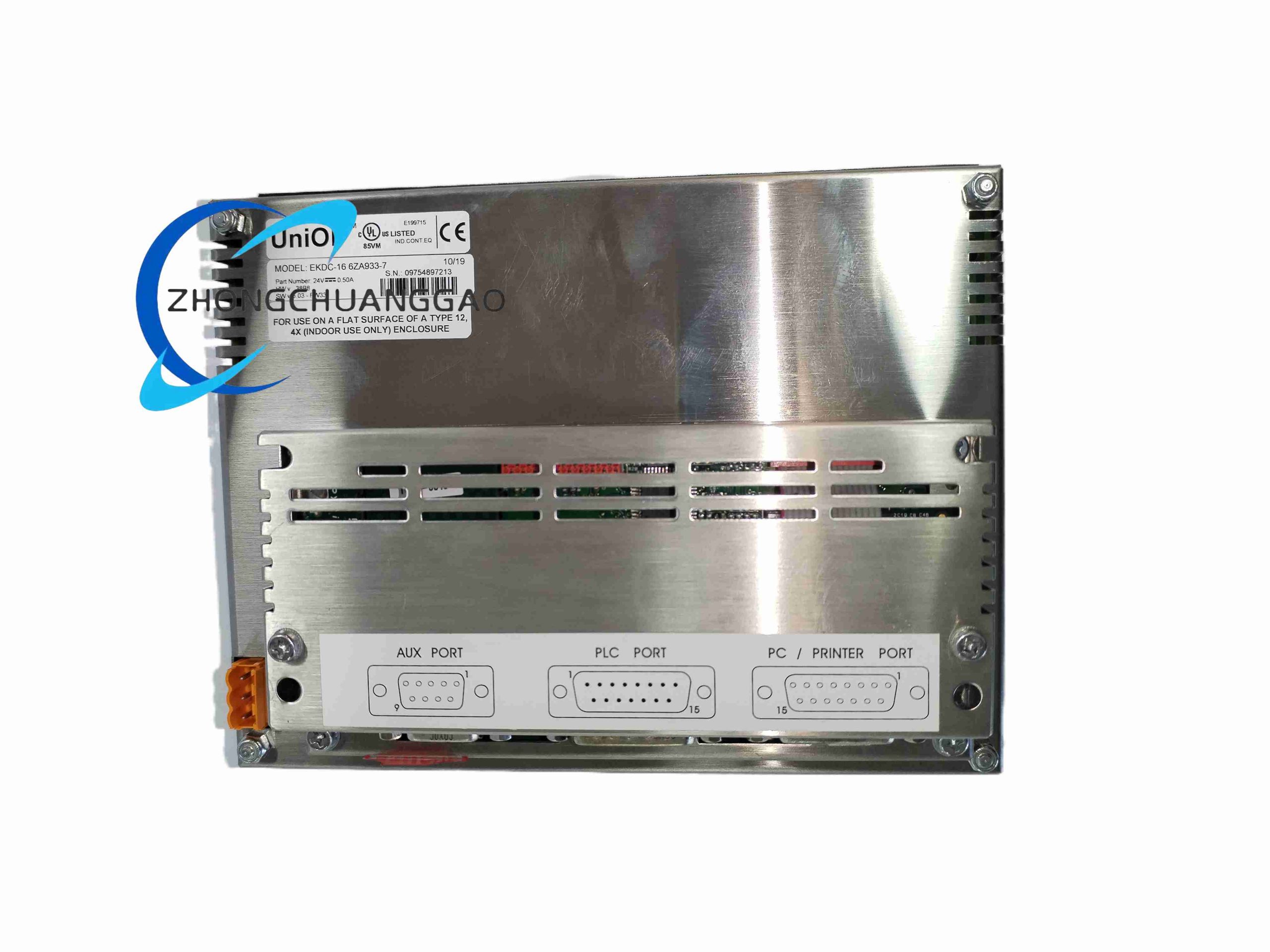

Product Name: UNIOP EKDC-16 6ZA933-7 Human Machine Interface (HMI) Terminal
Product Introduction: The UNIOP EKDC-16 is an industrial HMI operator interface equipped with a TFT LCD touchscreen, designed for machine control, visualization, and data acquisition in automation environments.
Category:
Description
Technical Specifications:
  • Model: EKDC-16 6ZA933-7
  • Display Size: 15.6 inch​ or 16 inch​ (sources vary by revision)
  • Resolution: 1920 x 1080​ (15.6″) or 1024 x 768​ (16″)
  • Touch Type: Capacitive​ or Resistive​ (depending on variant)
  • Processor: Intel Atom E3845​ (on higher-spec 15.6″ variant)
  • Memory: 4 GB​ RAM, 64 GB​ storage (15.6″ variant)
  • Communication: RS-232, RS-485, Ethernet
  • Supply Voltage: 24 V DC​ or AC 100–240 V, 50/60Hz​ (depending on variant)
  • Power Consumption: 35 W​ (AC variant)
  • Operating Temperature: 0°C to +50°C
  • Storage Temperature: -20°C to +60°C
  • Humidity: 20–90% RH​ operating, 10–90% RH​ storage
  • Protection: Front IP65
  • Dimensions: 400 x 300 x 100 mm​ (15.6″) or ~16″​ panel size
  • Material: Aluminum alloy​ housing
    Functional Features: Multi-language interface; trending; alarm management; supports various PLC drivers; remote monitoring via Ethernet.
    Performance Parameters: Intel Atom processor enables complex graphical rendering; Ethernet port supports 10/100/1000 Mbps; touch response optimized for industrial gloves (resistive) or high clarity (capacitive).
    Material Composition: Aluminum alloy rear casing; tempered glass/LCD front; PCB with industrial components.
    Structural Features: Panel mount with sealing gasket; rear I/O compartment; VESA/DIN adaptable mounting points on some variants.
    Working Principle: Runs embedded HMI runtime OS; polls connected controllers via RS-232/485 or Ethernet; renders screens from project file; transmits user touch inputs as control commands.
    Advantage Highlights: Rugged aluminum housing; high-resolution display (1080p​ option); wide communication port selection; fanless operation; IP65 front protection.
    Applicable Industries: CNC machinery, packaging lines, printing, textiles, robotics, energy management.
    Model Series: UNIOP EKDC Series
    Installation Requirements: Cut panel to specified dimensions; ensure IP65 gasket seals against flat surface; torque mounting clips evenly; provide stable 24 V DC​ or AC supply as per variant; ground chassis.
    Usage Precautions: Avoid sharp objects on resistive screen; clean with soft cloth only; ensure ambient 0–50°C​ not exceeded; do not open rear cover in powered state; backup project files before firmware updates; verify voltage input type (24 V DC​ vs 100–240 V AC) before connection.
