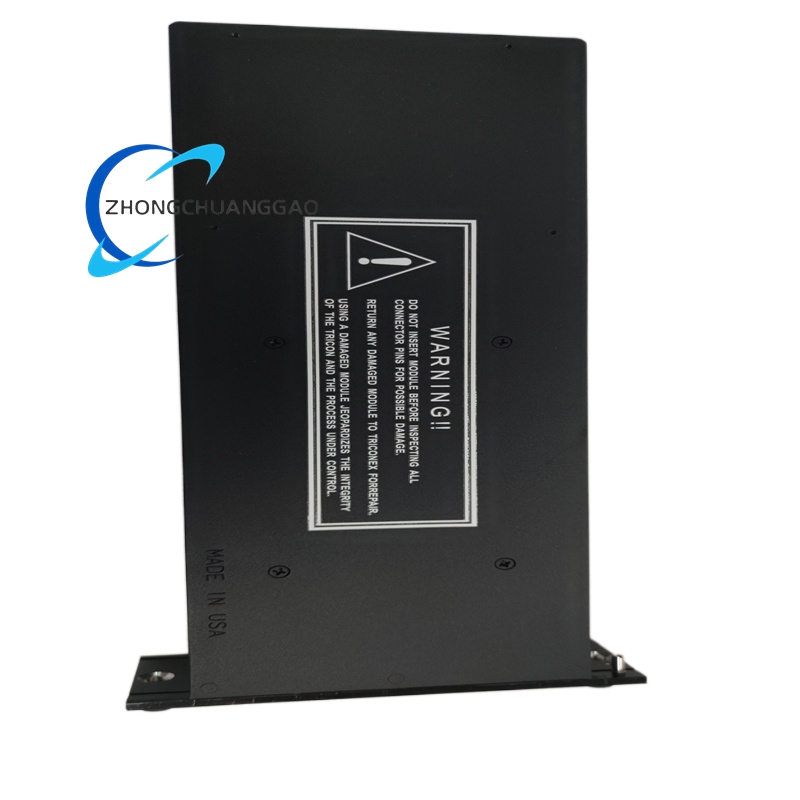

Triconex PS8310

Product Introduction:
The Triconex PS8310 is a high-performance programmable control communication module designed for safety instrumented systems (SIS). It is part of the Triconex family, known for its triple modular redundant (TMR) architecture, which provides exceptional reliability and fault tolerance. The PS8310 is engineered to meet stringent safety requirements in industrial environments, ensuring the integrity and availability of critical control functions.

Category:
Description

Technical Specifications:

  • Communication Protocols: Supports multiple communication protocols, including Modbus, HART, Foundation Fieldbus, and DeviceNet, enabling seamless integration with various industrial devices and systems.
  • Power Supply: Operates on a 24V DC power supply, ensuring compatibility with standard industrial power sources.
  • Input/Output Points: The module supports a high number of I/O points, with up to 750 digital input/output points, 256 analog input points, and 128 analog output points, providing flexibility for diverse control applications.
  • Operating Temperature Range: -40°C to 70°C, allowing it to function reliably in extreme environmental conditions.
  • Shell Material: Constructed from aluminum alloy, offering durability and resistance to corrosion.
  • Safety Certification: Complies with IEC 61508 SIL 3 and ANSI/ISA S84.01 standards, ensuring it meets the highest safety integrity levels.

Functional Characteristics:

  • High Reliability: The TMR architecture ensures that the module continues to operate safely even in the event of a single or dual fault, providing maximum system availability.
  • Scalability: Supports up to 21 modules, allowing for easy expansion and upgrades as system requirements evolve.
  • Flexibility: The module’s wide range of communication protocols and I/O capabilities makes it suitable for various control and monitoring applications.
  • Ease of Configuration and Operation: Utilizes the Tricon toolbox for configuration and operation, featuring a simple graphical user interface and intuitive tools for efficient setup and management.
  • Diagnostic Capabilities: Provides comprehensive diagnostic information, enabling quick identification and resolution of issues to minimize downtime.

Application Scenarios:
The Triconex PS8310 is widely used in industries where safety and reliability are paramount, including:

  • Oil and Gas: For emergency shutdown systems, fire and gas detection, and pipeline monitoring.
  • Chemical Industry: In reaction control, pressure relief, and interlock systems to ensure safe operation of chemical processes.
  • Power Generation: For boiler control, turbine operations, and electrical substation automation, where continuous and safe operation is critical.
  • Nuclear Industry: Ensuring the safe operation of nuclear power plants through reliable control and monitoring systems.
  • Metal Processing: Monitoring and controlling metal smelting and processing operations to prevent accidents and ensure product quality.
