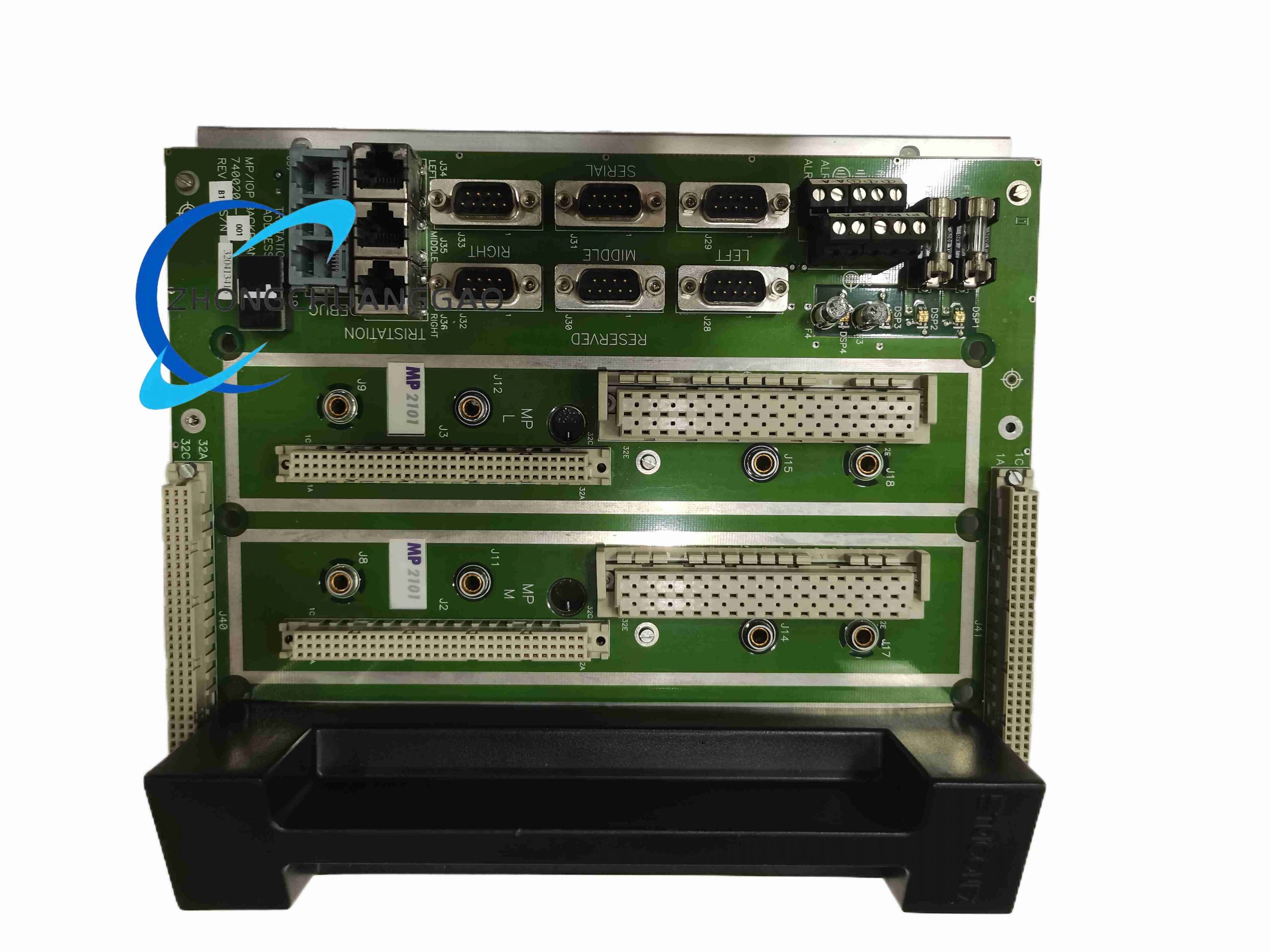

Triconex MP2101

Technical Specifications:

• It is designed for high availability and fault tolerance, ensuring continuous operation even in the event of hardware failures.
• The system supports safety integrity levels up to SIL 3 according to IEC 61508, making it suitable for critical safety applications.
• It operates with a triple modular redundant (TMR) architecture where three independent systems process data simultaneously and compare results to ensure accuracy and reliability.

• Communication Port Parameters
  • It is equipped with three configurable RS - 232/485 serial ports and two Ethernet ports. Some versions can be configured with four serial ports, with a total data transmission rate of 460.8 kilobits per second for all serial ports.
  • The two Ethernet ports include 802.3 copper Ethernet ports and fiber - optic Ethernet ports in different models, with the Ethernet transmission speed reaching 100Mbps.
  • The first serial port can support Modbus or Trimble GPS interface, and the fourth serial port can be configured as Modbus or Tristation interface.
• Power and Electrical Parameters
  • The nominal input voltage is 24V DC, and the working voltage range is 19.2V DC to 30V DC, which can tolerate 5% AC ripple.
  • The maximum power interruption time allowed from the nominal voltage is 1 millisecond, the minimum repetition rate of power interruption is 1 second, and the maximum logic power consumption of the module is 8 watts.

• Output and Signal Parameters
  • It has 4 common - return, DC - coupled output channels, with a 12 - bit resolution and an output accuracy of less than 0.25% of the full - scale range within the 4 - 20mA controlled current range.
  • The output current can reach an over - range of 0 - 22mA and also has a 0mA output capability, with a step function response time of less than 2ms.
  • The typical switch time when a channel fails is 1ms, and the maximum switch time does not exceed 3ms.
• Power and Loop Parameters
  • The nominal external loop power supply is 24V DC, and the maximum allowable voltage is 32V DC, with reverse voltage protection.
  • For a 300Ω load, the loop power supply needs to be over 16V DC with a minimum current of 1A; for an 800Ω load, the loop power supply must be over 28V DC with a minimum current of 1A.
  • It has continuous over - range protection against 36V DC and 0V DC, which effectively protects the internal circuitry from damage due to abnormal voltage.

Technical Specifications

• Processor: Equipped with triple modular redundancy (TMR) architecture for enhanced reliability and fault tolerance
• Communication Interfaces: Supports multiple communication protocols such as Modbus, Ethernet, and proprietary Triconex protocols for integration with different systems
• Memory: Sufficient onboard memory for storing application programs and data, ensuring reliable operation without data loss
• Power Supply: Operates on standard industrial power supplies, typically 24V DC or 110/230V AC depending on configuration
• Operating Temperature: Designed for stable operation within industrial environments, generally from -20°C to +60°C
