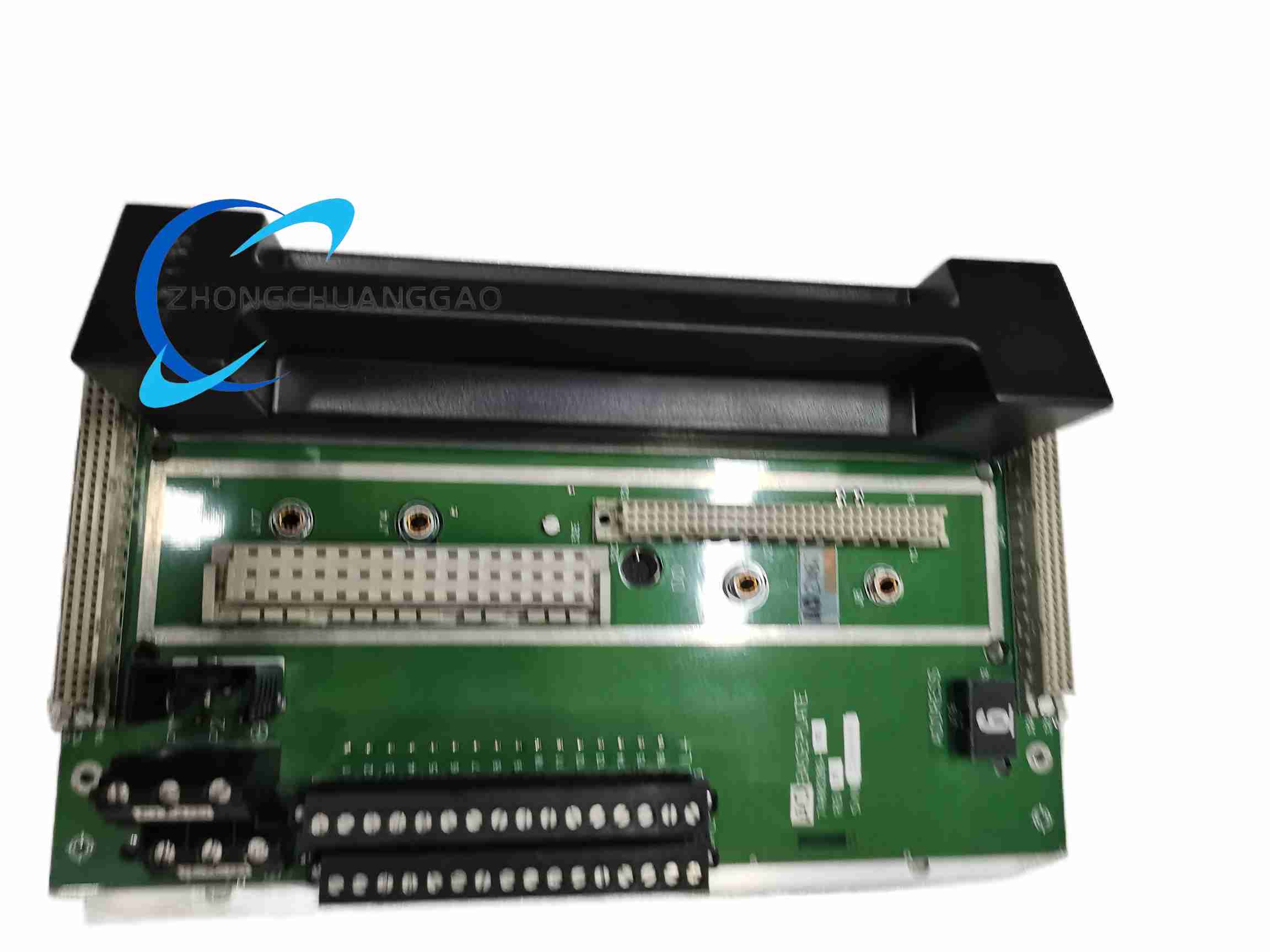

TRICONEX AO2481 - Image 1
TRICONEX AO2481 - Image 2
Click to enlarge
TRICONEX AO2481
TRICONEX AO2481 - Image 2
AJINEXTEK AMW-MC12-DB96P
AJINEXTEK AMW-MC12-DB96P
Back to products

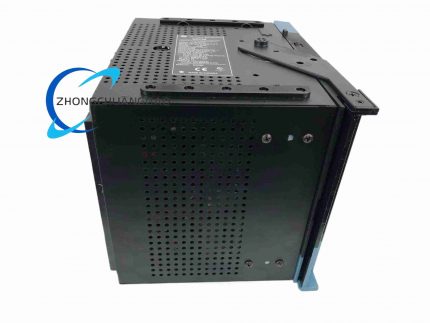

API 4380GD
API 4380GD

TRICONEX AO2481

Product Name: TMR Analog Output Module for Safety Instrumented Systems

Product Introduction: AO2481 is a high-reliability analog output module under the Triconex brand of Schneider Electric. It adopts a triple modular redundancy architecture and complies with SIL3 safety level. It converts digital control signals from safety controllers into standard analog output signals for field actuators, and is widely deployed in safety-critical process industrial control platforms.

Category:
Description

Technical Specifications: Equipped with 32 isolated analog output channels; supports 4-20 mA current loop and ±10 VDC voltage signal output; 16-bit DAC conversion resolution; accuracy ±0.1% of full-scale span; maximum load capacity 750 Ω; isolation voltage 1500 V AC; operating temperature ranges from -40℃ to +70℃.

Functional Features: Triple modular redundancy fault-tolerant design; supports online hot swap; each channel is equipped with an independent LED status indicator; built-in continuous self-diagnosis function; configurable fail-safe output; matched with external termination panel; holds high-level safety certification for the process industry.

Application Scenarios: Oil and gas refining, petrochemical plants, power generation safety control, burner management systems, turbine governing control, flare valve regulation, offshore high-pressure injection control and other safety-related process occasions.

Performance Parameters: MTBF value greater than 100000 hours; response time less than 1 ms; channel-to-channel electrical isolation; loop power supply requires external 24 VDC supply.

Material Composition: Metal reinforced housing; high-reliability industrial PCB; gold-plated backplane connector pins; high-temperature resistant electronic components.

Structural Features: Standard Tricon chassis plug-in card structure; locking screws on both sides; front-panel status indicator array; rear-end high-density backplane connector; matched with external termination panel for field wiring.

Working Principle: Three independent redundant circuit branches receive digital commands from the controller simultaneously; perform voting logic processing to eliminate the influence of single-point faults; convert digital quantities into analog current or voltage signals through the DAC circuit; output to field regulating valves and actuators; perform real-time self-diagnosis on the fault status of each channel.

Installation Requirements: Insert into the designated I/O slot of the Triconex safety chassis; tighten retaining screws to guarantee EMC performance and grounding effect; connect to the external termination panel with authorized special cables; provide external 24 VDC loop power supply for output channels; complete parameter configuration via TriStation 1131 software.

Usage Precautions: Only use original matching termination panels and cables; do not apply over-range loads on output channels; confirm safety-related fail-safe configuration before commissioning; module replacement must follow hot-swap operation procedures; avoid mechanical impact on the circuit board.
